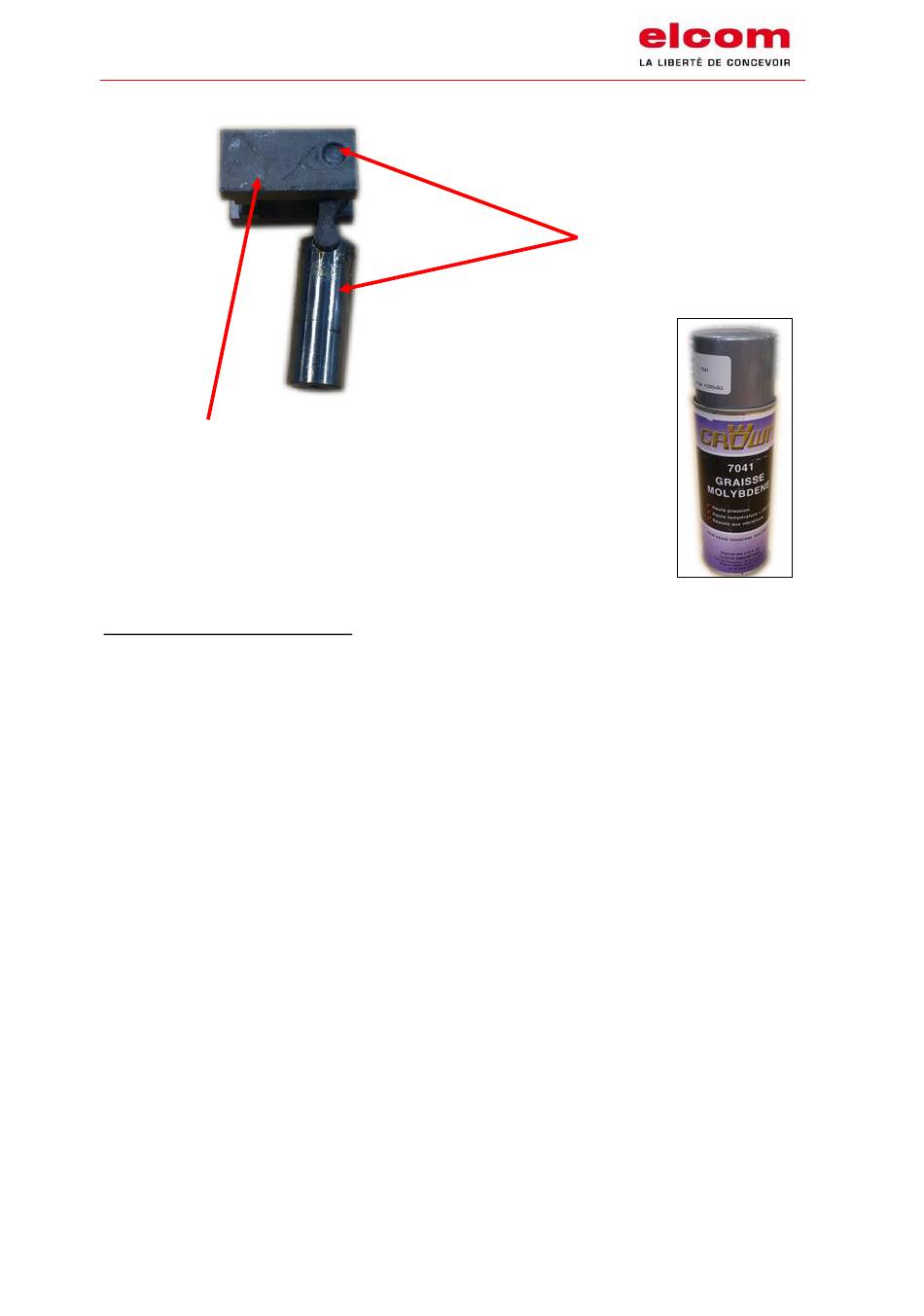

Areas to be lubricated
Drawer (réf 110 11 007)
Lubricate the positioning unit finger with a film of grease.
Use the grease ref. 800 00 002 (Crown, ref. 7041 spray).
Changing pins (locating/centering)
Extract the previous pins with a press.
Put the new pins in place with the press while using the bush of a workpiece carrier as a support
(Insert the locating pin in the bush, and then place the whole back on the positioning unit plate.).
For re assembly, follow the previous steps in reverse order.

4.9 Other transfer parts

The others parts of the transfer system do not need any maintenance. A visual check, looking for
wear or breaking parts is recommended from time to time.
