Appendix; Maintenance Schedule - ELCOM TLM 1000 User Manual & Maintenance Manual

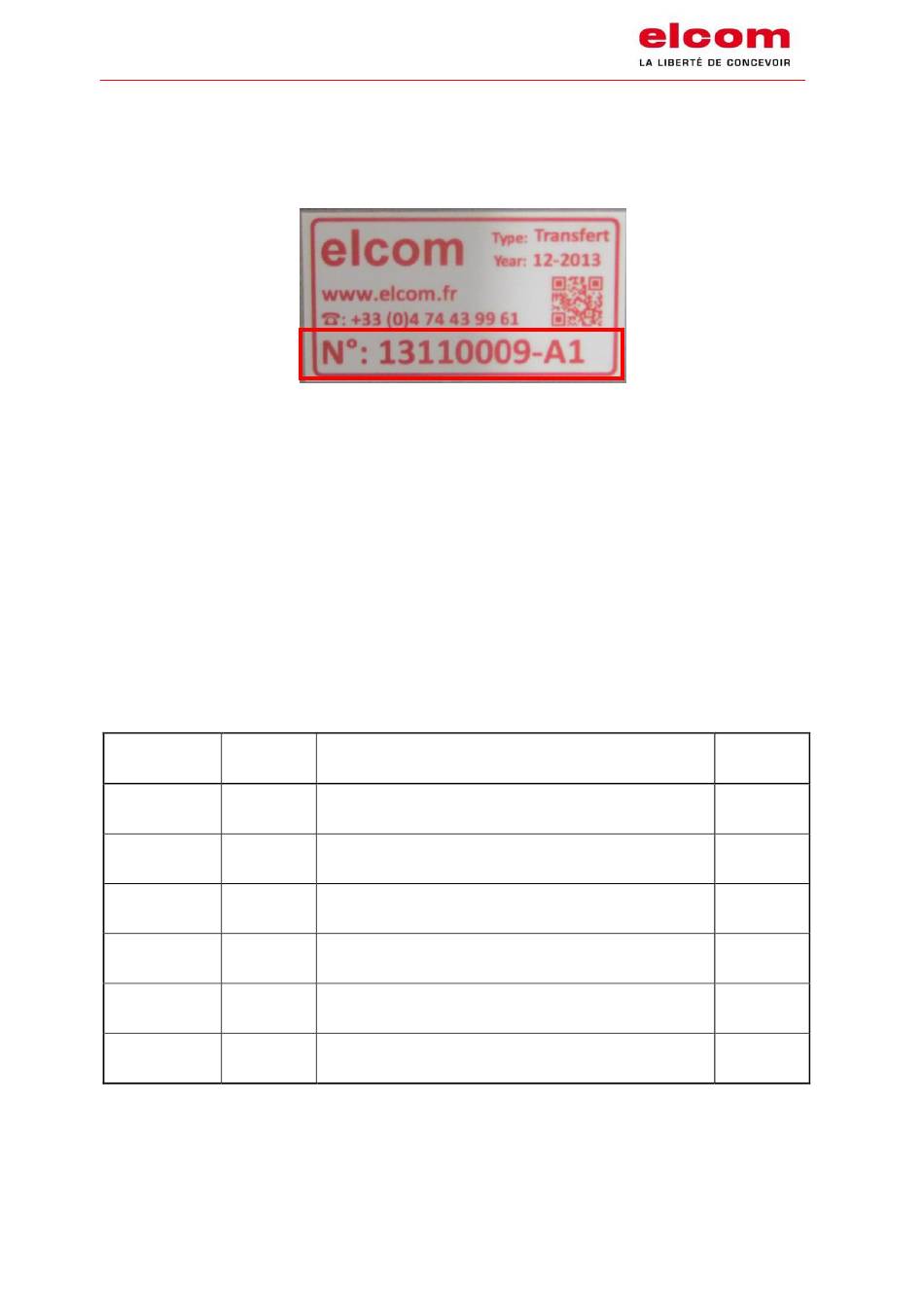

Prior to any contact, please note down the serial number of the transfer system. This number can be
found on the transfer system sticker.

8 APPENDIX

8.1 Maintenance schedule

Maintenance of the modular transfer system
Frequency Action
200 hours To dust
500 hours To check
To
1000 hours
lubricate
To
1000 hours
lubricate
To
3200 hours
lubricate
5000 hours To clean
I02-118 User manual & maintenance guide
of TLM 1000
TLM 1000
Component
Transfer parts
Belt - Belt guide – Workpiece carrier
Positioning units (shaft and cylinder)
Heavy positioning units (shaft, drawer and cylinder)
Conical torque
Stoppers
Version 04
(translation of the original manual)
Chapter
4.5
4.1
4.7
4.8
4.5
4.6
Page 18 sur 25
