4.8 Heavy positioning unit

Disassembly of the heavy positioning unit:
Every 1000 hours:
Lubrication of the drawer (inside and outside)
Use the recommended grease (grease Gulf Crown EP2).
I02-118 User manual & maintenance guide
of TLM 1000

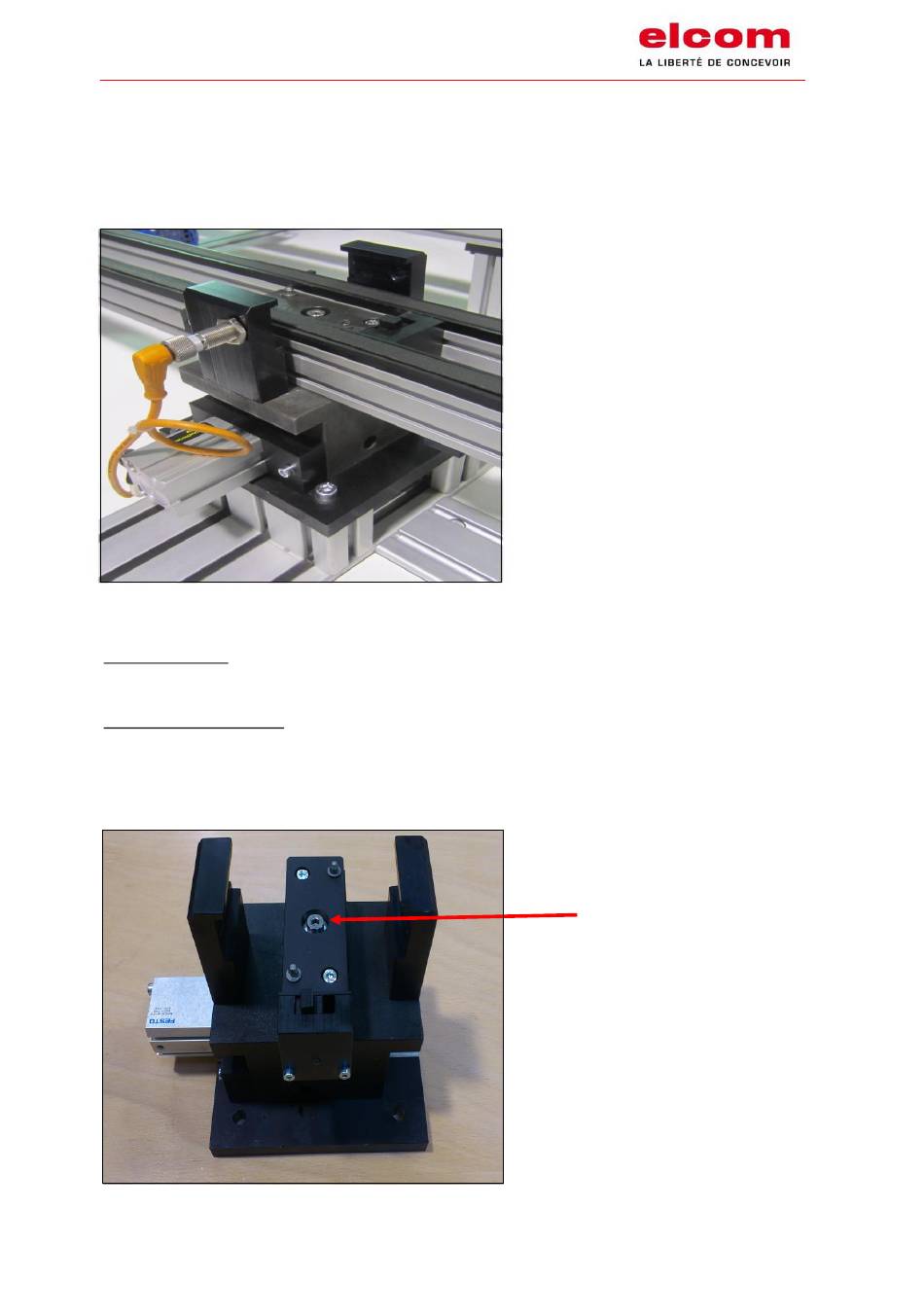

Unscrew the fixing screws that fasten the
positioning unit on the rails.
Take off the positioning unit from the
transfer system.
Unscrew the fixing screw fastening the
plate.
Remove the plate to allow access to the
drawer.
Plate fixing screw
