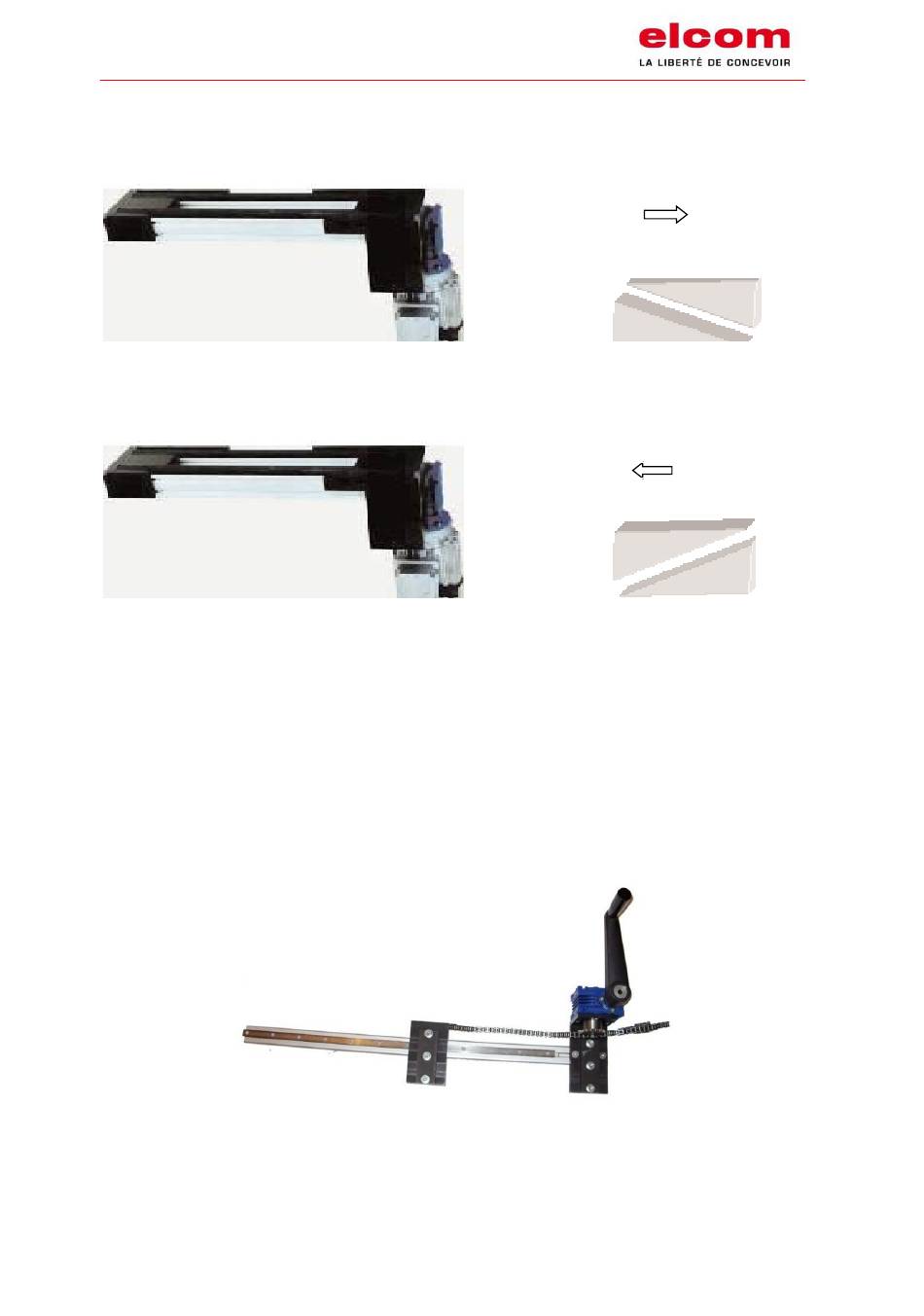

Place the belt on the transfer system.
a) Pull
b)Push
Tension the belt until the bevels are juxtaposed.
Clean both sides of the bevels with alcohol.
Spray glue on both sides of the bevels (Glue expiration date: 1 month after opening. We advise you
to write the opening date on the glue bottle. Do not keep it later than one month after this date).
Place the thermic press correctly aligned with the belt.
Fasten the belt on the press.
Use 2 belt pieces to align perfectly the 2 bevels.
I02-118 User manual & maintenance guide
of TLM 1000
Driving direction
Belt position
Driving direction
Belt position
