5 MOTOR REPLACEMENT
5.1 Disassembly

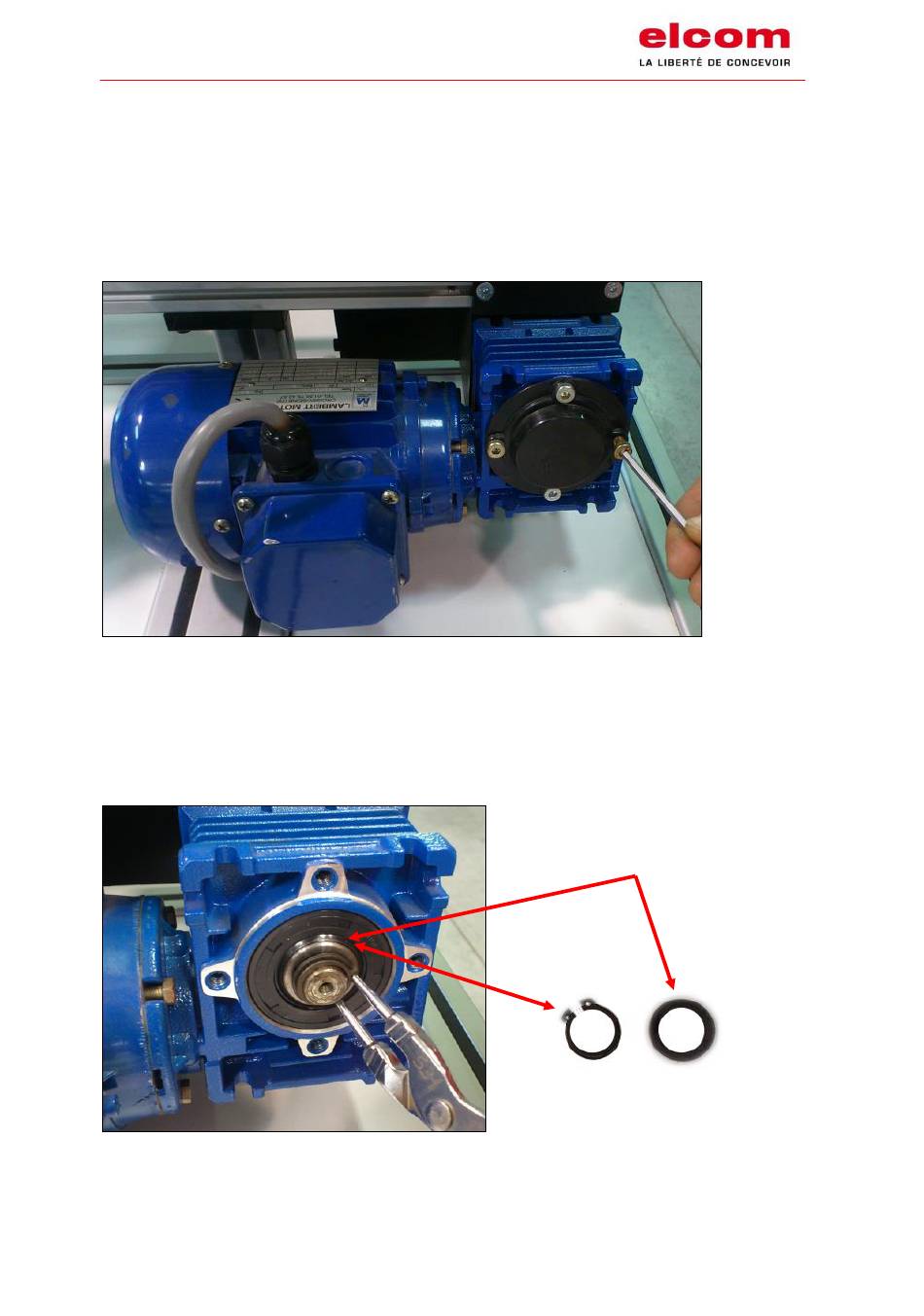

Unscrew the four screws from the plastic cover.
Take the circlip and the washer off.
Washer
Circlip
I02-118 User manual & maintenance guide
Version 04
(translation of the original manual)
of TLM 1000
Page 12 sur 25
