2.5 Changing Node Addresses
NOTE: The state of the address switches is sampled once at power on.
Changing the address later on will have no effect and the software will keep the number read at power on.
To change the address switches follow the below procedure:
1. Turn power off.
2. Disconnect drop cable from option unit.
3. Remove inverter cover.
4. Set address switches for desired address. (SW2 is the 10 times setting, SW3 is the 1 times setting.)

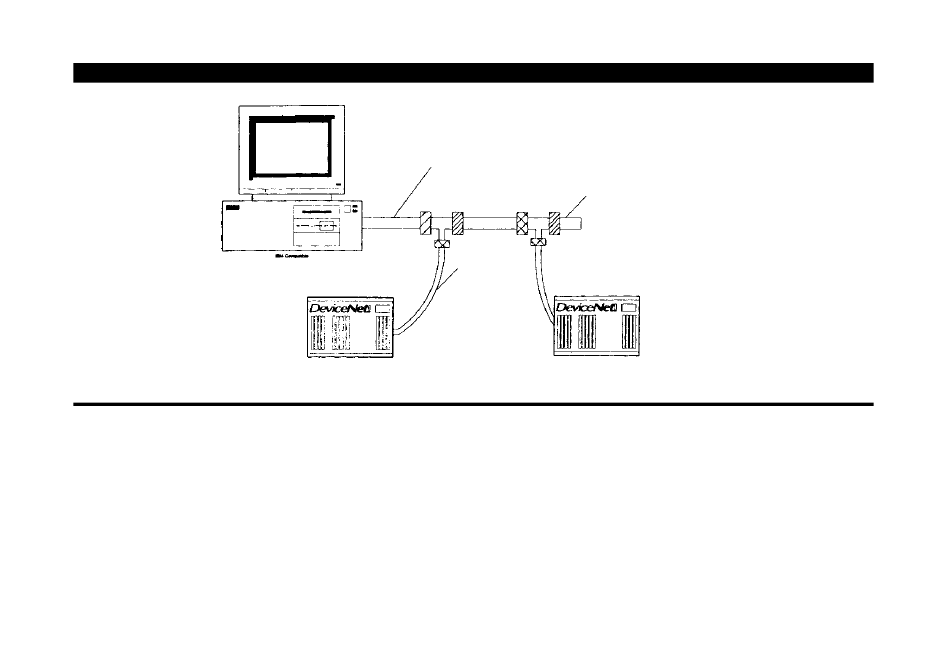

Trunk Cable
Stub Containing
Terminating Resistor
(121Ohms)
Drop
Cable
10
INSTALLATION
