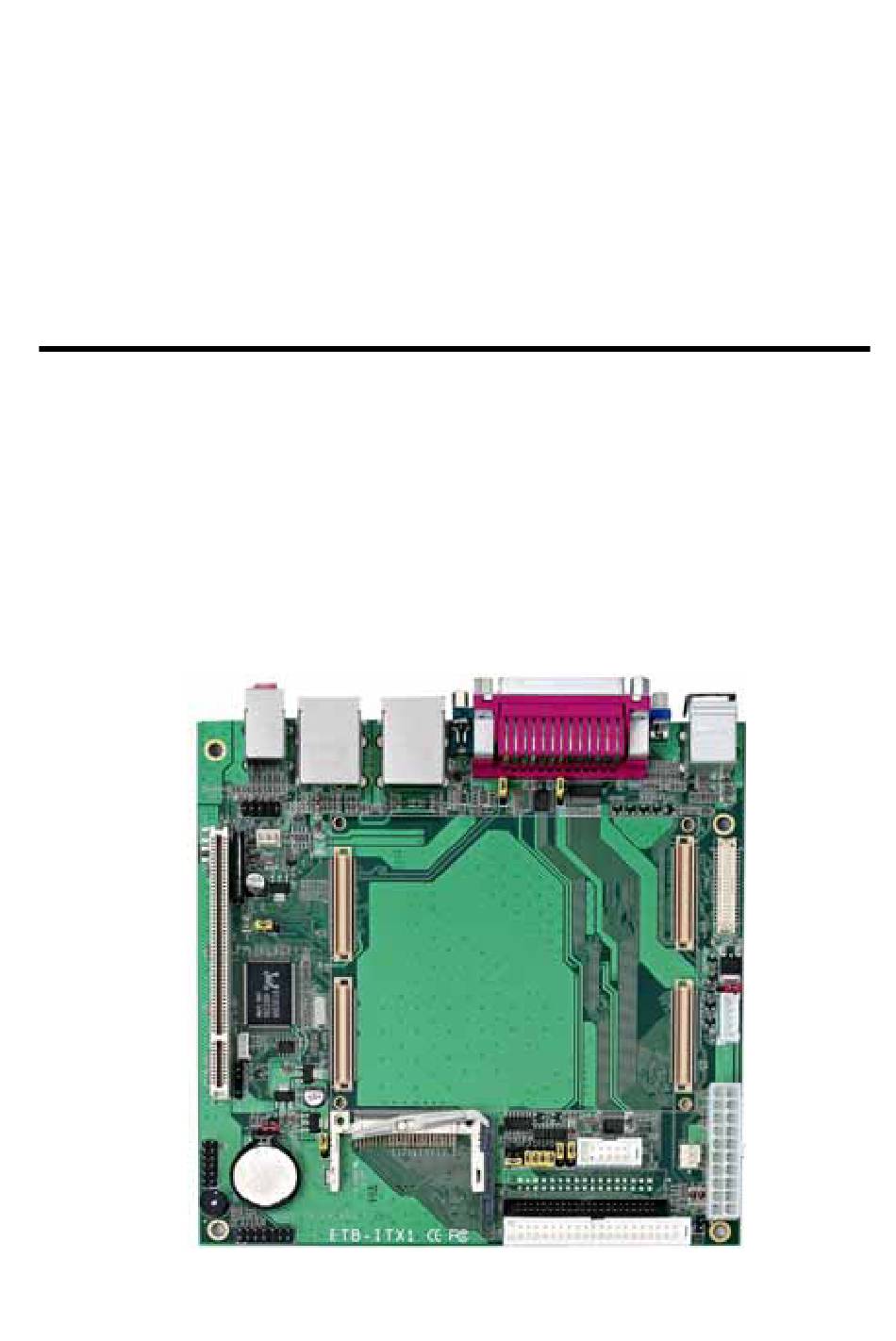

- Page 1 ETB-ITX1 ETX Baseboard User’s Manual Edition 1.0 2006/5/30...
- Page 2 ETB-ITX1 User’s Manual Copyright Copyright 2006 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
- Page 3 ETB-ITX1 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: ETB-ITX1 baseboard x 1 Cable Kit: ATA100 IDE Cable x1 44-pin ATA33 IDE Cable x 1 COM port Cable x 1 Printed Matters:...
-
Page 4: Table Of Contents
ETB-ITX1 User’s Manual Index Chapter 1 <Introduction> ................7 1.1 <Product Overview>................7 1.2 <Product Specification> ..............8 1.3 <Mechanical Drawing>..............10 1.4 <Block Diagram>................11 Chapter 2 <Hardware Setup>................ 13 2.1 <Connector Location>............... 13 2.2 <Jumper Location & Reference> ............14 2.3 <Connector Reference>.............. - Page 5 ETB-ITX1 User’s Manual Appendix B <Flash BIOS>……………………………………………………….34 B.1 <Flash Tool> ..................34 B.2 <Flash BIOS Procedure> ..............34 Contact Information..................35...
- Page 6 ETB-ITX1 User’s Manual (This Page is Left for Blank)
-
Page 7: Chapter 1
Introduction Chapter 1 <Introduction> 1.1 <Product Overview> ETB-ITX1 is the ETX Module baseboard provide VGA, Audio, PCI slot , LVDS, Dual LAN, CF, IDE, Serial Port and LPT Port. All in One multimedia solution The baseboard provides 18/24-bit dual channel LVDS connector and 2 channels Audio, to meet the very requirement of the multimedia application. -
Page 8: Product Specification
ETB-ITX1 User’s Manual Introduction 1.2 <Product Specification> General Specification Form Factor Mini-ITX Baseboard Real Time Clock RTC with lithium battery Enhanced IDE Provide UltraDMA100 IDE interface supports up to 4 ATAPI devices One 40-pin and one 44-pin IDE One Compact Flash Type II socket... - Page 9 ETB-ITX1 User’s Manual Introduction Ethernet Interface Chipset Realtek RTL8100B Type 10/100 Base-T auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Two External RJ45 connectors with LED on rear I/O panel Audio Interface Interface 2 channels sound output Connector External Audio phone jack for Line-out, Line-in, MIC-in.
-
Page 10: Mechanical Drawing
ETB-ITX1 User’s Manual Introduction 1.3 <Mechanical Drawing> Mechanical Drawing... -
Page 11: Block Diagram
ETB-ITX1 User’s Manual Introduction 1.4 <Block Diagram> ETX Module 1 x PCI Slot LVDS RJ45 UltraDMA33/66/100 IDE 4 x USB2.0 ports 10/100 RJ45 IrDA 2 x Serial ports LPT Port KB & MS 8-bit GPIO Block Diagram... - Page 12 ETB-ITX1 User’s Manual (This Page is Left for Blank...
-
Page 13: Chapter 2
ETB-ITX1 User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> IDE1/2 JFRNT CN_DIO ATX1 CN_COM1 SYSFAN1 CN_IR CN_WOL CN_INV CN_LVDS SYSFAN2 CN_AUDIO AUDIO LAN1/2 PS/2 USB1/2/3/4 Connector Location... -
Page 14: Jumper Location & Reference
ETB-ITX1 User’s Manual Hardware Setup 2.2 <Jumper Location & Reference> Jumper Function JVLCD Panel Voltage Setting JDOM IDE Pin-20 voltage setting JC3/4 Setting CN_COM1 power provide JCSEL1 Setting RS232/422/485 JCSEL2 Setting RS232/422/485 JCFSEL Setting CF Master/slave JRTC CMOS Operating/Clear Setting... -
Page 15: Connector Reference
ETB-ITX1 User’s Manual Hardware Setup 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark IDE1 40-pin IDE connector Standard IDE2 44-pin IDE connector Slim Compact Flash Type II socket Standard ATX1 20-pin ATX power input connector Standard CN_AUDIO 5 x 2-pin audio connector... -
Page 16: Enhanced Ide Interface
ETB-ITX1 User’s Manual Hardware Setup 2.4 <Enhanced IDE Interface> The baseboard has two UltraDMA33/66/100 IDE interface to support up to 4 ATAPI devices, with jumper JDOM for Disk on module. The board also provides a Compact Flash Type II socket with jumper (JCFSEL) selectable Slave/Master mode on secondary IDE channel. -
Page 17: Ethernet Interface
ETB-ITX1 User’s Manual Hardware Setup 2.5 <Ethernet Interface> The baseboard provides two RJ45 connectors of 10/100Base-T, with IEEE802.3 compliance one for ETX module（LAN1）. The other for integrates Realtek RTL8100B （LAN2）Ethernet controller. LAN1 LAN2 Ethernet Interface... -
Page 18: Display Interface
ETB-ITX1 User’s Manual Hardware Setup 2.6 <Display Interface> The baseboard provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. 2.6.1 <Analog Display> Please connect your CRT or LCD monitor with DB15 male connector to the onboard DB15 female connector on rear I/O port. -
Page 19: Digital Display
ETB-ITX1 User’s Manual Hardware Setup 2.6.2 <Digital Display> The baseboard provides one 40-pin LVDS connector for 18/24-bit single/dual channel panels, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV JVLCD CN_LVDS Display Interface... - Page 20 ETB-ITX1 User’s Manual Hardware Setup Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 3-pin Power select Header Connector model: JST B5B-XH-A Description Description +12V VCC(5V) LCDVCC VCC3(3.3) ENABKL Connector: CN_LVDS Type: 40-pin connector Connector model: HIROSE DF13-40DP-1.25V Signal...
- Page 21 ETB-ITX1 User’s Manual Hardware Setup To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
-
Page 22: Audio Interface
ETB-ITX1 User’s Manual Hardware Setup 2.7 <Audio Interface> The baseboard provide internal Audio connector and Phone jack on rear I/O. Connector: CN_AUDIO Type: 10-pin (2 x 5) 2.54-pitch header Description Description Line – Right Ground Line – Left Ground Line Out – Left Line Out –... -
Page 23: Serial Port Jumper Setting
ETB-ITX1 User’s Manual Hardware Setup 2.8 <Serial Port Jumper Setting > The board provides two RS232 serial ports, with jumper selectable +5V/+12V output and RS422/485 for CN_COM1. Jumper: JC3/4 Type: onboard 6-pin header Description Description +12V CN_COM1 pin1 CN_COM1 pin9... - Page 24 ETB-ITX1 User’s Manual Hardware Setup JCSEL1 JCSEL2 RS-232 RS-485 RS-422 Serial Port Jumper Setting...
-
Page 25: Gpio Interface
ETB-ITX1 User’s Manual Hardware Setup 2.9 <GPIO Interface> The baseboard provide a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) 2.54mm -pitch header... -
Page 26: Power Supply
ETB-ITX1 User’s Manual Hardware Setup 2.9 <Power Supply> 2.9.1 <Power Input> The baseboard requires standard ATX Power input. Connector: ATX1 Type: 20-pin ATX power connector PIN assignment 3.3V 3.3V -12V 3.3V PS_ON PW_OK 5V_SB ATX1 Power Supply... -
Page 27: Switch And Indicator
ETB-ITX1 User’s Manual Hardware Setup 2.10 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... - Page 28 ETB-ITX1 User’s Manual (This Page is Left for Blank)
-
Page 29: Appendix A
ETB-ITX1 Manual I/O Port Pin Assignment Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE1 Type: 40-pin (20 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IDEIRQ IDE32... - Page 30 ETB-ITX1 User’s Manual Connector: IDE2 Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IDEIRQ IDE32 P66DET -CS1 -CS3 -HD LED1 Ground Ground Ground...
-
Page 31: A.2
ETB-ITX1 Manual I/O Port Pin Assignment A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Ports Description IRRX Ground IRTX A.3 <Serial Port> Connector: COM Type: 9-pin D-sub male connector on rear I/O Description Description Ground Connector: CN_COM1 Type: 5 x 2 box header... -
Page 32: A.4
ETB-ITX1 User’s Manual A.4 <VGA Port> Connector: VGA Type: 15-pin D-sub female connector on rear I/O Description Description Description Ground GREEN Ground BLUE Ground HSYNC VSYNC Ground Ground 5VCLK A.5 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on rear I/O... - Page 33 ETB-ITX1 Manual I/O Port Pin Assignment A.6 < LPT Port > Connector : LPT Type :26-Pin D-Sub female Connector on rear I/O Description Description -PSTB PRO0 PRO1 PRO2 PRO3 PRO4 PRO5 PRO6 PRO7 ACK- BUSY SLCT AFD- ERR- INT- SLIN-...
-
Page 34: Appendix B
ETB-ITX1 User’s Manual Flash BIOS Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/... -
Page 35: Contact Information
Taiwan Commate Computer Inc. Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division Contract Information...
