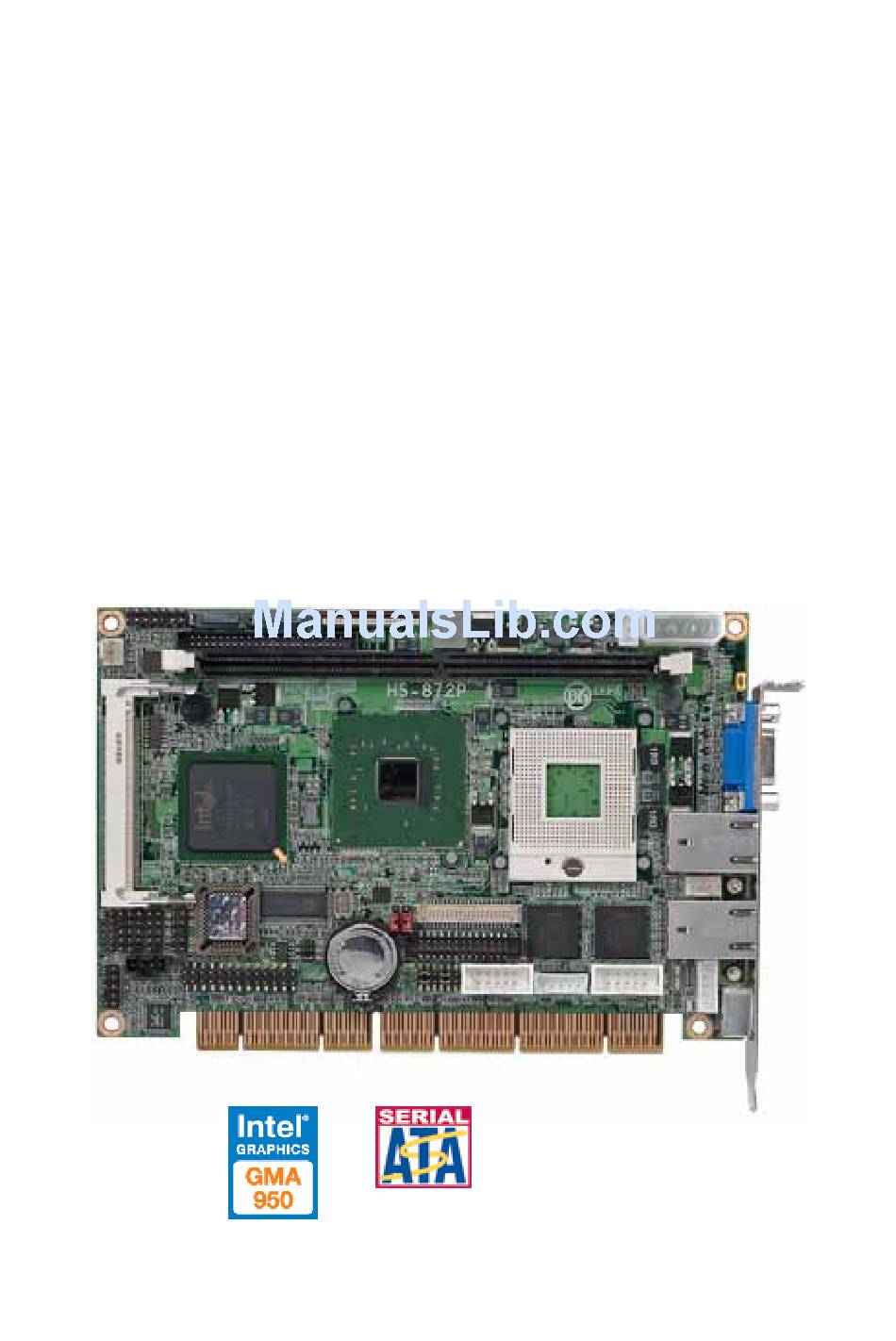

- Page 1 HS-872P(E) Half-size Single Board Computer User’s Manual Edition: 1.3 2011/10/31...
- Page 2 HS-872P(E) User’s Manual Copyright Copyright 2007. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
HS-872P(E) User’s Manual Packing List: Please check the package material before you install the system. Hardware: HS-872P(E) Single Board Computer x 1 Cable Kit: 40pin 44pin 44pin Floppy flat cable x 1 (OALFD/NB) 44-pin ATA33 IDE Cable x 1 (OALUDMA33-8) -
Page 4: Table Of Contents
HS-872P(E) User’s Manual Index Chapter 1 <Introduction>..........6 1.1 <Product Overview> ................6 1.2 <Product Specification> ................ 7 1.3 < Mechanical Drawing > ................ 9 1.4 <Block Diagram>.................. 10 Chapter 2 <Hardware Setup> ........12 2.1 <Connector Location> ................. 12 2.2 <Connector Reference>............... 14 ..............14... - Page 5 HS-872P(E) User’s Manual 2.15 <Switch and Indicator>..............36 Chapter 3 <System Configuration> ......38 3.1 <Video Memory Setup>................ 38 3.2 <Audio Setting>..................40 Chapter 4 <BIOS Setup>..........41 ............42 (This Page is Left for Blank) Appendix A <I/O Port Pin Assignment> ......43 A.1 IDE Port....................
-
Page 6: Chapter 1

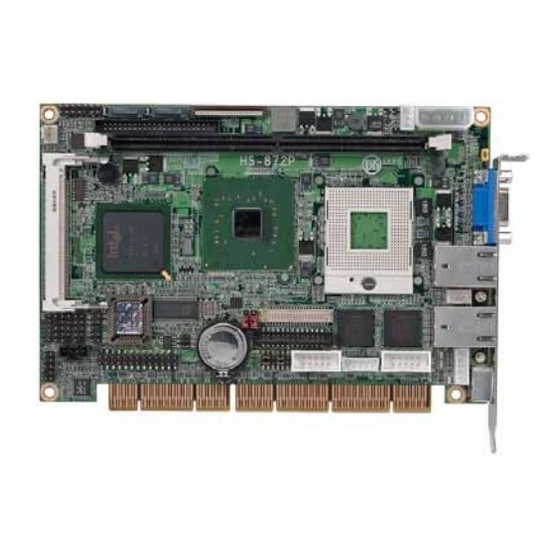

Chapter 1 <Introduction> 1.1 <Product Overview> The HS-872P(E) is an all-in-one single board computer with PISA bus. with supporting Intel Core 2 Duo / Core Duo / Core solo / Celeron M processor for 533/667MHz front side bus, Intel 945GM(E) and ICH7-M chipset, integrated GMA950 graphics, DDR2 SDRAM memory, Realtek AC97 Audio, Serial ATA and two Intel 82573L Gigabit LAN . -
Page 7: Product Specification
HS-872P(E) User’s Manual Introduction 1.2 <Product Specification> General Specification Form Factor Half-size PISA CPU card Intel® Core 2 Duo/ Core Duo/ Core Solo/ Celeron M processor Package type: Micro- FCPGA478 Front side bus: 533/667MHz Memory 1 x 240-pin DDR2 400/533/667MHz SDRAM up to 2GB... - Page 8 HS-872P(E) User’s Manual Introduction Ethernet Interface Chipset Intel 82573L Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector External two RJ45 connectors with LED on rear I/O panel Solid State Disk Interface Flash Type...
-
Page 9: Mechanical Drawing
HS-872P(E) User’s Manual Introduction 1.3 < Mechanical Drawing > Unit: inch Mechanical Drawing... -
Page 10: Block Diagram
HS-872P(E) User’s Manual Introduction 1.4 <Block Diagram> Intel Yonah Processor 1 x 240-pin DDR2 533/667MHz up to Intel GMA950 Graphics HDTV LVDS DVI 945GM(E) 2 x SATA CompactFlash IDE AC97 ALC655 4 x USB2.0 ports ICH7-M Intel 82573L 2 x GLAN... - Page 11 HS-872P(E) User’s Manual (This Page is Left for Blank)
-
Page 12: Chapter 2
HS-872P(E) User’s Manual Hardware Setup Chapter 2 <Hardware Setup> 2.1 <Connector Location> DC_IN CN_PS SATA1/2 JFRNT SYSFAN JCRT DDRII_A MINIPCI CPUFAN CN_USB1/2 CN_LVDS CPUFAN CN_DIO CN_ATKB CN AUDIO CN_COM2 CN_LPT CDIN CN_COM1 CN_DVI CN_INV CN_HDTV CN_IR Connector Location... - Page 13 HS-872P(E) User’s Manual Hardware Setup RJ45_1 RJ45_2 Connector Location...
-
Page 14: Connector Reference
HS-872P(E) User’s Manual Hardware Setup 2.2 <Connector Reference> 2.2.1 <Internal Connector> Connector Function Remark DDRII_A 240 –pin DDR2 SDRAM DIMM socket Standard 44-pin primary IDE connector Slim 26-pin floppy connector Slim S_ATA1/2 7-pin Serial ATA connector Standard DC_IN 4-pin AT power supply connector... -
Page 15: Jumper Reference
HS-872P(E) User’s Manual Hardware Setup 2.3 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD LCD Panel Voltage Setting JCRT CRT attach select setting JCSEL1/2 COM2 RS232/422/485 mode setting JCRT JVLCD JCSEL1 JCSEL2 JRTC Jumper Reference... -
Page 16: Cpu And Memory Setup
HS-872P(E) User’s Manual Hardware Setup 2.4 < CPU and Memory Setup > 2.4.1 <CPU Setup> The board comes with the socket479 for Intel Core 2 Dual/Core Dual /Core solo processor, it supports new generation of Intel Core 2 Dual/Core Dual /Core solo processor with 533/667MHz of front side bus and 2MB L2 cache. -
Page 17: Memory Setup
Hardware Setup 2.4.2 <Memory Setup> HS-872P(E) has one 240-pin DDR2 DIMM support up to 2GB of memory capacity. The memory frequency supports 533/667MHz. Only Non-ECC memory is supported. Dual-Channel technology is supported while applying two same modules on one of each group. -
Page 18: Cmos Setup
HS-872P(E) User’s Manual Hardware Setup 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 19: Enhanced Ide Interface
HS-872P(E) User’s Manual Hardware Setup 2.6 <Enhanced IDE Interface> The board has one Ultra ATA33 IDE interface to support up to 2 ATAPI devices, and one Compact Flash Type II socket on the solder side. Enhanced IDE Interface... -
Page 20: Serial Ata Interface
HS-872P(E) User’s Manual Hardware Setup 2.7 <Serial ATA interface> Based on Intel ICH7-M, the board provides two Serial ATA interfaces with up to 150MB/s of transfer rate SATA1/2 2.8 <LAN Interface> The Intel 82573L supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 21: Analog Vga Interface
HS-872P(E) User’s Manual Hardware Setup 2.9 <Onboard Display Interface> Based on Intel 945GM(E) chipset with built-in GMA (Graphic Media Accelerator) 950 graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT and LCD and DVI and TV-out. -
Page 22: Digital Display
HS-872P(E) User’s Manual Hardware Setup 2.9.2 <Digital Display> The board provides one 40-pin LVDS connector for 18-bit dual channel panels, supports up to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting... - Page 23 HS-872P(E) User’s Manual Hardware Setup Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 3-pin Power select Header Connector model: JST B5B-XH-A Description Description +12V VCC(5V) LCDVCC VCC3(3.3) ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V...
- Page 24 LCD Installation Guide: Preparing the HS-872P(E), LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.
-
Page 25: Dvi Interface
HS-872P(E) User’s Manual Hardware Setup 2.9.3 <DVI Interface > The board also comes with a DVI interface with Chrontel CH7307C for digital video interface. Connector: CN_DVI Connector type: 26-pin header connector (pitch = 2.00mm) Pin Number Assignment Pin Number Assignment... -
Page 26: 4
HS-872P(E) User’s Manual Hardware Setup 2.9.4<TV-out Interface> The board provides an HDTV interface with Intel 945GM(E), supports PAL and NTSC of TV system, and display (clone or extended desktop) function with CRT,LVDS,DVI. Connector: CN_HDTV Connector type: 10-pin header HDTV connector (pitch = 2.54mm) - Page 27 HS-872P(E) User’s Manual Hardware Setup To connect the TV set, please follow the diagram below to setup your system: YPrPb Component Cable (For HDTV) TV-out Interface...
- Page 28 HS-872P(E) User’s Manual Hardware Setup After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form 18 bits Single channel 24 bits Dual channel...
-
Page 29: Onboard Audio Interface
HS-872P(E) User’s Manual Hardware Setup 2.10 <Onboard Audio Interface> T The board provides the onboard AC97 5.1-channel audio interface with Realtek ALC655 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description LIN_L Ground LIN_R MIC 2... -
Page 30: Usb2.0 Interface
HS-872P(E) User’s Manual Hardware Setup 2.11 <USB2.0 Interface> Based on Intel ICH7-M , the board provides 4 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller ICH7-M Transfer Rate Up to 480Mb/s Output Voltage... - Page 31 HS-872P(E) User’s Manual Hardware Setup Connector: CN_IR Type: 5-pin header for SIR Port Description IRRX Ground IRTX Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for USB Port Description Description Data0- Data1- Data0+ Data1+ Ground Ground Ground PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you insert an USB1.1 device, the port will be changed to USB1.1 protocol automatically.
-
Page 32: Serial Port Jumper Setting
HS-872P(E) User’s Manual Hardware Setup 2.12 <Serial Port Jumper Setting > The board supports one RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. Connector: CN_COM1/2 Type: 10-pin (5 x 2) 2.54mm x 2.54mm-pitch header for COM2... -
Page 33: Power And Fan Installation
HS-872P(E) User’s Manual Hardware Setup CN_COM1 CN_COM2 2.13 <Power and Fan Installation> The board comes with a 4-pin AT power connector for powering the board, three fan connectors for Northbridge, CPU and system. The board also provides a 3-pin ATX function connector. -
Page 34: Fan Connectors
HS-872P(E) User’s Manual Hardware Setup 2.13.2 <Fan Connectors> Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V Fan Speed Detection Fan Control Connector: SYSFAN Type: 3-pin fan wafer connector Pin Description Description Pin Description Ground +12V Fan Speed Detection... - Page 35 HS-872P(E) User’s Manual Hardware Setup 2.14 <GPIO Interface> The board provides a 12-pin General Purpose I/O interface, with programmable 8-bit I/O (4-bit input & 4-bit output). Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description Description Ground Ground GP10...
-
Page 36: Switch And Indicator
HS-872P(E) User’s Manual Hardware Setup 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... - Page 37 HS-872P(E) User’s Manual (This Page is Left for Blank)
-
Page 38: Chapter 3
HS-872P(E) User’s Manual System Configuration Chapter 3 <System Configuration> 3.1 <Video Memory Setup> Based on Intel® 945GM(E) chipset with GMA (Graphic Media Accelerator) 950, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory to be allocated up to 224MB. - Page 39 HS-872P(E) User’s Manual System Configuration Fixed + DVMT Memory Size: You can select the fixed amount and the DVMT amount at the same time for a guaranteed video memory and additional dynamic video memory, please check the table below for available setting.
-
Page 40: Audio Setting
HS-872P(E) User’s Manual System Configuration 3.2 <Audio Setting> The board integrates Intel® ICH7 with REALTEK® ALC655 codec. It can support 2-channel or 5.1 channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK AC97 Audio driver. -
Page 41: Chapter 4
HS-872P(E) User’s Manual BIOS Setup Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. -
Page 42: (This Page Is Left For Blank)
HS-872P(E) User’s Manual (This Page is Left for Blank) -
Page 43: Appendix A
HS-872P(E) User’s Manual I/O Port Pin Assignment Appendix A <I/O Port Pin Assignment> A.1 IDE Port Connector: IDE Type: 44-pin (22 x 2) box header Description Description Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IDEIRQ... -
Page 44: Floppy Port
HS-872P(E) User’s Manual I/O Port Pin Assignment A.3 < Floppy Port > Connector: FDD Type: 26-pin connector Description Description INDEX DSKCHG MTR0 DRVDE0 STEP Ground WRITE DATA Ground WRITE GATE Ground TRAK 0 WRPTO Ground RDATA- Ground HDSEL A.4 <Serial Port>... -
Page 45: Vga Port
HS-872P(E) User’s Manual I/O Port Pin Assignment A.6 <VGA Port> Connector: CRT Type: 15-pin D-sub female connector on bracket Description Description Description Ground GREEN Ground 5VCDA BLUE Ground HSYNC LVGA5V VSYNC Ground Ground 5VCLK A.7 <LAN Port> Connector: RJ45_1/2 Type: RJ45 connector with LED on rear panel Description A.8 <... -
Page 46: At Keyboard Port
HS-872P(E) User’s Manual I/O Port Pin Assignment A.9 <AT Keyboard Port> Connector: CN_ATKB Type: 5-pin box header Description Ground DATA A.10 <PS/2 Keyboard & Mouse Port> Connector: PS2 Type: 6-pin Mini-DIN connector on bracket Description Ground Note: The PS/2 connector supports standard PS/2 keyboard directly or both PS/2 keyboard and mouse through the PS/2 Y-type cable. - Page 47 HS-872P(E) User’s Manual (This Page is Left for Blank)
-
Page 48: Appendix B
The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.award.com h ttp://www.commell.com.tw/support/support.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS. -
Page 49: Appendix C
HS-872P(E) User’s Manual System Resources Appendix C <System Resources> C1.<I/O Port Address Map> I/O Port Address Map... - Page 50 HS-872P(E) User’s Manual System Resources I/O Port Address Map...
- Page 51 HS-872P(E) User’s Manual System Resources C2.<Memory Address Map> Memory Address Map...
- Page 52 HS-872P(E) User’s Manual System Resources C3.<System IRQ Resources> System IRQ Resources...
-
Page 53: Appendix D
HS-872P(E) User’s Manual Programming GPIO’s Appendix D <Programming GPIO’s> The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0...GPIO7 bit0……bit7 -o 4E 87 ;enter configuration... -
Page 54: Appendix E
HS-872P(E) User’s Manual Watch Dog timer Setting Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. - Page 55 HS-872P(E) User’s Manual (This Page is Left for Blank)
-
Page 56: Contact Information
HS-872P(E) User’s Manual Contact Information Contact Information Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business Taiwan Commate Computer Inc.
