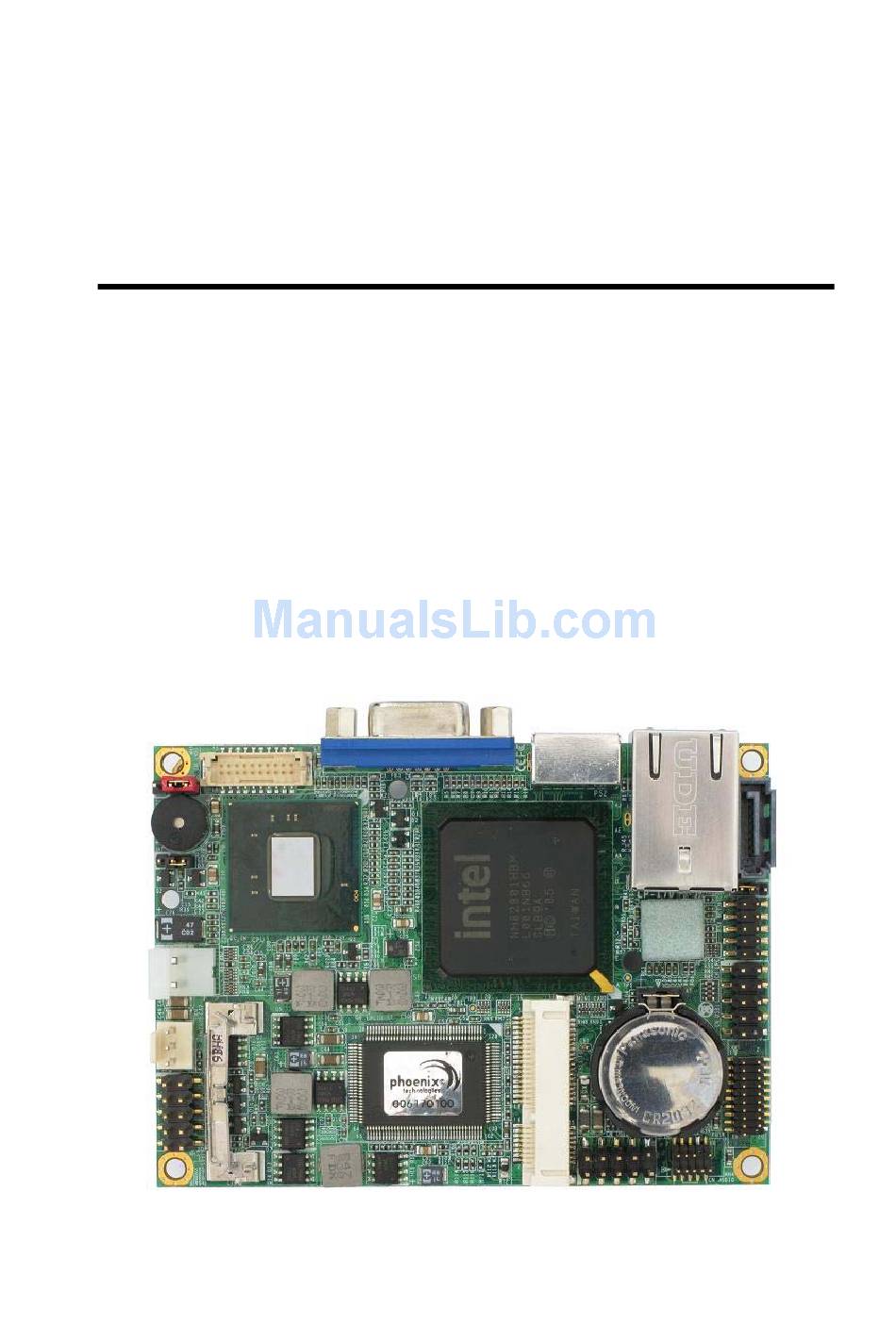

- Page 1 LP-170 Pico-ITX User’s Manual Edition 1.1 2010/05/13...
- Page 3 Trademark All trademarks are the property of their respective holders. Any questions please visit our website at http://www.commell.com.tw...
-
Page 4: Packing List
LP-170 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LE-375 PICO-ITX“ Miniboard x 1 Cable Kit: DC_IN Power Cable x 1 Serial ATA Ribbon Cable x 1 (OALDC-3) (OALSATA-L) Audio Cable x 1... - Page 5 LP-170 User’s Manual Option: Pennal Inverter Cable x 1 (OALINV-5P-L15) Printed Matters: Driver CD x 1 (Including User’s Manual)
- Page 6 LP-170 User’s Manual Index Chapter 1 <Introduction> ................. 7 1.1 <Product Overview> ..................... 7 1.2 <Product Specification> ..................8 1.3 <Mechanical Drawing>..................10 1.4 <Block Diagram> ....................11 Chapter 2 <Hardware Setup>................. 12 2.1 <Connector Location>..................12 2.2 <Jumper Reference>.................... 14 2.3 <Connector Reference>..................
- Page 7 LP-170 User’s Manual A.1 <LPC Port>......................35 A.2 < CRT Port >.......................35 A.3 <LAN Port> ......................35 Appendix B <Flash BIOS> ................36 B.1 BIOS Auto Flash Tool ..................36 B.2 Flash Method.......................36 Appendix C <System Resources> ..............37 C.1 .a<I/O Port Address Map>(LP-170G)..............37 C.2.a<Memory Address Map >(LP-170G) ..............39...
- Page 8 LP-170 User’s Manual (This page is left for blank)
-
Page 9: Chapter 1
LP-170 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LP-170G/H/A is the PICI-ITX miniboard, with Intel® Atom N450/D410/D510 processor, integrated GMA3150 graphics, Intel® ICH8-M, DDR2 SO-DIMM memory, Realtek HD Audio, CF, SATAII and Intel® 82583V Gigabit LAN. Intel® Atom Processor The Intel®... -
Page 10: Product Specification
LP-170 User’s Manual 1.2 <Product Specification> General Specification Form Factor PICO-ITX miniboard Intel® Atom N450 processor 1.66GHz (LP-170G) Intel® Atom D410 processor 1.66GHz (LP-170H) Intel® Atom D510 processor 1.66GHz (LP-170A) Package type: FCBGA8 Memory 1 x 200-pin DDR2 SO-DIMM 667MHz SDRAM up to 2GB... - Page 11 LP-170 User’s Manual Controller 1 x Intel® 82583V Gigabit Ethernet controller Type Triple speed 10/100/1000Base-T auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector 1 X External RJ45 connector with LED Audio Interface Chipset REALTEK ALC888 Interface Stereo audio Line-out and MIC-in...
-
Page 12: Mechanical Drawing
LP-170 User’s Manual 1.3 <Mechanical Drawing> Unit: inch... -
Page 13: Block Diagram
LP-170 User’s Manual 1.4 <Block Diagram> Intel® Atom N450 DDR2 SODIMM 2GB max. 18bit Single Channel LVDS PCIE mini card socket Serial ATA II USB port BIOS ICH8M Compact Flash ALC888 HD Audio W83627DHG PCIE Giga LAN PS2 KB/MS RS232... -
Page 14: Chapter 2
LP-170 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_LVDS SATA CN_LPC DC_IN CN_USB1 CN_COM1/2 JFRNT MINI_CARD CN_USB2 CN_AUDIO... - Page 15 LP-170 User’s Manual DDRII DC_OUT CN_INV LP-170G/H/A RJ45...
-
Page 16: Jumper Reference
LP-170 User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD LCD Panel Voltage Setting AT/ATX Mode Setting JVLCD JRTC... -
Page 17: Connector Reference
LP-170 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark DDRII 200 -pin DDR2 SO-DIMM SDRAM slot Standard SATA1 7-pin Serial ATA connector Standard Compact Flash Type II socket Standard MINI_CARD PCIE mini card socket Standard CN_LVDS 10 x 2-pin LVDS connector... -
Page 18: Cpu And Memory Setup
LP-170 User’s Manual 2.4 <CPU and Memory Setup> Non-ECC, unbuffered memory is supported only. LP-170G provides one 200-pin DDR2 SO-DIMM to support DDR2 667 memory modules support up to 2GB of capacity. Suggest: DDR2 SO-DIMM Modules: –Raw Card A = 2 Ranks of x16 SDRAMs (Double-sided) –Raw Card C = 1 Rank of x16 SDRAMs (Single-sided) -
Page 19: Cmos & Atx Setup
LP-170 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 20: Cf Interface
LP-170 User’s Manual 2.6 <CF Interface> The board has one Compact Flash Type II socket on the solder side. -
Page 21: Serial Ata Interface
LP-170 User’s Manual 2.7 <Serial ATA Interface> Based on Intel ICH8-M, the board provides one Serial ATAII interfaces with up to 300MB/s of transfer rate. SATA 2.8 <LAN Interface> The Intel® 82583v supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance. -
Page 22: Onboard Display Interface
LP-170 User’s Manual 2.9 <Onboard Display Interface> Based on Intel® Atom N450 with built-in GMA (Graphic Media Accelerator) 3150 graphics, the board provides one DB15 on real external I/O port, and one 20-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT and LVDS. -
Page 23: Digital Display
LP-170 User’s Manual 2.9.2 <Digital Display> The board provides one 20-pin LVDS connector for 18 bit single channel panels, LP-170G supports up to 1280 x 800 (WUXGA) of resolution, LP-170H/A supports up to 1366 x 768 (WUXGA) of resolution, with one LCD backlight... - Page 24 LP-170 User’s Manual Connector: CN_INV Jumper: JVLCD Type: 5-pin Inverter power connector Type: 3-pin Power select jumper Connector model: molex_53261-5pin Description Description +12V +3.3V Default: 2-3 ENABKL Connector: CN_LVDS Type: onboard 20-pin connector for LVDS connector Connector model: HIROSE DF13-20DP-1.25V...
- Page 25 LCD Installation Guide: Preparing the LP-170, LCD panel and the backlight inverter Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +5V or +3.3V.
- Page 26 LP-170 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: LP-170 BIOS panel type selection form On board Single channel LVDS 18bit Output format...
-
Page 27: Onboard Audio Interface
LP-170 User’s Manual 2.10 <Onboard Audio Interface> The board provides the onboard high definition audio with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC_L Ground MIC_R AVCC FRO_R MIC_JD SENSE SPK_L LINE2_JD... -
Page 28: Usb2.0 Interface
LP-170 User’s Manual 2.11 <USB2.0 Interface> Based on Intel® ICH8-M , the board provides 4 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller ICH8-M Transfer Rate Up to 480Mb/s Output Current 500mA CN_USB1... -
Page 29: Serial Port Jumper Setting
LP-170 User’s Manual 2.12 <Serial Port Jumper Setting > The board provides two RS232 serial ports, with jumper selectable RS422/485/IrDA for COM2. Connector: CN_COM1/2 Type: 20-pin (5 x 2) 1.27mm x 2.54mm-pitch header for COM1/2 Description Description MDCD1 MSIN1 MSO1... -
Page 30: Power & Fan Connector
LP-170 User’s Manual 2.13 <Power & FAN Connector > The board requires DC input with 2-pin header, the input voltage is 12V, for the input current, please take a reference of the power consumption report on appendix. 2.13.1 <Power Input>... -
Page 31: Power Output
LP-170 User’s Manual 2.13.2 <Power Output> Connector: DC_OUT Type: 6-pin connector for +5V/+12V output Description +12V +12V Note: Maximum output current 12V/1A, 5V/1A DC_OUT... -
Page 32: Fan Connector
LP-170 User’s Manual 2.13.3 <Fan Connector> Connector: SYSFAN, CPUFAN Type: 3-pin fan wafer connector Description Description Description Ground +12V Speed detect... -
Page 33: Indicator And Switch
LP-170 User’s Manual 2.14 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 10-pin (2 x 5) 2.54-pitch header... - Page 34 LP-170 User’s Manual (This Page is Left For Blank)
-
Page 35: Chapter 3
LP-170 User’s Manual Chapter 3 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible CPU architecture based processors and computers. - Page 36 LP-170 User’s Manual (This Page is Left for Blank)
-
Page 37: Appendix A
LP-170 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <LPC Port> Connector: CN_LPC Type: 10-pin header for LPC Port Description Description LPC_CLK RESET- LFRAME- LAD3 LAD2 LAD1 LAD1 +3.3V Ground Ground A.2 < CRT Port > Connector: CRT Type: 15-pin D-sub female connector on rear panel... -
Page 38: Appendix B
LP-170 User’s Manual Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.award.com... -
Page 39: Appendix C
LP-170 User’s Manual Appendix C <System Resources> C.1 .a<I/O Port Address Map>(LP-170G) - Page 40 LP-170 User’s Manual...
-
Page 41: C.2.A
LP-170 User’s Manual C.2.a<Memory Address Map >(LP-170G)(Lp-170G) -
Page 42: C.3 .C< System Irq Resources >(Lp-170G)
LP-170 User’s Manual C.3 .c< System IRQ Resources >(LP-170G) -
Page 43: Appendix E
LP-170 User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... - Page 44 LP-170 User’s Manual (This Page is Left for Blank)
-
Page 45: Contact Information
Taiwan Commate Computer Inc. Address 19 F No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
