EVAL-M1-IM818-A User Manual
iMOTION™ Modular Application Design Kit
Main features

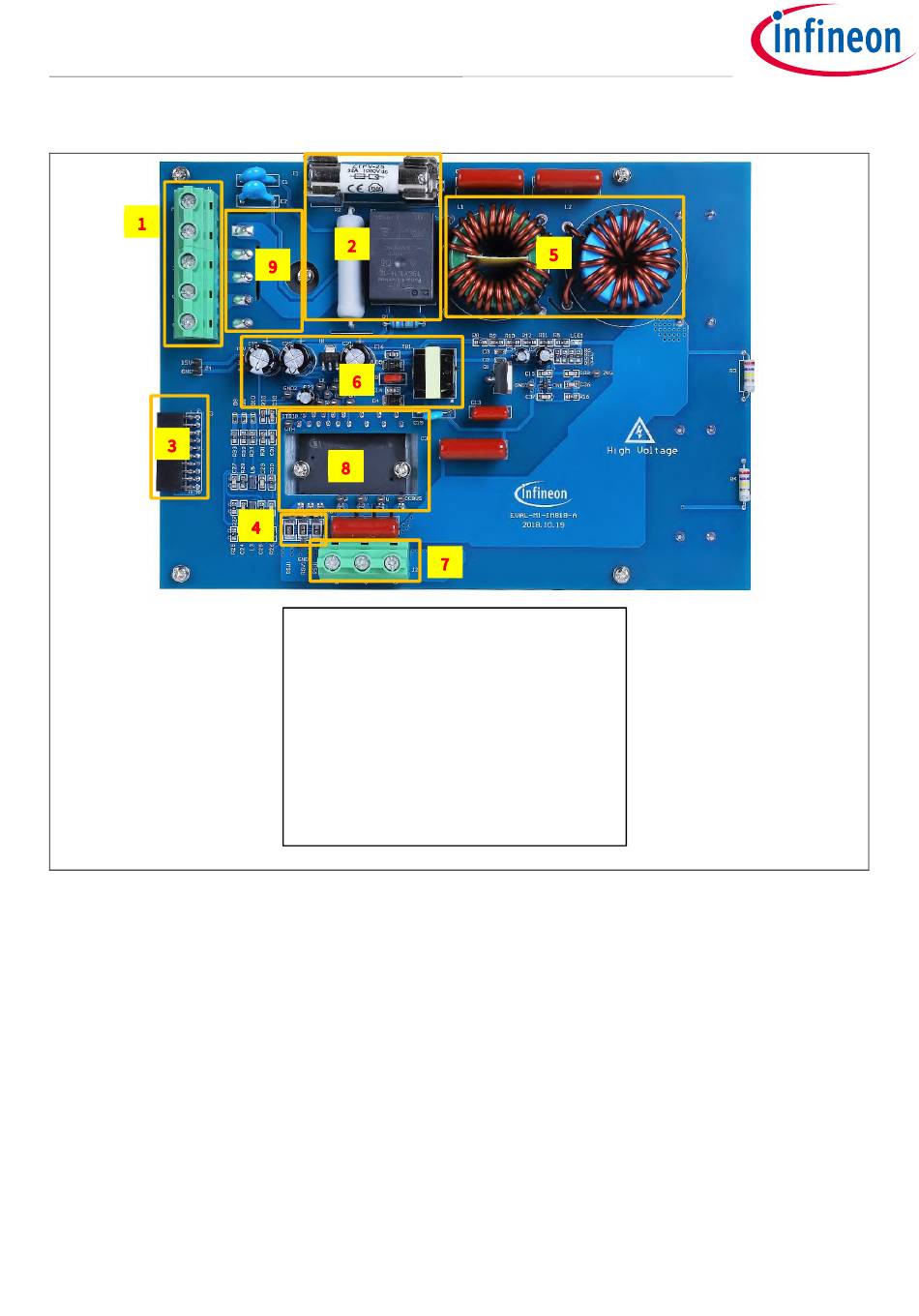

Figure 2 points out the functional groups on the top side of the EVAL-M1-IM818-A evaluation board.
Figure 2
Functional groups of the EVAL-M1-IM818-A evaluation board's top side
User Manual
1. J1 - AC Line connector
2. Relay and Fuse
3. J2 - 20 pin iMOTION™ MADK-M1 interface
connector for controller board
4. Shunt resistors
5. EMI filter
6. Auxiliary power supply
7. J3 - Motor phase connector
8. CIPOS™ Maxi IPM
9. Rectifier bridge DB
7
<Revision 1.0>
<2018-11-15>
