Assa Abloy multiCLASS SE Series Installation Manual page 4

multiCLASS
1
Mounting

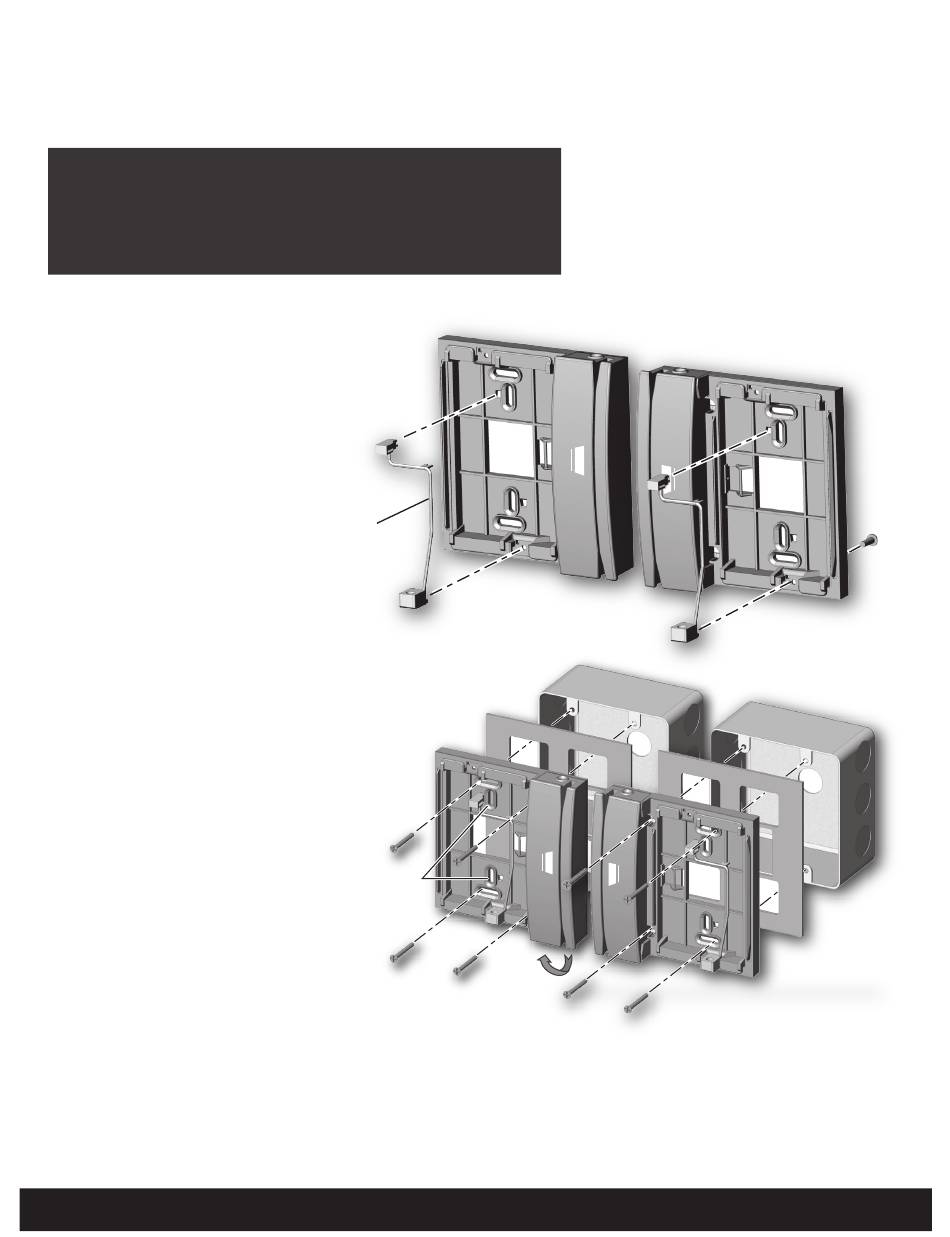

Determine reader orientation.
Shown are both reader orientations.
Junction box not included.
Caja para conexiones no incluida.
Boîtier de jonction non inclus.
Caixa de junção não incluída.
Anschlusskasten nicht mit inbegriffen.
Scatola di raccordo non inclusa.
不包括接线盒。
接続ボックスは含まれていません。
연결 박스는 제품에 포함되지 않습니다.
Распределительная коробка не прилагается
4 INSTALLATION GUIDE
RM40E, RMP40E, RMK40E, and RMPK40E
RM40 and
RMP40
Only
EMEA
Mounting
Holes
m
ontaje
m
ontage
m
ontagem
m
ontage
m
ontaggio
Rotate magnetic
stripe device to flip
card swipe reads.
