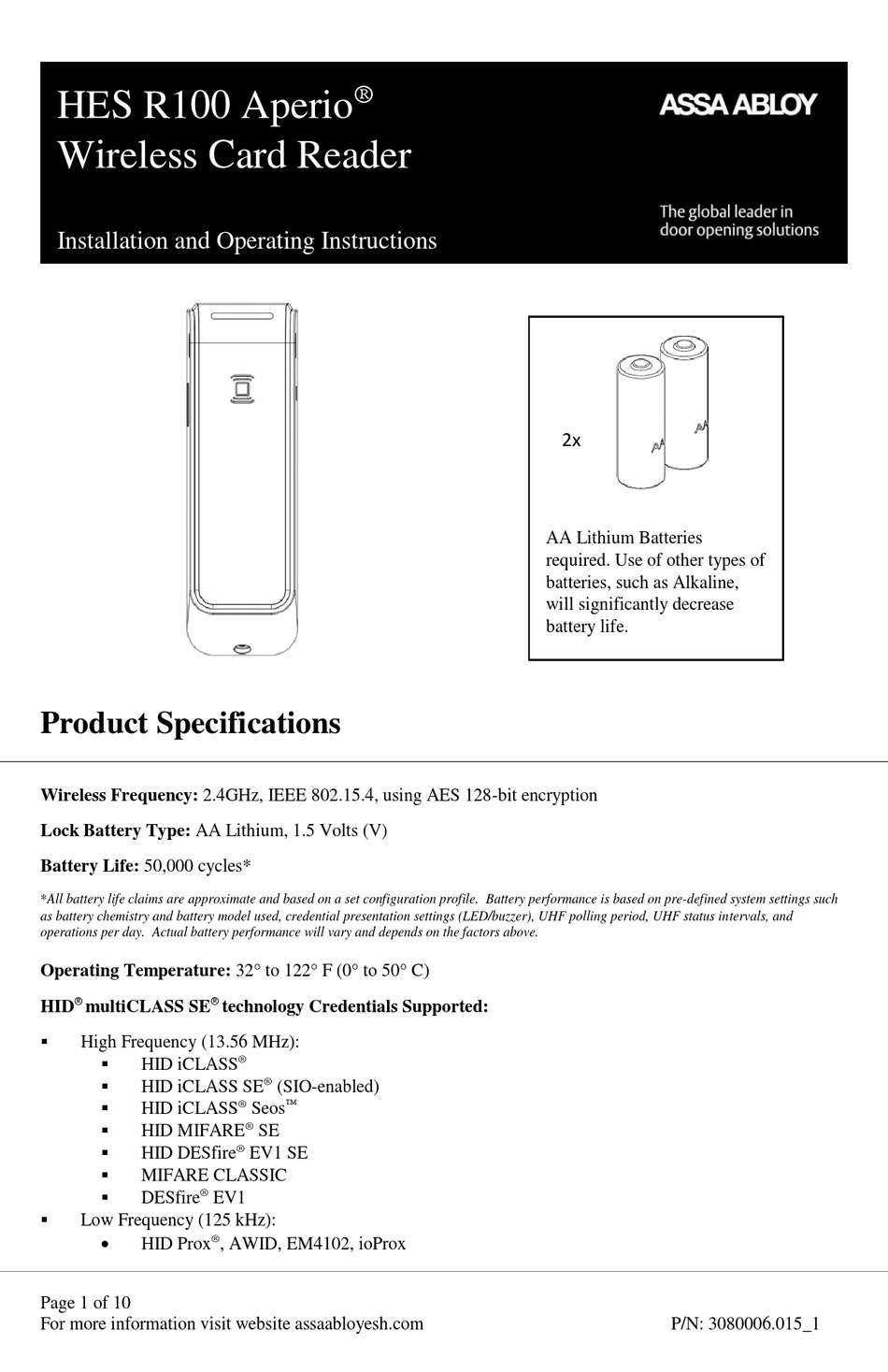

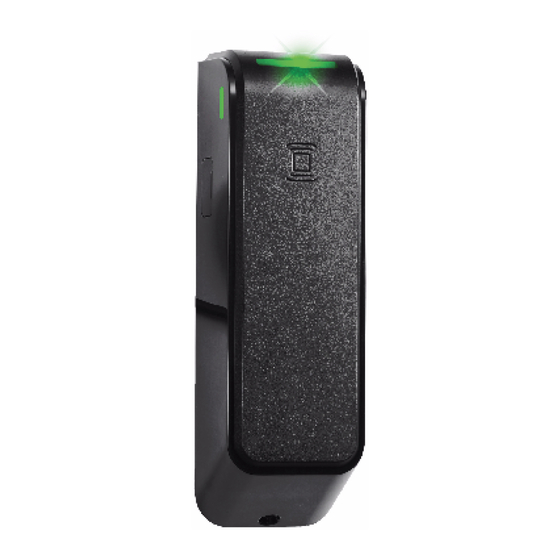

HES R100 Aperio
Wireless Card Reader
Installation and Operating Instructions
Product Specifications
Wireless Frequency: 2.4GHz, IEEE 802.15.4, using AES 128-bit encryption
Lock Battery Type: AA Lithium, 1.5 Volts (V)
Battery Life: 50,000 cycles*
*All battery life claims are approximate and based on a set configuration profile. Battery performance is based on pre-defined system settings such
as battery chemistry and battery model used, credential presentation settings (LED/buzzer), UHF polling period, UHF status intervals, and
operations per day. Actual battery performance will vary and depends on the factors above.
Operating Temperature: 32° to 122° F (0° to 50° C)
®
HID
multiCLASS SE
High Frequency (13.56 MHz):
HID iCLASS
HID iCLASS SE
HID iCLASS
HID MIFARE
HID DESfire
MIFARE CLASSIC
®
DESfire
Low Frequency (125 kHz):
HID Prox
Page 1 of 10
For more information visit website assaabloyesh.com
®
technology Credentials Supported:
®
®
(SIO-enabled)
™
®
Seos
®
SE
®
EV1 SE
EV1
®
, AWID, EM4102, ioProx
2x
AA Lithium Batteries
required. Use of other types of
batteries, such as Alkaline,
will significantly decrease
battery life.
P/N: 3080006.015_1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Assa Abloy Aperio HES R100
Summary of Contents for Assa Abloy Aperio HES R100
- Page 1 HES R100 Aperio Wireless Card Reader Installation and Operating Instructions AA Lithium Batteries required. Use of other types of batteries, such as Alkaline, will significantly decrease battery life. Product Specifications Wireless Frequency: 2.4GHz, IEEE 802.15.4, using AES 128-bit encryption Lock Battery Type: AA Lithium, 1.5 Volts (V) Battery Life: 50,000 cycles* *All battery life claims are approximate and based on a set configuration profile.
-
Page 2: Recommended Tools
NFC/BLE-enabled Mobile Phones Recommended tools Level Pencil, Wax Pencil Clamp Package Contents Reader VHB Tape Backplate 2X AA Lithium Batteries Torx T8 Torx T8 Driver Alcohol Swab 4-40 x 1/4" Security Bit Security Screw Page 2 of 10 For more information visit website assaabloyesh.com P/N: 3080006.015_1... -
Page 3: Mounting The Back Plate
For Technical Support Please call 1-800-810-WIRE Mounting the Back Plate 1. Level and mark the desired placement. Clean the mounting surface with provided alcohol swab. Remove cover from backplate. 2. Cut the VHB tape into two pieces and apply tape as shown. Mount backplate to marked location and apply pressure to activate tape adhesive. -
Page 4: Finishing The Installation
Note: VHB tape is intended to be used on glass and non-porous metal surfaces. For all other surfaces, use an appropriate adhesive and follow the manufacturer's instructions. Finishing the Installation 1. Install batteries. 2. Secure reader to backplate. Note: Ensure reader is fully seated against the backplate and the screw hole is properly aligned before securing. -
Page 5: Led Codes
For emergency power & local (hard wired) firmware updates, use micro USB port located on the side of the R100 reader. LED Codes Page 5 of 10 For more information visit website assaabloyesh.com P/N: 3080006.015_1... - Page 6 Aperio Hub Technical Data - AH20 Approvals CE, ETL, FCC, IC, C-Tick Safety and emissions FCC 47CFR Part 15 subpart B and subpart C; IC RSS-210 EN ETSI 301 489-17 v2.1.1; ENETSI 300 328 v1.7.1; EN 60950-1 ed.2 2007 Dimensions 82x82x37 Page 6 of 10 For more information visit website assaabloyesh.com...
-
Page 7: Connecting The Hub
Power Supply 8-24 VDC Current 250 mA minimum Internal Antenna 2 cross polarized dipoles External Antenna One reverse polarity SMA external (Part No. EXT-10- antenna connector. ANT) Optional antenna type dipole with max antenna gain of 3.9dBi Radio Standard IEEE 802.15.4(2.4GHz) - 15 channels (11-25) Encryption (Radio AES 128 bits... - Page 8 Note: The Green LED input is used to grant access to the cabinet lock. If the Green LED signal is not available to indicate approved access, the approval input can be activated by a relay with “NO” attached to Green LED and “C” to GND. The Red LED input is used to indicate access denied.
- Page 9 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. Conformité aux normes FCC Cet équipement a été testé et trouvé conforme aux limites pour un dispositif numérique de classe B, conformément à...
- Page 10 Page 10 of 10 For more information visit website assaabloyesh.com P/N: 3080006.015_1...
