Hex
Wrench
Approved Credential:
i.e., iCLASS or Prox ID card
Wireless Frequency: 2.4 GHz, IEEE 802.15.4, using AES 128bit encryption
Lock Battery Type: CR2, providing 35,000 Cycles
Reader Operating Temperature: -40F (-40C) to 122 F (+50C)
Credentials Supported: 125kHz Proximity or 13.56MHz iCLASS credentials are supported depending on reader model.
The R100 wireless reader installs in locations where wiring may be difficult or undesired for aesthetic reasons. The
R100 wireless reader connects to an access control system through an Aperio communication hub. The
communication hub connects to the access control system with wiegand or RS-485 wiring.
When a credential card is presented to the reader the request for access is sent wirelessly to the communication
hub. The communication hub then communicates to the access control system where the decision is made to grant
or deny access.
When access is granted the access control system unlocks the locking device seperately.
Part Number 500-24045, Rev. A
R100 Reader
Installation Instructions
Package Contents
CR2 Battery
Screws
Recommended Tools
Level
Pencil, wax pencil
Product Specifications
FCC Part 15, Class B Compliant, Industry Canada, CE Compliant
For technical support please call 1-800-810-9473
System Overview
©2013, Securitron, Inc.
Securitron Magnalock Corp.
Phoenix, AZ
800.624.5625
www.securitron.com
Reader
Glue
Optional Dress Cover: R100-DCA
Optional Clamping device
1
Advertisement
Table of Contents
Related Manuals for Assa Abloy Securitron R100
Summary of Contents for Assa Abloy Securitron R100
-
Page 1: Package Contents

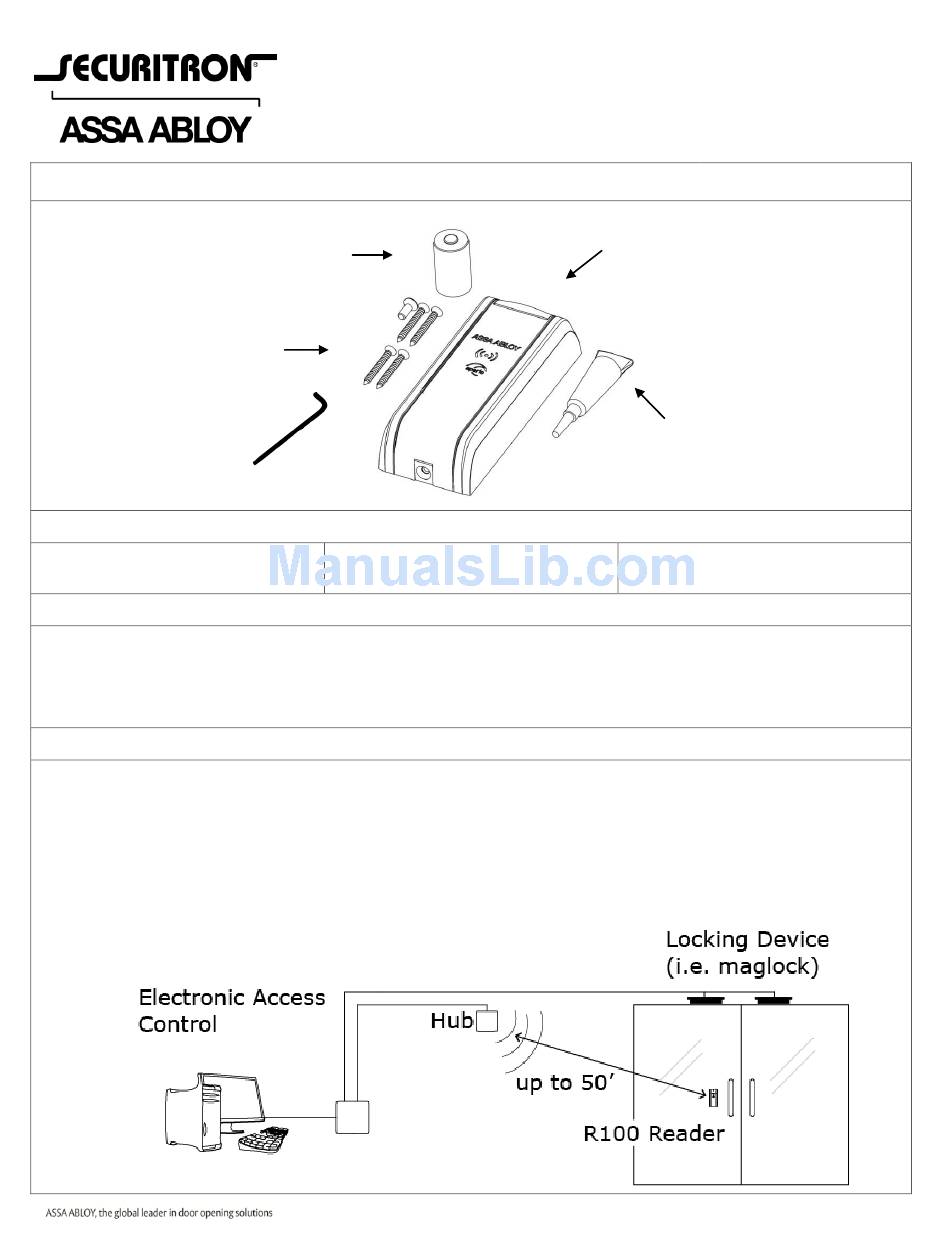

Securitron Magnalock Corp. Phoenix, AZ R100 Reader 800.624.5625 Installation Instructions www.securitron.com Package Contents Reader CR2 Battery Screws Wrench Glue Recommended Tools Approved Credential: Level Optional Dress Cover: R100-DCA i.e., iCLASS or Prox ID card Pencil, wax pencil Optional Clamping device Product Specifications Wireless Frequency: 2.4 GHz, IEEE 802.15.4, using AES 128bit encryption Lock Battery Type: CR2, providing 35,000 Cycles... - Page 2 1. Preparing the R100 Use a level to mark the position. Hold the reader body on the outside of the window and position it where you would like it to be mounted. Use a pencil to mark this point on the window Pull the cover up while pressing on the LED 2.
