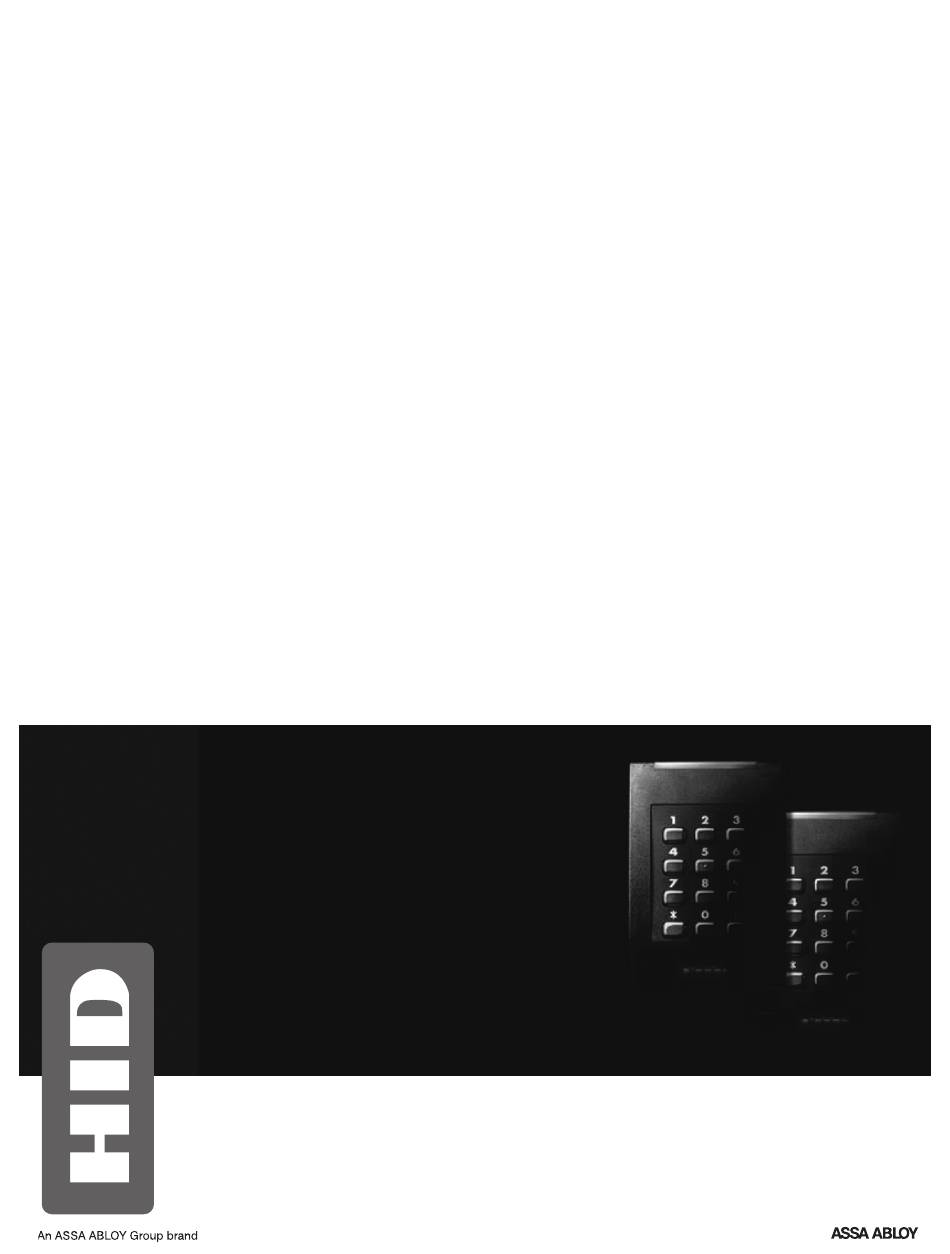

- Page 1 instalación installation instalação installation installazione 安装 取り付け 설치 УСТАНОВКА iCLASS ® 13.56 MHz Contactless Smart Card Readers with Keypad INSTALLATION GUIDE RK40 RWK400 RPK40 6404-901 A.1...
-
Page 2: Parts List
iCLASS 6404-901 A.1 RK40, RWK400, RPK40 omponentes omponenti 部件列表 ièces Parts List 部品 eças 부품 omponenten КОМПЛЕКТАЦИЯ PARTS • 1 - iCLASS Reader • 1 - Installation Manual • 2 - 3.5 mm x .6 pitch x 12 mm Phillips machine screws • 3 - #6-32 x .375” Phillips self-tapping (mv) machine screws • 2 - #6 x 1.5” Phillips sheet metal screws • 1 - #6 x .375” Spanner security screw, anti-tamper • 2 - Terminal connectors for terminal readers • 1 - Mounting Gasket • 1 - Base plate Recommended • Up to 9 wire splices (pigtail) PeçAS • Cable, 5-9 conductor (Wiegand or RS232), •... -
Page 3: Specifications
iCLASS 6404-901 A.1 RK40, RWK400, RPK40 specificaciones pecifiche 仕様 pécifications Specifications 规格 specificações 사양 pezifiKationen Х АрАКТЕрИсТИКИ CURRENT INPUT VOLTAGE (VDC) PRODUCT BASE PART NUMBER OPERATING TEMPERATURE CABLE LENGTH UL REF NUMBER CORRIENTE TENSIÓN DE ENTRADA (VCC) TEMPERATURA DE FUNCIONAMIENTO LONG. - Page 4 iCLASS 6404-901 A.1 RK40, RWK400, RPK40 ableado ablaggio 配線 âblage 布线 iação Wiring 배선 erdrahtung ТАБЛИЦА рАсКЛЮЧЕнИЯ ПрОВОДОВ BEEP GPI01 GPI02 OC/TMPR +VDC DATA1 SHLD DATA0 GPI03 HOLD GPI04 BEEPER (YEL) HOLD (BLU) TAMPER (VIO) BEEP GPI01 DATA1 (WHT) GPI02 DATA0 (GRN) OC/TMPR +VDC...
- Page 5 iCLASS 6404-901 A.1 RK40, RWK400, RPK40 Câble À bornier Description Câble À bornier Description Jaune P1-1 Entrée Beeper P2-7 GPIO1 (RS232-T / RS485-A / HADP-OSDP-A / USB-5V / UART-T) Orange P1-2 Entrée LED verte (GRN) P2-6 GPIO2 (RS232-R / RS485-B / HADP-OSDP-B / USB-D+ / UART-R) Noir P1-3 Terre (RTR) Violet P2-5 *** Sortie à collecteur ouvert Rouge P1-4 +Vcc Blanc P2-4 **** Données Wiegand 1 / Clock Drainage P1-5 * Blindage (BLIND) Vert P2-3...
- Page 6 iCLASS 6404-901 A.1 RK40, RWK400, RPK40 ピグテール ターミナル 説明 ピグテール ターミナル 説明 GPIO1 (RS232-T / RS485-A / HADP-OSDP-A / USB-5V / UART-T) 黄色 P1-1 ブザー入力 P2-7 GPIO2 (RS232-R / RS485-B / HADP-OSDP-B / USB-D+ / UART-R) オレンジ色 P1-2 緑色(GRN) LED入力 P2-6 黒色 P1-3 接地(RTN) 紫色...
-
Page 7: Power & Testing
iCLASS 6404-901 A.1 RK40, RWK400, RPK40 nstalación dEl Ector En la laca ostErior nstallation du EctEur sur la laquE rrièrE nstalação do Eitor na laca rasEira Install Reader to Backplate ü EsEr an dEr ckPlattE nbringEn nstallazionE dEl EttorE a ontroPiastra 背面プレートへのリーダーの取り付け... -
Page 8: Expansion Module Installation
iCLASS 6404-901 A.1 RK40, RWK400, RPK40 nstalación dEl ódulo dE xPansión ’E nstallation dEs odulEs d xtEnsion nstalação do ódulo dE xPansão Expansion Module Installation nstallation dEr rwEitErungsmodulE nstallazionE dEi oduli di sPansionE 拡張モジュールの取り付け 扩展模块安装 확장 모듈 설치 У сТАнОВКА ОДУЛЯ... -
Page 9: Optional Features
iCLASS 6404-901 A.1 RK40, RWK400, RPK40 aractErísticas oPcionalEs aractèristiquEs En oPtion Ecursos oPcionais Optional Features PtionalE EaturEs unzioni oPzionali オプション機能 可选功能 선택 사양 기능 ДОПОЛнИТЕЛЬныЕ ВОЗМОжнОсТИ • Expansion Modules provide optional functionality for all terminal readers. 3122ANB - UART to UART, 3122ANE - RS232, 3123ANE - RS485 (Full), 3123ANH - RS485 (Half), 3123ANM - HadP/osdP, 3124ANE - USB, 3126ANE - HID Prox, 3127ANE - Indala Prox, 3128ANE - EM Prox, 3170ANE - H • Open Collector Output - Controls an external device (16 VDC Max) operating in Host Mode only. Sink - 40mA / Source - 1mA. See the iCLASS Application Note for details. • Optical Tamper - A configuration card is necessary to activate the Optical Tamper. Once activated, and when the mounting plate is removed, the Optical Tamper is activated. Contact HID Technical Support for Optical Tamper options. See Tamper Application Note, AN0112. • Configuration Cards - With the use of configuration cards, the reader can be modified to meet the specific requirements of an installation. Configuration options include; audio visual, CSN outputs and keypad outputs. Contact HID Technical Support for all reader configuration options. - Page 10 iCLASS 6404-901 A.1 RK40, RWK400, RPK40 • I moduli di espansione forniscono funzionalità aggiuntive a tutti i lettori. 3122ANB – Da UART a UART, 3122ANE - RS232, 3123ANE/3123ANH - RS485, 3123ANM - HADP/OSDP, 3124ANE - USB, 3126ANE - HID Prox, 3127ANE - Indala Prox, 3128ANE - EM Prox, 3170ANE - Hi-O • Uscita collettore aperto – Controlla un dispositivo esterno (massimo 16 V c.c.) che funziona solo in modalità host. Sink - 40mA / Source - 1mA. Per dettagli in merito, vedere la nota applicativa iCLASS. • Tamper ottico – per l’attivazione del tamper ottico è necessaria una tessera di configurazione. Una volta attivato, se la piastra posteriore viene rimossa, il dispositivo viene attivato. Contattare il supporto tecnico HID per opzioni relative al tamper ottico. • Tessere di configurazione – tali tessere consentono di modificare il lettore in modo da rispondere agli specifici requisiti di un’installazione. Le opzioni di configurazione includono: audio-visivo, output del numero di serie della scheda e output della tastiera. Contattare il supporto tecnico HID per tutte le opzioni di configurazione del lettore. • Ingresso di tipo hold – Quando viene attivata, questa linea memorizza in un buffer una tessera o disattiva la lettura della tessera fino al rilascio, come configurato. • 拡張モジュールは、すべてのターミナルリーダーにオプションの機能を提供します。 3122ANB - UART to UART、3122ANE - RS232、3123ANE/3123ANH - RS485、3123ANM - HADP/OSDP、3124ANE - USB、3126ANE - HID Prox、3127ANE - Indala Prox、3128ANE - EM Prox, 3170ANE - Hi-O • オープンコレクタ出力...
- Page 11 iCLASS 6404-901 A.1 RK40, RWK400, RPK40 Intentional Blank INSTALLATION GUIDE ©2009 HID Global Corporation. All rights reserved.
- Page 12 Connect only to a Listed Access Control / Burglary power-limited power supply. These readers are intended to be used with listed (UL294) control equipment. Only the Wiegand communication protocol has been investigated by UL. FCC / Canada Radio Certification These devices comply with part 15 of the FCC rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Le fonctionnement est soumis aux deux conditions suivantes : (1) Ce dispositif ne peut pas causer de perturbations nuisibles et (2) ce dispositif doit accepter toute perturbation quelconque qu’il reçoit, y compris des perturbations susceptibles de provoquer un fonctionnement indésirable. Les changements ou modifications n’ayant pas été expressément approuvés par la partie responsable de la conformité peuvent faire perdre à l’utilisateur l’autorisation de faire fonctionner le matériel. CE Marking HID Global hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Por el presente, HID Global declara que estos lectores de proximidad cumplen con los requisitos esenciales y otras disposiciones relevantes de la Directiva 1999/5/EC. HID Global déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux autres stipulations pertinentes de la Directive 1999/5/CE. A HID Global, por meio deste, declara que estes leitores de proximidade estão em conformidade com as exigências essenciais e outras condições da diretiva 1999/5/EC. HID Global bestätigt hiermit, dass die Leser die wesentlichen Anforderungen und anderen relevanten Bestimmungen der Richtlinie 1999/5/EG erfüllen. HID Global dichiara che i lettori di prossimità sono conformi ai requisiti essenziali e ad altre misure rilevanti come previsto dalla Direttiva europea 1999/5/EC. Download copies of the R&TTE Declaration of Conformity (DoC) at http://certifications.hidglobal.com. Taiwan According to "Administrative Regulations on Low Power Radio Waves Radiated Devices" Without permission granted by the DGT, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to a approved low power radio-frequency devices. The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal communications means radio communications is operated in compliance with the Telecommunications Act. The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices. Japan MIC この装置は総務省の型式指定を受けています。これらの装置は無線装置の電磁的両立性規格(EMC規格：ETSI301-489)に準拠しています。しかしながら、非常に近くにある近接（低周波）機器やその他不明な電波があ った場合はその影響を受ける可能性があります。 その影響の程度は各医療機器とそこからの距離によるために正確に量るのは困難です。設置は可能な限り医療機器から離れた位置に行い、設置後に医療機器が正 常稼動するか必ず確認して下さい。 Singapore Approved by IDA for use in Singapore. DA103548 Models: 613xB, 613yAxN, 613yAxD, 613yAxA ACCESS experience.
