Wireless card reader with relay (basic mode)

Advertisement

Quick Links

DR100 Aperio
Card Reader with Relay
Installation & Operating Instructions

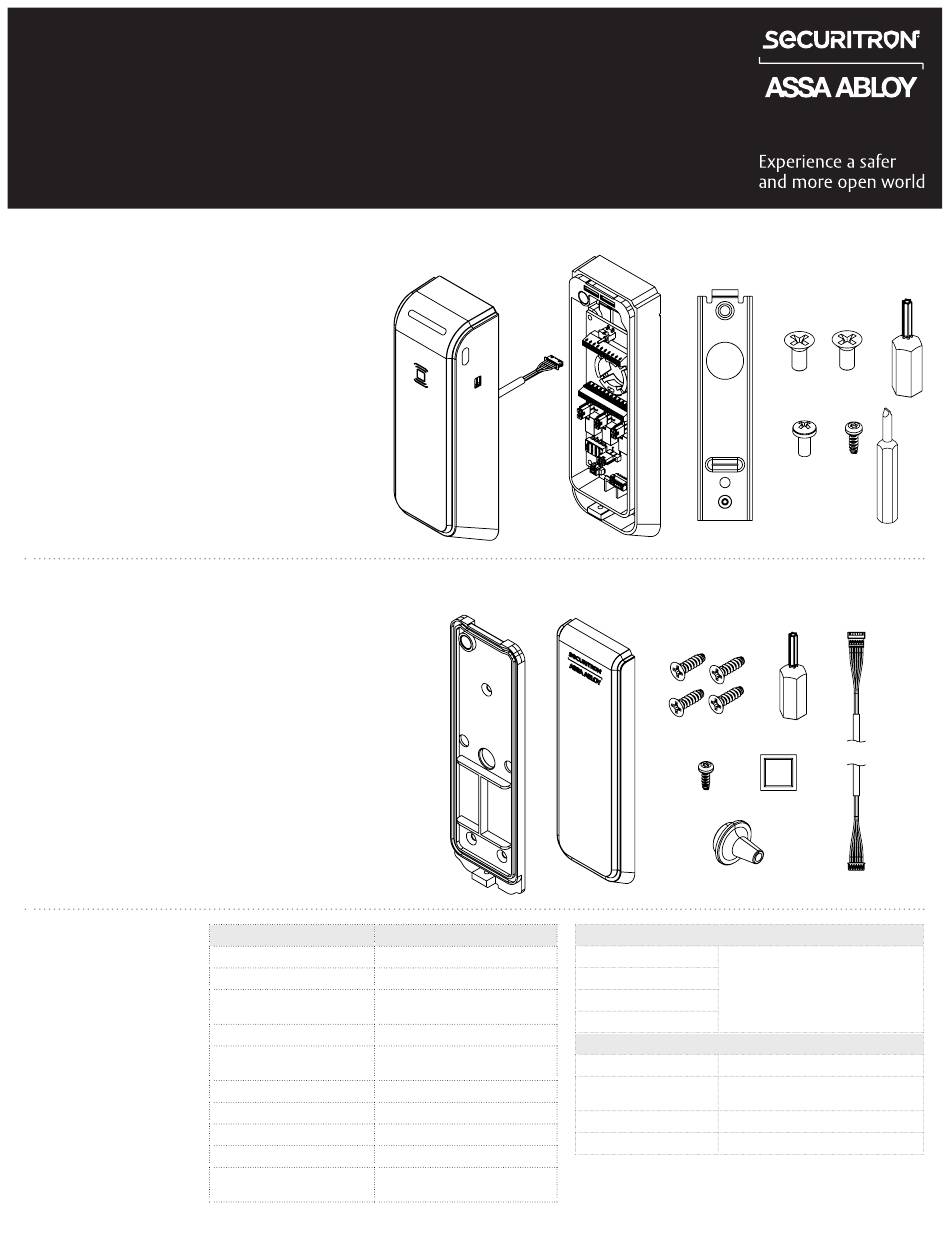

Product Components
Standard Installation
A Reader
B Relay Housing
C Mounting Bracket
D (2X) 6-32 x 1/2"
Type F Self
Tapping Screws
Product Contents
Secure Installation Kit
A Reader Backplate
B Secure Side
Relay Cover
C (4X) 4-20 Self
Tapping screw
D T8 Security Torx Bit
E 4-40 Security
Torx Screw
Product
Specs
Wireless
®
E T8 Security
Torx Bit
F 4-40 Pan Head
Screw
G 4-40 Security
Torx Screw
H 2mm Slotted Bit
F Alcohol Swab
G Wire Sealing
Grommet
H Wire Harness
Extender
Parameter
Power Supply
Operating Temperature
Cold Weather Pack
Operating Temperature*
Storage Temperature
Max Operating
Relative Humidity
IP Class
Network
BLE
Max Operating Current Draw
Max Current Draw with
Heater Activated*
(BASIC MODE)
Diagram 1 Product Components Standard
B
A
Diagram 2 Product Components Secure Kit
B
A
Values
12 – 24 VDC
14˚ to 151˚ F [-10˚ to 66˚ C]
-40˚ to 151˚ F [-40˚ to 66˚ C]
-40˚ to 185˚ F [-40˚ to 85˚ C]
93 % RH at 89˚ F
IP65
IEEE 802.15.4 (e.g. Aperio) 2.4 GHz
Bluetooth 4.0
57.4 mA
123 mA at 12 V | 245 mA at 24 V
C
C
E
F
G
Inputs
2 DPS, Digital input**
Close / Open Externally Accessible
1 REX, Digital input
REX, DX, and Privacy are not functional
1 DX (Deadbolt Switch)
1 Privacy
Outputs
# of Relays
Relay Switching
Capacity, Max
1 Tamper
2 Tamper
*Requires extreme cold temperature hardware pack.
** 2 DPS can be used with device however only
one DPS signal will be sent to EAC.
***6A max operating current draw total for product when all
relays are in the wetted configuration and fully loaded.
D
E
F
G
H
D
H
at release. (Release date TBD)
3
2A per Relay***
Relay Housing Side
Reader Side
1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SACURITRON Aperio DR100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Assa Abloy SACURITRON Aperio DR100

  • Page 1 DR100 Aperio Wireless ® Card Reader with Relay (BASIC MODE) Installation & Operating Instructions Product Components Diagram 1 Product Components Standard Standard Installation A Reader E T8 Security Torx Bit B Relay Housing F 4-40 Pan Head C Mounting Bracket Screw D (2X) 6-32 x 1/2"...
  • Page 2 Mounting the Diagram 3 Mounting MOUNTING Ø 1/8" Relay Housing SURFACE [3 mm] DRILL 3/4" hole in location shown for wires to pass through. Ø 3/4" [13 mm] USE Mounting bracket as template to drill 2 x 1/8" holes as shown for a 6-32 self tapping screw.
  • Page 3 Wiring the DR100 – Terminal Blocks Diagram 4 Input Terminals Output/Power Terminals Privacy NO (Not Used) 12-24 VDC 9 10 Privacy COM (Not Used) Relay COM 1 DX NO (Not Used) Relay NO 1 DX COM (Not Used) Relay NC 1 9 10 REX NO (Not Used) Relay COM 2...
  • Page 4: Function Description

    Wiring the DR100 Delay Dip Switch Settings DR100 DIP-SWITCHES# POSITION SELECTION FUNCTION DESCRIPTION FACTORY DEFAULT ON Position DELAY (S) Activates a time delay between the actuation of RELAY 1 and RELAY 3. RELAY 2 will also see the OFF Position 0 Seconds delay if the RELAY 2 Select Jumper is configured...
  • Page 5 Common Modes of Operation Diagram 5 Typical door system with Diagram 6 Typical door system FAIL-SECURE electric lock. with FAIL-SAFE electric lock. Typical single door system Typical single door system with Fail-Secure electrifide lock with Fail-Safe electric lock PVCY PVCY PVCY PVCY Not to be used...
  • Page 6 Standard Configuration Diagram 9 Connect Reader. Reader Installation CONNECT Reader Wire Harness from the Reader to the Relay Secure Board as shown. If using the optional heater, connect this wire as well, Diagram 9. NOTE: The Heater allows the device to function below -14˚ F [-10˚ C] and only activates below this temperature.
  • Page 7 Secure Installation Kit Diagram 11 Reader Installation. Reader Installation FOAM GASKET Although the DR100 has several mechanisms to READER BACKPLATE detect tamper situations when mounted in the standard configuration, there may be a desire to mount the Relay Housing in a secure area apart from the Reader.
  • Page 8 Mounting Reader to Surface NOTE: When installing with the Secure Installation Kit the Reader is to be mounted on the unsecure side of the door, opposite to the Relay Housing. DRILL 1/2" hole in mounting surface as indicated in Diagram 12. •...
  • Page 9 Diagram 14 Mount Reader. MOUNT Reader by removing the adhesive tape backing on Reader Backplate and adhering to desired location. Apply pressure for at least 1 minute to properly activate the adhesive tape. Diagram 14. • Optional – Secure Reader Backplate to door with the ADHESIVE provided 3 x 4-20 Self-Tapping Screws.
  • Page 10 Secure Side Relay Diagram 18 Connect Wire. Cover Installation NOTE: The following steps are performed on the secure side of the opening. ROUTE the Wire Harness Extender to the side of the terminal blocks as shown and tuck excess cable back into the wire opening. CONNECT the Wire Harness Extender to location shown below on relay board.
  • Page 11: Led Codes

    Aperio Hub Specifications • Approvals ETL, FCC, IC, C-Tick • Wireless Transmit Power 10 dBm/MHz • Safety & Emissions FCC 47CFR Part 15 subpart B • Class of Protection IP 20 and subpart C; IC RSS-210 EN ETSI 301 489-17 v2.1.1; •...
  • Page 12: Product Specifications

    Printed in the U.S.A. Patent pending and/or patent www.assaabloydss.com/patents techsupport.securitron@assaabloy.com Copyright © 2023, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company. securitron.com | 800 626 7590 All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc.
