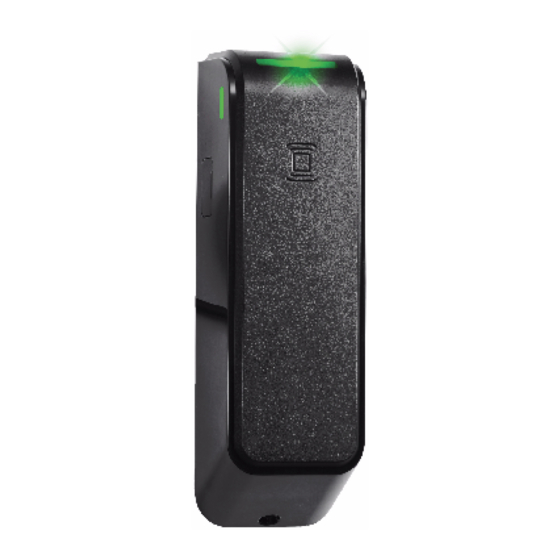

Assa Abloy Securitron R100 Aperio Installation & Operating Instructions

Securitron
Wireless Card Reader
Installation & Operating Instructions
Product Contents
A
Reader
B
Backplate
C
VHB Tape
D
Torx T8 4-40 x 1/4" Security Screw
E
Torx T8 Driver Security Bit
F
Alcohol Swab
G
2X AA Lithium Batteries*
* AA Lithium Batteries required. Use of other
types of batteries, such as Alkaline, will
significantly decrease battery life.
Recommended Tools
• Level
• Pencil, Wax Pencil
• Clamp
Product Specifications
• Wireless Frequency
2.4GHz, IEEE 802.15.4, using
AES 128-bit encryption
• Lock Battery Type AA Lithium, 1.5 Volts (V)
• Battery Life 50,000 cycles*
*All battery life claims are approximate and based
on a set configuration profile. Battery performance
is based on pre-defined system settings such
as battery chemistry and battery model used,
credential presentation settings (LED/buzzer),
UHF polling period, UHF status intervals, and
operations per day. Actual battery performance
will vary and depends on the factors above.
• Operating Temperature
32° to 122° F (0° to 50° C)
R100 Aperio
®

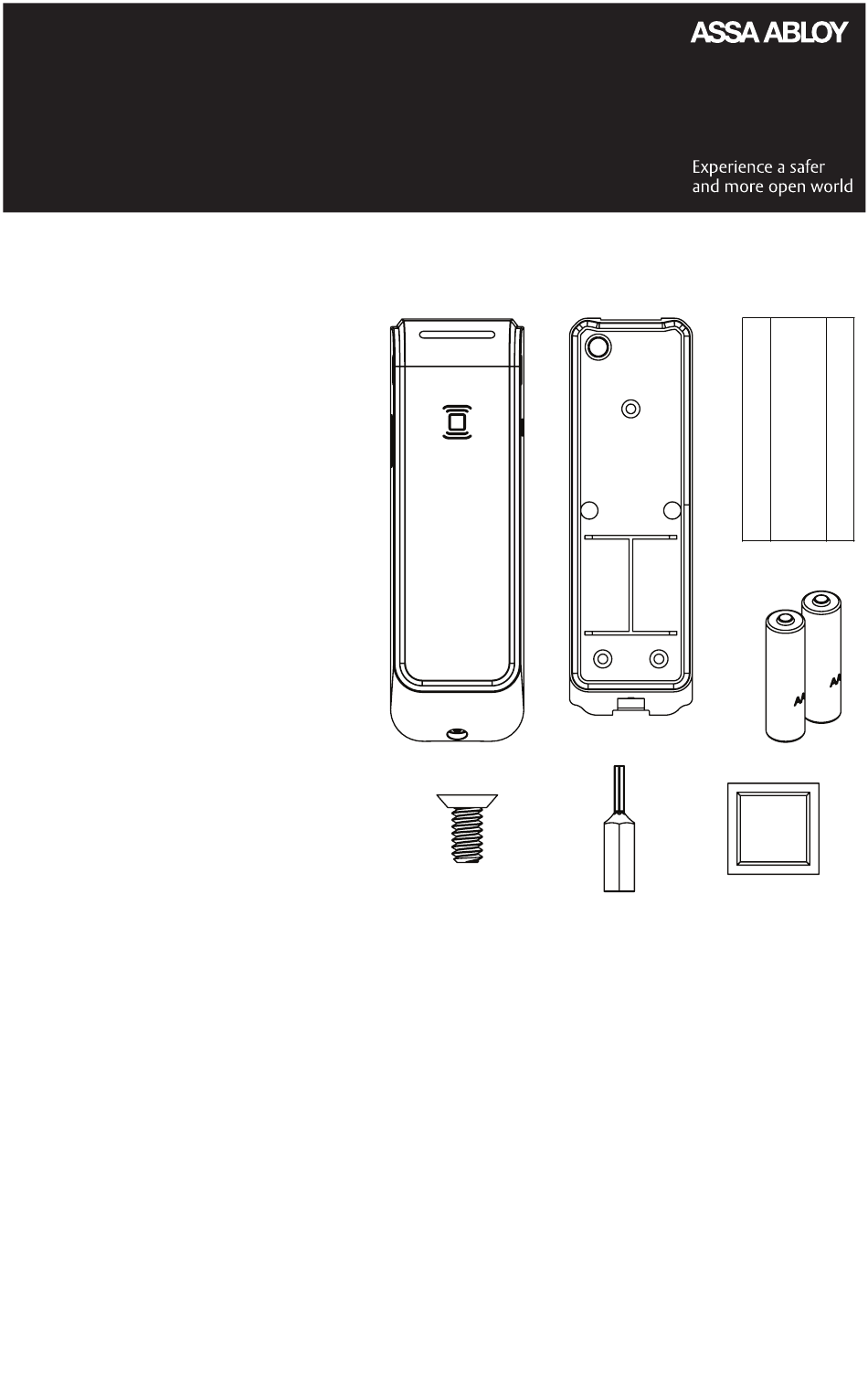

Diagram 1: Product Components
A
®
B
D E
• HID multiCLASS SE
®
Credentials Supported:
• High Frequency (13.56 MHz):
» HID iCLASS
» HID iCLASS SE
» HID iCLASS
» HID MIFARE
» HID DESfire
» MIFARE CLASSIC
» DESfire EV1
®
• Low Frequency (125 kHz):
» HID Prox
®
• NFC/BLE*
» Mobile – enabled credentials
* Supported on BLE-enabled models
G
F
technology
®
®
(SIO-enabled)
®
Seos™
®
SE
®
EV1 SE
®
, AWID, EM4102, ioProx
C
1 of 4
