Summary of Contents for Kichler Lighting FERRON

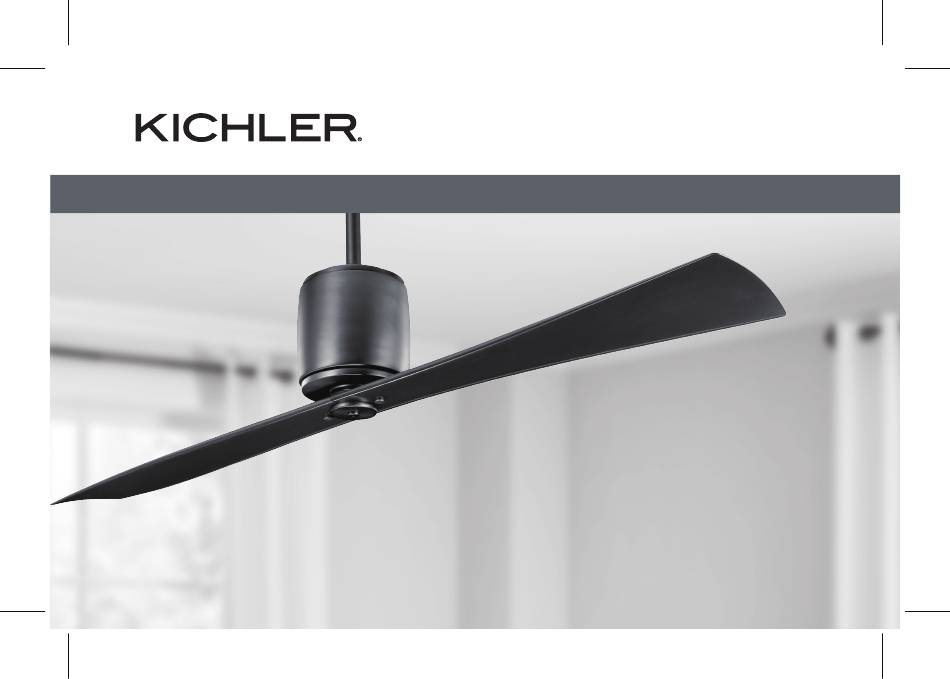

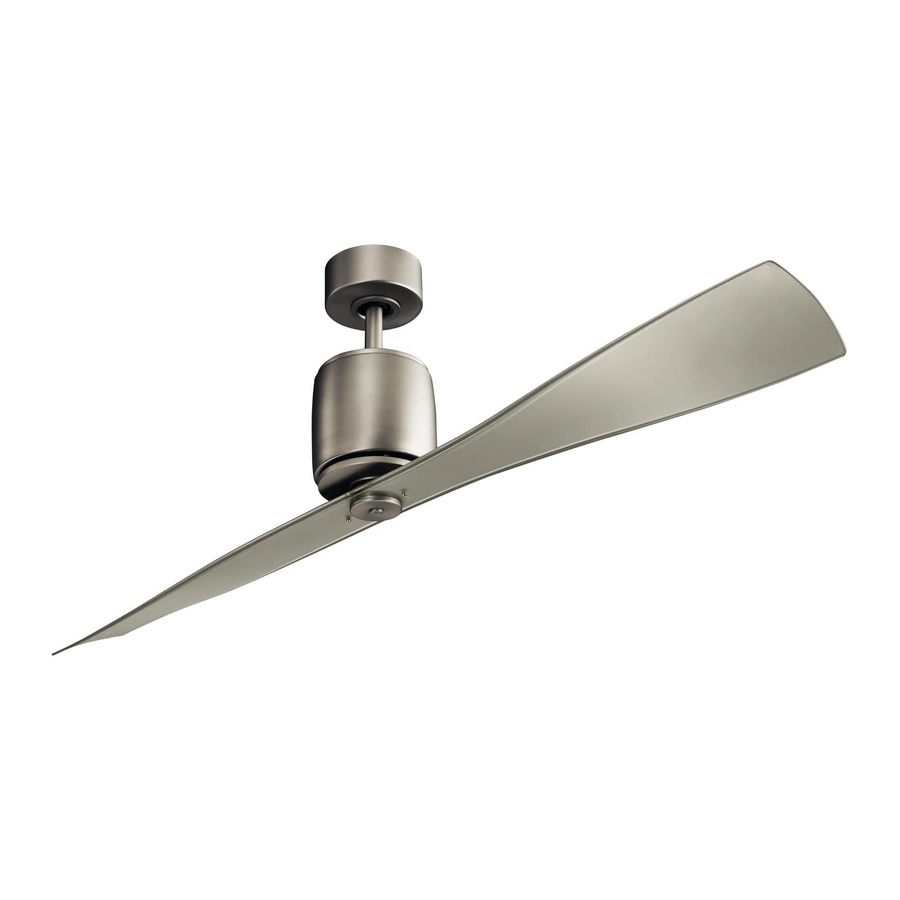

- Page 1 60" FERRON Product images may vary slightly from actual product. INSTRUCTION MANUAL...
-
Page 3: Table Of Contents
CONTROL SYSTEM SET-UP........... PACKAGE CONTENTS............. OPERATING INSTRUCTIONS..........MOUNTING OPTIONS............. INSTALLING THE COOLTOUCH™ HANGING THE FAN..............CONTROL SYSTEM WALL PLATE........INSTALLATION OF SAFETY SUPPORT......INSTALLING THE TRANSMITTER........ELECTRICAL CONNECTIONS..........OPERATING INSTRUCTIONS..........FINISHING THE INSTALLATION........TROUBLESHOOTING.............. ATTACHING THE FAN BLADES........... 60" FERRON... -
Page 4: Safety Rules
SAFETY RULES 1. To reduce the risk of electric shock, insure electricity has been 8. Avoid placing objects in the path of the blades. turned off at the circuit breaker or fuse box before beginning. 9. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan. -
Page 5: Tools Required
(2), wire nuts (3), machine screws (2), washers (2), screws (2) 2) Blade attachment hardware: Allen screws (2), screws (8), fiber washers (2) 3) Safety cable hardware: wood screw, lock washer, flat washer 4) Balance Kit 60" FERRON... -
Page 6: Mounting Options
MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. -
Page 7: Hanging The Fan
Step 5. Step 5. Remove the coupling cover from the motor housing by Mounting screws (supplied Screws removing the two screws from the rim of coupling cover. (Fig. 7) with electrical box) Fig. 6 Coupling cover Fig. 7 60" FERRON... - Page 8 HANGING THE FAN (continued) Cross pin Step 6. Remove the hanger ball from the downrod assembly by loosening the set screw, unscrewing and removing removing the cross Hanger pin and unscrewing the ball off the rod. (Fig. 8) ball Set screw Step 7.
- Page 9 WARNING: Failure to reattach the cross pin and seat the "Check Tab" can cause the fan to fall from the ceiling during operation. Take special care to make sure this pin is reattached. Fig. 10 Registration slot Fig. 11 60" FERRON...
-
Page 10: Installation Of Safety Support
INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling. Step 1. Attach the provided wood screw and washers to the ceiling joist Ceiling mounting next to the mounting bracket but do not tighten. (Fig. 12) bracket Attach safety cable... -
Page 11: Electrical Connections
Step 5. Turn the connecting nuts upward and push the wiring into the outlet box. Fig. 13 60" FERRON | 11... -
Page 12: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into the ceiling outlet box. Outlet box Step 2. Slide the canopy up to the mounting bracket and place one of the key hole slots over the mounting screw on the mounting bracket. Rotate the canopy until the screw head locks in place at the narrow Ceiling section of the key hole. -
Page 13: Attaching The Fan Blades
Fig. 15 INSTALLING THE DECORATIVE COVER AND DECORATIVE NUT Step 1. Attach the decorative cover and decorative nut onto the fan motor stem. DO NOT OVER TIGHTEN. (Fig. 16) Decorative cover Decorative nut Fig. 16 60" FERRON | 13... -
Page 14: Control System Set-Up
CONTROL SYSTEM SET-UP Make sure the power is completely disconnected before you begin this procedure. SPECIAL NOTE: Your new Kichler® Ceiling Fan is State of the Art and employs a High Efficiency DC (direct current) Motor with an advanced CoolTouch™ Remote Control System. - Page 15 (Figure 20). 7. Your CoolTouch™ Control System is now programmed and ready for use. Please see the following Operational Instructions. Fig. 20 60" FERRON | 15...
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS Speed Buttons Figure 21 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed 5 = High Speed 6 = Extra High Speed Figure 22... -
Page 17: Installing The Cooltouch™ Control System Wall Plate
Option 2: Install the control system on ANY flat surface. Select the desired location and use the CoolTouch ™ wall plate to mark the location for the mounting holes. Use the dry wall anchors Fig. 25 and/or screws provided and finish the installation. 60" FERRON | 17... -
Page 18: Installing The Transmitter
INSTALLING THE TRANSMITTER 1. Insert the transmitter into the wall plate by inserting the bottom of the Release button transmitter first and then press the top of the transmitter into the pocket. The transmitter will fully function from this location or you can remove the transmitter and use as a "Hand Held"... -
Page 19: Operating Instructions
Cool weather - Reverse (clockwise) An upward airflow moves warm air off the ceiling area as shown in Fig. 28. This allows you to set your heating unit on a cooler setting without affecting your comfort. Fig. 28 60" FERRON | 19... -
Page 20: Troubleshooting
TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out. 4. - Page 21 www.kichler.com KICHLER® LIGHTING 7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010 CLEVELAND, OHIO 44131-8010 CUSTOMER SERVICE 866.558.5706 8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY...
