Kichler Lighting Ferron 300160NI Instruction Manual

Includes new cooltouch control system

Advertisement

Quick Links

Model: 300160
READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ferron 300160NI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kichler Lighting Ferron 300160NI

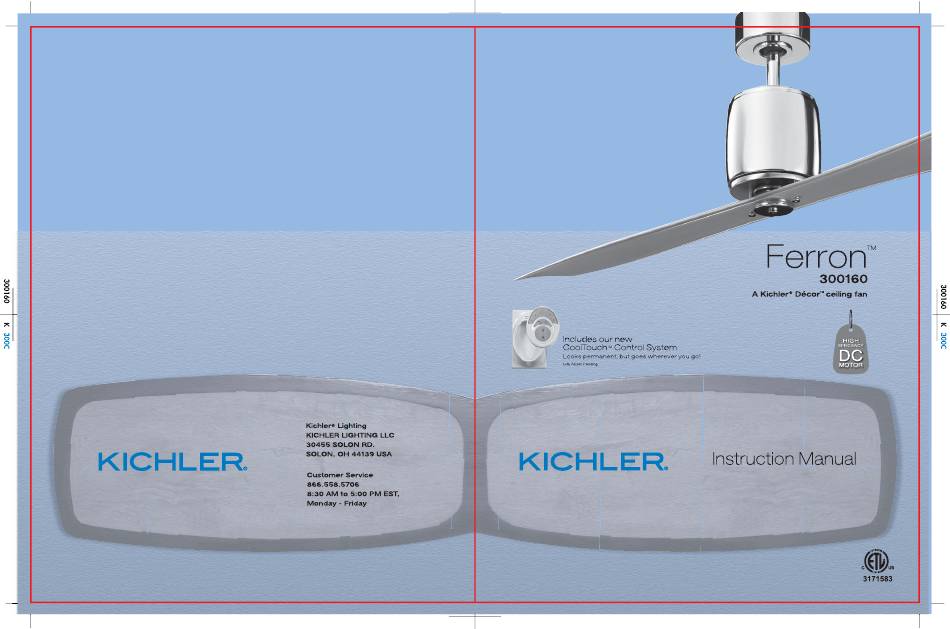

  • Page 1 Model: 300160 READ AND SAVE THESE INSTRUCTIONS...
  • Page 2 1. SAFETY RULES 8. To operate the reverse function on this 1. CAUTION - To reduce the risk of electric fan, press the reverse button while the fan shock, insure electricity has been is running. turned off at the circuit breaker or fuse box before beginning.
  • Page 3 Ferron 1. SAFETY RULES (continued) WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. •...
  • Page 4 1. NORMAS DE SEGURIDAD (continuación) AVERTISSEMENT • RISQUE D’INGESTION : Ce produit contient une pile bouton. • La MORT ou des blessures graves peuvent survenir en cas d’ingestion. • Une pile bouton avalée peut provoquer des brûlures chimiques internes en 2 heures seulement. •...
  • Page 5 Ferron 1. RÈGLES DE SÉCURITÉ (suite) ADVERTENCIA • PELIGRO DE INGESTIÓN: Este producto contiene una pila tipo botón o tipo moneda. • En caso de ingestión puede producirse la MUERTE o lesiones graves. • La ingestión de una pila tipo botón o tipo moneda puede provocar Quemaduras Químicas Internas en tan sólo 2 horas.
  • Page 6 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (2) Blade support plates (2) Canopy &...
  • Page 7: Mounting Options

    Ferron 4. MOUNTING OPTIONS If there isn't an existing ETL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and Outlet box building materials.
  • Page 8: Hanging The Fan

    5. HANGING THE FAN Ceiling mounting RMEMEBER to turn off the power before you bracket begin installation. This is necessary for your safety and also the proper programing of the control system. Canopy To properly install your ceiling fan, follow the Canopy cover steps below.
  • Page 9 Ferron Step 7. Loosen the two set screws and Supply wires remove the hitch pin and retaining clip from Coupling the coupling on top of the motor assembly. Downrod (Fig. 9) Set screws Set screws Retaining clip Hitch pin Step 8. Carefully feed the electrical lead wires from the fan up through the downrod.
  • Page 10: Installation Of Safety Support

    6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please Ceiling mounting install it as follows. Attach bracket safety cable Step 1. Attach the provided wood screw and to ceiling joist with screw and washers to the ceiling joist next to the...
  • Page 11: Finishing The Installation

    Ferron 8. FINISHING THE INSTALLATION Step 1. Tuck all the connections neatly into Outlet box the ceiling outlet box. Step 2. Slide the canopy up to the mounting Ceiling mounting brackrt bracket and place one of the key hole slots over the mounting screw on the mounting Screws bracket.
  • Page 12: Attaching The Fan Blades

    9. ATTACHING THE FAN BLADES Step 1. Attach the blade to the blade bracket using the screws, blade support plates, Allen screws, and fiber washers provided. To tighten the Allen screw by using the Allen wrench provided. (Fig. 15) Make sure the blade is straight when set on the blade bracket.
  • Page 13: Control System Set-Up

    Ferron 11. CONTROL SYSTEM SET-UP WARNING: Chemical Burn Hazard. Keep batteries away from children. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours.
  • Page 14 2. Insert both batteries and make sure they are seated correctly in each recess with the Positive + sign facing up. Replace the battery cover. (Figure 17) Blue Light 3. Test the transmitter by pushing and releasing ANY button briefly. A Blue Light should illuminate under the 3-4 buttons.
  • Page 15 Ferron Speed Buttons 12. OPERATING INSTRUCTIONS: Figure 21 1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows: 1 = Low Speed 2 = Medium Low Speed 3 = Medium Speed 4 = Medium High Speed 5 = High Speed 6 = Extra High Speed Figure 22...
  • Page 16 Please remember your control system NOTE: is an RF (Radio Frequency) control system. You may occasionally experience control problems because of other radio frequency interference, i.e. fan turns off, light turns off or won't turn on, speed changes, etc. If this should happen, just change the “Control Frequency”...
  • Page 17 Ferron SENSOR DC CONTROL PAIRING PROCEDURES IMPORTANT: Ceiling fan blades MUST be installed before pairing procedure can begin. Step 1. Program the wall control and/or the handset control separately. Once the following pairing is successfully done, both the wall control and the handset control can be used for the fan.
  • Page 18: Installing The Cooltouchâ„¢ Control System Wall Plate

    13. INSTALLING THE COOLTOUCH™ CONTROL SYSTEM WALL PLATE Outlet box Switch NOTE: All wiring must be in accordance with the National Electrical Code and local electrical codes. Wall plate Electrical installation should be performed by a qualified licensed electrician. Select a location to install your CoolTouch™ Control System Transmitter.
  • Page 19: Troubleshooting

    Ferron 15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
  • Page 20 FCC INFORMATION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

This manual is also suitable for:

Ferron 300160
