Command|8 with Other Control Surfaces
Digi 002 and Command|8
When used as a MIDI control surface with supported Digi 002 and Digi 002 Rack systems, Com-
mand|8 faders function as additional faders (9–16, when left justified). Figure 2 shows fader mapping
when Command|8 is used with a Digi 002. (Plug-ins cannot be edited on Command|8 when used
with a Digi 002.) Use Command|8 for expanded fader control, or remote transport and monitoring.

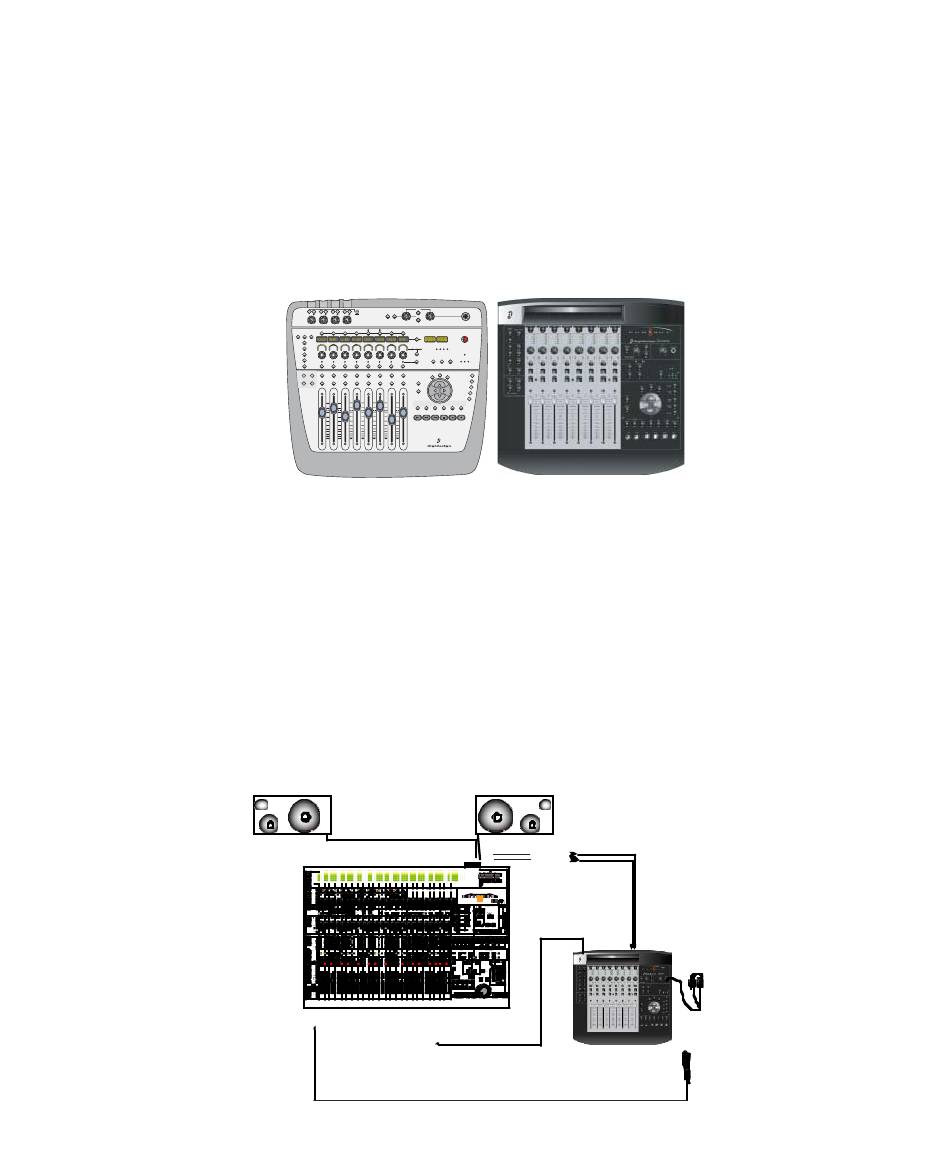

Figure 2. Digi 002 (or Digi 002R) and Command|8 fader mapping
ProControl or Control|24 and Command|8
Command|8 can be used simultaneously with ProControl or Control|24 as a remote Transport for iso-
lation rooms, drum booths, and other locations for remote control of play and record functions.
When used with ProControl or Control|24, Command|8 faders overlap (duplicate) the left-most eight
faders currently banked on Control|24.
Figure 3 shows basic connections when adding Command|8 to a Control|24 system (connections for
ProControl would be similar).
Mic input
Figure 3. Control|24-based Pro Tools system with Command|8 as a remote transport and monitor controller
Digi 002
MONO
ALT SRC ALT SRC
LINE/ INST
TO IN 7-8 TO MON
MIC
MUTE
MONITOR HEADPHONE
LEVEL LEVEL
1 GAIN 2 GAIN 3 GAIN 4 GAIN
EQ DYNAMICS INSERT PAN/SEND PAGE MASTER BYPASS
CONSOLE VIEW ESC
CHANNEL VIEW
PAN SEND INSERT
A DISPLAY
SAMPLE RATE
L R METER
B
44.1 48 88.2 96
1394
C
REC ENTER UNDO STANDALONE MIDI
D
SEL SEL SEL SEL SEL SEL SEL SEL IN OUT1 OUT2
E
SHIFT/ADD OPTION/ALL SOLO SOLO SOLO SOLO SOLO SOLO SOLO SOLO NUDGE
BANK ZOOM
(UTILITY) F1
CTL/CLUTCH COMM/ z MUTE MUTE MUTE MUTE MUTE MUTE MUTE MUTE FLIP
(NAMING) F2
OUT
MODIFIERS MASTER (SNAPSHOT) F3
FADERS
L R
(FADER MUTE) F4
IN
(FOCUS) F5
+6 +6 +6 +6 +6 +6 +6
WINDOWS PLAY/ REC MODE
+3 +3 +3 +3 +3 +3 +3 PLUG-IN MIX EDIT LOOP PLAY LOOP REC QUICK PUNCH
0 0 0 0 0 0 0
-5 -5 -5 -5 -5 -5 -5 RTZ REW FFW STOP PLAY REC
-10 -10 -10 -10 -10 -10 -10
-15 -15 -15 -15 -15 -15 -15
-20 -20 -20 -20 -20 -20 -20
-30 -30 -30 -30 -30 -30 -30
-40 -40 -40 -40 -40 -40 -40
-60 -60 -60 -60 -60 -60 -60
-90 -90 -90 -90 -90 -90 -90
Faders 1–8
Control Room Monitors
Control|24
USB to
CPU
Command|8
Faders 9–16
Alt or
monitor outputs
Command|8 in
vocal booth or
other
