IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT
INTRODUCTION
SKYTECH'S remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating
appliances. This all battery system operates independently of household current. The system operates on radio frequencies with a
non-directional signals. The SYSTEM's operating range is approximately 20 feet range. The system operates on one of 1,048,576
security codes that are programmed into the transmitter at the factory; the remote receiver's code must be matched to that of the
transmitter prior to initial use.
Review COMMUNICATION SAFETY SECTION under TRANSMITTER section and THERMO SAFETY SECTION under REMOTE
RECEIVER section. These signal/temperature safety features shut down the fireplace system when a potentially unsafe condition exists.

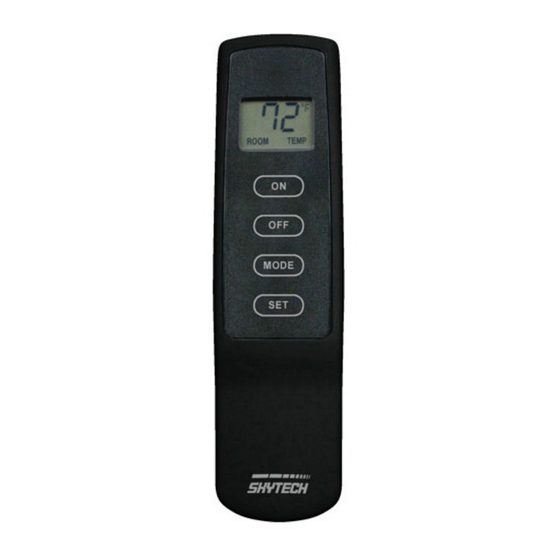

TRANSMITTER
ON
BUTTON
ON
OFF
MODE
OFF
BUTTON
SET
FRONT
ON
OFF
MODE
SET
LCD - Liquid Crystal Display
1
4
ROOM
INSTALLATION AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
This remote control SYSTEM offers the user a battery-operated remote control
WALL CLIP
SLOT
that operates most millivolt gas valves used in some heater rated gas logs, gas
fireplaces and other gas heating appliances.
MODE
BUTTON
The transmitter operates on (2) 1.5V AAA batteries.
It is recommended that ALKALINE batteries always be used for longer battery life
and maximum operational performance.
SET
BUTTON
BATTERY
Before using the transmitter, install the (2) AAA transmitter batteries into the
COMPARTMENT
battery compartment. (Use caution that batteries are installed in the proper
direction)
BACK
1
2
3
4
2
3
SET
TEMP
5
6
KEY SETINGS
ON
- Operates unit to on position, Manually ON.
•
•
OFF
- Operates unit to off position, Manually OFF.
•
MODE
- Changes unit from manual mode to thermo mode.
SET
- Sets temperature in thermo mode.
•
1.
DISPLAY
Indicates CURRENT room temperature .
0
0
2.
F OR
C
Indicates degrees Fahrenheit or Celsius.
3.
FLAME
Indicates burner/valve in operation.
4.
ROOM
Indicates remote is in THERMO operation.
5.
TEMP
Appears during manual operation.
6.
SET
Appears during time the of setting the desired
temperature in the thermo operation..
1001 TH-A
Rev. 8/22/05 Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1001 TH-A and is the answer not in the manual?

Questions and answers

Related Manuals for Skytech 1001 TH-A

Summary of Contents for Skytech 1001 TH-A

  • Page 1 ATTEMPT TO INSTALL OR OPERATE INTRODUCTION SKYTECH’S remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating appliances. This all battery system operates independently of household current. The system operates on radio frequencies with a non-directional signals.

  • Page 2: Manual Function

    SETTING C SCALE The factory setting for temperature is F. To change this setting to first • Press the ON key and the OFF key on the transmitter at the same time this will change from F to C. Follow this same procedure to TEMP change from C back to...

  • Page 3: Installation Instructions

    Press the MODE key to disengage the thermo mode. The word ROOM on the LCD screen will not show when the thermo is not in operation. NOTE: The highest SET temperature is 99 Fahrenheit (32 Celsius) and the lowest temperature is (45 Fahrenheit (6 Celsius) OPERATIONAL NOTES:...
  • Page 4 INSTALLATION The remote receiver can be either wall-mounted in a standard plastic switch box or placed on or near the fireplace hearth. Preferably, the remote receiver should be wall-mounted in a plastic switch box, as this will protect its electronic components from both the heat produced by the gas appliance and potential damage or abuse that can occur if it is left exposed on the hearth.
  • Page 5 F (1 C). (The 2 F differential is the factory setting). CP (CHILDPROOF) FEATURE This SKYTECH remote control includes a CHILDPROOF “LOCK-OUT” feature that allows the user to “LOCK-OUT” operation of the appliance, from the TRANSMITTER. SETTING “LOCK-OUT” –(CP) •...
  • Page 6 BATTERY LIFE Life expectancy of alkaline batteries in the SKYTECH 1001TH should be at least 12 months. Check and replace all batteries annually. When the transmitter no longer operates the remote receiver from a distance it did previously (i.e., the transmitter's range has decreased) or the remote receiver does not function at all, the batteries should be checked.

  • Page 7: Specifications

    UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. FOR TECHNICAL SERVICE, CALL: U. S. INQUIRIES CANADIAN INQUIRIES 888/672-8929 or 260/459-1703 877/472-3923 WEBSITE: skytechsystem.com MANUFACTURED EXCLUSIVELY FOR SKYTECH II, IN Rev. 8/22/05 Page 7 of 9...

  • Page 8: Limited Lifetime Warranty

    Replacement parts will be available at no charge for the first (5) five years of this warranty, and will be available at market cost for the Lifetime of the product to that original owner. If SKYTECH II does not have the parts for an individual model, then a replacement SYSTEM will be provided.
  • Page 9 Exclusive offer to Skytech Remote Control Owners This special offer is only provided to customers of Skytech II, Inc. that have purchased a remote control for their Hearth Product. This remote control system can be used for any 110Volt appliance, but perfect your Christmas Tree Lights or any other appliance that is difficult to reach or plug in.
