IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT
INTRODUCTION
This SKYTECH remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heat-
ing appliance. The system can be operated thermostatically, manually or with the built-in factory program inside the transmitter. The
built-in program will control the appliance (7) days a week with (4) continuous time periods for each day. SEE PROGRAM SEQUENCE
BELOW. Custom programming may be achieved after the initial set has been performed.
This system operates on radio frequencies (RF) within a 20-foot range using non-directional signals. The system operates one of
1,048,576 security codes that are programmed into the transmitter at the factory; the remote receiver's code must be matched to that of
the transmitter prior to initial use.
MORN
6:00AM
70°
Review COMMUNICATION SAFETY under theTRANSMITTER SECTION and THERMO SAFETY under the REMOTE RECEIVER
SECTION. These signal/temperature safety features shut down the appliance when a potentially unsafe condition exists.
The transmitter operates on (2) AAA-size 1.5V batteries. It is recommended that ALKALINE batteries always be used for longer bat-
tery life and maximum operational performance. IMPORTANT: New batteries are essential for proper operation of the multi-function
transmitter.
MODE
DOWN
UP
COVER
CLOSED

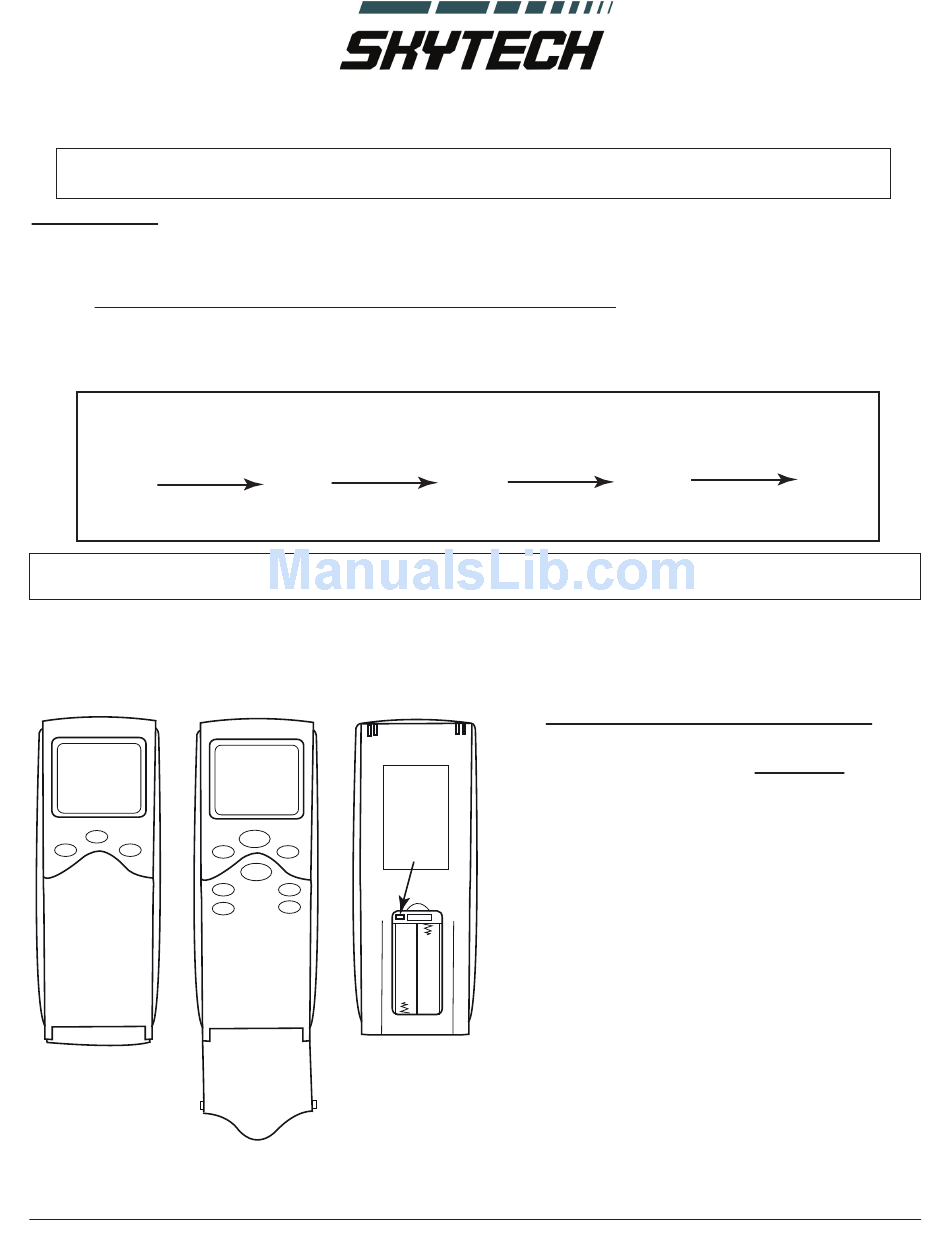

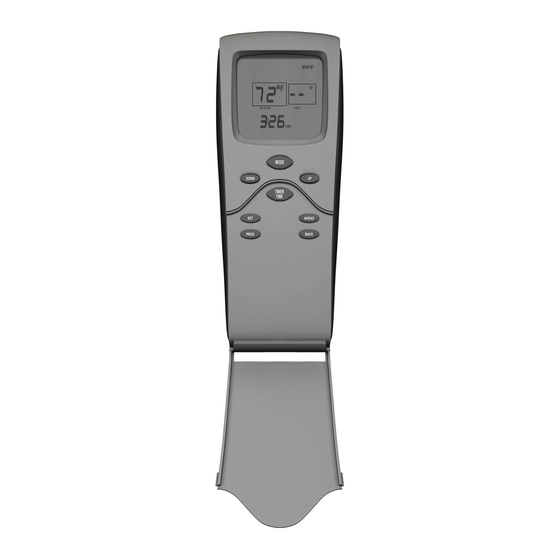

Fig. 1 Transmitter Front and Back Views
Skytech: 3301P
INSTALLATION AND OPERATING INSTRUCTIONS
TO INSTALL OR OPERATE
Built-in Factory Program
DAY
8:30AM
60°
TRANSMITTER
MODE
BUTTON
DOWN
UP
TIMER
TIME
SET
AHEAD
BACK
PROG
COVER OPEN
Model: 3301P
EVE
3:00PM
70°
INITIAL SET-UP OF TRANSMITTER
BACK OF
The initial set-up of the transmitter is IMPERATIVE to ensure
the following:
•
Current Time - Hours and Minutes / AM/PM
•
Current Day of the Week - S, M, T, W, T, F, S
SMALL
•
Proper Temperature Scale - F° (Fahrenheit) or °C (Cel-
sius)
To begin the initial set-up proceed with the follow-
+
-
ing steps:
1. Remove the battery cover on the back of the transmitter.
-
Insert (2) ALKALINE AAA size 1.5 DCV batteries into the
+
battery compartment, positioning the (+) and (-) ends of the
batteries as indicated on the casing. When the batteries are
inserted properly, the LCD screen will display.
2. Note the small button at the upper left side of the battery
compartment (Fig. 1). This button is used to perform the
initial transmitter set-up.
NIGHT
11:00PM
63°
REV. 2-7-12 Page 1
