INTRODUCTION
This SKYTECH remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating
appliance. The system can be operated thermostatically or manually from the transmitter. The system operates on radio frequencies (RF)
within a 20''range using non-directional signals. The system operates one of 1,048,576 security codes that are programmed into the
transmitter at the factory; the remote receiver's code must be matched to that of the transmitter prior to initial use.
Review COMMUNICATION SAFETY SECTION under TRANSMITTER section and THERMO SAFETY SECTION under REMOTE
RECEIVER section. These signal/temperature safety features shut down the fireplace system when a potentially unsafe condition exists.

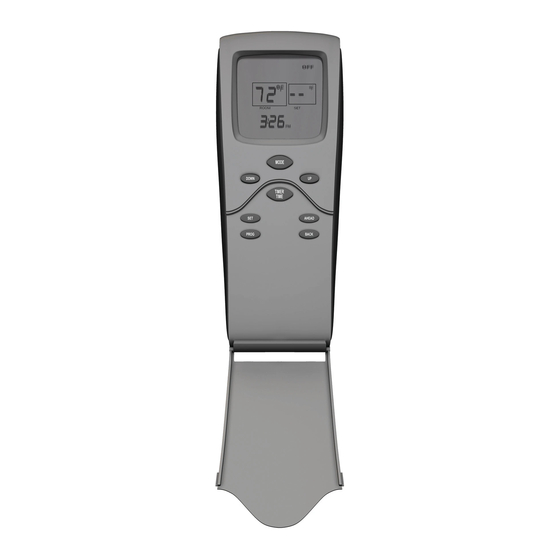

TRANSMITTER
MODE
DOWN
DOWN
UP
SET
PROG
Cover Closed
Cover
Open
LCD DISPLAY SCREEN

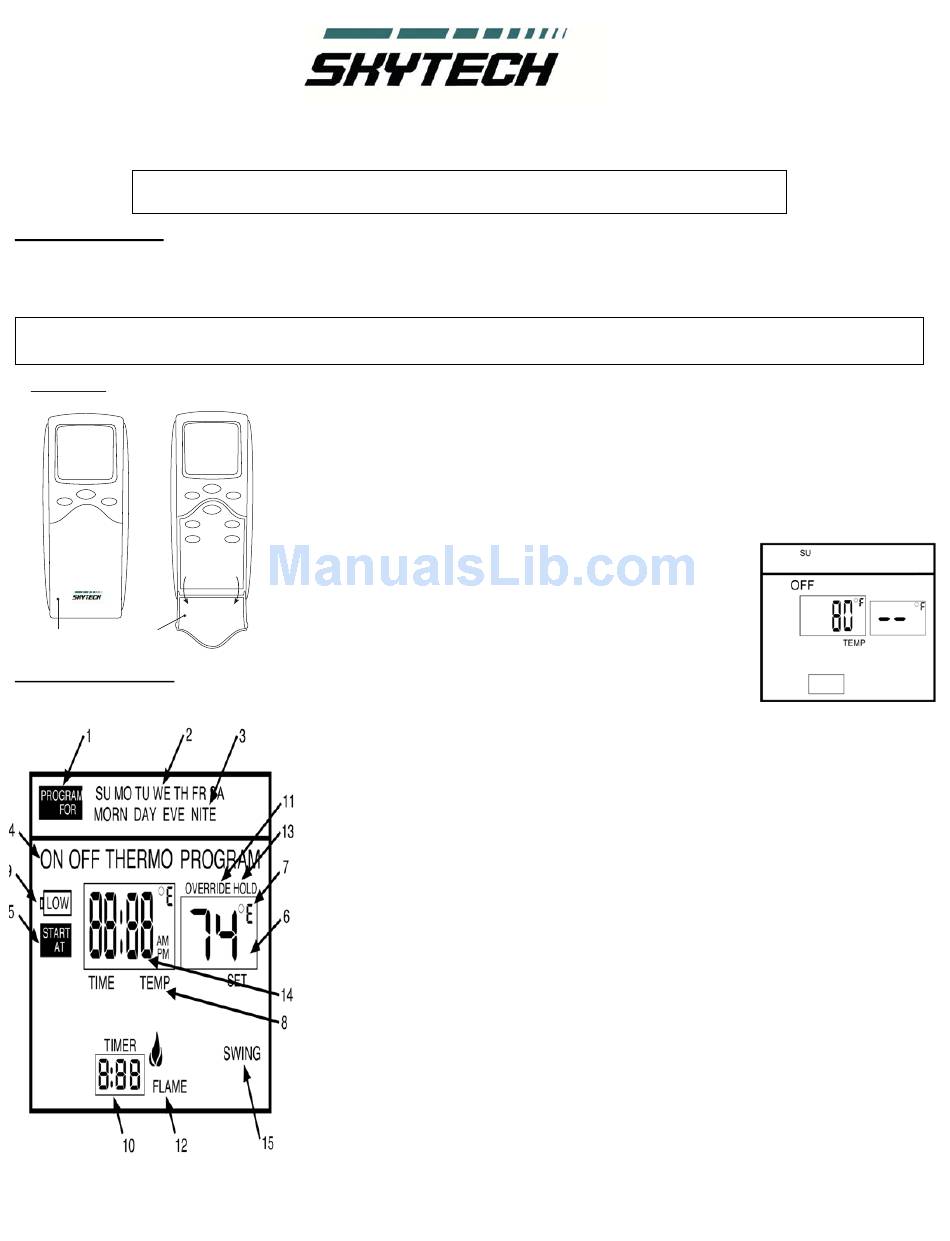

1. PROGRAM FOR: Flashes when programming days of week and periods of the
day. When in normal state, only current DAY displays. When programming or in
INSTALLATION AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on 2AAA-size 1.5V batteries. It is recommended that ALKALINE
batteries always be used for longer battery life and maximum operational performance.
IMPORTANT: New or fully charged batteries are essential for proper operation of the multi-
function transmitter.
Insert 2 AAA-size 1.5 V batteries into the battery transmitter, positioning the (+) and (-) ends of
MODE the batteries as indicated on the casing. When the batteries are inserted, the screen below (with
UP
similar numbers) will display.
TIMER
TIME
AHEAD
Note: If a LOW battery icon appears on the screen, check the
BACK
position of the batteries.
Note: Due to the sensitive temperature-monitoring components in
the transmitter, it may be necessary to allow the transmitter to
stabilize to room temperature before accurate room temperatures
are displayed on the screen. If the transmitter is activated from a
severe cold condition, it can take up to fifteen minutes for accurate
temperature readings to appear.
mode, both day and week will appear.
2. DAY –Flashes when current day or day of week is being programmed.
3. PERIOD – Flashes when current period of day or period of week is being
programmed.
4. MODE – Indicates operation MODE of system.
•
•
•
•
5. START AT – Flashes when programming the time to turn system ON.
6. SET – Indicates desired SET room temperature, when in THERMO or PROGRAM
mode.
0
7.
8. TIME/TEMP – Displays the CURRENT room temperature. In same frame, the
current time will display in AM or PM. You must depress the TIME/TIMER button to
display current time.
9. LOW – Battery power is low. Replace batteries within 2 weeks.
10. TIMER – When displayed, indicates countdown timer in operation.
11. OVERRIDE – Displays when "programmed" SET temperature is overridden.
12. FLAME – Single flame symbol indicates burner/valve is operational.
13. HOLD – Displays when "programmed" SET temperature is overridden and will hold
that temperature until cancelled.
14. CP – Displays when CHILD PROOF "LOCK OUT" is engaged. Pressing the UP and
TIMER buttons together, engages CP.
15. SWING- Displays in SET frame when setting TEMPERATURE DIFFERNTIAL.
ON indicates the system is on, either manually, thermostatically, or program.
Off indicates the entire system is turned off.
THERMO indicates the system will automatically cycle ON/OFF, depending on
programmed SET temperature.
PROGRAM – indicates the system is operating with PROGRAMMED settings.
0
F / C – Factory programmed in
3301P
PROGRAM
0 0
F. ( C indicates degrees in Celsius)
REV 12/25/04 Page 1 of 14
