Skytech 5001 Installation And Operating Instructions Manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT

INTRODUCTION

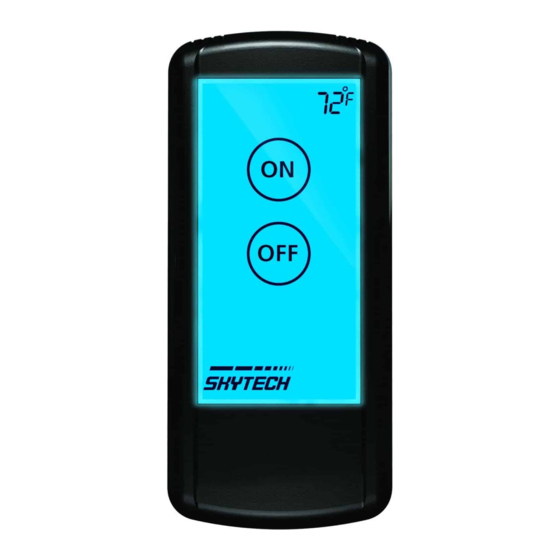

This SKYTECH remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas
heating appliances. The system can be operated manually from the transmitter. The system operates on radio frequencies (RF) within
a 20-foot range using non-directional signals. The system operates one of 1,048,576 security codes that are programmed into the
transmitter at the factory; the remote receiver's code must be matched to that of the transmitter prior to initial use.
ON
OFF
FRONT
1
8
ON
OFF
4

OPERATION FUNCTIONS

ON
OFF
_________________________________________________________________________________________
Skytech 5001
Installation AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on 4 AAA-size 1.5V batteries. It is recommended that
ALKALINE batteries always be used for longer battery life and maximum operational
performance. IMPORTANT: New or fully charged batteries are essential for proper
operation of the multi-function transmitter. Insert 4 AAA-size 1.5 V batteries into the
battery compartment on the back of the transmitter, positioning the (+) and (-) ends of the
batteries as indicated on the casing. When the batteries are inserted, the screen at right
(with similar numbers) will display.
Note: On initial start up if a LOW battery icon appears on
the screen, check the position of the batteries.
BATTERY
COMPARTMENT
Note: Due to the sensitive temperature-monitoring
components in the transmitter, it may be necessary to
allow the transmitter to stabilize to room temperature
before accurate room temperatures are displayed on
the screen. If the transmitter is activated from a
severe cold condition, it can take up to fifteen minutes
BACK
for accurate temperature readings to appear.
5
6
2
1. BATTERY ICON - Battery power is low. Replace batteries within two weeks.
2. ON- Indicates the appliance is ON – Flame Icon
7
3. OFF- Indicates the appliance is OFF – NO Flame Icon
4. FLAME – Indicates burner/valve in operation.
3
5. ROOM – Indicates CURRENT room temperature.
0
6.
7. LOCK – Child lock out.
8. RF SIGNAL ICON –Appears when the RF signal is being transmitted.
1. Touch anyplace on the screen and the screens blue back light will light up and stay on for (5)
seconds.
2. Touch the ON button on the LCD screen front of the transmitter to turn the appliance ON.
3. Touch the OFF button on the LCD screen front of the transmitter to turn the appliance OFF.
Model: 5001
F indicates degrees Fahrenheit (ºC indicates degrees Celsius).
ON
OFF
REV 3/23/11 Pg 1 of 5
