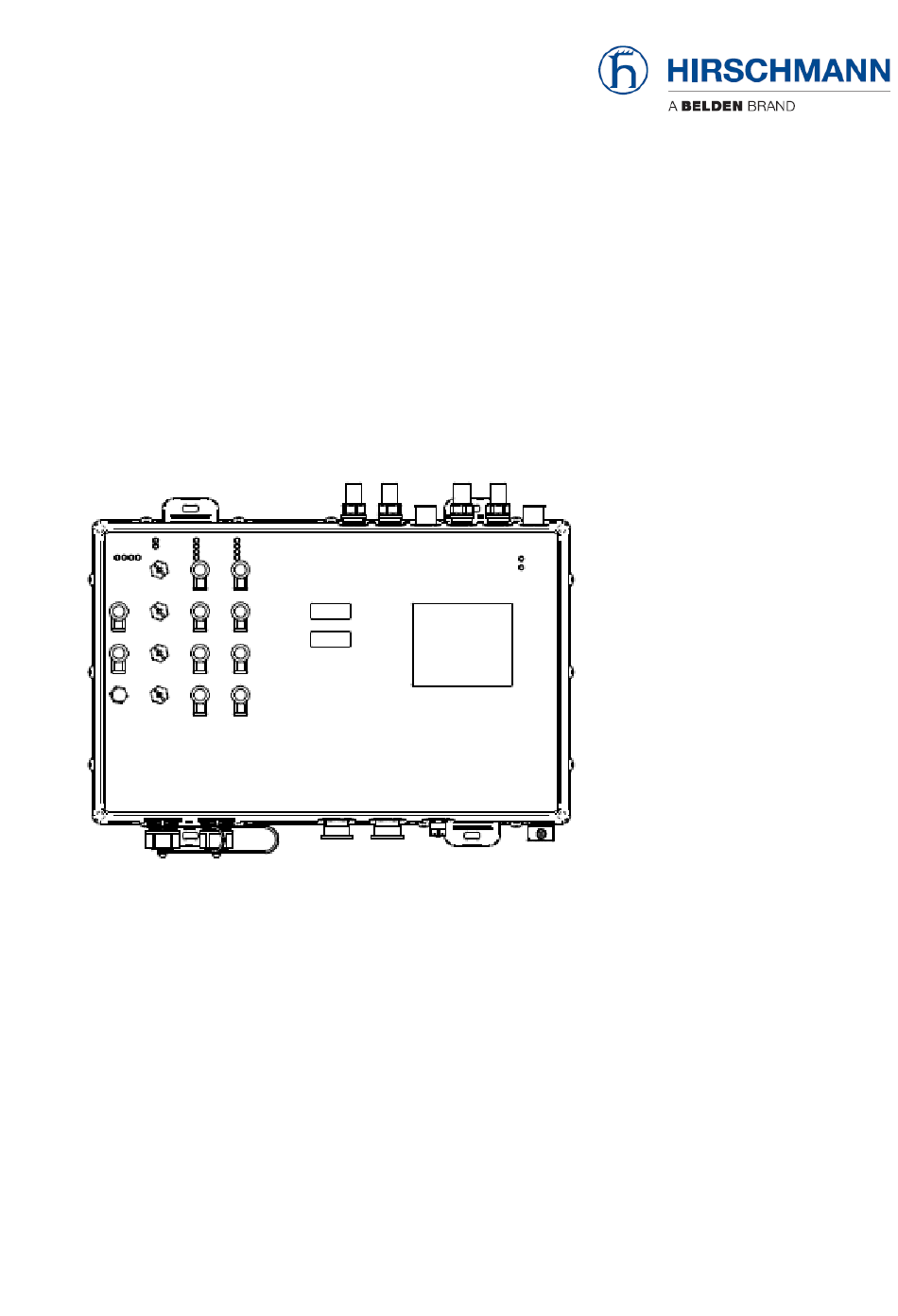

- Page 1 User Manual Installation Managed IP67 Wireless Switch BATOne Installation BATOne Technical Support Release 01 01/2019 https://hirschmann-support.belden.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
1.5.1 10/100 Mbit/s twisted pair port 1.5.2 1000 Mbit/s F/O port 1.5.3 Pin assignments Connections for antennas Display elements 1.7.1 Device state 1.7.2 Port status Management interfaces 1.8.1 USB interface 1.8.2 V.24 interface (external management) Signal contact Installation BATOne Release 01 01/2019... - Page 4 2.5.2 Signal contact Operating the device Connecting data cables Filling out the inscription label MAKING BASIC SETTINGS MONITORING THE AMBIENT AIR TEMPERATURE 34 CONFIGURING THE TRANSMIT POWER MAINTENANCE AND SERVICE DISASSEMBLY TECHNICAL DATA General technical data Installation BATOne Release 01 01/2019...
- Page 5 Receiving sensitivity, transmit power, and data rate of the WLAN module version EWLAN1 8.6.1 IEEE 802.11b 8.6.2 IEEE 802.11g 8.6.3 IEEE 802.11a 8.6.4 IEEE 802.11n EMC and immunity Network range SCOPE OF DELIVERY, ORDER NUMBERS AND ACCESSORIES UNDERLYING TECHNICAL STANDARDS A FURTHER SUPPORT Installation BATOne Release 01 01/2019...
-
Page 6: Safety Instructions
The device is free of any service components. In case of a damaged or malfunctioning the device, turn off the supply voltage and return the device to Hirschmann for inspection. Internal fuses are triggered only in the case of a detected error in the device. - Page 7 Certified usage Use the product only for the application cases described in the Hirschmann product information, including this manual. Operate the product only according to the technical specifications. See Technical data on page Connect to the product only components suitable for the requirements of the specific application case.
- Page 8 135 N according to the technical standard IEC 60352-2. Table 4: Requirements for connecting the grounding Requirements for connecting the supply voltage Before connecting the supply voltage, always verify that the requirements listed are complied with. Installation BATOne Release 01 01/2019...
- Page 9 Grounding the device Grounding the device is by means of a separate ground connection on the device. Ground the device before connecting any other cables. Disconnect the grounding only after disconnecting all other cables. Installation BATOne Release 01 01/2019...
- Page 10 Refer to the information in the “WLAN Outdoor Guide” on “Lightning and overvoltage protection”. You can download the manual from the Internet on the Hirschmann product pages (http://www.hirschmann.com). Install over voltage protector devices on every outdoor Ethernet cable.
- Page 11 CLASS 1 LASER PRODUCT CLASS 1 LED PRODUCT Recycling note After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country. Installation BATOne Release 01 01/2019...
-
Page 12: About This Manual
The documentation for your device is made up of the following documents: General safety instructions Installation user manual Installation BATOne Release 01 01/2019... -
Page 13: Key
The symbols used in this manual have the following meanings: Listing Work step Subheading Installation BATOne Release 01 01/2019... -
Page 14: Description
Description General description The BATOne devices are designed for the special requirements of industrial automation. They meet the relevant industry standards, provide very high operational reliability, even under extreme conditions, and also long-term reliability and flexibility. The BATOne are dual-band industrial high-performance wireless LAN access points or clients complying with IEEE 802.11a/b/g/h/n. -
Page 15: Device Name And Product Code
Radio, conformal coating, one power supply and extended temperature SW: HiOS software layer 2 advanced, HiLCOS software 942244002 BATOne EEC DP 1 WLAN + ECC + 2 PSU one Radio, conformal coating, two power supplies and extended temperature SW: HiOS software layer 2 advanced, HiLCOS software... -
Page 16: Device View
Device view Device view using an example: BATOne DRP Above: front of device Below: bottom of device Hole for mounting LED display elements for device status LED display elements for port status: Up to 8 ×: 10/100 Mbit/s twisted pair port ... -
Page 17: Power Supply
The socket housing is electrically connected with the device housing. 1.5.2 1000 Mbit/s F/O port Figure 1: IP67 plug as per IEC 61076-3-106. The 1000 Mbit/s F/O port offers you the ability to connect network components according to the IEEE 802.3 1000BASE-LX standard. Installation BATOne Release 01 01/2019... -
Page 18: Pin Assignments
The devices have 3 N sockets on each WLAN module. The "Antenna Guide" document provides an overview of the antennas that can be used as well as the suitable antenna accessories. This document is available for download as a PDF file on the Hirschmann product pages (www.hirschmann.com). Display elements After the supply voltage is set up, the software starts and initializes itself. -
Page 19: Port Status
Start the device again. flashes 4 Device has detected a multiple IP times a period address 1.7.2 Port status These LEDs provide port-related information. Link state These LEDs are identified with the number of the related port. Installation BATOne Release 01 01/2019... -
Page 20: Management Interfaces
Management interfaces 1.8.1 USB interface This interface offers you the ability to connect the storage medium AutoConfiguration Adapter ACA22-M12. This storage medium is used for saving/loading the configuration and diagnostic functions, and for loading the software. Installation BATOne Release 01 01/2019... -
Page 21: Interface (External Management)
Table 6: Pin assignment of the USB interface, 5-pin, “A”- coded M12 socket 1.8.2 V.24 interface (external management) BATOne have 2 V.24 ports. Both are “A”- coded M12 socket. V.24 connection, a serial interface is provided for the local connection of an external management station (VT100 terminal or PC with corresponding terminal emulation). - Page 22 You will find a description of the V.24 interface in the “User Manual Basic Configuration” document. Wireless V.24 Connecting the BATOne device allows you to automate the configuration of a point-to-point WLAN line by connecting two devices directly via the wireless V.24 interface. You will find more information here: –...
- Page 23 8-pin, “A”- coded M12 plug to 8-pin, “A”-coded M12 plug (point-to-point WLAN line) Note: With the point-to-point WLAN line, the following pins are short-circuited at both ends: 2 (DTR) + 6 (DSR) 7 (RTS) + 8 (DSR) Installation BATOne Release 01 01/2019...
-
Page 24: Signal Contact
The management setting specifies which events switch a contact. You can also use the management to switch the signal contact manually and thus control external devices. For more detail see Signal contact on page Installation BATOne Release 01 01/2019... -
Page 25: Installation
Filling out the inscription label Checking the package contents Proceed as follows: Check whether the package includes all items named in the section Scope of delivery on page Check the individual parts for transport damage. Installation BATOne Release 01 01/2019... -
Page 26: Installing And Grounding The Device
The device variants have a connection for protective grounding. Note: Use toothed washers to ensure good electrical conductivity at the connection. Ground the device via the provided M4 screw. Installation BATOne Release 01 01/2019... -
Page 27: Installing The Antennas
3 × N socket for WLAN module 2 For device variants with 1 WLAN module: 3 × N socket for WLAN module 1 Antenna connection 1 Antenna connection 2 Antenna connection 3 Table 11: Antenna connections Installation BATOne Release 01 01/2019... -
Page 28: Connecting The Ferrite
If you connect to 2 BATOne devices antennas to 2 WLAN modules, ensure that there is a distance of at least 2 m between the BATOne devices. If you would like to connect several antennas to a WLAN module, align the antennas so that the points of the antennas point away from each other in a star shape. -
Page 29: Connecting The Power Supply And Signal Lines
Using external Supply voltage category III requires external filter to ensure category II. See Requirements for connecting the supply voltage on page Failure to follow this instruction can result in death, serious injury, or equipment damage. Installation BATOne Release 01 01/2019... -
Page 30: Supply Voltage (100 V Ac
Depending on the device variant, the signal contact lines are laid in the power supply plug or in a special plug. Connection assignments 1 — 2 Signal contact 3 — 4 — 5 Signal contact Installation BATOne Release 01 01/2019... -
Page 31: Operating The Device
90° angle. Use SF/UTP cables as per ISO/IEC 11801:2002. Connect the data cables according to your requirements. For more detail see Ethernet ports on page Installation BATOne Release 01 01/2019... -
Page 32: Filling Out The Inscription Label
Filling out the inscription label The information field for the IP address helps you identify your device. Installation BATOne Release 01 01/2019... -
Page 33: Making Basic Settings
Switch V.24 data rate: 9600 Baud Wireless V.24 data rate: 115200 Baud Ethernet ports: link status is not evaluated (signal contact) Optical ports: Full duplex TP ports: Autonegotiation RSTP (Rapid Spanning Tree) activated Installation BATOne Release 01 01/2019... -
Page 34: Monitoring The Ambient Air Temperature
If the ambient temperature exceeds the normal operating range of the equipment, additional protective measures are recommended. Installation BATOne Release 01 01/2019... -
Page 35: Configuring The Transmit Power
Note: The operator of a WLAN radio installation must adhere to the applicable transmission threshold values. Use the graphical user interface or the LANconfig software. You can download the LANconfig software as an ISO image from the Hirschmann product pages (www.hirschmann.com). In the graphical user interface, proceed as follows: ... - Page 36 Subtract the cable and installed overvoltage protector attenuation from the antenna gain. Enter the calculated value in the “Antenna gain” field. To save the value, click the “Send” button. Installation BATOne Release 01 01/2019...
-
Page 37: Maintenance And Service
Hirschmann is continually working on improving and developing their software. Check regularly whether there is an updated version of the software that provides you with additional benefits. You find information and software downloads on the Hirschmann product pages on the Internet (www.hirschmann.com). Note: You find information on settling complaints on the Internet at www.beldensolutions.com/en/Service/Reparaturen/index.phtml. -
Page 38: Disassembly
Failure to follow this instruction can result in death, serious injury, or equipment damage. Disconnect the data cables. Disable the supply voltage. Disconnect the power supply cables and signal lines. Remove the antennas. Disconnect the grounding. Installation BATOne Release 01 01/2019... -
Page 39: Technical Data
5 K at the following clearance: Top and bottom sides of device: 0 in Left and right device side: 0 in Ambient air Devices with operating temperature temperature characteristic (standard): −40 °F ... +140 °F (−40 °C ... +60 °C) Installation BATOne Release 01 01/2019... -
Page 40: Power Consumption/Power Output
Power consumption/power output Conditions Maximum Power output power consumption Equipped with 1 WLAN module TBD Btu (IT)/h Equipped with 2 WLAN modules 23 W 78.5 Btu (IT)/h Installation BATOne Release 01 01/2019... -
Page 41: Dimension Drawings
Dimension drawings Installation BATOne Release 01 01/2019... -
Page 42: Radio Technology
With encryptions of the type TKIP and WEP, the device falls back on IEEE 802.11b/g or IEEE 802.11a. Roaming IEEE 802.11F (Inter-Access Point Protocol) IEEE 802.11r (Fast Roaming) PMK caching Pre authentication OKC (Opportunistic key caching) Installation BATOne Release 01 01/2019... -
Page 43: Receiving Sensitivity, Transmit Power, And Data Rate Of The Wlan Module Version Ewlan1
−90 dBm 12 Mbit/s 22 dBm −89 dBm 18 Mbit/s 22 dBm −85 dBm 24 Mbit/s 22 dBm −82 dBm 36 Mbit/s 21 dBm −78 dBm 48 Mbit/s 20 dBm −77 dBm 54 Mbit/s 19 dBm Installation BATOne Release 01 01/2019... -
Page 44: Ieee 802.11A
−75 dBm MCS 13 16 dBm −73 dBm MCS 14 15 dBm −72 dBm MCS 15 15 dBm −87 dBm MCS 16 23 dBm −90 dBm MCS 17 23 dBm −86 dBm MCS 18 23 dBm Installation BATOne Release 01 01/2019... - Page 45 −89 dBm MCS 18 21 dBm −84 dBm MCS 19 21 dBm −81 dBm MCS 20 16 dBm −77 dBm MCS 21 15 dBm −75 dBm MCS 22 14 dBm −73 dBm MCS 23 14 dBm Installation BATOne Release 01 01/2019...
-
Page 46: Emc And Immunity
Voltage surges - data line EN 61000-4-5 line/ground ± 1 kV ± 2 kV Conducted disturbances EN 61000-4-6 150 kHz ... 80 MHz 10 V 10 V Power frequency magnetic fields EN 61000-4-8 — 300 A/m Installation BATOne Release 01 01/2019... -
Page 47: Network Range
Using the bandwidth length product is inappropriate for expansion calculations. SM = Singlemode Network range: 10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable) Table 13: Twisted Pair Installation BATOne Release 01 01/2019... -
Page 48: Accessories
10 × Protection cap (plastic) for M12 socket Premounted Table 14: List of the scope of delivery The order numbers correspond to the product codes of the devices. “Device name and product code” on page 15. Installation BATOne Release 01 01/2019... - Page 49 BAT-ANT-N-3AGN-IP67 (10 pcs.) 942 110-001 BAT Protector 943 903-373 SFP mounting tool for IP67 socket 942 079-001 Plug casing for IP67 plug acc. to IEC 61076-3-106 Available at BTR NETCOM GmbH Table 15: List of the accessories Installation BATOne Release 01 01/2019...
-
Page 50: 10 Underlying Technical Standards
Table 16: List of the technical standards The device has an approval based on a specific standard only if the approval indicator appears on the device casing. The device generally fulfills the technical standards named in their current versions. Installation BATOne Release 01 01/2019... -
Page 51: A Further Support
A Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at www.hirschmann.com. A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https://hirschmann-support.belden.com... - Page 52 Installation BATOne Release 01 01/2019...
