User Manual
Installation
Industrial Ethernet BOBCAT Rail Switch
BRS20/30/40/50
Installation BRS20/30/40/50
Technical support
Release 02 11/2018
https://hirschmann-support.belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRS20-0400 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hirschmann BRS20-0400 Series

Summary of Contents for Hirschmann BRS20-0400 Series

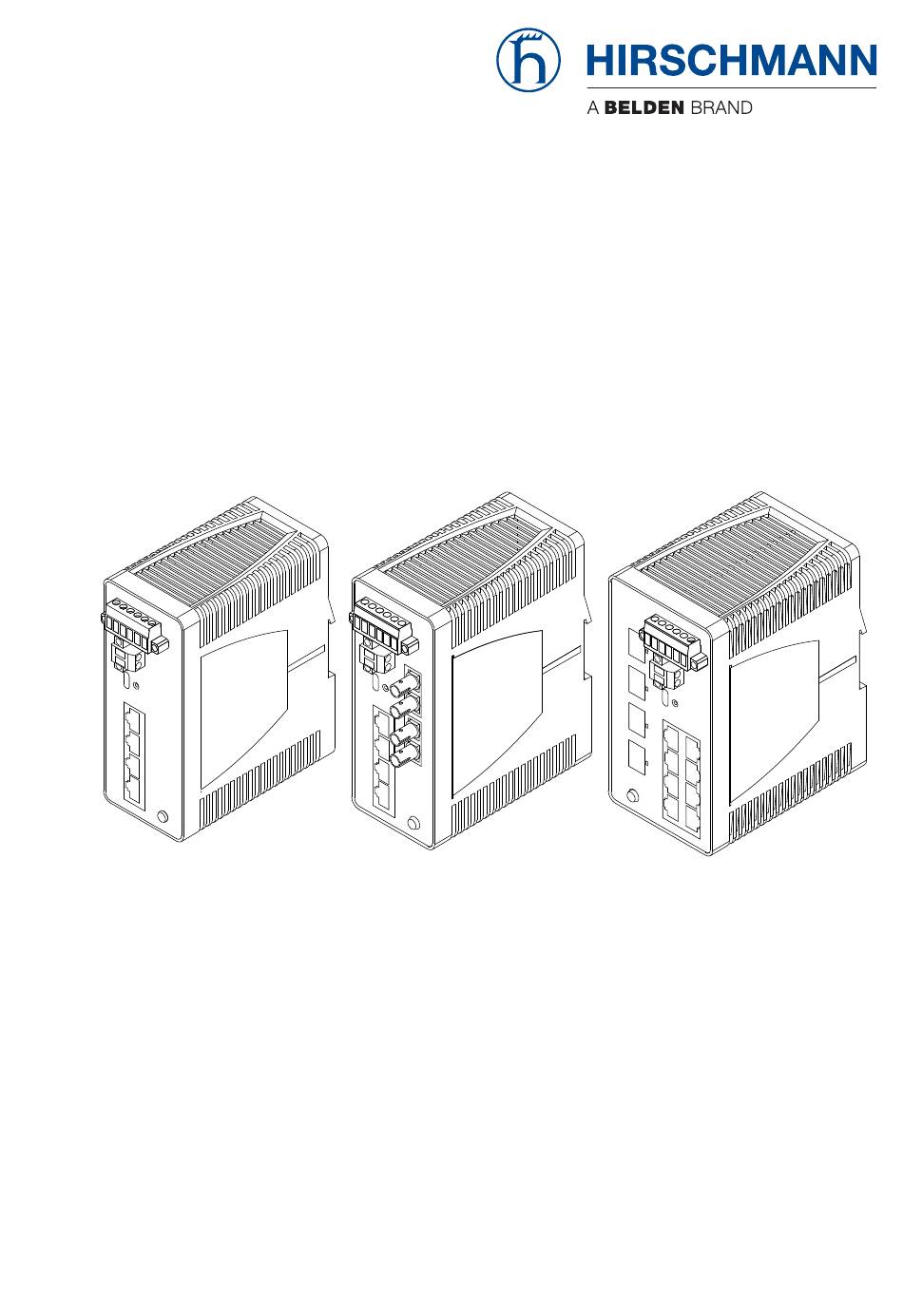

  • Page 1 User Manual Installation Industrial Ethernet BOBCAT Rail Switch BRS20/30/40/50 Installation BRS20/30/40/50 Technical support Release 02 11/2018 https://hirschmann-support.belden.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Contents Safety instructions About this manual Description General device description Device name and product code Device views 1.3.1 Front view 1.3.2 Rear view Power supply 1.4.1 Supply voltage with characteristic value T 1.4.2 Supply voltage with characteristic value F Ethernet ports 1.5.1 10/100 Mbit/s twisted pair port 1.5.2 10/100/1000 Mbit/s twisted pair port 1.5.3 100 Mbit/s F/O port...
  • Page 4 Connecting the terminal blocks 2.4.1 Power supply 2.4.2 Signal contact (optional) 2.4.3 Digital input (optional) Operating the device Connecting data cables Filling out the inscription label Making basic settings Monitoring the ambient air temperature Maintenance and service Disassembly Removing an SFP transceiver (optional) Removing the device Technical data General data...
  • Page 5 6.12.1 Fast Ethernet SFP transceiver 6.12.2 Gigabit Ethernet SFP transceiver 6.12.3 2.5 Gigabit Ethernet SFP transceiver 6.12.4 Bidirectional Fast Ethernet SFP transceiver 6.12.5 Bidirectional Gigabit Ethernet SFP transceiver Scope of delivery Accessories General accessories Fast Ethernet SFP transceiver Gigabit Ethernet SFP transceiver 2.5 Gigabit Ethernet SFP transceiver Bidirectional Fast Ethernet SFP transceiver Bidirectional Gigabit Ethernet SFP transceiver...

  • Page 6: Safety Instructions

    Certified usage   Use the product only for the application cases described in the Hirschmann product information, including this manual.  Operate the product only according to the technical specifications. See “Technical data” on page 54.  Connect to the product only components suitable for the requirements of the specific application case.
  • Page 7 Installation site requirements  WARNING FIRE HAZARD Install the device in a fire enclosure as per EN 62368 or EN 60950-1 if you are connecting it to a power supply >100 W (PS3) or >NEC Class 2. Failure to follow these instructions can result in death, serious injury, or equipment damage.
  • Page 8 Grounding the device  The housing is grounded via the separate ground screw on the bottom left of the front side of the device.  Ground the device before connecting any other cables.  Disconnect the grounding only after disconnecting all other cables. Requirements for connecting electrical wires ...
  • Page 9 Prerequisites: All of the following requirements are complied with:  Supply with DC voltage: A fuse suitable for DC voltage is located in the positive conductor of the power supply. The negative conductor is on ground potential. Regarding the properties of this fuse: See “Technical data”...
  • Page 10 Relevant for use in explosion hazard areas (Hazardous  Locations, Class I, Division 2) ([SORVLYH $WPRVSKHUH 2UGLQDU\ /RFDWLRQ 1RQ+D]DUGRXV $UHD &ODVV , 'LYLVLRQ  *URXSV $ 1RQ([SORVLYH $WPRVSKHUH % & ' +D]DUGRXV /RFDWLRQ %56  ,QGXVWULDO (WKHUQHW %2%&$7 5DLO 6ZLWFK 5HOD\ 5HOD\ FRQWDFWV (TXLSPHQW ZLWK QRQLQFHQGLYH ¿...
  • Page 11 )RU XVH LQ +D]DUGRXV /RFDWLRQV &ODVV , 'LYLVLRQ  *URXSV $ % & ' ([FOXVLYHO\ DOORZHG IRU %56 PRGHO 1RV ZKLFK DUH LQGLYLGXDOO\ ODEHOHG )25 86( ,1 +$=$5'286 /2&$7,216 ³ ³ 7KLV HTXLSPHQW LV H[FOXVLYHO\ VXLWDEOH IRU XVH LQ &ODVV , 'LYLVLRQ  *URXSV $ % & DQG ' RU QRQKD]DUGRXV ORFDWLRQV 1RQLQFHQGLYH ¿...
  • Page 12 In accordance with the above-named EU directive(s), the EU conformity declaration will be available to the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany www.hirschmann.com The device can be used in the industrial sector.
  • Page 13 FCC note:  This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. Appropriate testing has established that this device fulfills the requirements of a class A digital device in line with part 15 of the FCC regulations.

  • Page 14: About This Manual

    Documentation mentioned in the "Installation" user manual that is not supplied with your device in print can be found as PDF download on the Internet at the Hirschmann product pages (www.hirschmann.com). Installation BRS20/30/40/50 Release 02 11/2018...

  • Page 15: Key

    The symbols used in this manual have the following meanings:  Listing Work step  Subheading  Installation BRS20/30/40/50 Release 02 11/2018...

  • Page 16: Description

    Description General device description BOBCAT Rail Switch Family 12 × Fast-/Gigabit Ethernet Ports • 10/100/1000 Mbit/s RJ45 • 100/1000/2500 Mbit/s SFP • 100 Mbit/s DSC/DST Singlemode www.e-catalog.beldensolutions.com • 100 Mbit/s DSC/DST Multimode Input • Type 3 • IEC 61131-2 • USB 2.0 •...
  • Page 17 USB-C interface (locally on the device) The devices provide you with a large range of functions, which the manuals for the operating software inform you about. You can download these manuals as PDF files from the Internet on the Hirschmann product pages (www.hirschmann.com). Installation BRS20/30/40/50...

  • Page 18: Device Name And Product Code

    Device name and product code The device name corresponds to the product code. The product code is made up of characteristics with defined positions. The characteristic values stand for specific product properties. You have numerous options of combining the device characteristics. You can determine the possible combinations using the Configurator which is available in the Belden E-Catalog (www.e-catalog.beldensolutions.com)
  • Page 19 Item Characteristic Character Description istic value 11 ... 12 Configuration of Not present the first uplink ports 1 × DSC multimode socket for 100 Mbit/s F/O connections 1 × DST multimode socket for 100 Mbit/s fiber optic connections 1 × DSC singlemode socket for 100 Mbit/s F/O connections 1 ×...
  • Page 20 Item Characteristic Character Description istic value 13 ... 14 Configuration of Not present the second uplink 1 × DSC multimode socket for 100 Mbit/s F/O ports connections 1 × DST multimode socket for 100 Mbit/s fiber optic connections 1 × DSC singlemode socket for 100 Mbit/s F/O connections 1 ×...
  • Page 21 Device name and product code a. You will find detailed information on the approvals and self-declarations applying to your device in the data sheet. You will find the data sheet on the Hirschmann product pages www.hirschmann.com b. You will find detailed information on the approvals and self-declarations applying to your device in the data sheet.

  • Page 22: Device Views

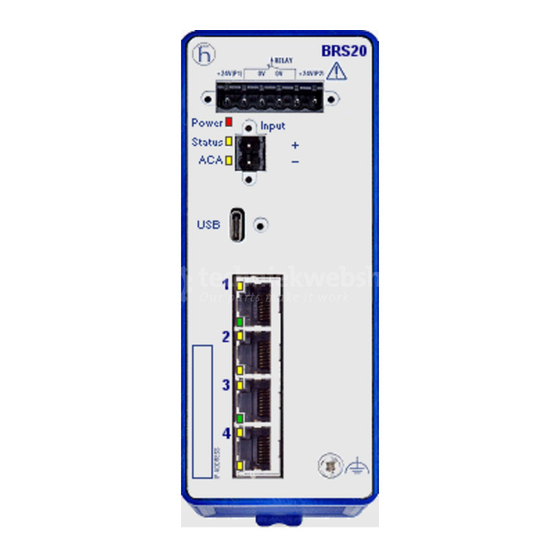

    Device views 1.3.1 Front view BRS20-04009999-xxC... Power Input Status 6-pin terminal block with screw lock for redundant power supply and signal contact 2-pin terminal block with screw lock for the digital input LED display elements for port status 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections Grounding screw Rail lock slide for DIN rail mounting Label area for IP address of device...
  • Page 23 BRS20-0500xx99-xxC... Power Input Status 6-pin terminal block with screw lock for redundant power supply and signal contact 2-pin terminal block with screw lock for the digital input LED display elements for port status depending on device variant DSC or DST singlemode socket for 100 Mbit/s fiber optic connections DSC or DST multimode socket for 100 Mbit/s fiber optic connections 4 ×...
  • Page 24 BRS20-06xxxx-xxC... Power Input Status 6-pin terminal block with screw lock for redundant power supply and signal contact 2-pin terminal block with screw lock for the digital input LED display elements for port status depending on device variant DSC or DST singlemode socket for 100 Mbit/s fiber optic connections DSC or DST multimode socket for 100 Mbit/s fiber optic connections 4 ×...
  • Page 25 BRS20-08009999-xxC... BRS40-00089999-xxC... Power Input Status 6-pin terminal block with screw lock for redundant power supply and signal contact 2-pin terminal block with screw lock for the digital input BRS20 8 × RJ45 socket for 10/100 Mbit/s Twisted pair connections BRS40 8 ×...
  • Page 26 BRS20-1200ZZZZ-xxC... BRS30-08040000-xxC... BRS40-00120000-xxC... BRS50-00122Q2Q-xxC... 6-pin terminal block with screw lock for redundant power supply and signal contact 2-pin terminal block with screw lock for the digital input USB-C interface BRS20/30 8 × RJ45 socket for 10/100 Mbit/s Twisted pair connections BRS40/50 8 ×...
  • Page 27 BRS20-0900xx99-xxC... Power Input Status 6-pin terminal block with screw lock for redundant power supply and signal contact 2-pin terminal block with screw lock for the digital input USB-C interface 8 × RJ45 socket for 10/100 Mbit/s Twisted pair connections LED display elements for port status Rail lock slide for DIN rail mounting Grounding screw Label area for IP address...
  • Page 28 BRS20-1000xxxx-xxC..Power Input Status 6-pin terminal block with screw lock for redundant power supply and signal contact 2-pin terminal block with screw lock for the digital input USB-C interface LED display elements for port status 8 × RJ45 socket for 10/100 Mbit/s Twisted pair connections Rail lock slide for DIN rail mounting Grounding screw Label area for IP address...
  • Page 29 BRS20-1100xxxx-xxC... Power Input Status 6-pin terminal block with screw lock for redundant power supply and signal contact 2-pin terminal block with screw lock for the digital input USB-C interface 8 × RJ45 socket for 10/100 Mbit/s Twisted pair connections LED display elements for port status Rail lock slide for DIN rail mounting Grounding screw Label area for IP address...

  • Page 30: Rear View

    1.3.2 Rear view Figure 1: Back view of the BRS20/30/40/50 device variants Rail lock slide for DIN rail mounting Installation BRS20/30/40/50 Release 02 11/2018...

  • Page 31: Power Supply

    Power supply 1.4.1 Supply voltage with characteristic value T The following options for power supply are available:  6-pin terminal block You will find information on connecting the supply voltage here: See “Supply voltage with characteristic value T” on page 43. 1.4.2 Supply voltage with characteristic value F The following options for power supply are available:...

  • Page 32: 100 Mbit/S F/O Port

     100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode  1000 Mbit/s full duplex Delivery state: Autonegotiation activated The port casing is electrically connected to the front panel. The pin assignment corresponds to MDI-X. Pin assignment  RJ45 10/100 Mbit/s 1000 MDI mode BI_DA+...

  • Page 33: 100/1000/2500 Mbit/S F/O Port

    This port supports:  100 Mbit/s, full duplex  1000 Mbit/s full duplex Delivery state:  100 Mbit/s full duplex when using a 100 Fast Ethernet SFP transceiver  1000 Mbit/s full duplex when using a 1000 Fast Ethernet SFP transceiver 1.5.5 100/1000/2500 Mbit/s F/O port This port is an SFP slot.

  • Page 34: Display Elements

    Display elements 1.6.1 Device state These LEDs provide information about conditions which affect the operation of the whole device. Power Status Figure 2: LED display elements for device status Display Color Activity Meaning Power Supply voltage — none Supply voltages 1 and 2 are too low. yellow lights up Supply voltage 1 and 2 is on flashes 4 times...

  • Page 35: Port Status

    1.6.2 Port status These LEDs display port-related information. Note:  For device variants with 4 × RJ45 sockets: The LEDs are directly located at the ports. See figure 3 on page 35.  For device variants with 8 × RJ45 sockets: The LEDs are located on the right side of the device.
  • Page 36 LS/DA LS/DA Figure 4: LED display elements for device variants with DSC, DST and 8 × RJ45 sockets LS/DA LS/DA Figure 5: LED display elements for device variants with SFP slots and 8 × RJ45 sockets Display Color Activity Meaning Link status —...

  • Page 37: Management Interfaces

    In the configuration, you specify how the device uses the signal contact. You find detailed information regarding possible applications and configuration of the signal contact in the software user documentation on the Hirschmann product pages (www.hirschmann.com). Installation BRS20/30/40/50 Release 02 11/2018...

  • Page 38: Usb-C Interface

    You have the option to configure your device using the USB-C interface. You will find detailed information in the software user documentation on the Hirschmann product pages under www.hirschmann.com The USB-C interface has the following properties: ...

  • Page 39: Digital Input

    In the configuration, you specify how the device uses the digital input. You will find detailed information on possible applications and the configuration of the digital input in the software user documentation on the Hirschmann product pages (www.hirschmann.com). Installation BRS20/30/40/50 Release 02 11/2018...

  • Page 40: Installation

    Installation The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. Perform the following steps to install and configure the device:  Checking the package contents  Installing and grounding the device ...

  • Page 41: Grounding The Device

    Figure 9: Mounting on the DIN rail Proceed as follows:  Slide the upper snap-in guide of the device into the DIN rail.  Push the device downwards and onto the DIN rail.  Snap-in the device. 2.2.2 Grounding the device 0.5 Nm 4.4 lb-in Figure 10: Position of the ground connection on the device;...

  • Page 42: Installing An Sfp Transceiver (Optional)

    Installing an SFP transceiver (optional) Prerequisites: Exclusively use Hirschmann SFP transceivers. See “Accessories” on page 74. Figure 11: Installing SFP transceivers: Installation sequence Proceed as follows:  Take the SFP transceiver out of the transport packaging (1).  Remove the protection cap from the SFP transceiver (2).
  • Page 43 Supply voltage with characteristic value T  RELAY +24 V(P1) +24 V(P2) 0 V 0 V 12 V DC ... 24 V DC 12 V DC ... 24 V DC 0.5 Nm 4.4 lb-in Figure 12: (1) DC voltage connection on the device, (2) terminal block mounted on the device (front view), tightening torque, (3) terminal block mounted on the device (view from above).
  • Page 44 Supply voltage with characteristic value F  RELAY +24 V(P1) +24 V(P2) 0 V 0 V 24 V DC ... 48 V DC 24 V DC ... 48 V DC RELAY +24 V(P1) +24 V(P2) 0 V 0 V 24 V AC 24 V AC 0.5 Nm 4.4 lb-in...

  • Page 45: Signal Contact (Optional)

     Fasten the wires connected by tightening the terminal screws.  Mount the terminal block on the device using screws. 2.4.2 Signal contact (optional) RELAY 0.5 Nm 4.4 lb-in Figure 14: (1) Connection on the device, (2) terminal block mounted on the device (front view), tightening torque, (3) terminal block mounted on the device (view from above).

  • Page 46: Digital Input (Optional)

    2.4.3 Digital input (optional) Input 0.5 Nm 4.4 lb-in Figure 15: (1) Connection on the device, (2) terminal block mounted on the device (front view), tightening torque. Signal, terminal Function DI (+) Signal input DI (−) Reference potential Table 8: Digital input: pin assignment Proceed as follows: ...

  • Page 47: Operating The Device

    Connection constellations of sensors  Input + 24 V + 24 V Figure 16: Connection of a sensor with separate power supply 1 - Sensor 2 - BRS20/30/40/50l 3 - Separate power supply for sensor Input +24 V Figure 17: Connection of a sensor with separate power supply 1 - Switch (2-wire sensor) 2 - BRS20/30/40/50l 3 - Separate power supply for sensor...

  • Page 48: Connecting Data Cables

    Connecting data cables Note the following general recommendations for data cable connections in environments with high electrical interference levels:  Keep the length of the data cables as short as possible.  Use optical data cables for the data transmission between the buildings. ...
  • Page 49 Default settings   IP address: The device looks for the IP address using DHCP  Management password: user, password: public (read only) admin, password: private (read/write)  Ethernet ports: link status is not evaluated (signal contact)  Optical ports: Full duplex TP ports: Autonegotiation ...

  • Page 50: Monitoring The Ambient Air Temperature

    Monitoring the ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. See “Climatic conditions during operation” on page 58. The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device.

  • Page 51: Maintenance And Service

    Hirschmann is continually working on improving and developing their software. Check regularly whether there is an updated version of the software that provides you with additional benefits. You find information and software downloads on the Hirschmann product pages on the Internet (http://www.hirschmann.com). ...

  • Page 52: Disassembly

    Disassembly Removing an SFP transceiver (optional) Figure 18: De-installing SFP transceivers: De-installation sequence Proceed as follows:  Open the locking mechanism of the SFP transceiver (1).  Pull the SFP transceiver out of the slot via the open locking mechanism (2). ...

  • Page 53: Removing The Device

    Removing the device Figure 19: Removal from the DIN rail Proceed as follows:  Disconnect the data cables.  Disable the supply voltage.  Disconnect the terminal blocks.  Disconnect the grounding.  Insert a screwdriver horizontally below the casing into the locking gate. ...

  • Page 54: Technical Data

    Technical data General data General data Weight BRS20-0400... 12.22 oz (380 g) BRS20-0500... 14.82 oz (420 g) BRS20-0600... 14.82 oz (420 g) BRS20-0800..S;C... 14.82 oz (420 g) BRS20-0800..T;E... 17.64 oz (500 g) BRS20-0900..S;C... 17.64 oz (500 g) BRS20-0900..T;E... 20.10 oz (570 g) BRS20-1000..S;C...
  • Page 55 Supply voltage with characteristic value T Connection type 6-pin terminal block with screw lock Tightening torque 4.4 lb-in (0.5 Nm) min. conductor AWG18 (0.75 mm²) diameter max. conductor AWG12 (2.5 mm²) diameter Power loss buffer <10 ms at 24 V DC ... 48 V DC and 24 V AC Overload current protection at input Non-replaceable fuse Back-up fuse for each voltage input...

  • Page 56: Power Consumption/Power Output

    Power consumption/power output Device name Maximum power Power output consumption BRS20-0400... 17 Btu (IT)/h BRS20-0500... 20 Btu (IT)/h BRS20-0600... 24 Btu (IT)/h BRS20-0800... 20 Btu (IT)/h BRS20-0900... 24 Btu (IT)/h BRS20-1000... 27 Btu (IT)/h BRS20-1100... 31 Btu (IT)/h BRS20-1200... 31 Btu (IT)/h BRS30-0804...

  • Page 57: Digital Input

    Digital input Digital input Connection type 2-pin terminal block with screw lock Tightening torque 4.4 lb-in (0.5 Nm) min. conductor 0.08 mm (AWG 28) diameter max. conductor AWG12 (2.5 mm²) diameter Supply voltage range -32 V DC ... +32 V DC Nominal input voltage +24 V DC Input voltage, low level, status “0”...

  • Page 58: Climatic Conditions During Operation

    Climatic conditions during operation Climatic conditions during operation Minimum clearance around the device Top and bottom sides of device: 2 in (5 cm) Ambient air temperature Standard  up to 6562 ft ASL +32 °F ... +140 °F (2000 m ASL) (0 °C ...

  • Page 59: Dimension Drawings

    Dimension drawings inch 12,3 0.48 103,5 2.24 4.07 14,9 0.59 Figure 20: Device variants with max. 6 ports Installation BRS20/30/40/50 Release 02 11/2018...
  • Page 60 inch 11,8 103,5 0.46 2.87 4.07 14,9 0.59 Figure 21: Device variants with max. 12 ports Installation BRS20/30/40/50 Release 02 11/2018...

  • Page 61: Stability

    Stability Stability Standard applications Navy applications Railway applications (trackside) as per EN 50121-4 IEC 60068-2-6, test Fc Vibration 5 Hz ... 8.4 Hz with 0.14 in 2 Hz ... 13.2 Hz with 0.04 in — (3.5 mm) amplitude (1 mm) amplitude 8.4 Hz ...
  • Page 62 EMC interference immunity Standard Navy Railway applications applications applications (trackside) as per EN 50121-4 Electrostatic discharge EN 61000-4-2 Contact discharge ±4 kV ±6 kV ±6 kV EN 61000-4-2 Air discharge ±8 kV ±8 kV ±8 kV Electromagnetic field EN 61000-4-3 80 MHz ...

  • Page 63: Network Range

    6.11 Network range Note: The line lengths specified for the transceivers apply for the respective fiber data (fiber attenuation and BLP/ dispersion). 6.11.1 10/100/1000 Mbit/s twisted pair port 10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable) Table 20: Network range: 10/100/1000 Mbit/s twisted pair port 6.11.2 Fast Ethernet SFP transceiver...
  • Page 64 Product code Mode Wave length Fiber System Example for F/O Fiber attenuation BLP/Dispersion M-FAST-SFP-... attenuation cable length -LH/LC... 1550 nm 9/125 µm 10 dB ... 29 dB 29.20 mi ... 0.25 dB/km 19 ps/(nm×km) 64.62 mi (47 km ... 104 km) -LH/LC...

  • Page 65: Gigabit Ethernet Sfp Transceiver

    Product code Mode Wave length Fiber System Example for F/O Fiber attenuation BLP/Dispersion attenuation cable length -L2, -LL 1550 nm 9/125 µm 3 dB ... 29 dB 8.70 mi ... 0.25 dB/km 19 ps/(nm×km) 64.62 mi (14 km ... 104 km) -G2, -GG 1550 nm 9/125 µm...
  • Page 66 Product code Mode Wave length Fiber System Example for F/O Fiber /Dispersion M-SFP-... attenuation cable length attenuation -LX+/LC... 1310 nm 9/125 µm 5 dB ... 20 dB 8.70 mi ... 0.4 dB/km 3.5 ps/(nm×km) 26.10 mi (14 km ... 42 km) -LH/LC...

  • Page 67: Gigabit Ethernet Sfp Transceiver

    6.11.4 2.5 Gigabit Ethernet SFP transceiver Product code Mode Wave length Fiber System Example for F/O Fiber BLP/dispersion M-SFP-2.5-... attenuation cable length attenuation MM/LC EEC 850 nm 50/125 µm 0 dB ... 4 dB 0.34 mi (0.55 km) 3.5 dB/km 2000 MHz×km (OM3) MM/LC EEC...

  • Page 68: Bidirectional Gigabit Ethernet Sfp Transceiver

    Product code Mode Wave length Wave length Fiber System Example for F/O Fiber Dispersion SFP-FAST-B... attenuation cable length attenuation SFP-FAST-BA 1310 nm 1550 nm 9/125 µm 0 dB ... 18 dB 0 km ... 12.43 mi 0.4 dB/km 3.5 ps/(nm×km) SM/LC EEC (0 km ...

  • Page 69: Derating Due To Sfp Transceiver

    Product code Mode Wave length Wave length Fiber System Example for F/O Fiber Dispersion SFP-GIG-B... attenuation cable length attenuation SFP-GIG-BA LH/ 1490 nm 1550 nm 9/125 µm 4 dB ... 24 dB 11.80 mi ... 0.25 dB/km 19 ps/(nm×km) LC EEC 49.71 mi (19 km ...

  • Page 70: Gigabit Ethernet Sfp Transceiver

    Product code Derating for a device with operating Derating for a device with operating Order number temperature +140 °F (+60 °C) per SFP temperature +158 °F (+70 °C) per SFP transceiver used transceiver used M-FAST SFP-LH/LC EEC 943 948-001 M-FAST SFP-TX/RJ45 942 098-001 M-FAST SFP-TX/RJ45 EEC 0 K 942 098-002...

  • Page 71: Gigabit Ethernet Sfp Transceiver

    Product code Derating for a device with max. Derating for a device with max. Order number operating temperature +140 °F operating temperature +158 °F (+60 °C) per SFP transceiver used (+70 °C) per SFP transceiver used SFP-GIG-LX/LC EEC 942 196-002 M-SFP-LX+/LC 942 023-001 M-SFP-LX+/LC EEC...

  • Page 72: Bidirectional Fast Ethernet Sfp Transceiver

    6.12.4 Bidirectional Fast Ethernet SFP transceiver Product code Derating for a device with max. Derating for a device with max. Order number operating temperature +140 °F operating temperature +158 °F (+60 °C) per SFP transceiver used (+70 °C) per SFP transceiver used SFP-FAST-BA MM/LC EEC 942 204-001 SFP-FAST-BB MM/LC EEC...

  • Page 73: Scope Of Delivery

    Scope of delivery Scope of delivery 1 × Device 1 × General safety instructions 1 × Terminal block for supply voltage and signal contact 1 × Terminal block for the digital input Table 32: Scope of delivery Installation BRS20/30/40/50 Release 02 11/2018...

  • Page 74: Accessories

    SFP-FAST-MM/LC EEC 942 194-002 SFP-FAST-SM/LC 942 195-001 SFP-FAST-SM/LC EEC 942 195-002 Table 34: Accessory: Fast Ethernet SFP transceiver a. You will find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com). Installation BRS20/30/40/50 Release 02 11/2018...

  • Page 75: Gigabit Ethernet Sfp Transceiver

    942 196-001 SFP-GIG-LX/LC EEC 942 196-002 Table 35: Accessory: Gigabit Ethernet SFP transceiver a. You will find further information on certifications on the Internet on the Hirschmann product pages (www.hirschmann.com). 2.5 Gigabit Ethernet SFP transceiver 2.5 Gigabit Ethernet SFP transceiver Order number M-SFP-2.5-MM/LC EEC...

  • Page 76: Bidirectional Fast Ethernet Sfp Transceiver

    Bidirectional Fast Ethernet SFP transceiver Bidirectional Fast Ethernet SFP transceiver Order number SFP-FAST-BA MM/LC EEC 942 204-001 SFP-FAST-BB MM/LC EEC 942 204-002 SFP-FAST-BA SM/LC EEC 942 205-001 SFP-FAST-BB SM/LC EEC 942 205-002 SFP-FAST-BA SM+/LC EEC 942 206-001 SFP-FAST-BB SM+/LC EEC 942 206-002 Table 37: Accessory: Bidirectional Fast Ethernet SFP transceiver Bidirectional Gigabit Ethernet SFP...

  • Page 77: Underlying Technical Standards

    If your device has a shipping approval according to DNV GL, you find the approval mark printed on the device label. You will find out whether your device has other shipping approvals on the Hirschmann website at www.hirschmann.com in the product information.

  • Page 78: A Further Support

    Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http:// www.hirschmann.com. A list of local telephone numbers and email addresses for technical support...
  • Page 79 Installation BRS20/30/40/50 Release 02 11/2018...
