- Page 1 OPTICAL POLARIZED SOURCE FLS-110 NETWORK TESTING USER GUIDE...
- Page 2 Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent rights of EXFO.
-
Page 3: Table Of Contents
Replacing the 9 V Alkaline Battery ..............5 Periodic Source Verification ................5 4 Troubleshooting ................ 6 Finding Information on the EXFO Web Site ............6 Contacting the Technical Support Group ............7 Transportation ....................7 5 Warranty ..................8 General Information .................. -
Page 4: Certification Information
EXFO, and externally, at an independent, qualified laboratory. All pre-qualification tests were performed at EXFO while all final tests were performed at UltraTech Engineering Labs Inc., a renowned test laboratory from Mississauga, Canada. This guarantees the unerring objectivity and authoritative compliance of all test results. - Page 5 DECLARATION OF CONFORMITY Electro-Optical Engineering Application of Council Directive(s): 73/23/EEC - The Low Voltage Directive 89/336/EEC - The EMC Directive Manufacturer’s Name: EXFO ELECTRO-OPTICAL ENG. Manufacturer’s Address: 400 Godin Avenue Quebec, Quebec Canada G1M 2K2 (418) 683-0211 Equipment Type/Environment: Industrial Scientific Equipment Trade Name/Model No.:...
-
Page 6: Introduction
Carrying case Your FLS-110 has been thoroughly inspected before shipment. If any damage has occurred during transport, or if any item is missing, please notify EXFO immediately. Conventions Before using the product described in this manual, you should understand the... -
Page 7: Safety Information
Safety Information Your instrument is a Class 1 LED product in compliance with standard IEC 60825-1 Amendment 2: 2001. Laser radiation may be encountered at the output port. The following label indicates that a product contains a Class 1 source: CLASS 1 LED PRODUCT Note:... -
Page 8: Description

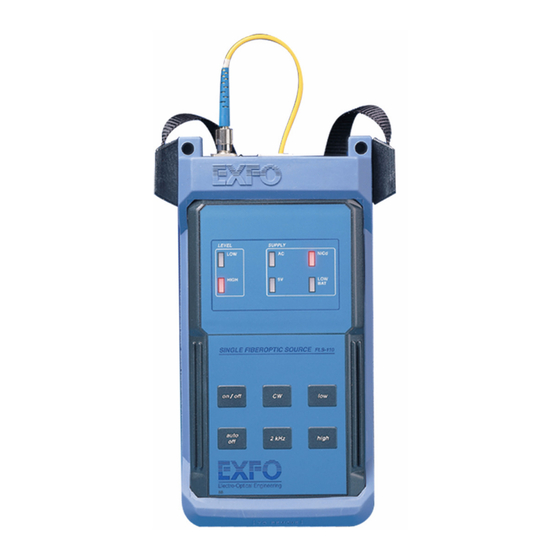

Description 2 Description The FLS-110 Optical Polarized Source is a fiber-optic source used with a power meter to measure power and loss in singlemode fibers, and with a PMD analyzer such as the FTB-5500 and FTB-5500B for PMD measurements. The unit includes a LED optical source and a 2 kHz signal generation for fiber identification. -
Page 9: Maintenance
3 Maintenance To help ensure long, trouble-free operation: Always clean fiber-optic connectors before using them. Keep the unit free of dust. Clean the unit casing and front panel with a cloth slightly dampened with water. Store unit at room temperature in a clean and dry area. Keep the unit out of direct sunlight. -
Page 10: Replacing The 9 V Alkaline Battery
3. Replace the battery (respecting polarity). 4. Close the battery compartment door and replace the holster. Periodic Source Verification EXFO recommends that the FLS-110 be sent back to the factory every year for verification and adjustment. Recycling and Disposal (Applies to European... -
Page 11: Troubleshooting
2. Click on the Support tab. 3. Click on FAQs and follow the on-screen instructions. You will be given a list of questions pertaining to your subject. The EXFO Web site also provides the product’s most recent technical specifications. FLS-110... -
Page 12: Contacting The Technical Support Group
Troubleshooting Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 7:30 a.m. to 8:00 p.m. (Eastern Time in North America). -
Page 13: Warranty
DAMAGES. Liability EXFO shall not be liable for damages resulting from the use of the product, nor shall be responsible for any failure in the performance of other items to which the product is connected or the operation of any system of which the product may be a part. -
Page 14: Exclusions
Warranty Exclusions EXFO reserves the right to make changes in the design or construction of any of its products at any time without incurring obligation to make any changes whatsoever on units purchased. Accessories, including but not limited to fuses, pilot lamps, batteries and universal interfaces (EUI) used with EXFO products are not covered by this warranty. -
Page 15: Service And Repairs
After repair, the equipment will be returned with a repair report. If the equipment is not under warranty, you will be invoiced for the cost appearing on this report. EXFO will pay return-to-customer shipping costs for equipment under warranty. Shipping insurance is at your expense. -
Page 16: Exfo Service Centers Worldwide
Warranty EXFO Service Centers Worldwide If your product requires servicing, contact your nearest authorized service center. EXFO Headquarters Service Center 400 Godin Avenue 1 866 683-0155 (USA and Canada) Quebec (Quebec) G1M 2K2 Tel.: 1 418 683-5498 CANADA Fax: 1 418 683-9224 quebec.service@exfo.com... -
Page 17: A Technical Specifications
The following technical specifications can change without notice. The information presented in this section is provided as a reference only. To obtain this product’s most recent technical specifications, visit the EXFO Web site at www.exfo.com. SAFETY POLARIZED SOURCE SPECIFICATIONS Model –02P... - Page 18 Quebec (Quebec) G1M 2K2 CANADA HEADQUARTERS Tel.: 1 418 683-0211 · Fax: 1 418 683-2170 EXFO AMERICA 3701 Plano Parkway, Suite 160 Plano TX, 75075 USA Tel.: 1 972 907-1505 · Fax: 1 972 836-0164 EXFO EUROPE Omega Enterprise Park,...
