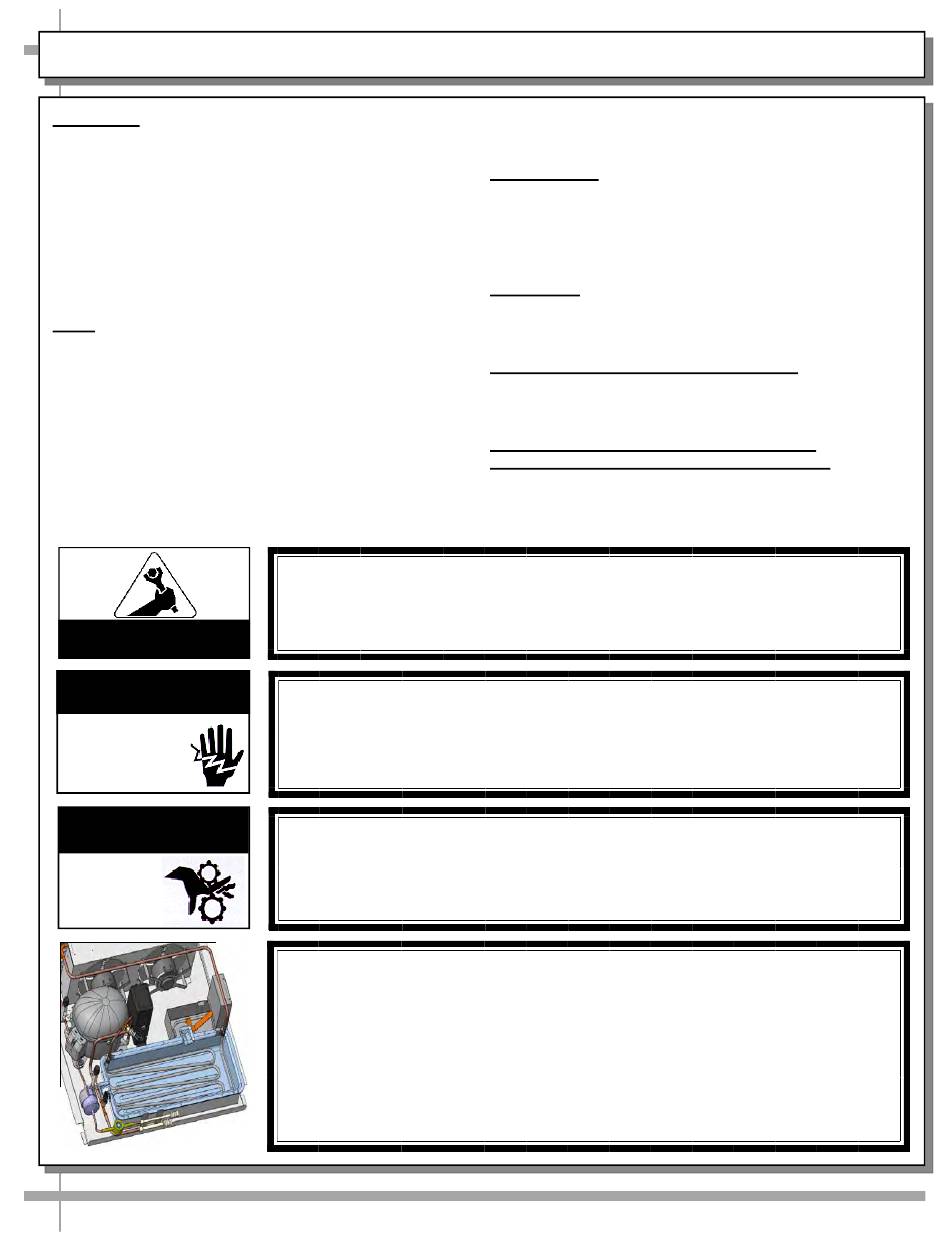

OVERVIEW
• These Structural Concepts merchandisers are
designed to merchandise packaged products at 41 °F
(5 °C) or less product temperatures (unless custom
cases with wire rack shelving).
•
Product must be pre-chilled to 41 °F (5 °C) or less
prior to being placed in merchandiser.
• Cases should be installed and operated according to
this operating manual's instructions to ensure proper
performance. Improper use will void warranty.
TYPE
This unit is designed for the display of products in ambient
store conditions where temperatures and humidity are
maintained within a specific range.
•
For Type 1 Conditions (most cases): ambient
conditions are to be at 55% maximum humidity and
maximum temperatures of 75 °F (24 °C).
•
For Type 2 Conditions: ambient conditions are to be
at 55% maximum humidity and maximum
temperatures of 80 °F (27 °C).
ATTENTION
CONTRACTORS
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
CLEAR
This equipment MUST be installed in compliance with all applicable
NEC, federal, state and local electrical and plumbing codes.
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
CAUTION! CHECK BOTH CONDENSATE PAN AND OVERFLOW PAN
Water on floor can cause extensive damage! Before powering up unit:
• Condensate pan MUST BE positioned directly under condensate drain.
Overflow pan MUST HAVE single plug connected to its box. Units with
•
optional Clean Sweep™ MUST HAVE two plugs connected.
• WARNING for self-contained units only! Overflow condensate pan
heater rod is hot! Electric condensate pan must be disconnected and
allowed to cool before cleaning or removing from case.
•
If unsure if unit is Type 1 or 2, see tag near serial
label.
COMPLIANCE
• Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty.
• See below compliance guideline.
WARNINGS
•
This page contains important warnings to prevent
injury or death. Please read carefully!
PRECAUTIONS and WIRING DIAGRAMS
•
See next page for PRECAUTIONS and WIRING
DIAGRAM information.
POWER CORD AND PLUG MAINTENANCE
(FOR CASES THAT ARE NOT FIELD-WIRED)
•
Caution! Risk of electric shock.
•
If cord or plug becomes damaged, replace only with
cord and plug of same type. See next page.
COMPLIANCE
WARNING
WARNING
