- Page 1 V-ZUG Ltd Range hood DF-SLG5 / DF-SLG6 DF-SLG8 / DF-SLG9 Operating instructions...
- Page 2 The model number corresponds to the first 3 digits on the identification plate. These operating instructions apply to the models: Type Model no. DF-SLG5 DF-SLG6 DF-SLG8 DF-SLG9 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2009...
-
Page 3: Table Of Contents
Contents Safety precautions Before using for the first time ......Correct use ........Children in the home . -
Page 4: Safety Precautions
Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please there- fore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction... -
Page 5: Correct Use
… Safety precautions Correct use The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons. -
Page 6: Note On Use
… Safety precautions Note on use If the appliance is visibly damaged, do not use it. Contact our Customer Services. If the appliance is not operating properly, disconnect it from the electricity supply immediately. If the mains cable of the appliance is damaged, it must be replaced by Customer Services in order to avoid hazard. - Page 7 … Safety precautions If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances. If other firing systems are being used at the same time (e.g. wood, gas, oil or coal-fired heating appliances), safe operation is only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance.
-
Page 8: Appliance Description

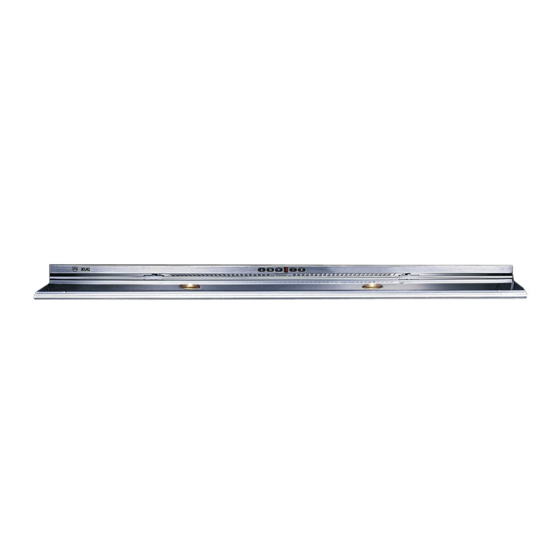

Appliance description The appliance is used to extract cooking fumes and smells from a cooking area and is normally installed in an overhead unit. This particular model can be used in the extraction mode or the recirculation mode. Extraction model The integrated fan extracts cooking fumes and smells from above the cook- ing surface. -
Page 9: Equipment
… Appliance description Equipment Glass shield, extractable 2 extractor fans with 4 power levels 1 metal grease filter Illumination 1 activated charcoal filter (not included in delivery) The extractor fan has 4 power levels: 1, 2, 3, P 1 = low, 2 = medium, 3 = high power, P = intensive level. The levels 1 to 3 are suitable for continuous operation. -
Page 10: Construction
… Appliance description Construction Glass shield (extractable) Operating elements Metal grease filter Grip flap Halogen spotlight Halogen spotlight holder... -
Page 11: Operating And Display Elements
… Appliance description Operating and display elements Readiness indicator Digital display/saturation indicator of metal grease filter and activated charcoal filter Illumination ON–OFF Ventilation OFF/resetting of saturation indicator Automatic running-on Decrease power level Increase power level Depending on the model and features, the specification of the appli- ance may differ from the standard specification described herein. -
Page 12: Use
Once the appliance is connected to the mains electricity, the readi- ness indicator lights up. Switching on the appliance Pull out the glass shield 1. The extraction fans can only be switched on if the glass shield is slightly pulled out. The appliance operates most effectively when the glass shield is completely pulled out. - Page 13 … Use Switching the automatic running-on function on/off To switch on the automatic running-on function during operation, press the button. – The running-on time is activated. This is indicated and confirmed by the lighting up of the last selected power level and the readiness indicator. The runnning-on times are individually specified for the respective power level.
- Page 14 … Use Saturation indicator of metal grease filter The saturation indicator of the metal grease filter lights up after 40 hours of operation. The saturation level has been reached. – The current extraction level flashes alternatingly with in the digital display.
- Page 15 … Use Saturation indicator for standard activated charcoal filter The saturation indicator only functions if it has been activated. This indicator lights up after 160 hours of operation. The saturation level has been reached. – The current extraction level flashes alternatingly with in the digital display.
- Page 16 … Use Switching off the appliance Fully insert the glass shield 1. – This switches off the extraction fan and the illumination (stand-by mode). – The settings remain saved (exception: level P). If the glass shield is pulled out slightly, the extractor fan switches to the set power level or the illumination switches on, providing it was switched on when the glass shield was fully inserted.
-
Page 17: Care And Maintenance
Care and maintenance Cleaning the housing Take care that no water gets into the housing! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. Cleaning the outside/inside Clean the outside using a slightly damp cloth –... -
Page 18: Cleaning The Grease Filter
… Care and maintenance Cleaning the grease filter Under normal condtions of use, the grease filter must be cleaned at least once monthly or whenever and the current power level flashes alternating- ly in the digital display. With optimal care, the service life of the grease filter is unlimited. - Page 19 … Care and maintenance Removing the grease filter Pull out the glass shield completely. Pull the grip flap 1 in the centre recess on the grease filter downward. – The grease filter 2 is unlocked and can be taken out toward the bottom. Installing the grease filter Pull out the glass shield completely.
-
Page 20: Replacing The Standard Activated Charcoal Filter
… Care and maintenance Replacing the standard activated charcoal filter Remove the appliance’s fuse or switch the circuit breaker off. Standard activated charcoal filters are only used in the recirculation model. The standard activated charcoal filter should be replaced after 3 to 6 months of operation. -
Page 21: Cleaning And Replacing The Long-Life Activated Charcoal Filter
… Care and maintenance Cleaning and replacing the long-life activated charcoal filter Remove the appliance’s fuse or switch the circuit breaker off. Long-life activated charcoal filters are only used in the recirculation model. In contrast to the standard activated charcoal filter, the long-life activated charcoal filter can be cleaned and reactivated. -
Page 22: Replacing Halogen Spotlights
… Care and maintenance Replacing halogen spotlights Unscrew the screw locking device and switch the circuit breaker off. Halogen spotlights become hot during operation! Allow them to cool down first. Pull out the glass shield completely. Remove the grease filter. Carefully prise the halogen spotlight out of the appliance from underneath using a fine screwdriver and a cloth (for protection). -
Page 23: Trouble-Shooting
Trouble-shooting What to do if ... … the illumination is not working Possible cause Solution Fuse or circuit breaker for Replace the fuse. electrical installations in Reset the circuit breaker. the home is faulty. Interruption in the power Check the power supply. supply. -
Page 24: Accessories And Spare Parts
Accessories and spare parts Please give model number and exact description when ordering parts. Halogen spotlight (12 V / 20 W) Metal grease filter Standard activated charcoal filter Long-life activated charcoal filter The halogen spotlight is also available from specialist retailers. -
Page 25: Technical Data
Technical data Electrical connection See identification plate. Remove the grease filter. – The identification plate is located on the inside of the appliance. -
Page 26: Disposal
Disposal Packaging All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety Disable the appliance to prevent accidents caused by improper use,... -
Page 27: Notes
Notes... - Page 28 … Notes...
-
Page 29: Index
Index Accessories........24 Halogen spotlights Ordering ........31 Replacing........22 Activated charcoal filter ....8 Standard........15 Air recycling cartridge ....8 Identification plate ....... 25 Automatic running-on ....13 Illumination........13 Care ..........17 Long-life activated charcoal Children in the home..... 5 filter.......... - Page 30 … Index Safety ..........26 Technical data ......25 Safety precautions Type ..........2 Before using for the first time . 4 Children in the home ....5 Correct use......... 5 Use..........12 Note on use........ 6 Using for the first time....4 Saturation indicator ....
-
Page 31: Repair Service
Remove metal grease filter. – The identification plate is located on the inside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd service centre using freephone 0800 850 850 and stand in close proximity to the appliance. -
Page 32: Quick Instructions
Press the button. Switching off Press the button push in the glass shield. V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch Service Centre: Tel. 0800 850 850 J377.13-5...
