V-ZUG Ltd
Range hood
DF-SG5/DF-SG6/DF-SG8/DF-SG9
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-SG5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DF-SG5

Summary of Contents for V-ZUG DF-SG5

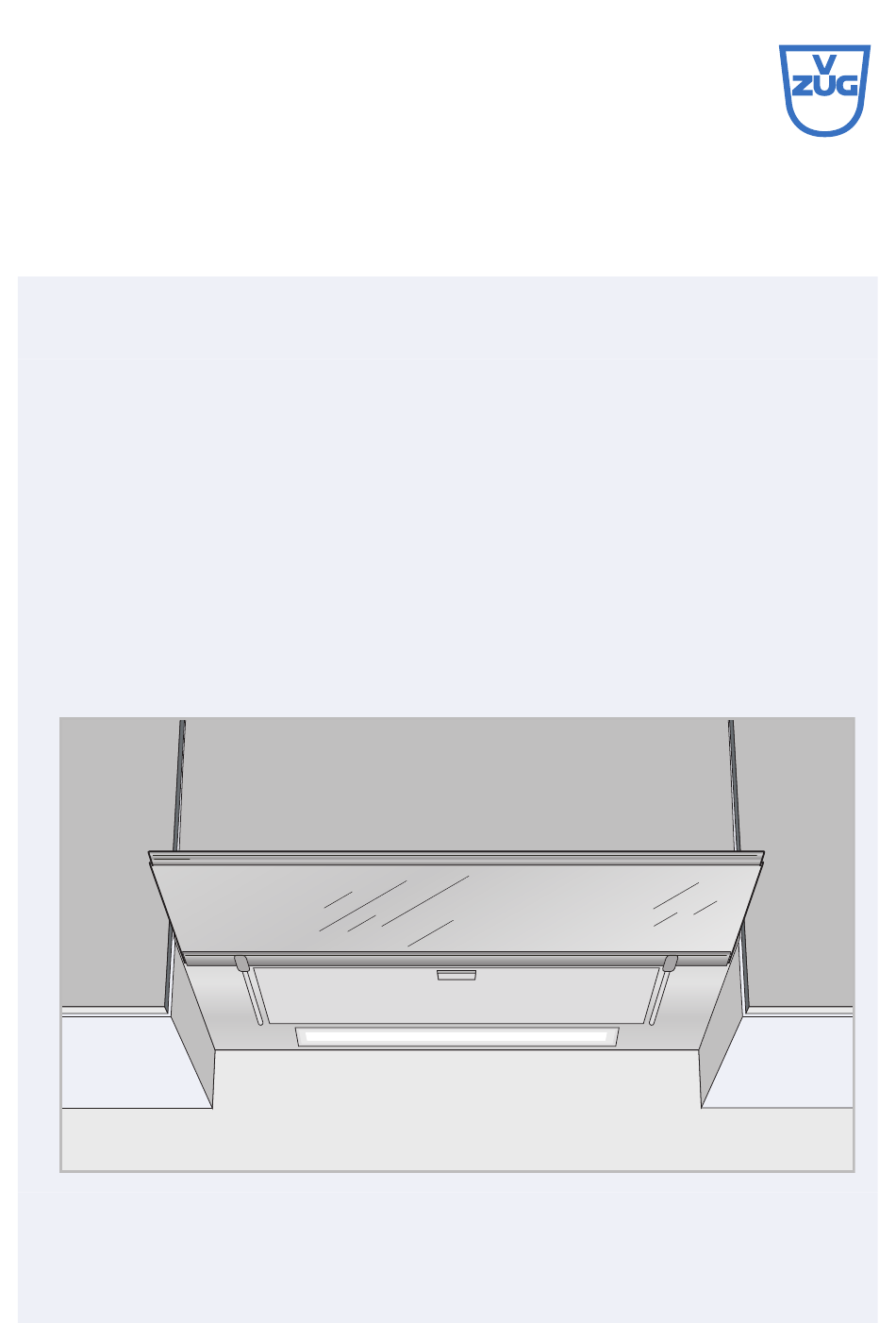

  • Page 1 V-ZUG Ltd Range hood DF-SG5/DF-SG6/DF-SG8/DF-SG9 Operating instructions...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DF-SG5 DF-SG6 DF-SG8 82.5 DF-SG9 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2014...

  • Page 3: Table Of Contents

    Contents Safety precautions Symbols used ..................General safety precautions ..............Before using for the first time .............. Correct use ....................Children in the home ................Note on use ..................... Disposal Your appliance Appliance description ................10 Extraction model ..................10 Recirculation model ................
  • Page 4 Accessories and spare parts Technical data Notes 10 Index 11 Repair service Quick instructions...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions Indicates step-by-step instructions.

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions The appliance corresponds to recognized technology standards and the relevant safety regulations. However, proper use of the appli- ance is essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: •...

  • Page 7: Children In The Home

    1 Safety precautions Children in the home • Packaging material, e.g. plastic film and polystyrene, can be dangerous for children. Danger of suffocation! Keep packaging material away from chil- dren. • The appliance is designed for use by adults who are familiar with these operating instructions.
  • Page 8 1 Safety precautions • Avoid a cross-current of air, which could blow the cooking vapours across the cooking area. • If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances.

  • Page 9: Disposal

    Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •...

  • Page 10: Your Appliance

    Your appliance Appliance description The appliance is for ventilating a cooking area and is typically built into the wall unit. This particular model can be used in the extraction mode as well as in the recirculation mode. Extraction model The integrated fan extracts cooking fumes and smells from above the cooking surface.

  • Page 11: Equipment

    3 Your appliance Equipment • Glass deflector plate (extendable) • 2 extractor fans with 3 power levels • 1 metal grease filter • Illumination • 1 activated charcoal filter (not supplied) The extractor fan has 3 power levels: 1, 2 and 3 •...

  • Page 12: Operating Elements

    3 Your appliance Operating elements Illumination ON–OFF Extractor fan power level 1 ON, all power levels OFF Extractor fan power level 2 ON–OFF Extractor fan power level 3 ON–OFF Depending on the model and features, the specification of your appli- ance may differ from the standard specification described.

  • Page 13: Operating The Appliance

    Operating the appliance Switching the appliance on Pull out the glass deflector plate. The extractor fans can only be switched on if the glass deflector plate is slightly pulled out. The appliance operates most effectively when the glass deflector plate is completely pulled out.

  • Page 14: Switching The Illumination On/Off

    4 Operating the appliance Switching the illumination on/off To switch on: press the button 1×. To switch on: press the button again. Switching the appliance off Push the glass deflection plate completely in. – This switches off the extractor fan and the illumination even if both are still switched on.

  • Page 15: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. Remove screw fuse for appliance or switch off circuit breaker Cleaning the outside/inside Clean the outside using a slightly damp cloth –...

  • Page 16: Metal Grease Filter With Integrated Long-Life Charcoal Filter

    5 Care and maintenance Metal grease filter with integrated long-life charcoal filter The filters can be cleaned and reactivated (activated charcoal filters). They must be cleaned at least once a month with normal use. The activated charcoal filters must be replaced after about 3 years because their ability to absorb smells will be reduced.
  • Page 17 5 Care and maintenance Removing the grease filter Pull the glass canopy completely out. Push back the grip flap 2 in the centre recess of the grease filter. – The grease filter 1 is unlocked and can be removed from below. Clean the grease filter.

  • Page 18: Replacing The Halogen Light Bulb

    5 Care and maintenance Replacing the halogen light bulb Remove the appliance’s screw fuse or switch off the circuit breaker. Halogen light bulbs get hot during operation! Allow to cool down first. Pull the glass defector plate completely out. Remove the grease filter. Unscrew the halogen light bulb from the fixture and replace it with a new halogen light bulb of the same type (see designation on the light bulb housing or on the identification plate).

  • Page 19: Trouble-Shooting

    Trouble-shooting What to do if ... … the illumination is not working Possible cause Solution • Fuse or automatic circuit Replace the fuse. breaker for electrical Reset the automatic circuit breaker. installations in the home is defective. Check the mains power supply. •...
  • Page 20 Accessories and spare parts Please give model number of the appliance and exact description of the accessory or spare part when ordering parts. Halogen light bulb 230 V / 28 W Metal grease filter The halogen light bulb is also available from specialist retailers.
  • Page 21 Technical data Electrical connection See identification plate. Remove the grease filters. – The identification plate is located on the inside of the appliance.
  • Page 22 Notes...
  • Page 23 9 Notes...
  • Page 24 9 Notes...
  • Page 25 Index Accessories ........20 Light bulb .........18 Activated charcoal filter ....10 Locking bar ........11 Cleaning ........16 Long-life activated charcoal filter . 16 Drying .......... 16 Reactivating .......16 Air recycling cartridge ....10 Maintenance ........15 Metal grease filter ....11, 16 Model no.
  • Page 26 10 Index Safety ...........9 Technical data ......... 21 Safety precautions Trouble-shooting ......19 Before using for the first time ..6 Type .............2 Children in the home ....7 Correct use ........6 Note on use ........7 Using for the first time ......6 Service agreement ......
  • Page 27 You can also note them down here or on the service sticker which comes with the appliance: FN _______________________ Appliance _______________________ Please have these details to hand when contacting V-ZUG in connection with a malfunction. You will find them on the identification plate of your appliance. Remove metal grease filter.
  • Page 28 Press the button 1x (power level 2). Press the button 1x (power level 3). To switch off Press the button again. Press the button again or push in the glass deflector plate. V-ZUG Ltd Industriestrasse 66, CH-6301 Zug vzug@vzug.ch, www.vzug.com J359.352-1...
