V-ZUG Ltd
Range hood
DW-SM9
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-SM9 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG DW-SM9

Summary of Contents for V-ZUG DW-SM9

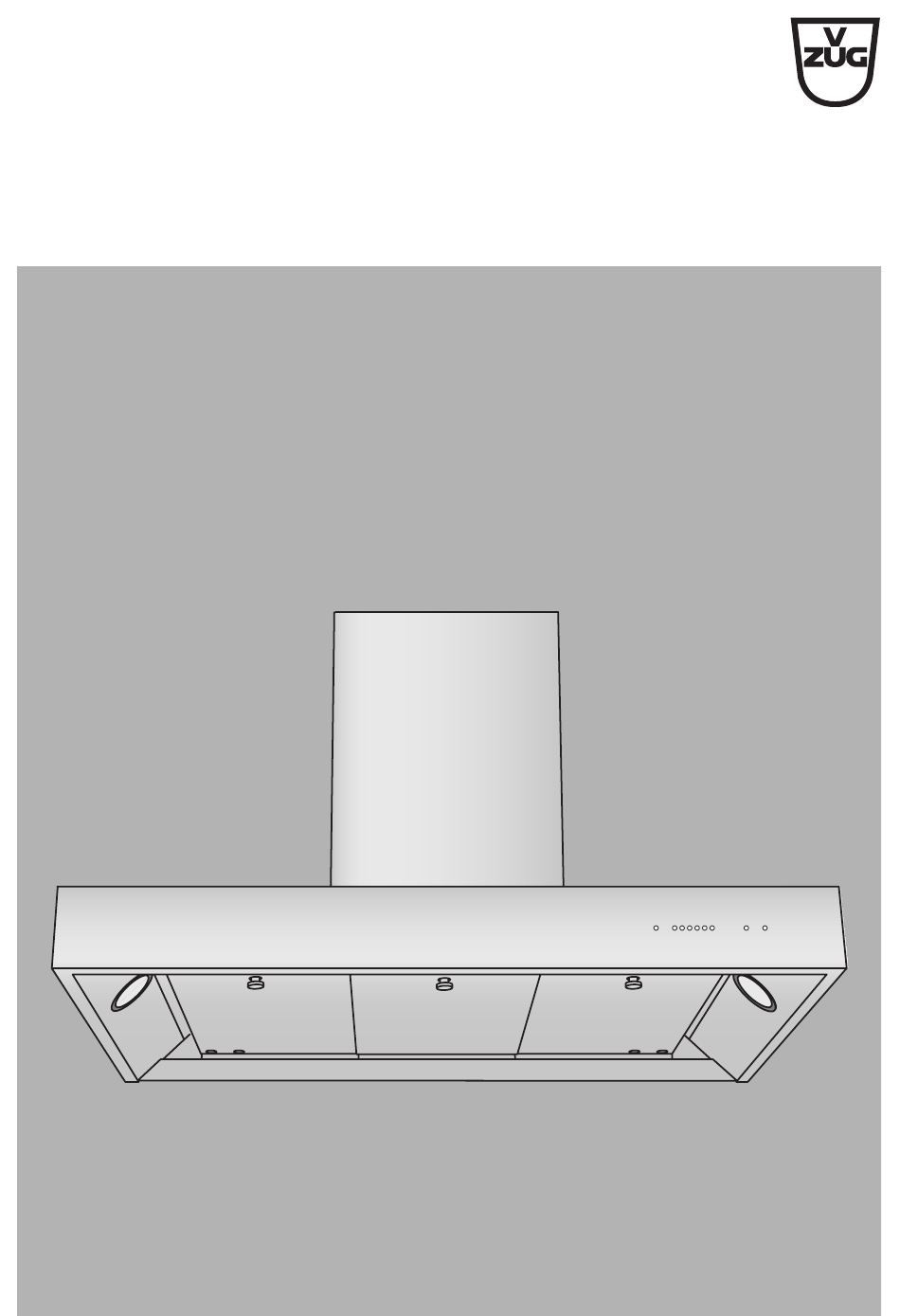

  • Page 1 V-ZUG Ltd Range hood DW-SM9 Operating instructions...
  • Page 2 The model number corresponds to the first three digits on the identification plate. These operating instructions apply to the model: Type Model no. DW-SM9 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2009...

  • Page 3: Table Of Contents

    Contents Safety precautions Before using for the first time ......Correct use ........Children in the home .
  • Page 4 … Contents Accessories and spare parts Technical data Disposal Notes Index Repair service Quick instructions...

  • Page 5: Safety Precautions

    Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please there- fore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless supervised or unless they have been given instruction...

  • Page 6: Correct Use

    … Safety precautions Correct use The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons.

  • Page 7: Note On Use

    … Safety precautions Note on use If the appliance is visibly damaged, do not use it. Contact our Customer Services. If the appliance is not operating properly, disconnect it from the electricity supply immediately. Caution: Accessible parts may become hot when used with cooking appliances.
  • Page 8 … Safety precautions If another appliance – fuelled by gas or other fuels – is being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation units. With the simultaneous operation of firing (e.g. wood, gas, oil or coal-fired heating systems), safe operation is only possible providing a room nega- tive pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the ap- pliance.

  • Page 9: Appliance Description

    Appliance description The appliance is designed tor use in the home for extracting cooking fumes and smells from the cooking area. The appliance is based on a completely new functional concept whereby more cooking fumes can be removed with significantly less air being extracted. The grease particles in the extracted air are trapped very efficiently in the combi filters and metal grease filters.

  • Page 10: Fitted With

    … Appliance description Fitted with 1 extraction fan Illumination 2 metal grease filters 3 combi filters 1 activated charcoal filter The extraction fan has 4 power levels. 1 = Low, 2 = Medium, 3 = High and Intensive level. Power levels 1–3 can be used for longer periods of operation. The intensive level is for shorter bursts of intensive extraction of the cook- ing fumes and smells, e.g.

  • Page 11: Construction

    … Appliance description Construction Operating elements Halogen light Combi filter Metal grease filter Activated charcoal filter Profile slot...

  • Page 12: Operating And Display Elements

    … Appliance description Operating and display elements Buttons Operation Switch off / Reset saturation indicator Switch on / Power level Intensive Illumination Indicator lights Power level 1 Power level 2 / Saturation indicator for metal grease filters, combi fil- ters and long-life activated charcoal filter Power level 3 / Saturation indicator for standard activated charcoal filter Intensive level...

  • Page 13: Use

    Operation Switching the appliance on / Selecting the power level Pressing the button switches the appliance on at power level 1. – The indicator light comes on. To select power levels 2 or 3, repeatedly press the button. – The indictor light shows which power level is currently being used. We recommend switching the appliance on at power level 1 some 5 minutes before cooking.

  • Page 14: Intensive Level

    … Use Intensive level The intensive level can be selected irrespective of whether the appliance is switched on or off. Press the button to switch the intensive level on for 5 minutes. – The indicator light lights up. If a different power level had been running beforehand, then the ap- pliance will automatically revert to this after the 5 minutes has elapsed.

  • Page 15: Saturation Indicator

    … Use Saturation indicator Saturation indicator for metal grease filters, combi filters and the long-life activated charcoal filter The indicator light flashes after 40 operating hours. The saturation level is reached, the grease filters have to be cleaned. Saturation indicator for the standard-activated charcoal filter The indicator light flashes after 160 operating hours.

  • Page 16: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface.

  • Page 17: Cleaning The Grease Filters

    … Care and maintenance Cleaning the grease filters The grease filters should be cleaned at least once a month with normal use or whenever the indicator light flashes. If properly cared for, the grease filters should provide unlimited years of service. The grease filters can be cleaned in a dishwasher.
  • Page 18 … Care and maintenance Removing the metal grease filters and the combi filters Loosen the fastening screw 1 in the combi filter in the middle. With the other hand, fold the combi filter downwards. Remove the combi filter from out of the profile slot.

  • Page 19: Changing The Standard Activated Charcoal Filter

    … Care and maintenance Changing the standard activated charcoal filter Remove screw fuse or switch off circuit breaker. Standard activated charcoal filters are only used in the recirculation mode. Standard activated charcoal filters become less effective with use. With nor- mal use, they have to be replaced at least every 4 months or whenever the indicator light flashes.

  • Page 20: Cleaning And Changing The Long-Life Activated Charcoal Filter

    … Care and maintenance Cleaning and changing the long-life activated charcoal filter Remove screw fuse or switch off circuit breaker. Long-life activated charcoal filters are only used in the recirculation mode. Unlike the standard activated charcoal filter, the long-life activated charcoal filter can be cleaned and reactivated.
  • Page 21 … Care and maintenance Remove and clean the metal grease filters. Turn both knobs 90 ° and remove the long-life activated charcoal filter from the bottom. Remove, clean, reactivate and replace the filter 1 into the frame 2. Take care not to damage the filter.

  • Page 22: Changing The Halogen Light

    … Care and maintenance Changing the halogen light Remove screw fuse or switch off circuit breaker. Halogen lights get hot during operation! Allow to cool down first. Using a small screw driver, carefully re- move the ring. Replace the defective halogen light with a bulb of the same type (max.

  • Page 23: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution Fuse or circuit breaker for Change the fuse. electrical installations in Reset the circuit breaker. the home is faulty. Interruption in the power Check the power supply. supply.

  • Page 24: Accessories And Spare Parts

    Accessories and spare parts Please give model number and exact description when ordering parts. Halogen light Metal grease filter Standard activated charcoal filter Long-life activated charcoal filter Middle Combi filter Left Right The halogen light is also available from specialist retailers.

  • Page 25: Technical Data

    Technical data Electrical connection See identification plate Remove metal grease filter. – The identification plate is located on the inside of the appliance.

  • Page 26: Disposal

    Disposal Packaging All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety Disable the appliance to prevent accidents caused by improper use,...

  • Page 27: Notes

    Notes...
  • Page 28 … Notes...

  • Page 29: Index

    Index Accessories........24 Identification plate ....... 25 Ordering ........31 Illumination........14 Activated charcoal filter ....11 Intensive level....... 14 Long-life ........20 Standard......15, 19 Appliance description ....9 Long-life activated charcoal filter..........20 Cleaning and changing..20 Care ..........16 Saturation indicator....
  • Page 30 … Index Safety ..........26 Technical data ......25 Safety precautions Type ..........2 Before using for the first time . 5 Children in the home ....6 Correct use......... 6 Use..........13 Note on use........ 7 Using for the first time....5 Saturation indicator .....

  • Page 31: Repair Service

    Remove metal grease filter. – The identification plate is located on the inside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd service centre using freephone 0800 850 850 and stand in close proximity to the appliance.

  • Page 32: Quick Instructions

    Operation Switch off / Reset saturation indicator Switch on / Power level Intensive Illumination V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch Service Centre: Tel. 0800 850 850...
