Operating instructions
DWVMR9

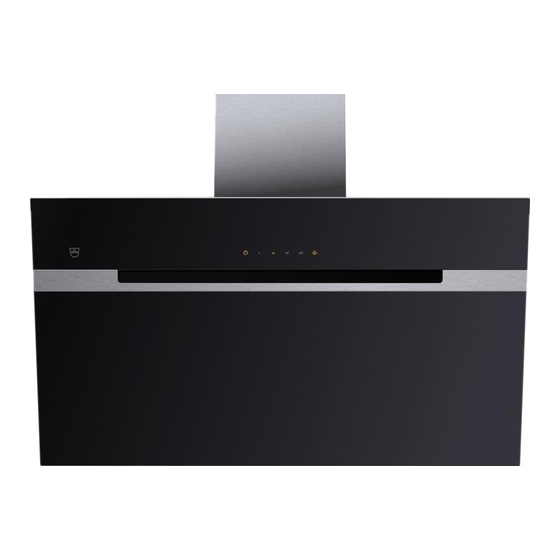

Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWVMR9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DWVMR9

Summary of Contents for V-ZUG DWVMR9

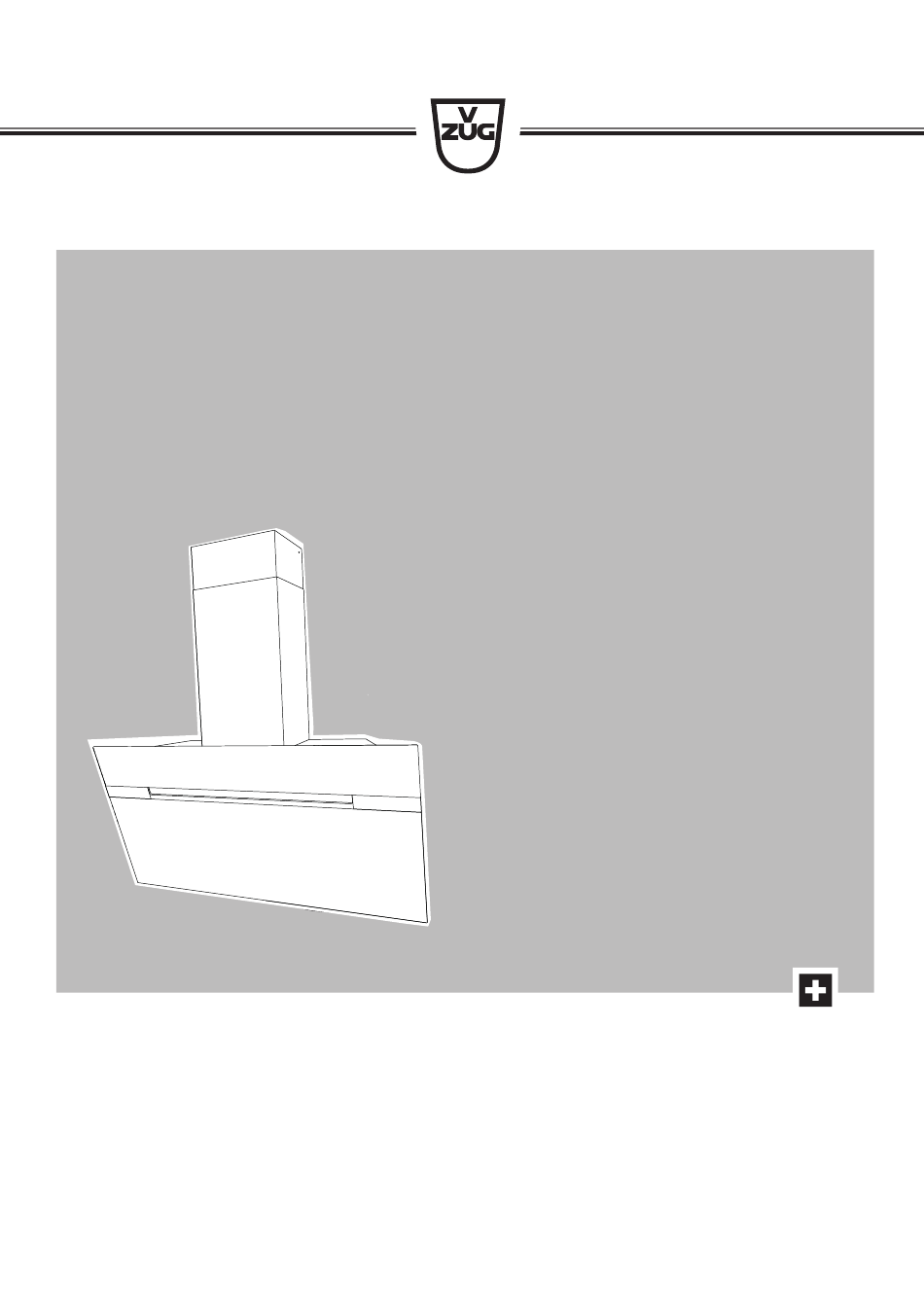

  • Page 1 Operating instructions DWVMR9 Range hood...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DWVMR9 62009 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2015...

  • Page 3: Table Of Contents

    Contents 1 Safety precautions  4 Symbols used.................... 4 General safety precautions............... 5 Before using for the first time.............. 6 Correct use .................... 6 Children in the home ................. 6 Note on use .................... 7 2 Disposal  9 3 Your appliance  10 Appliance description................ 10 Extraction model.................. 10 Recirculation model................. 10 Equipment.................... 11 Construction .................... 11 Operating and display elements ............ 12...

  • Page 4: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ►...

  • Page 5: General Safety Precautions

    1 Safety precautions General safety precautions • Read the operating instructions before using the appliance for the first time! • This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.

  • Page 6: Before Using For The First Time

    1 Safety precautions Before using for the first time • The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. • Dispose of the packaging material in accordance with local regulations. Correct use •...

  • Page 7: Note On Use

    1 Safety precautions Note on use • If the appliance is visibly damaged, do not use it. Contact Customer Ser- vices. • If the appliance is not operating properly, disconnect it from the power sup- ply immediately. • If the mains cable of the appliance is damaged, it must be replaced by Cus- tomer Services in order to avoid hazard.
  • Page 8 1 Safety precautions • When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance (remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply).

  • Page 9: Disposal

    Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •...

  • Page 10: Your Appliance

    Your appliance Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The model can be used to extract or recirculate air. Extraction model A fan draws cooking fumes and smells from above the cooking area. The metal grease filters clean the extracted air, which is passed through a connect- ing pipe fitted with an integrated non-return valve and through the air duct to the outside.

  • Page 11: Equipment

    3 Your appliance Equipment • 1 extractor fan • Illumination • 2 metal grease filters • 2 activated charcoal filters (not included in scope of delivery) The extraction fan has 4 power levels. • 1 = low, 2 = medium, 3 = high, and intensive level. •...

  • Page 12: Operating And Display Elements

    3 Your appliance Operating and display elements Illumination ON/OFF Intensive level Power level 3 Power level 2 Power level 1 Switching off Flashing: Clean grease filter / saturation indicator for filter Flashing: Replace activated charcoal filter / saturation indicator for ac- tivated charcoal filter (recirculation model) Depending on the model and features, the specification of the appli- ance may differ from the standard specification described herein.

  • Page 13: Operating The Appliance

    Operating the appliance Operation Switching the appliance on ► With the appliance switched off, hold the button depressed for three seconds. – The stand-by mode is activated. – The button illuminates. ► Pressing the / / button switches the appliance on at power level 1, 2, 3 or intensive.

  • Page 14: Intensive Level

    4 Operating the appliance Intensive level The intensive level can be selected in stand-by mode. ► Press the button to switch the intensive level on for five minutes. – The button and the button for the power level that was running when the intensive level was started illuminate.

  • Page 15: Stand-By

    4 Operating the appliance Resetting the filter saturation indicator ü The grease filters have been cleaned. ► In the stand-by mode, hold the button depressed until an acoustic signal is emitted. – The flashing LEDs (grease filters) or (activated charcoal filters) no longer flash.

  • Page 16: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If wa- ter gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as the surface could otherwise be damaged.

  • Page 17: Metal Grease Filter

    5 Care and maintenance Metal grease filter The filters can be cleaned. Removing ► Swing the glass panel 1 up. ► Press down the grip 2, swing the grease filter 3 forwards and lift it out of the bracket 4. Take care not to damage the filter.

  • Page 18: Activated Charcoal Filter Display

    5 Care and maintenance Installing ► Insert the grease filter 3 into the bracket 4 at the bottom. ► Press down the grip 2 and engage the grease filter 3 in the bracket at the top. ► Swing the glass panel 1 down. ►...

  • Page 19: Activated Charcoal Filter

    5 Care and maintenance Deactivating the activated charcoal filter display ► To deactivate the stand-by mode: Depress the button for three seconds. – The appliance is switched off and the LED goes out. ► Then hold the and buttons depressed at the same time for three seconds.
  • Page 20 5 Care and maintenance Replacing The activated charcoal filters 7 cannot be washed or regenerated and must be replaced. As soon as the indicator light flashes or, with heavy use, at least bimonthly. Installing the activated charcoal filter ► Install the new activated charcoal fil- ters 7.

  • Page 21: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution • Fuse or automatic circuit ► Replace the fuse. breaker for electrical in- ► Reset the automatic circuit breaker. stallations in the home is defective. •...

  • Page 22: Accessories And Spare Parts

    Accessories and spare parts Please give model number and exact designation when ordering parts. Metal grease filter for extraction and recirculation model Activated charcoal filter for recircula- tion model...

  • Page 23: Technical Data

    Technical data Electrical connection ► See identification plate. ► Remove the grease filters. – The identification plate is located on the inside of the appliance.

  • Page 24: Index

    Index Accessories ..........22 Notes............26 Activated charcoal filter......19 Activated charcoal filter display Activating .......... 18 Operating elements........12 Deactivating ........ 19 Operating the appliance......13 Appliance description ......10 Operation ........... 13 Children in the home........6 Packaging............. 9 Construction ..........11 Product family..........
  • Page 25 9 Index What to do if Range hood not working.... 21 The appliance is not extracting enough air........ 21 What to do if … Illumination not working.... 21 Your appliance .......... 10...

  • Page 26: Notes

    Notes...

  • Page 27: Service & Support

    – The identification plate is located on the inside of the appliance. Requesting repairs You can contact your nearest V-ZUG service centre directly and free of charge on our ser- vice hotline – 0800 850 850. When requesting repairs over the phone, we will agree on an appointment for us to visit your site at your earliest convenience.
  • Page 28 Please read the safety precautions in the operating instructions! Illumination ON/OFF Intensive level Power level 3 Power level 2 Power level 1 Switching off Flashing: Clean grease filters Flashing: Replace activated charcoal filters (recirculation model) J62009013-R01 V-ZUG Ltd Industriestrasse 66, P.O. Box 59, CH-6301 Zug info@vzug.com, www.vzug.com...
