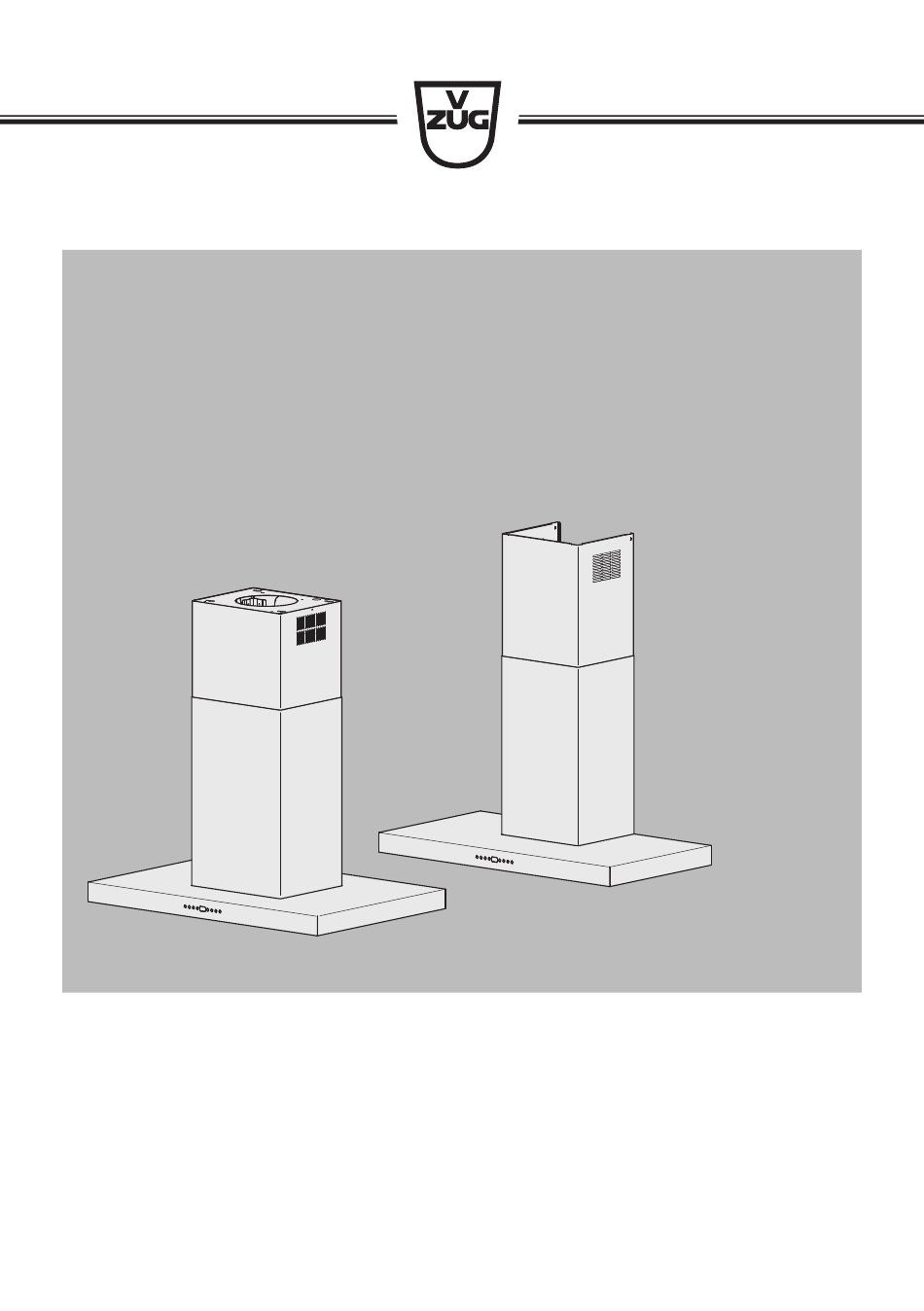

- Page 1 Operating instructions DIQS10 | DWQS6 | DWQS7 | DWQS9 Range hood...
- Page 2 The model number corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DIQS10 63014 DWQS6 62019 DWQS7 62020 DWQS9 62021 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Index 22 Symbols used............ 4 Service & Support 23 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 5 Instructions for use.......... 6 Appliance description 8 Introduction ............. 8 Extraction mode ............. 8 Recirculation mode with activated charcoal filter 8 Features.............. -
Page 4: Symbols Used
Safety precautions Symbols used capabilities, or lack of experi- ence and/or knowledge, Denotes important safety precau- tions. provided they are supervised Failure to observe said precautions or have been instructed on can result in injury or in damage to the safe use of the appliance the appliance or fittings! and have understood the haz- Information and precautions that... -
Page 5: Appliance-Specific Safety Precautions
1 Safety precautions Appliance-specific safety ▪ When replacing a light bulb, precautions the maximum wattage rating of replaceable light bulbs ▪ The room must be adequately must be visible. ventilated when operating the ▪ This appliance is intended for range hood at the same time use in the home and similar as other appliances that burn settings such as: in staff kit-... -
Page 6: Instructions For Use
1 Safety precautions ▪ A plug-in appliance may only be con- ▪ Any repairs, modifications or manipula- nected to a socket outlet with earthing tions to the appliance, especially any contact, installed according to specifica- electrically live parts, may only be car- tions. - Page 7 1 Safety precautions fumes! An adequate flow of fresh air must be guaranteed e.g. via non-clos- able openings in doors or windows and in combination with an air-intake/ex- haust-air wall box or by other technical means. ▪ When cleaning the appliance make sure no water gets inside it.
-
Page 8: Appliance Description
Appliance description Introduction The appliance is designed for use in the home for extracting cooking odours from above a cooking area and can be used in the extraction or recirculation mode. Extraction mode Recirculation mode Extraction mode A fan extracts cooking fumes and smells from above the cooking surface. The metal grease filters clean the extracted air, which is then passed through a connecting pipe fit- ted with an integrated non-return valve and through the air duct to the outside. -
Page 9: Operating And Display Elements
2 Appliance description Operating and display elements Buttons Switch appliance on/off Decrease power level Increase power level Intensive power level; alarm for activated charcoal filter on/off CleanAir function; reset saturation indicator After-running time; activate remote control High intensity illumination Low intensity illumination Display field Power level (1–3) Intensive level... -
Page 10: Operating The Appliance
3 Operating the appliance Operating the appliance The appliance can be operated using the operating and display elements on the appli- ance or the remote control (available as an accessory). Using for the first time Appliance configuration The model can be used to extract or recirculate air. The appliance is set up ex-factory for use in the extraction mode. -
Page 11: Power Level
3 Operating the appliance Power level ▸ Touch the button. – The next highest power level switches on. ▸ Touch the button. – The next lowest power level switches on. – The corresponding power level appears in the display. The intensive power level cannot be selected using the button. -
Page 12: Cleanair
3 Operating the appliance The after-running time function cannot be activated with the intensive power level or the CleanAir function. CleanAir The CleanAir function cleans (recirculation mode) or extracts (extraction mode) the air periodically. This runs every hour for 10 minutes on power level 1. The CleanAir function switches off after 24 hours. -
Page 13: Remote Control (Accessories)
3 Operating the appliance Remote control (accessories) This appliance can be operated by remote control (a remote control is not included in the scope of delivery, but is available for order as an accessory), which requires a 3V battery type CR2032 (not included in scope of delivery). Switch illumination on/off;... - Page 14 3 Operating the appliance Changing the light intensity ▸ When the illumination is switched on, hold the button depressed for two seconds. – The light intensity is lowered. ▸ When the light intensity is low, touch the button. – The light intensity is increased. ▪...
-
Page 15: Care And Maintenance
4 Care and maintenance Care and maintenance Cleaning the housing Make sure no water gets inside the appliance. If water gets into the appliance, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface. -
Page 16: Standard Activated Charcoal Filter
4 Care and maintenance Cleaning ▸ Clean the grease filters in the dishwasher. Select the «intensive» dishwasher pro- gramme with a warm prewash. If no dishwasher is available: Soak the metal grease fil- ters in hot water and mild detergent. ▸... -
Page 17: Long-Life Activated Charcoal Filters
4 Care and maintenance Long-life activated charcoal filters The long-life activated charcoal filter should be cleaned and reactivated every 3 to 6 months and whenever the saturation indicator alarm is triggered. Depending on intensity of use, do not exceed 5–8 regeneration cycles. If properly cared for, the service life of the long-life activated charcoal filter is up to 3 years. -
Page 18: Reset Saturation Indicator Alarm
5 Trouble-shooting Reset saturation indicator alarm Reset the saturation indicator alarm for the metal grease filter / activated charcoal fil- after cleaning/replacing. ▸ With the appliance switched off and the illumination off, hold the button depressed for 3 seconds. – The saturation indicator flashes 3 times and then goes out if reset cor- rectly. -
Page 19: Accessories And Spare Parts
6 Accessories and spare parts Accessories and spare parts Please give product family of the appliance and exact designation of the accessory or spare part when ordering parts. Metal grease filters Long-life activated charcoal fil- ters Standard activated charcoal filter Remote control Technical data Electrical connection... -
Page 20: Product Fiche
7 Technical data Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014. Description Abbreviations Unit Value Brand V-ZUG LTD Model identifier 63014 / 62019-21 Annual Energy Consumption kWh/a 43.3 / 41.7 hood Energy Efficiency Index 41.6 / 40.5... -
Page 21: Disposal
8 Disposal Average illumination of the lighting 300 / 240 middle system over the cooking surface Sound power level 66 / 66 Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. -
Page 22: Safety Precautions 4 Index
Index Accessories ............19 Safety precautions After-running time..........11 Appliance-specific .......... 5 Appliance configuration........10 Before using for the first time....... 6 Appliance description ........8 Correct use ............ 6 Appliance disposal .......... 21 Instructions for use......... 6 Appliance installation ......... 5 Note on use ............. 6 Safety warnings Appliance installation ........ 5 Care and maintenance ........ -
Page 23: Service & Support
V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements. - Page 24 Switch between extraction/recirculation mode; alarm for activated char- coal filter on/off CleanAir function active Reset saturation indicator alarm Saturation indicator for metal grease filters Saturation indicator for activated charcoal filter (recirculation mode only) I R. Remote control on/off 1058018-R03 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
