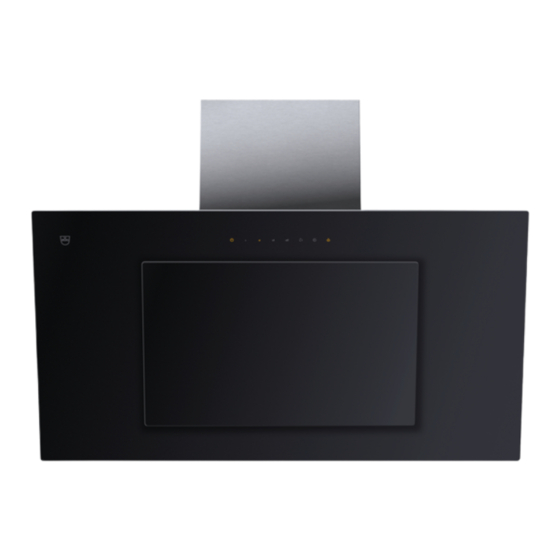

Summary of Contents for V-ZUG DWVHR9

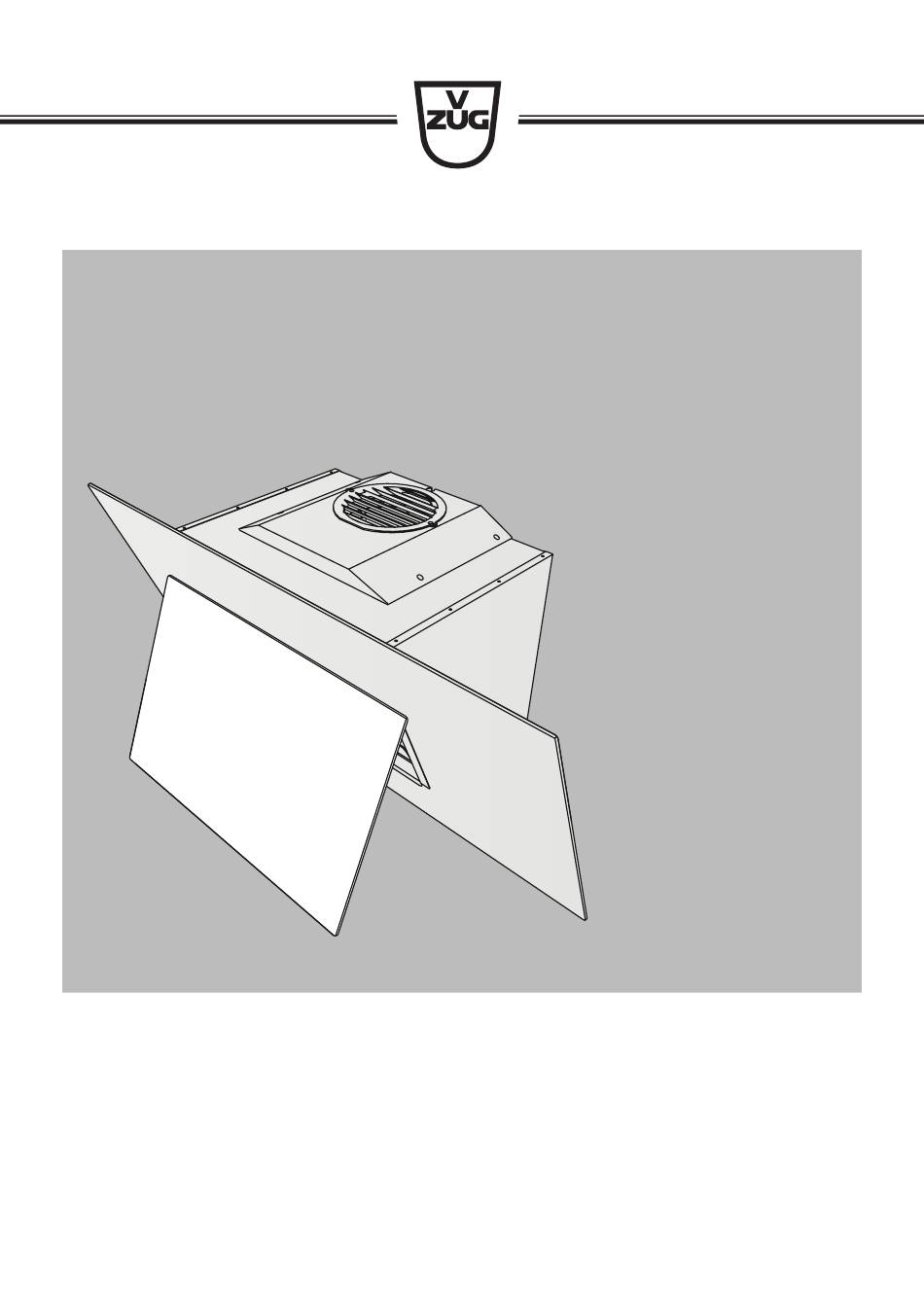

  • Page 1 Operating instructions DWVHR9 Range hood...
  • Page 2 The model number corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DWVHR9 62010 DWVHR9 62030 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...

  • Page 3: Table Of Contents

    Contents Safety precautions  4 Service & Support  23 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Appliance description  7 Appliance description ...........  7 Extraction model ............  7 Recirculation model .......... 7 Equipment ...............  7 Construction ............

  • Page 4: Safety Precautions

    Safety precautions Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...

  • Page 5: Instructions For Use

    1 Safety precautions ▪ The extracted air must not be motels and other accommod- fed into a chimney which is ation establishments; in bed used for exhausting fumes and breakfast establishments. from appliances burning gas ▪ Do not operate the appliance or other fuels.
  • Page 6 1 Safety precautions ▪ Use original spare parts only. Caution: Burns hazard! ▪ Retain these operating instructions for ▪ Do not leave the appliance unattended future reference. when deep-frying on the cooking sur- Note on use face. The cooking oil in the deep-frying ▪...

  • Page 7: Appliance Description

    Appliance description Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The model can be used to extract or recirculate air. Extraction model A fan draws cooking fumes and smells from above the cooking area. The metal grease filters clean the extracted air, which is passed through a connecting pipe fitted with an in- tegrated non-return valve and through the air duct to the outside.

  • Page 8: Construction

    2 Appliance description Construction 1 Operating elements 2 Metal grease filter (large) 3 Glass panel, hinged 4 Illumination 5 Return air in recirculation model 6 Long-life activated charcoal filter 7 Metal grease filter (small) Operating and display elements Switch off / activate or deactivate button lock Power level 1 / activate or deactivate remote control Power level 2 Power level 3...

  • Page 9: Remote Control

    3 Operating the appliance Remote control This appliance can be operated remotely. The remote control is powered by a 3V battery type CR2032 (not included in scope of delivery). Do not place the remote control near any heat sources. The batteries must be dis- posed of properly in accordance with the regulatory requirements.

  • Page 10: Intensive Level

    3 Operating the appliance Intensive level ▸ Touch the button. – The button illuminates. – The intensive level switches on. ▪ If another power level had been running beforehand, then the appliance will automat- ically revert to this power level after six minutes has elapsed. ▪...

  • Page 11: Saturation Indicators

    3 Operating the appliance Saturation indicators Saturation indicator for the metal grease filter button flashes after 100 operating hours. The saturation level has been reached and the grease filters must be cleaned. Saturation indicator for the long-life activated charcoal filter The activated charcoal filters must be cleaned as soon as the button flashes or at the latest after one month when the saturation level has been reached.
  • Page 12 3 Operating the appliance Changing the power level ▸ Press the button. – The next lower power level is activated. ▸ Press the button. – The next higher power level is activated. Switching the intensive level on / off before time ▸...

  • Page 13: Care And Maintenance

    4 Care and maintenance Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface. Remove the screw fuse or switch off the circuit breaker.
  • Page 14 4 Care and maintenance Cleaning The grease filters must be cleaned at least once a month with normal use or whenever indicator light flashes. If properly cared for, the service life of the grease filters should be as long as the service life of the range hood. ▸...

  • Page 15: Activated Charcoal Filter Display

    4 Care and maintenance Activated charcoal filter display Activating the activated charcoal filter display This function must only be activated with the recirculation model. ▸ With the appliance switched off, hold the button depressed for five seconds. – All LEDs flash twice. –...
  • Page 16 4 Care and maintenance ▸ Remove the activated charcoal filter 7. Cleaning ▸ Clean and reactivate the long-life activated charcoal filter 7. Take care not to damage the filter. If necessary, replace the used long-life activated charcoal filter with a new one.

  • Page 17: Trouble-Shooting

    5 Trouble-shooting Trouble-shooting What to do if … … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit breaker ▸ Replace the fuse. for electrical installations in the ▸ Reset the automatic circuit breaker. home is defective. ▪...

  • Page 18: Accessories And Spare Parts

    6 Accessories and spare parts Accessories and spare parts Please give model number and exact designation when ordering parts. Metal grease filter for extraction and recirculation model (large) Metal grease filter for extraction and recirculation model (small) Long-life activated charcoal filter for recirculation model Technical data Electrical connection...
  • Page 19 8 Disposal Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...

  • Page 20: Index

    Index Model designation ..........2 Model number ............. 2 Accessories ............18 Activated charcoal filter display Activating............ 15 Notes ..............22 Deactivating .......... 15 After-running time On the hood.......... 10 Operating elements Remote control.......... 12 Hood .............. 8 Appliance Remote control.......... 9 Operating ............ 9 Appliance description ........
  • Page 21 9 Index What to do if Range hood not working...... 17 The appliance is not extracting enough air ................  17 The illumination is not working .... 17 The saturation indicator illuminates ................  17 Wipe protection Activating............ 10 Deactivating .......... 10...

  • Page 22: Notes

    Notes...
  • Page 23 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 24 Infrared interface for the remote control Flashing: Clean grease filters Flashing: Clean long-life activated charcoal filters (recirculation model) J62010013-R05 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
