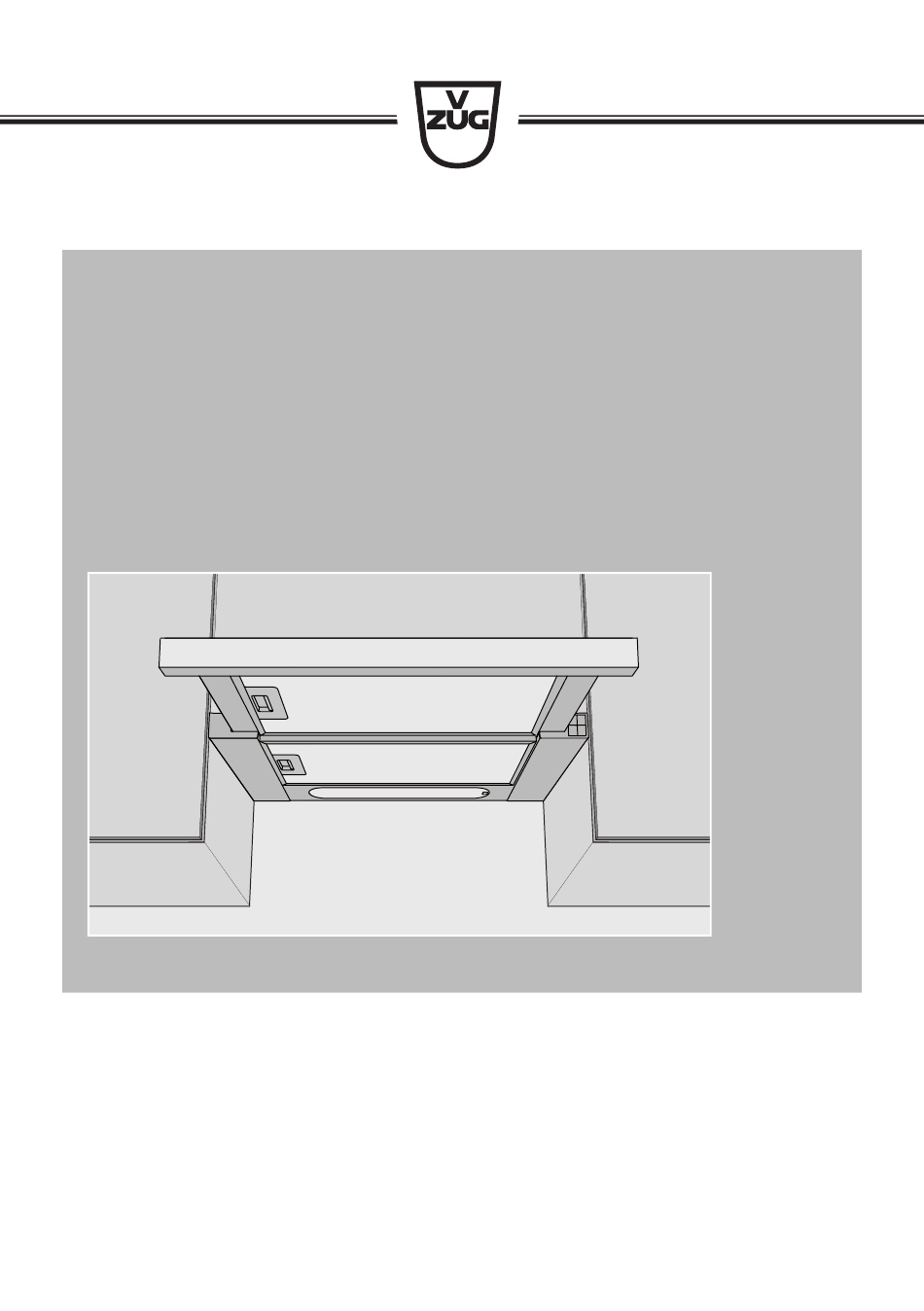

- Page 1 Operating instructions DFL5 | DFL6 Range hood...
- Page 2 The product family (model number) corresponds to the first alphanumerics on the identi- fication plate. These operating instructions apply to: Type Product family Size system DFL5 61034 DFL6 61035 Variations depending on the model are noted in the text. © V-ZUG AG, CH-6302 Zug, 2018...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 5 Instructions for use.......... 6 Appliance description 8 Introduction ............. 8 Extraction mode ............. 8 Recirculation mode with activated charcoal filter 8 Equipment ............... -
Page 4: Safety Precautions
Safety precautions Symbols used capabilities, or lack of experi- ence and/or knowledge, Denotes important safety precau- tions. provided they are supervised Failure to observe said precautions or have been instructed on can result in injury or in damage to the safe use of the appliance the appliance or fittings! and have understood the haz- Information and precautions that... -
Page 5: Appliance-Specific Safety Precautions
1 Safety precautions Appliance-specific safety ▪ When replacing a light bulb, precautions the maximum wattage rating of replaceable light bulbs ▪ The room must be adequately must be visible. ventilated when operating the ▪ This appliance is intended for range hood at the same time use in the home and similar as other appliances that burn settings such as: in staff kit-... -
Page 6: Instructions For Use
1 Safety precautions ▪ Electrical connections must be carried Correct use out by qualified personnel in accord- ▪ The appliance is designed for use in ance with the guidelines and standards the home for extracting cooking fumes for low-voltage installations and the spe- and smells from above the cooking sur- cifications of the local electricity supply face. - Page 7 1 Safety precautions fumes! An adequate flow of fresh air must be guaranteed e.g. via non-clos- able openings in doors or windows and in combination with an air-intake/ex- haust-air wall box or by other technical means. ▪ When cleaning the appliance make sure no water gets inside it.
-
Page 8: Appliance Description
Appliance description Introduction The appliance is designed for use in the home for extracting cooking odours from above a cooking area and can be used in the extraction or recirculation mode. Extraction mode A fan extracts cooking fumes and smells from above the cooking surface. The metal grease filters clean the extracted air, which is then passed through a connecting pipe fit- ted with an integrated non-return valve and through the air duct to the outside. -
Page 9: Operating Elements
3 Operation Operating elements Switch extractor fan on/off Power level 2 Power level 3 Switch illumination on/off Depending on the model and features, the specification of your appliance may dif- fer in individual details from the standard specification described. Operation Switching the appliance on ▸... -
Page 10: Switching Appliance Off
4 Care and maintenance Switching appliance off ▸ With the appliance running, re- peatedly press the button or push the deflector plate completely in. – The appliance switches off. If the deflector plate is pulled completely out again, the extractor fan comes on at the level previously set. - Page 11 4 Care and maintenance ▸ Pull the deflector plate 1 completely out. ▸ Push the grip 2 on the grease filter in. – This releases the grease filter 3. ▸ Carefully pull the grease filter 3 down and out of the fixture. ▸...
-
Page 12: Standard Activated Charcoal Filter
4 Care and maintenance Standard activated charcoal filter The standard activated charcoal filter needs replacing after an operating period of 3 to 6 months. Standard activated charcoal filters cannot be washed or regenerated. Removing/Installing ▸ Pull the deflector plate completely out and switch the appliance off. -
Page 13: Trouble-Shooting
5 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please call Customer Services. Before calling Customer Services: Please note down the serial number (for FN, see iden- tification plate under «Technical data») and what led to the fault. -
Page 14: Technical Data
Product fiche In accordance with EU Regulation No. 65/2014 and No. 66/2014 Description Abbreviations Unit Value Brand V-ZUG LTD Model identifier 61034 / 61035 Annual Energy Consumption kWh/a 49.9 / 55.3 hood Energy Efficiency Index 73.8 / 79.2... - Page 15 7 Technical data Measured power consumption of - / - standby mode Time increase factor 1.4 / 1.5 Measured air flow rate at the best ef- 224.0 / 256.0 ficiency point Measured air pressure at the best ef- 227.0 / 199.0 ficiency point Measured value of the electric power 89.0 / 93.0...
-
Page 16: Disposal
8 Disposal Disposal Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸... -
Page 17: Index
Index Before using for the first time....... 6 Correct use ............ 6 Accessories ............13 General ............. 4 Appliance description ........8 Instructions for use......... 6 Appliance disposal .......... 16 Note on use ............. 6 Appliance installation ......... 5 Service & Support........19 Service agreement........... 19 Setting power level .......... - Page 18 Notes...
-
Page 19: Service & Support
Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements. -
Page 20: Quick Instructions
Switch extractor fan on/off Power level 2 Power level 3 Switch illumination on/off 1039476-R02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
