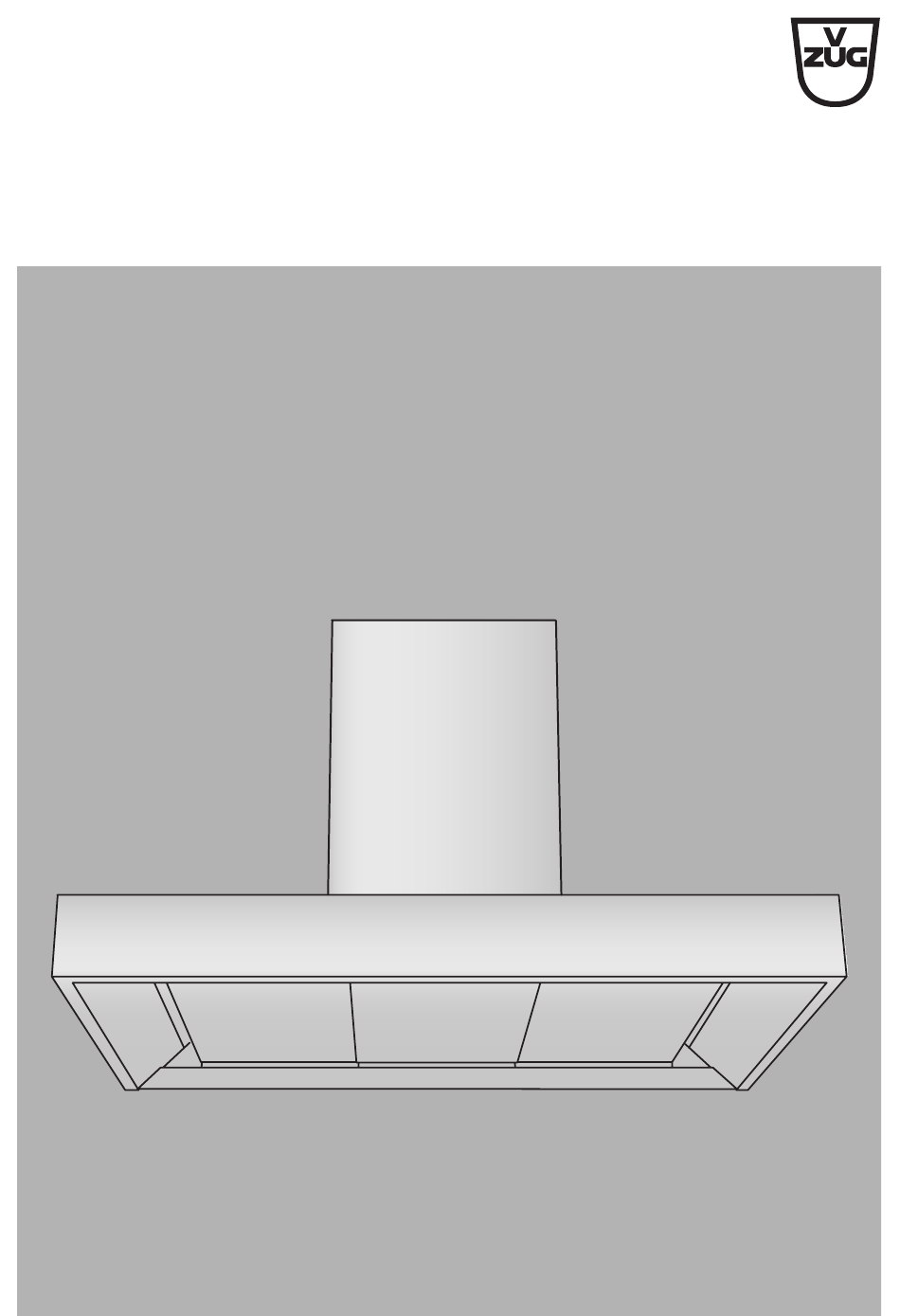

- Page 1 V-ZUG Ltd Range hood DV-SMC9 / DW-SMC9 Operating instructions...
- Page 2 The model number corresponds to the first three digits on the identification plate. These operating instructions apply to the models: Type Model no. DV-SMC9 DW-SMC9 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2012...
-
Page 3: Table Of Contents
Contents 1 Safety precautions 1.1 Before using for the first time ........4 1.2 Correct use . -
Page 4: Safety Precautions
Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: •... -
Page 5: Correct Use
1 Safety precautions Correct use • The appliance should only be used together with a suitable comfort venti- lation system from Zehnder Comfosystems. Other comfort ventilation appli- ances or external blowers are not equipped with the necessary safety features. Please follow the operating instructions and safety precautions recommended by Zehnder Comfosystems. -
Page 6: Note On Use
1 Safety precautions Note on use • If the appliance is visibly damaged, do not use it. Contact our Customer Services. • If the appliance is not operating properly, disconnect it from the electricity supply immediately. • Caution: Accessible parts may become hot when used with cooking appliances. - Page 7 1 Safety precautions • With the simultaneous operation of firing (e.g. wood, gas, oil or coal-fired heating systems), safe operation is only possible providing a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the appliance.
-
Page 8: Appliance Description
Appliance description The appliance is designed for use in the home for extracting cooking vapours from above the cooking area. The combi filters and metal grease filters clean the extracted air. The grease particles in the cooking vapour are trapped very efficiently in the combi filters and metal grease filters. -
Page 9: Construction
2 Appliance description Construction Illumination on/off Combi filter Metal grease filter Profile slot Temperature sensor On/off operation switch Operation indicator The temperature sensor 6 is only visible when the filter has been removed. -
Page 10: Use
Operation Use the operation switch to switch operation on/off. ➤ – The operation indicator indicates whether the appliance is running. Illumination Press the button to switch the illumination for on/off. ➤ Depending on the model and features, the specification can differ from the standard specification described. -
Page 11: Care And Maintenance
Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. -
Page 12: Cleaning The Grease Filters
4 Care and maintenance Cleaning the grease filters The grease filters should be cleaned at least once a month with normal use. If properly cared for, the grease filters should provide unlimited years of service. The grease filters can be cleaned in a dishwasher. ➤... -
Page 13: Cleaning The Temperature Sensor
4 Care and maintenance Cleaning the temperature sensor The temperature sensor is only visible when the filter has been removed. Clean the temperature sensor carefully ➤ with a soft cloth and a little detergent. Removing the metal grease filters and the combi filters Loosen the fastening screw 1 in the ➤... -
Page 14: Replacing The Leds
4 Care and maintenance Installing the metal grease filters and the combi filters Replace the metal grease filters. ➤ Place the right combi filter in the profile slot at the back and fold upwards. ➤ Tighten the fastening screw 1 slightly. Install the left and middle combi filters in the same way. -
Page 15: Trouble-Shooting
Trouble-shooting What to do if … … the illumination is not working Possible cause Solution • Fuse or circuit breaker for Replace the fuse. ➤ electrical installations in Reset the circuit breaker. ➤ the home is faulty. • Interruption in the power Check the power supply. -
Page 16: Accessories And Spare Parts
Accessories and spare parts Please give model number of the appliance and exact description of the accessory or spare part when ordering parts. Metal grease filter Middle Combi filter Left Right... -
Page 17: Technical Data
Technical data Electrical connection See identification plate. ➤ Remove the grease filter. ➤ – The identification plate is located on the inside of the appliance. -
Page 18: Disposal
Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains power supply. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •... -
Page 19: Notes
Notes... - Page 20 9 Notes...
- Page 21 9 Notes...
-
Page 22: Index
Index Accessories ....16 On/off operation switch... 9 Ordering ....23 Operation . -
Page 23: Repair Service
➤ – The identification plate is located on the inside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd Service Centre using freephone 0800 850 850 and stand in close proximity to the appliance. - Page 24 V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch J332.13-7 Service Centre: Tel. 0800 850 850...
