V-ZUG Ltd
Range hood
DWPQG/DIPQG
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWPQG Series and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG DWPQG Series

Summary of Contents for V-ZUG DWPQG Series

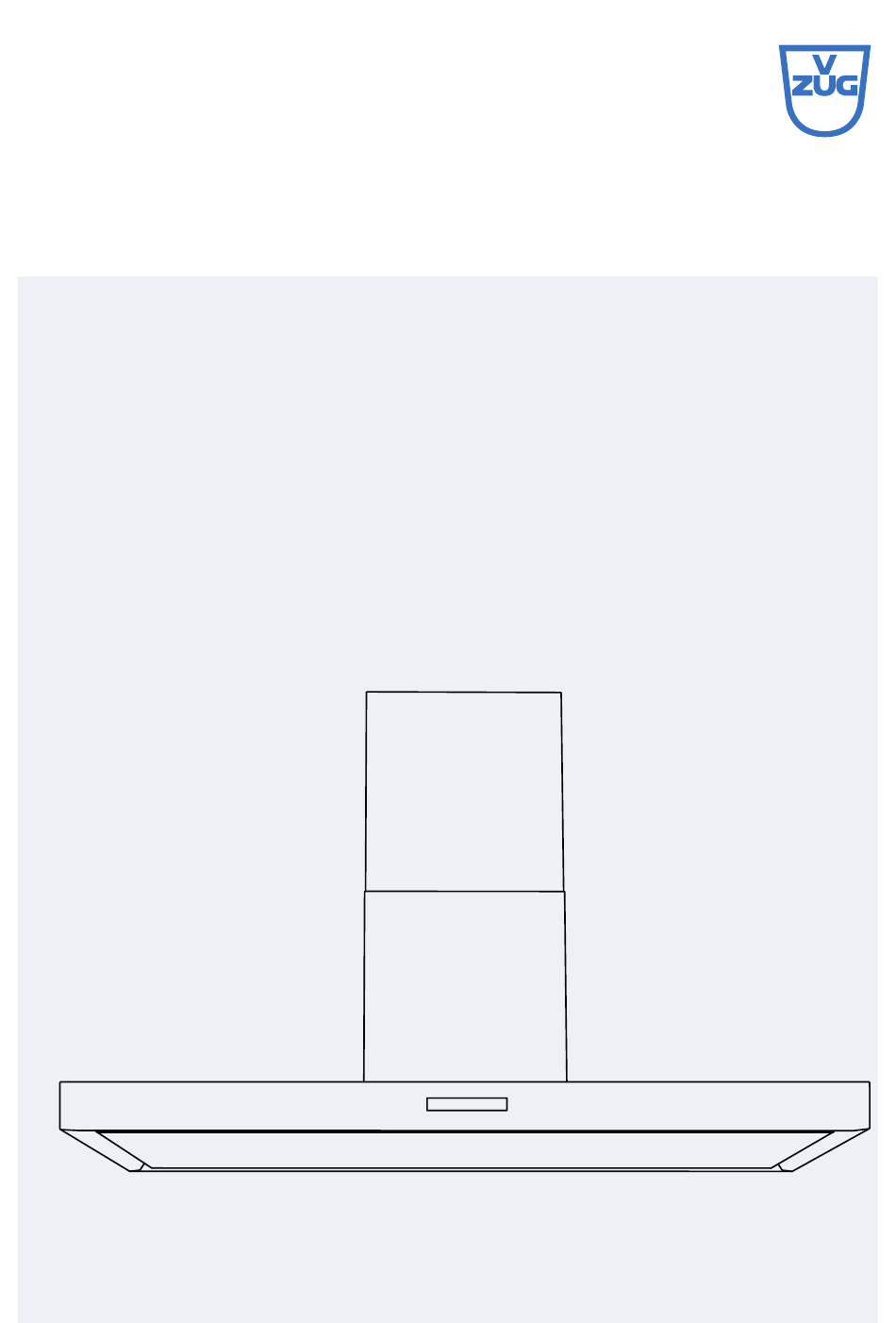

  • Page 1 V-ZUG Ltd Range hood DWPQG/DIPQG Operating instructions...
  • Page 2 These operating instructions apply to: Type Product family Size system Motor housing no. DWPQG9 62004 H4.2604 (K630003) H4.2605 (K630004) DWPQG12 62005 H4.2608 (K630002) DIPQG10 63004 H4.2774 DIPQG12 63005 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2015...

  • Page 3: Table Of Contents

    Contents Safety precautions Symbols used ..................General safety precautions ..............Before using for the first time .............. Correct use ....................Children in the home ................Note on use ..................... Disposal Your appliance Appliance description ................10 Extraction model ..................10 Recirculation model ................
  • Page 4 Accessories and spare parts Technical data Notes 10 Index 11 Repair service...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions Indicates step-by-step instructions.

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions The appliance corresponds to recognized technology standards and the relevant safety regulations. However, proper use of the appli- ance is essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: •...

  • Page 7: Children In The Home

    1 Safety precautions Children in the home • Packaging material, e.g. plastic film and polystyrene, can be dangerous for children. Danger of suffocation! Keep packaging material away from chil- dren. • The appliance is designed for use by adults who are familiar with these operating instructions.
  • Page 8 1 Safety precautions • Avoid a cross-current of air, which could blow the cooking vapours across the cooking area. • If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air. This does not apply to air recirculation appliances.

  • Page 9: Disposal

    Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •...

  • Page 10: Your Appliance

    Your appliance Appliance description The appliance is designed for use in the home for extracting cooking odours from above the cooking area. This particular model can be used as a wall or island hood to extract or recirculate air. Extraction model The integrated fan extracts cooking fumes and smells from above the cooking surface.

  • Page 11: Construction

    3 Your appliance Construction 1 Operating and display elements 2 Grease filter 3 Illumination 4 Return air in recirculation model 5 Combi grease filter 6 Glass cover (fold-down) If your appliance has lateral ventilation slits (see no. 4 in the figure) then it is a recirculation model.

  • Page 12: Operating And Display Elements

    3 Your appliance Operating and display elements Buttons ON/OFF button Power level selection Illumination ON/OFF Timer Displays Power level 1 Power level 2 Power level 3 Intensive level • Flashing: Wipe protection • Illuminated: Wipe protection activated Timer • Illuminated: Timer activated Saturation indicator for grease filters Clean grease filters •...

  • Page 13: Operating The Appliance

    Operating the appliance Using for the first time Configuring the appliance The appliance can be used in the extraction or recirculation mode. The appli- ance is set up as a recirculation hood with 5 kg of activated charcoal ex- factory. With this setting, the service life of the activated charcoal filter is 1,200 operating hours.
  • Page 14 4 Operating the appliance Settings options for the saturation indicator Amount of Cooking intensity Operating Power level activated hours display charcoal 5 kg Standard, for not overly frequent 1200 h and/or pungent cooking 5 kg For more frequent and/or more 700 h pungent cooking 2.5 kg...

  • Page 15: Operation

    4 Operating the appliance Operation Switching the appliance on Pressing the button switches the appliance on at power level 1. Press the button repeatedly until the desired power level is reached. – The power level currently being used illuminates in the corresponding display.

  • Page 16: Intensive Level

    4 Operating the appliance Intensive level The intensive level can be selected when the appliance is switched on. Depress the button for 2 seconds. – The display flashes. After 5 minutes, the appliance switches back to the previously selected power level.

  • Page 17: Operation With Remote Control

    4 Operating the appliance Operation with remote control In order to be able to operate the range hood by using the optional remote control, you need to have activated the hood for remote control. With the range hood switched on, ensure that the illumination is switched off.

  • Page 18: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. Remove the screw fuse or switch off the circuit breaker.

  • Page 19: Cleaning The Grease Filters And Combi Filters

    5 Care and maintenance Cleaning the grease filters and combi filters The grease filters and combi filters must be cleaned at least once a month with normal use or whenever the button flashes. If cleaned monthly, the service life of the grease filters is as long as that of the range hood. Removing the grease filters and combi filters Hold the glass cover 1 at the front and carefully swing down.
  • Page 20 5 Care and maintenance Cleaning Clean the grease filters and combi filters on their own in an upright position in a dishwasher. Set the dishwasher to an «intensive» or «heavy» soiling programme. Cleaning may cause the grease filters to become discoloured. This will not affect the functioning of the filters in any way.

  • Page 21: Replacing The Activated Charcoal Filters

    Spent activated charcoal filters can be disposed of in the household waste. The activated charcoal filters have been developed especially for this appli- ance and can only be ordered from V-ZUG Ltd's Customer Services. The activated charcoal filter consists of: Activated charcoal filter A...
  • Page 22 5 Care and maintenance Removing the activated charcoal filters Disconnect the hood from the mains power supply. Cover over the hob to protect it from getting damaged. Remove and clean the grease filters. (See section 5.2.) Press the metal cover C upwards and at the same time press both filter holders outwards.

  • Page 23: Replacing The Leds

    5 Care and maintenance Loosen the activated charcoal filter A from the metal holder E. Clean the metal holder in a dishwasher or by hand. Inserting the activated charcoal filters Fit activated charcoal filters A to the metal holder E. Push activated charcoal filters A straight upwards until they engage.

  • Page 24: Trouble-Shooting

    Trouble-shooting What to do if ... … the illumination is not working Possible cause Solution • Fuse or automatic circuit Replace the fuse. breaker for electrical Reset the automatic circuit breaker. installations in the home is defective. Check the power supply. •...
  • Page 25 Accessories and spare parts Please give product family of the appliance and exact designation of the accessory or spare part when ordering parts.* Grease filter Combi filter Activated char- coal filter * When ordering the activated charcoal filter give the length of the motor housing [➙...
  • Page 26 Technical data Electrical connection See identification plate. Remove the grease filters. – The identification plate is located on the inside of the appliance.
  • Page 27 Notes...
  • Page 28 9 Notes...
  • Page 29 Index Accessories ........25 Identification plate ......26 Activated charcoal ......13 Illumination ........16 Activated charcoal filter ....10 Intensive level ........16 Replacing ........22 Saturation indicator ..13, 14, 16 After-running time ......15 Amount of activated charcoal used Replacing ........23 ............
  • Page 30 10 Index Safety ...........9 Technical data ......... 26 Safety precautions Trouble-shooting ......24 Before using for the first time ..6 Type .............2 Children in the home ....7 Correct use ........6 Note on use ........7 Using for the first time ......6 Saturation indicator ......
  • Page 31 FN _______________________ Appliance _______________________ Please have these details to hand when contacting V-ZUG in connection with a malfunction. You will find them on the identification plate of your appliance. Remove the metal grease filters. – The identification plate is located on the inside of the appliance.
  • Page 32 • Flashing: Saturation indicator for activated charcoal filters Replace activated charcoal filters • Flashing: V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.ch, www.vzug.com Service Centre: Tel. 0800 850 850...
