Operating instructions
DWVHR9
Range hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWVHR9 and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG DWVHR9

Summary of Contents for V-ZUG DWVHR9

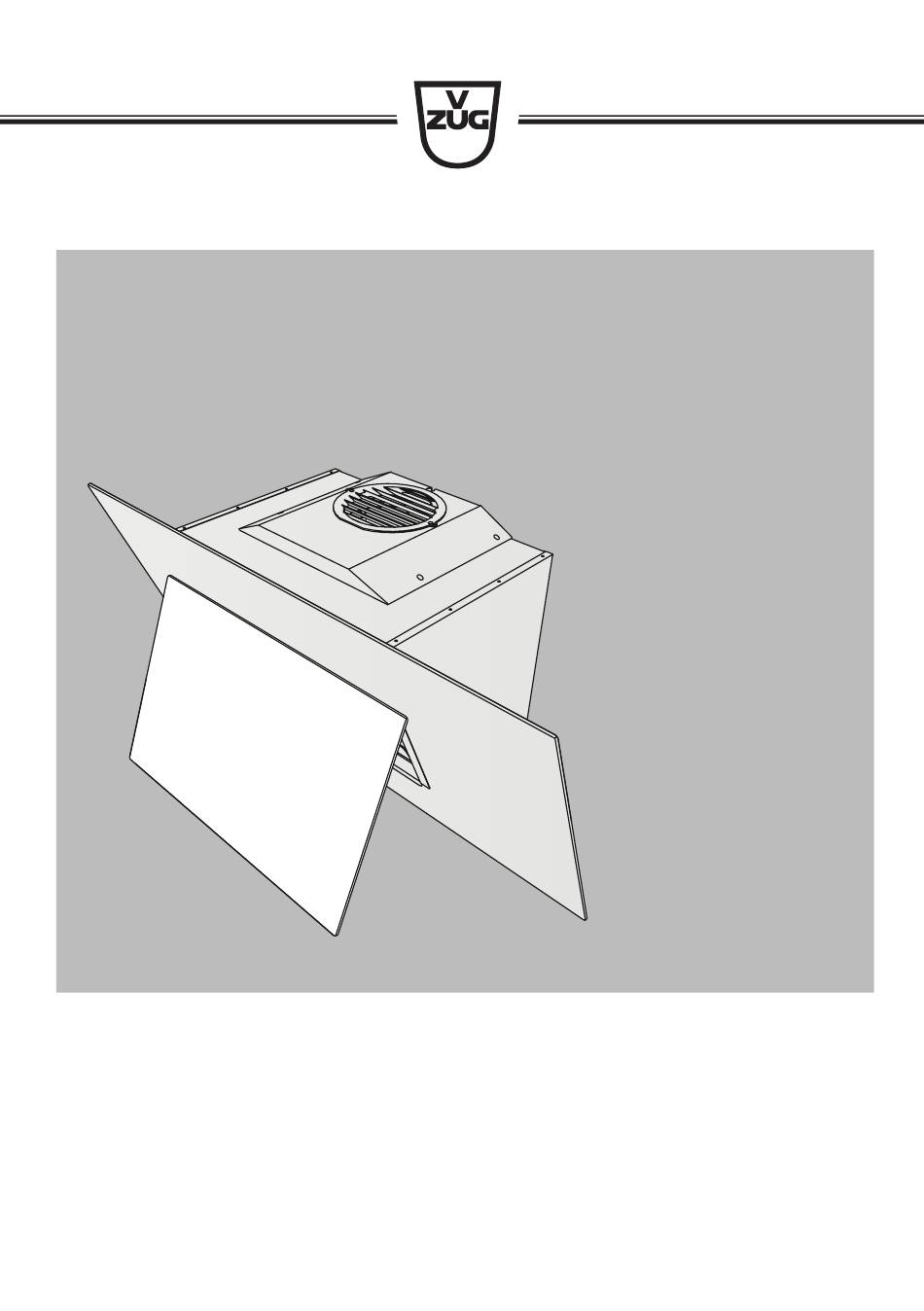

  • Page 1 Operating instructions DWVHR9 Range hood...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Product family Size system DWVHR9 62010 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2016...

  • Page 3: Table Of Contents

    Contents 1 Safety precautions  5 Symbols used ..................... 5 General safety precautions .............. 6 Before using for the first time .............. 7 Correct use.................... 7 Children in the home ................. 7 Note on use.................... 8 2 Disposal  10 3 Appliance description  11 Appliance description................ 11 Extraction model.................. 11 Recirculation model ................
  • Page 4 8 Technical data  30 9 Index  31 10 Notes  33 11 Service & Support  35...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in dam- age to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸...

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.

  • Page 7: Before Using For The First Time

    1 Safety precautions Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. ▪ Dispose of the packaging material in accordance with local regulations. Correct use ▪...

  • Page 8: Note On Use

    1 Safety precautions Note on use ▪ If the appliance is visibly damaged, do not use it. Contact our Customer Services. ▪ If the appliance is not functioning properly, disconnect it from the power supply immediately. ▪ If the mains cable of the appliance is damaged, it must be replaced by Cus- tomer Services in order to avoid hazard.
  • Page 9 1 Safety precautions ▪ When carrying out maintenance work on the appliance, including replacing the light bulb, cut off the electricity supply to the appliance: remove the screw fuse from the holder or switch the circuit breaker off, or disconnect from the mains supply.

  • Page 10: Disposal

    Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪...

  • Page 11: Appliance Description

    Appliance description Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. The model can be used to extract or recirculate air. Extraction model A fan draws cooking fumes and smells from above the cooking area. The metal grease filters clean the extracted air, which is passed through a connect- ing pipe fitted with an integrated non-return valve and through the air duct to the outside.

  • Page 12: Equipment

    3 Appliance description Equipment ▪ 1 extraction fan ▪ Illumination ▪ 2 metal grease filters ▪ 2 long-life activated charcoal filters (not included in scope of delivery) ▪ Remote control (not included in scope of delivery) The extraction fan has 4 power levels. ▪...

  • Page 13: Operating And Display Elements

    3 Appliance description Operating and display elements Switch off / activate/deactivate button lock Power level 1 / activate/deactivate remote control Power level 2 Power level 3 Intensive level CleanAir function (air extraction every hour for 10 minutes) After-running time, delays the switching-off of the appliance by 15 minutes Illumination ON/OFF / dimmer function (hold depressed for two seconds)

  • Page 14: Remote Control

    3 Appliance description Remote control This appliance can be controlled by remote control, which requires standard 1.5 V LR03-AAA alkali zinc-carbon batteries (not supplied). Do not place the remote control near heat sources. Please dispose of the batteries according to the applicable regulations. Operating and display elements Switch illumination on/off / change light intensity Switch appliance on/off...

  • Page 15: Operating The Appliance

    Operating the appliance Operation Switching the appliance on ▸ Pressing the / / button switches the appliance on at power level 1, 2, 3 or intensive. – The corresponding button illuminates to indicate which power level is being used. We recommend switching the appliance on at power level 1 some five minutes before cooking.

  • Page 16: Intensive Level

    4 Operating the appliance Intensive level ▸ Press the button. – The button illuminates. – The intensive level is switched on. ▪ If another power level had been running beforehand, then the appliance will automatically revert to this power level after six minutes has elapsed. ▪...

  • Page 17: Wipe Protection

    4 Operating the appliance Wipe protection Activating wipe protection ▸ Hold the button depressed for five seconds. – Wipe protection is activated, all the buttons flash on once and then flash from left to right. Wipe protection is useful when cleaning the hood. Deactivating wipe protection ▸...

  • Page 18: Saturation Indicators

    4 Operating the appliance Saturation indicators Saturation indicator for metal grease filters button flashes after 100 operating hours. The saturation level has been reached and the grease filters must be cleaned. Saturation indicator for long-life activated charcoal filters The activated charcoal filters must be cleaned as soon as the button flashes or at the latest after one month when the saturation level has been reached.
  • Page 19 4 Operating the appliance Switching the appliance on/off ▸ Press the button. – The appliance switches on at power level 1. ▸ Press the button again. – The appliance switches off. Switching the illumination on/off ▸ Press the button. – The illumination switches on at maximum intensity. ▸...
  • Page 20 4 Operating the appliance Switching the intensive level on / off before time ▸ Press the button. – The button illuminates. – The intensive level switches on. ▪ If another power level had been running beforehand, then the appliance will automatically revert to this power level after six minutes has elapsed.

  • Page 21: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as the surface could otherwise be damaged. Remove the screw fuse or switch off the circuit breaker.

  • Page 22: Metal Grease Filters

    5 Care and maintenance Metal grease filters The filter can be cleaned. Removing the upper grease filter ▸ Swing the glass panel 1 up. ▸ Press the grip 2 upwards, swing the grease filter 3 forwards and remove from the bracket 4. Removing the lower grease filter Push the grip 6 towards the middle and remove the filter 5.
  • Page 23 5 Care and maintenance Cleaning may cause the grease filters to become discoloured. This will not affect the functioning of the filters in any way. If no dishwasher is available: ▸ Clean the grease filters in hot water and detergent. ▸...

  • Page 24: Activated Charcoal Filter Display

    5 Care and maintenance Activated charcoal filter display Activating the activated charcoal filter display This function must only be activated with the recirculation model. ▸ With the appliance switched off, hold the button depressed for five seconds. – All LEDs flash twice. –...

  • Page 25: Cleaning The Long-Life Activated Charcoal Filter

    5 Care and maintenance Cleaning the long-life activated charcoal filter Long-life activated charcoal filters are only used in the recirculation model. The long-life activated charcoal filter can be cleaned and reactivated. With nor- mal use the long-life activated charcoal filter should be cleaned every other month or whenever the indicator light flashes.
  • Page 26 5 Care and maintenance ▸ Remove the long-life activated char- coal filter 7. Cleaning ▸ Clean the long-life activated charcoal filter 7 and reactivate. Be careful not to damage the filter. If necessary, replace a used long-life activated charcoal filter with a new one. Installing the long-life activated charcoal filter ▸...

  • Page 27: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit ▸ Replace the fuse. breaker for electrical in- ▸ Reset the automatic circuit breaker. stallations in the home is defective. ▪...
  • Page 28 6 Trouble-shooting … Saturation indicator illuminates Possible cause Solution ▪ The metal grease filters ▸ Clean the metal grease filters. are dirty. ▪ The long-life activated ▸ Reactivate the long-life activated charcoal charcoal filters are dirty. filters. ▪ The activated charcoal fil- ▸...

  • Page 29: Accessories And Spare Parts

    Accessories and spare parts Please give model number and exact designation when ordering parts. Metal grease filter for extraction and recirculation model (large) Metal grease filter for extraction and recirculation model (small) Long-life activated charcoal filter for re- circulation model...
  • Page 30 Technical data Electrical connection ▸ See identification plate. ▸ Remove the metal grease filters. – The identification plate is located on the inside of the appliance.
  • Page 31 Index Remote control ........ 19 Intensive level Accessories ..........29 Hood ............  16 Activated charcoal filter display Remote control ........ 20 Activating .......... 24 Deactivating........ 24 After-running time Hood ............  16 Light intensity Remote control ........ 20 Hood ............  15 Appliance Remote control ........
  • Page 32 Activating/deactivating .....  18 Safety ............10 Safety precautions Before using for the first time .... 7 Children in the home ...... 7 Correct use.......... 7 General........... 6 Note on use........... 8 Saturation indicator Grease filter ........ 18 Long-life activated charcoal filter ............ 18 Service & Support........35 Service agreement........
  • Page 33 Notes...
  • Page 35 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progress- ive service agreements.
  • Page 36 Infrared interface for the remote control Flashing: Clean grease filters Flashing: Clean long-life activated charcoal filters (recirculation model) J62010013--R03 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
