V-ZUG Ltd
Range hood
DV 5 / DV 6
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG DV 5

Summary of Contents for V-ZUG DV 5

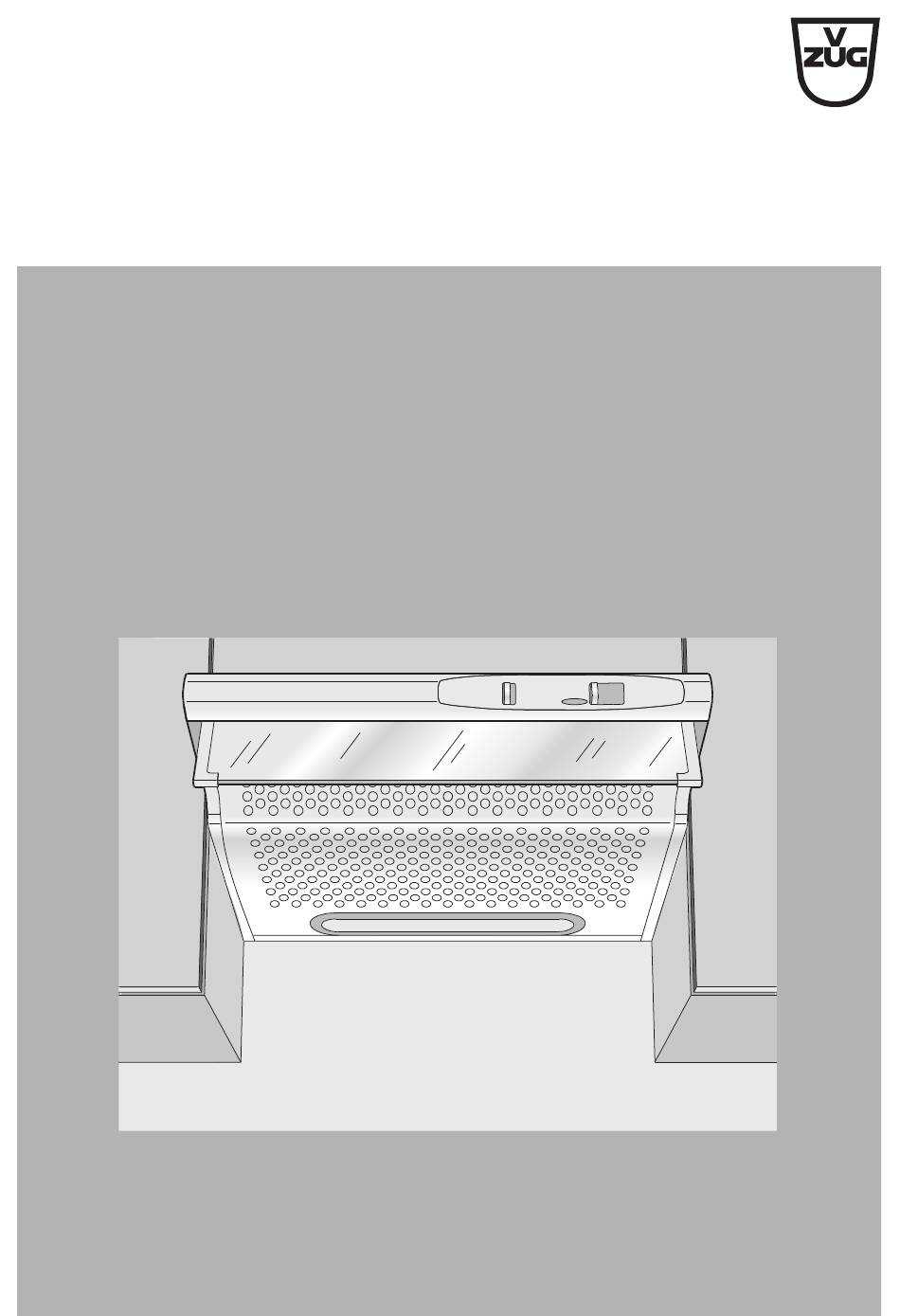

  • Page 1 V-ZUG Ltd Range hood DV 5 / DV 6 Operating instructions...
  • Page 2 The model number corresponds to the 3 three digits on the identification plate. These operating instructions apply to the following models: Type Model no. Size system DV 5 DV 6 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2009...

  • Page 3: Table Of Contents

    Contents 1 Safety precautions 1.1 Before using for the first time ........4 1.2 Correct use .

  • Page 4: Safety Precautions

    Safety precautions The appliance corresponds to recognised technology standards and the relevant safety regulations. Proper use of the appliance is however essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions. In accordance with the requirements of IEC 60335-1: •...

  • Page 5: Correct Use

    1 Safety precautions Correct use • The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. • Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, should only be carried out by the manufacturer, its Customer Services or similarly qualified persons.

  • Page 6: Note On Use

    1 Safety precautions Note on use • If the appliance is visibly damaged, do not use it. Contact our Customer Services. • If the appliance is not operating property, disconnect it from the power supply immediately. • Caution: Accessible parts may become hot when used with cooking appli- ances.
  • Page 7 1 Safety precautions • With recirculation models, only operate the illumination with the fan on, otherwise a build-up of heat could damage the appliance. • If other appliances – fuelled by gas or other fuels – are being used at the same time, ensure that there is a sufficient supply of fresh air.

  • Page 8: Appliance Description

    Appliance description The appliance is designed for use in the home for extracting cooking fumes and smells from above the cooking surface. It can be mounted on the wall or built in a wall unit. The appliance can be used in extraction or recirculation mode.

  • Page 9: Features

    2 Appliance description Features • 2 extraction fans • Illumination • 1 grease filter (flat fleece) • 1 activated charcoal filter (not included in scope of delivery) The extraction fan has 3 power levels. • 1 = Low, 2 = Medium, 3 = High level. •...

  • Page 10: Operating Elements

    2 Appliance description Operating elements Extraction fan Operation Level 1 Level 2 Level 3 Illumination Depending on the model and features, the specification of your appliance may differ from the standard specification described.

  • Page 11: Operating The Appliance

    Operating the appliance Operation Risk of injury from hitting head on panel when extended. Switching the extraction fan on/off Push the panel right out. ➤ Set the sliding switch 1 to power level 1 or 2. ➤ Only operate at power level 3 for a short time (a few minutes), then switch to a lower power level.

  • Page 12: Care And Maintenance

    Care and maintenance Cleaning the housing Take care that no water gets into the housing! If water gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool etc. to clean the appliance as they can damage the surface. Remove screw fuse for appliance or switch off circuit breaker.
  • Page 13 4 Care and maintenance Removing the grease filter Push locking slides 1 on left and right inwards. ➤ Swing down the filter grid 2 and remove from its fitting from the front. ➤ Remove the retainer 3 for the grease filter 4 and then remove the grease ➤...

  • Page 14: Replacing The Activated Charcoal Filter

    4 Care and maintenance Replacing the activated charcoal filter Remove screw fuse for the appliance or switch off the circuit breaker off. Activated charcoal filters are only used in the recirculation model. The grease filter can be disposed of in the household waste. The activated charcoal filter needs replacing after an operating period of 6 to 8 months.

  • Page 15: Replacing The Halogen Light Bulb

    4 Care and maintenance Replacing the halogen light bulb Remove screw fuse for the appliance or switch off the circuit breaker off. Halogen light bulbs get hot during operation! Allow to cool down first. Push locking slides 1 on left and right inwards. ➤...

  • Page 16: Trouble-Shooting

    Trouble-shooting What to do if … … the illumination is not working Possible cause Solution • Fuse or automatic circuit Replace the fuse. ➤ breaker for electrical Reset the automatic circuit breaker. ➤ installations in the home is defective. • An interruption in the Check the power supply.

  • Page 17: Accessories And Spare Parts

    Accessories and spare parts Please give model number of the appliance and exact description of the accessory or spare part when ordering parts. Halogen light bulb (230 V / 28 W) Flat fleece filter set (4×) Activated charcoal filter The halogen light bulb is also available from specialist retailers.

  • Page 18: Technical Data

    Technical data Electrical connection See identification plate ➤ Open the filter grid. ➤ – The identification plate is located on the inside of the appliance.

  • Page 19: Disposal

    Disposal Packaging • All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection • Disconnect the appliance from the mains power supply. With a fixed appliance, this is to be carried out by a qualified electrician! Safety •...

  • Page 20: Notes

    Notes...

  • Page 21: Repair Service

    ➤ – The identification plate is located on the inside of the appliance. If the appliance is not working properly, contact your nearest V-ZUG Ltd Service Centre using freephone 0800 850 850 and stand in close proximity to the appliance.

  • Page 22: Index

    Index Accessories ....17 Halogen light bulb Ordering ....21 Replacing .
  • Page 23 Safety ..... . 19 Safety precautions Before using for the first time ..4 Children in the home ... 5 Correct use .

  • Page 24: Quick Instructions

    Extraction fan Operation Power level 1 Power level 2 Power level 3 Illumination V-ZUG Ltd Industriestrasse 66, 6301 Zug Tel. +41 (0)41 767 67 67, Fax +41 (0)41 767 61 61 vzug@vzug.ch, www.vzug.ch Service Centre: Tel. 0800 850 850 J581.013-0...
