Summary of Contents for V-ZUG DFPQSL series
- Page 1 Operating instructions DFPQSL Range hood...
- Page 2 DFPQSL9 61007 H4.2608 (extraction standard) H4.2606 (recirculation standard, DFPQSL6 61008 built-in hood) DFPQSL5 61009 H4.2607 (recirculation short, built-in hood) H4.2774 (extraction with options connection) Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2016...
-
Page 3: Table Of Contents
Contents 1 Safety precautions 4 Symbols used ...................... 4 General safety precautions ................. 5 Before using for the first time ................ 5 Correct use...................... 6 Children in the home.................... 6 Note on use ...................... 6 2 Disposal 8 3 Your appliance 9 Appliance description .................. -
Page 4: Safety Precautions
Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸... -
Page 5: General Safety Precautions
1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved. -
Page 6: Correct Use
1 Safety precautions Correct use ▪ The appliance is designed for use in the home for extracting cooking odours from above a cooking area. ▪ Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, may only be carried out by the manufacturer, its Cus- tomer Services or a similarly qualified person. - Page 7 1 Safety precautions ▪ Make sure the room is adequately ventilated when operating the range hood at the same time as other appliances that burn gas or other fuels. ▪ Do not flambé food underneath the appliance. Metal grease filters if laden with grease could catch fire.
-
Page 8: Disposal
Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪... -
Page 9: Your Appliance

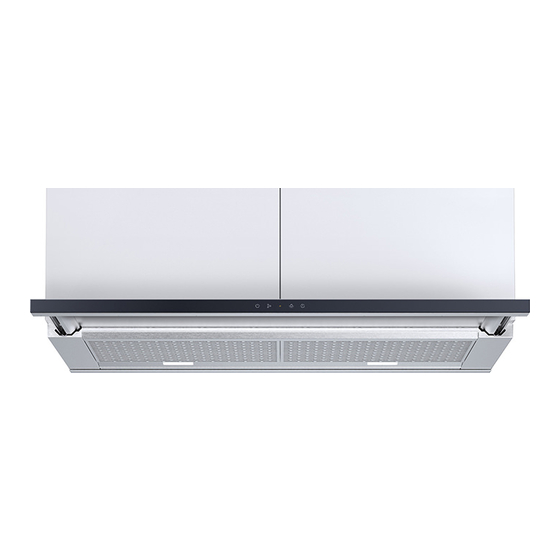

Your appliance Appliance description The appliance is designed for use in the home for extracting cooking odours from above a cooking area. This particular model can be used to air extract or recirculate air. Extraction model The integrated fan extracts cooking fumes and smells from above the cooking surface. -
Page 10: Construction
3 Your appliance Construction 1 Operating elements 2 Combi filter 3 Grease filter 4 Illumination... -
Page 11: Operating And Display Elements
3 Your appliance Operating and display elements Buttons ON/OFF button Illumination ON/OFF Power level selection Timer Displays Power level 1 Power level 2 Power level 3 ▪ Flashing: Intensive level Wipe protection ▪ Illuminated: Wipe protection activated Timer ▪ Illuminated: Timer activated Saturation indicator for grease filters ▪... -
Page 12: Operating The Appliance
Operating the appliance Using for the first time Configuring the appliance The appliance can be used in the extraction or recirculation mode. The appli- ance is set up as a recirculation hood with 5 kg of activated charcoal ex-fact- ory. With this setting, the service life of the activated charcoal filter is 1,200 op- erating hours. - Page 13 4 Operating the appliance Settings options for the saturation indicator Amount of Cooking intensity Operating Power level activated hours display charcoal 5 kg Standard, for not overly frequent 1200 h and/or pungent cooking 5 kg For more frequent and/or more pun- 700 h gent cooking 2.5 kg...
-
Page 14: Operation
4 Operating the appliance Operation Switching the appliance on ▸ Pull out the flat deflector plate. The appliance is most effective when the flat deflector plate is fully pulled out. ▸ Press the button. – The appliance switches on at power level 1. ▸... -
Page 15: Intensive Level
4 Operating the appliance Intensive level The intensive level can be selected when the appliance is switched on. ▸ Depress the button for 2 seconds. – The display flashes. After 5 minutes, the appliance switches back to the previously selected power level. -
Page 16: Saturation Indicator
4 Operating the appliance Saturation indicator Saturation indicator for the grease filters display flashes after 20 operating hours. The saturation level has been reached and the grease filters and combi filters must be cleaned. Saturation indicator for the activated charcoal filters display illuminates after 1,200, 700 or 400 operating hours, depending on the setting selected. -
Page 17: Care And Maintenance
Care and maintenance Cleaning the housing Take care that no water gets into the housing of the appliance! If wa- ter gets into the housing, it can cause damage. Do not use abrasive cleaners, scouring pads, steel wool, etc. for cleaning, as they can damage the surface. -
Page 18: Cleaning The Grease Filters And Combi Filters
5 Care and maintenance Cleaning the grease filters and combi filters The grease filters must be cleaned at least once a month with normal use or whenever the button flashes. If cleaned monthly, the service life of the grease filter is as long as that of the range hood. The saturation indicator becomes visible when the appliance is in op- eration or a power level is activated. - Page 19 5 Care and maintenance Installing the grease filter and combi filters ▸ Insert the combi filter in the flat deflector plate into the slots. ▸ Fold down the grip. ▸ Swing the combi filter up and engage in position. 90 cm model: 55 cm / 60 cm model: ▸...
-
Page 20: Replacing The Activated Charcoal Filters
Spent activated charcoal filters can be disposed of in the household waste. The activated charcoal filters have been developed especially for this appli- ance and can only be ordered from V-ZUG Ltd's Customer Services. The activated charcoal filter consists of: Activated charcoal filter A... - Page 21 5 Care and maintenance ▸ Loosen the 6 screws in the front cover D and remove the cover. ▸ Lift the activated charcoal filters A and B, one after the other, from the front and pull out. ▸ Detach the activated charcoal filter A from the metal holder E.
-
Page 22: Replacing The Leds
5 Care and maintenance ▸ Clean (see page 18) the metal holder E in a dishwasher or by hand. Inserting the activated charcoal filters ▸ Insert the activated charcoal filter B from the front and lay straight in the fil- ter holder. -
Page 23: Trouble-Shooting
Trouble-shooting What to do if ... … the illumination is not working Possible cause Solution ▪ Fuse or automatic circuit ▸ Replace the fuse. breaker for electrical in- ▸ Reset the automatic circuit breaker. stallations in the home is defective. ▪... -
Page 24: Accessories And Spare Parts
Accessories and spare parts Please give product family of the appliance and exact description of the ac- cessory or spare part when ordering parts.* Grease filter Grease filter holder for 90 cm hood width Combi filter Activated char- coal filter * When ordering the activated charcoal filter give the length of the motor hous- ing. -
Page 25: Technical Data
Technical data Electrical connection ▸ See identification plate. ▸ Remove the metal grease filters. – The identification plate is located on the inside of the appliance. -
Page 26: Index
Index Accessories ........... 24 Malfunction Activated charcoal ........12 Illumination not working .... 23 Activated charcoal filter ......... 9 Model number ..........2 Replacing.......... 20 Saturation indicator ..... 12, 13, 16 After-running time.......... 15 Notes ............... 28 Amount of activated charcoal used ..12 Appliance description ........ - Page 27 9 Index Validity............... 2 Warranty extensions ........31 What to do if The appliance is not extracting enough air........... 23 The illumination is not working .. 23 Wipe protection ..........16...
-
Page 28: Notes
Notes... -
Page 31: Service & Support
V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive ser- vice agreements. - Page 32 ▪ Illuminated: Wipe protection activated Timer ▪ Illuminated: Timer activated Saturation indicator for grease filters ▪ Flashing: Clean grease filters Saturation indicator for activated charcoal filters ▪ Flashing: Replace activated charcoal filters J61007352-R03 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug info@vzug.com, www.vzug.com...
