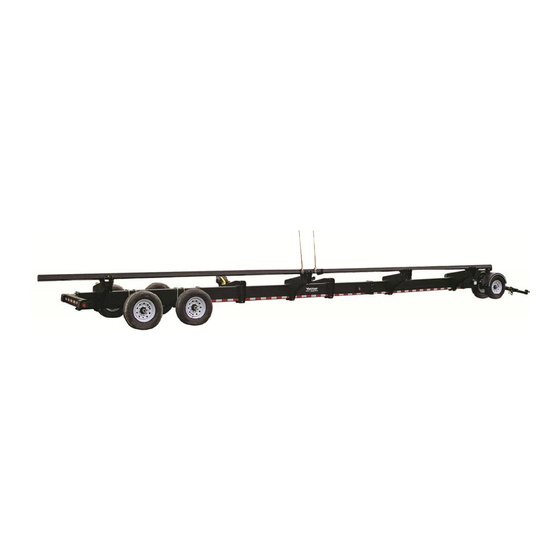

Yetter 8500 SERIES Owner's Manual

Head cart

Hide thumbs

Table Of Contents

Quick Links

Download this manual

OWNER'S MANUAL

8500 SERIES HEAD CART

ALL MODELS

2565-799_B 02/2019

Yetter Manufacturing

Founded 1930

Colchester, IL 62326

Call: (309)776-4111

Fax: (309)776-3222

Website: www.yetterco.com

Email:

info@yetterco.com

Table of Contents

Need help?

Do you have a question about the 8500 SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Yetter 8500 SERIES

Page 1 OWNER’S MANUAL 8500 SERIES HEAD CART ALL MODELS 2565-799_B 02/2019 Yetter Manufacturing Founded 1930 Colchester, IL 62326 Call: (309)776-4111 Fax: (309)776-3222 Website: www.yetterco.com Email: info@yetterco.com...
Page 2 The warranty does not obligate Yetter Manufacturing to bear the cost of labor in replacement of parts. It is the policy of the Company to make improvements without incurring obligations to add them to any unit sold prior.
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY ....................4-5 GENERAL INFORMATION ..............6-8 BOLT TORQUE ..................9 SET-UP ....................10-11 OPERATION ..................12-13 MAINTENANCE ..................14 PART IDENTIFICATION ..............15-34...
Page 4: Safety
SAFETY INFORMATION BE ALERT! YOUR SAFETY IS INVOLVED It is the responsibility of the owner, operator, or supervisor to know and instruct everyone using this machine at the time of initial assignment and at least annually thereafter, of the proper operation, precautions, and work hazard which exist in the operation of the machine in accordance with OSHA regulations.
Page 5 SAFETY INFORMATION During Operation Regulate speed to field conditions. Maintain complete control at all times. • Never lubricate equipment when in operation. • Use extreme care when operating close to ditches, fences, or on hillsides. • Do no leave towing vehicle unattended with engine running. •...
Page 6: General Information
GENERAL INFORMATION 8500 Series Head Cart Trailers Model No. Description Est. Wt. 8500-027 27’ Head Cart 3260 lbs 8500-032 32’ Head Cart 4103 lbs 8500-038 38’ Head Cart 4358 lbs 8500-043 43’ Head Cart 4741 lbs 8500-048 48’ Head Cart...
Page 7 GENERAL INFORMATION 8500 Series Head Cart Trailers • Central beam design with adjustable truss supports • Spare cutter bar storage • Dual 12” rest brackets to fit any header platform with tool- less adjustments • Drum brakes on rear axle(s) •...
Page 8 GENERAL INFORMATION 8500 Series Head Cart Trailers Technical Specifications 8500-027 8500-032 8500-038 8500-043 8500-048 Overall Length (in) Overall Width (in) Overall Height (in) Unloaded Weight (lb) 3260 4103 4391 4741 4970 Max Gross Weight (lb) 12000 18000 18000 18000 18000...
Page 9: Bolt Torque
Tightening hardware beyond the recommended range can reduce it shock load capacity. All hardware used on the 8500 Series Head Cart is Grade 5 unless otherwise specified. If hardware must be replaced, be sure to replace it with hardware of equal size, strength, and thread type.
Page 10: Set-Up
SET UP INSTRUCTIONS Tires and Wheels 1. Using a safe lifting device and jack stands rated at a minimum of 2500 lbs, raise the frame at least 16 ½” high 2. Install wheels and tires onto the axles and secure with provided lug nuts. Refer to the table below for torque sequence and value.
Page 11 SET UP INSTRUCTIONS Test Lights Make sure no wires are pinched or cut during installation. Keep all wires concealed to prevent them from getting caught on obstructions. Attach 8500 Head Cart and wiring harness to tow vehicle to test the lights. ATTACH TO TOW VEHICLE Check the following:...
Page 12: Operation
OPERATION Hitching 1. Position towing vehicle in front of header transport. Lift tongue latch handle and extended inner tongue extension enough to attach to vehicle drawbar using a ¾” minimum diameter hitch pin and lock in place. Back-up towing vehicle to re-latch tongue.
Page 13 OPERATION Tie-Down Brackets The tie down brackets consist of two heavy duty strap assemblies which secure • current design headers to the transport. For proper installation follow steps as shown. 1. Loosen strap by pulling up ratchet handle and lock in open position CAUTION: BE SURE RATCHES, WEBBINGS, AND HOOKS ARE IN PROPER WORKING CONDITION SO THAT DAMAGE DOES NOT OCCUR DUE TO LOSS OF HEADER FROM TRANSPORT...
Page 14: Maintenance
MAINTENANCE Bearings • Every 12,000 miles or once a year, repack wheel bearings with grease Inspect bearings for signs of wear such as discoloration of rollers, spalling, pits, or metal flakes. Rollers and race should look shiny and new if in good condition. If any of these signs are found, replace bearings immediately.
Page 15: Part Identification
2526-542 1" SAE FLAT WASHER ZP 2565-366 AVENGER COULTER DECAL 2565-466 SERIAL NUMBER DECAL 2565-822 YETTER DECAL SIZE DECAL, XX' 1; 2565-828 1; 2565-827 1; 2565-826 1; 2565-825 1; 2565-823 2565-829 MADE IN U.S.A. DECAL 2565-830 TORQUE CHECK DECAL 2565-831...
Page 16 PART IDENTIFICATION...
Page 17 PART IDENTIFICATION QUANTITY ITEM PART# DESCRIPTION MAIN TUBE FRONT SECTION W.A 8500-207 8500-208 MAIN 22FT SECTION W.A. TAIL END W.A. 8500-209 MAIN 17FT SECTION W.A. 8500-218 8500-220 MAIN 12FT SECTION W.A. V92 DOT TAPE 2"X6" RED/6" WHT 12' 8500-373 8500-374 V92 DOT TAPE 2"X6"...
Page 18 PART IDENTIFICATION QUANTITY ITEM PART# DESCRIPTION ZIP TIE 2515-556 BREAKAWAY KIT 8500-369 WIRE HARNESS 8500-381 8500-385 1 X 1.375 GROMMET 8500-409 QUICK SPLICE CONNECTOR DR SCREW, 1/4 X 5/8 ZN TYPE D 2502-156...
Page 19 2520-361 1/2-13FLANGE WHZLCK HXNT, GR 5, ZP 3/4-10 LOCK HEX NUT, GR 8, ZP 2520-518 3/4 SAE FLATWASHER, ZP 2526-504 YETTER DECAL 2565-822 11.5" BLACK CABLE TIE NYLON 40LB, INDIVIDUAL 2940-577 REAR AXLE ASSEMBLY 8500-101 HEADER REST XXFT CART W.A.
Page 20 PART IDENTIFICATION QTY; P/N ITEM PART# DESCRIPTION 1/2-13 X 2 HHCS, GR 8, ZP 2502-350 1/2-13 X 8 HHCS GR. 5 ZP 2502-369 3/4-10 X 9 HHCS GR8, ZP 2502-431 2520-363 1/2-13 NYL INSERT LOCKNUT, GR 2 3/4 SAE FLATWASHER, ZP 2526-504 2570-452 COTTER PIN, 1/4 X 4 STEEL ZP...
Page 21 PART IDENTIFICATION QTY; P/N ITEM PART# DESCRIPTION 3/4-10 X 3 HHCS GR 5 ZP 2502-409 2520-518 3/4-10 LOCK HEX NUT, GR 8, ZP 3/4 SAE FLATWASHER, ZP 2526-504 USE ISO-8500-048 SHT 6 FOR IMAGE...
Page 22 DESCRIPTION 2502-409 3/4-10 X 3 HHCS GR 5 ZP 2520-518 3/4-10 LOCK HEX NUT, GR 8, ZP 3/4 SAE FLATWASHER, ZP 2526-504 2565-822 YETTER DECAL TAIL LIGHTS ASSEMBLY 8500-102 8500-109 BOLT BAG LED TAIL LIGHT 8500-371 8500-372 RED MARKER LIGHT 8500-385 1 X 1.375 GROMMET...
Page 23 PART IDENTIFICATION ITEM PART# DESCRIPTION 1/2-13 X 1 1/4 CARBLT G5ZP 2505-337 1/2-13FLANGE WHZLCK HXNT, GR 5, ZP 2520-361 PLATE, BACKING 8500-408...
Page 24 PART IDENTIFICATION 8500-001 MARKER POLE KIT...
Page 25 PART IDENTIFICATION 8500-144 BALL HITCH 2-5/16”...
Page 26 PART IDENTIFICATION 8500-166 CLEVIS HITCH...
Page 27 PART IDENTIFICATION 8500-100 – EXTENDABLE TONQUE ASSEMBLY...
Page 28 PART IDENTIFICATION 8500-101 – Rear Axle Assembly...
Page 29 PART IDENTIFICATION 8500-203 – Front Axle Assembly...
Page 30 PART IDENTIFICATION 8500-120 – Rear Bearing and Drum Replacement Kit One per Wheel...
Page 31 PART IDENTIFICATION 8500-121 – Lugnut and Stud Replacement Kit One per Wheel...
Page 32 PART IDENTIFICATION 8500-122 – Front and Rear Bearing Replacement Kit One per Wheel...
Page 33 PART IDENTIFICATION 8500-123 – Brake Replacement Kit One per Rear Axle...
Page 34 PART IDENTIFICATION 8500-124 – Front Bearing Replacement Kit One per Wheel...
Page 37 NOTES:...
Page 38 NOTES:...
Page 39 NOTES:...
Page 40 Canada. We’re even getting orders from as far away as Australia and Africa. So, when you buy Yetter products . . .you’re buying a name that’s recognized. A name that’s known and respected. A name that’s become a part of American agriculture and has become synonymous with quality and satisfaction in the field of conservation tillage.

This manual is also suitable for:

8500-027 8500-032 8500-038 8500-043 8500-048
