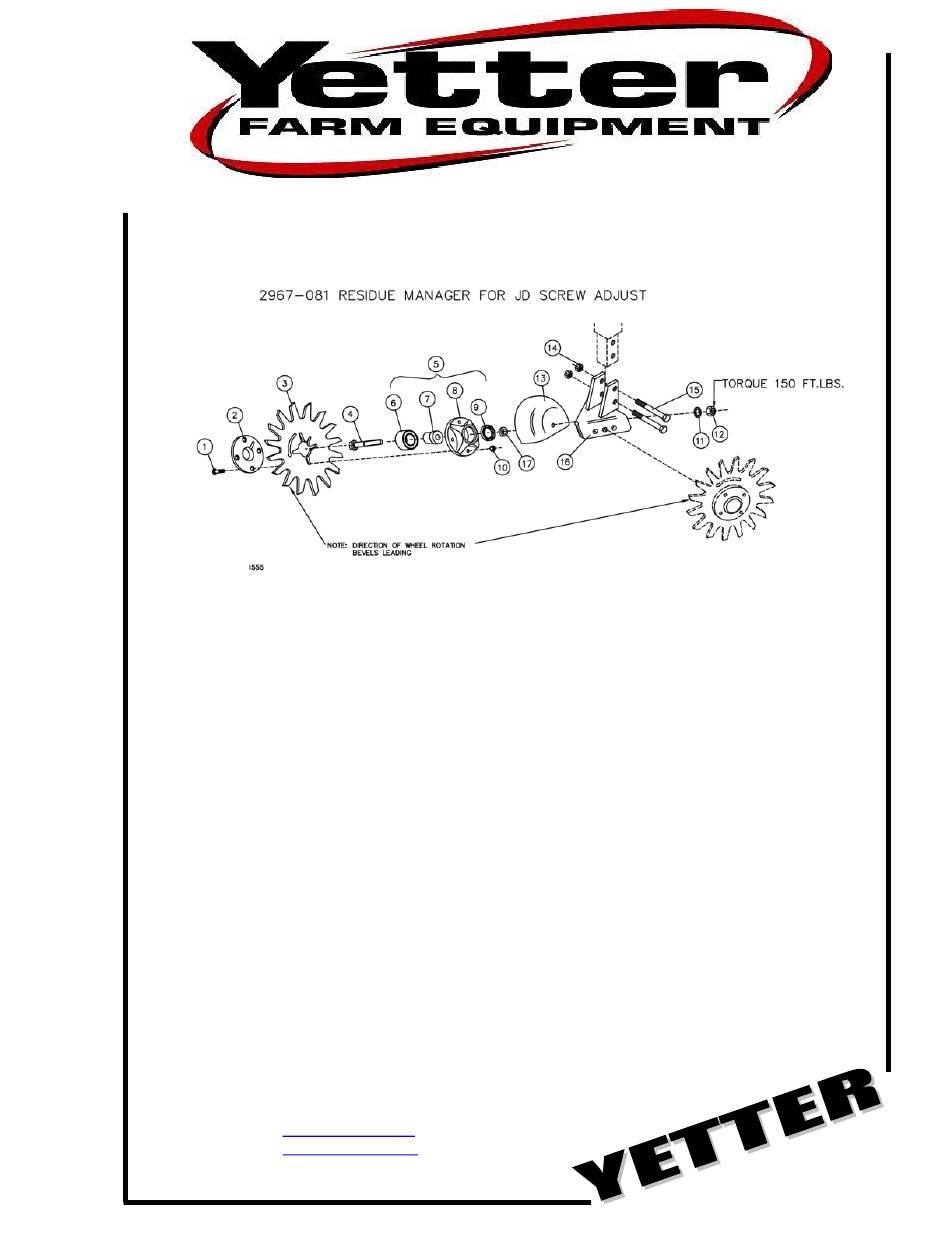

RESIDUE MANAGER FOR JD SCREW ADJUST
Key
Qty.
1
8
2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
2
10
8
11
2
12
2
13
2
14
2
15
2
16
1
17
2
YETTER MANUFACTURING CO.
FOUNDED 1930
Colchester, IL 62326-0358
Toll free: 800/447-5777
309/776-3222 (Fax)
Website:
www.yetterco.com
Email:
info@yetterco.com
2967-081
2565-448_REV_C • 02/2016
REVISED 02/23/16
Part No.
Description
2505-208
5/16-18 X 1 1/2 Car. Bolt Gr. 5
2965-352
Hub Cap Casting, 4 Bolt, Black
2967-404
13" Taper Tooth Spoke Wheel
2967-602
13" Shark Tooth Wheel
2570-742
'D' Bolt Flange, 5/8-11 X 4" Gr. 8 ZYD
2965-128
Hub & Bearing Assy., 4 Bolt (Includes 7,8,9, & 10)
2570-594
Bearing, 2 Row NTN# DF0654L
2570-715
Bearing Insert, Trashmaster
2965-351
Hub Casting, Mach., 4 Bolt
2550-069
Seal, Triple Lip, NTI# 1812-5
N10213
5/16-18 Hex Flange Serrated Nut
2525-451
5/8 Med. Lockwasher ZP
2520-452
5/8-11 Hex Nut ZP
2967-336
R.M. Shield, Painted, W/Hole
2520-357
1/2-13 Lock Hex Nut ZP
2502-316
1/2-13 X 3 1/2 HHCS Gr. 5 ZP
2967-257
JD Screw Adj. R.M. Bracket W.A.
2967-302
Spacer, 3/4", ZYD
Advertisement
Related Manuals for Yetter 2967-081
Summary of Contents for Yetter 2967-081
- Page 1 1/2-13 Lock Hex Nut ZP 2502-316 1/2-13 X 3 1/2 HHCS Gr. 5 ZP 2967-257 JD Screw Adj. R.M. Bracket W.A. 2967-302 Spacer, 3/4”, ZYD YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com Email: info@yetterco.com...
-
Page 2: Installation
INSTALLATION When assembling spoke wheel, bearing assembly and hub cap, be sure to align the grease fitting hole with the hole in the spoke wheel with groove in hub cap to assure proper greasing of wheel and hub assembly. Be sure to install the 3/4” spacers and bearing shields when assembling the spoke wheel and bearing assembly. - Page 3 MAINTENANCE BEARING ASSEMBLY AND LUBRICATION Practice Safety Understand and practice safe service procedures before doing work. Follow ALL the operating, maintenance and safety information in the equipment operator manual. Clear the area of bystanders, especially small children, when performing any maintenance or adjustments. Keep work area clean and dry. Use adequate lighting for the job.
- Page 4 MAINTENANCE NOTE: Be certain to align the grease fitting with the slot in the wheel and the hubcap so that the grease can flow freely.
- Page 5 MAINTENANCE Grease must fill this Hubcap cavity.
- Page 6 Alternative Lubricants Conditions in certain geographical areas may require special lubricants and lubrication practices which do not appear in the operator's manual. If there are any questions, consult Yetter Manufacturing Co. to obtain latest information and recommendation. DESCRIPTION PART #...
- Page 7 MAINTENANCE Lubrication Symbols Lubricate with grease at hourly interval indicated on symbol. Lubrication Intervals IMPORTANT: The recommended service intervals are based on normal conditions; severe or unusual conditions may require more frequent lubrication. Perform each lubrication and service procedure at the beginning and end of each season.
- Page 8 • Clean machine thoroughly to remove all dirt, debris and crop residue, which would hold moisture and cause rusting. • Inspect machine for worn or broken parts. See your Yetter Farm Equipment dealer during the off-season so that parts or service can be acquired when machine is not needed in the field.
