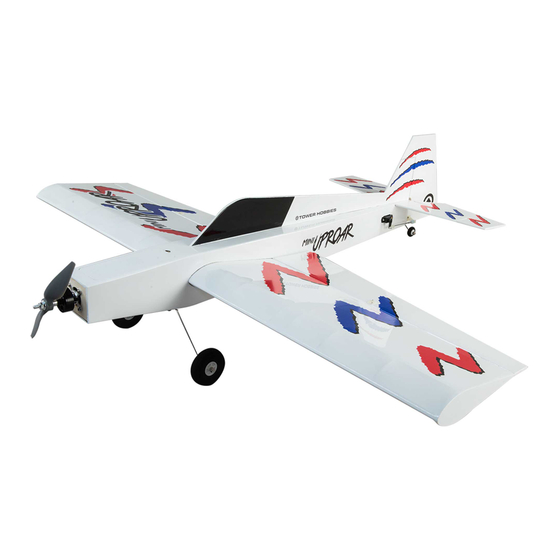

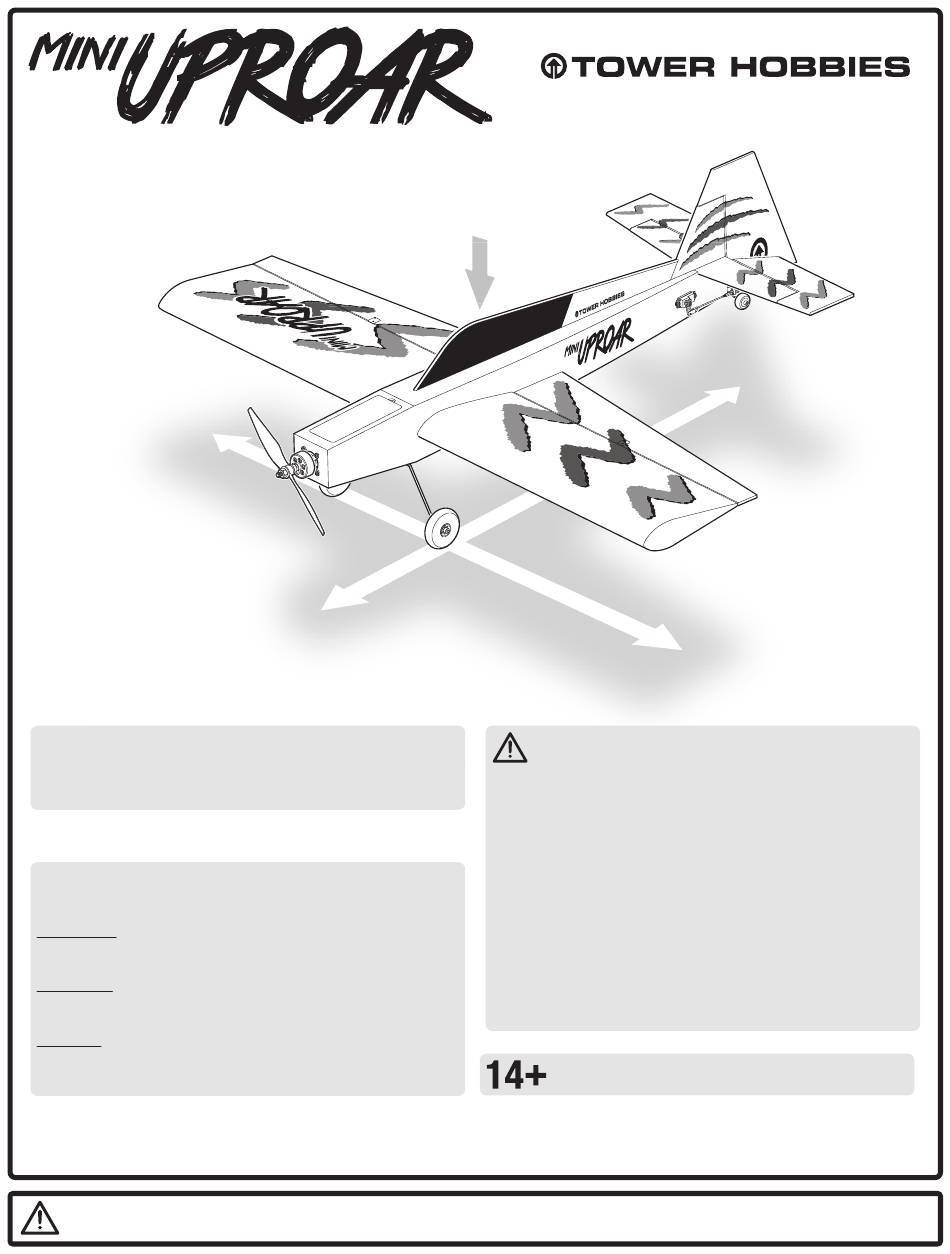

INSTRUCTION MANUAL
WING AREA
2
2
432 in
[ 27.9 dm
]
MOTOR
Tower (30-35-1000)
(not included)
40 Amp
(not included)
BATTERY
3S – 4S 1800-3200 mAh
(not included)
RADIO
4-channel minimum,
4 servos
(not included)
PROP
10 × 5E
(not included)
NOTICE
CE
All instructions, warranties and other collateral documents are
subject to change at the sole discretion of Horizon Hobby, LLC.
For up-to-date product literature, visit www.horizonhobby.com
and click on the support tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature
to indicate various levels of potential harm when operating this
product:
WARNING: Procedures, which if not properly followed, create
the probability of property damage, collateral damage, and
serious injury OR create a high probability of superficial injury.
CAUTION: Procedures, which if not properly followed, create
the probability of physical property damage AND a possibility
of serious injury.
NOTICE: Procedures, which if not properly followed, create a
possibility of physical property damage AND little or no
possibility of injury.
READ THROUGH THIS MANUAL BEFORE STARTING CONSTRUCTION.
It contains important instructions and warnings concerning the assembly and use of this model.
WARNING: This product may use a lithium polymer (LiPo) battery. Improper handling may result in FIRE! You are responsible for following all
safety precautions as outlined in this instruction manual.
®
WEIGHT
37– 40 oz [1048 – 1134 g]
LENGTH
40.75 in.
[1035 mm]
WINGSPAN
43 in. [1092 mm]
WARNING: Read the ENTIRE instruction manual to
become familiar with the features of the product before
operating. Failure to operate the product correctly can result in
damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with
caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and
responsible manner could result in injury or damage to the
product or other property. This product is not intended for use
by children without direct adult supervision. Do not use with
incompatible components or alter this product in any way
outside of the instructions provided by Horizon Hobby, LLC.
This manual contains instructions for safety, operation and
maintenance. It is essential to read and follow all the instructions
and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
AGE RECOMMENDATION: Not for children under
14 years. This is not a toy.
WING LOADING
2
12.3 – 13.3 oz/ft
2
[37.5 – 40.5 g/dm
]
58755 TOWA2041
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Uproar and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tower Hobbies Mini Uproar

  • Page 1 ™ ® ® INSTRUCTION MANUAL WEIGHT 37– 40 oz [1048 – 1134 g] WING AREA 432 in [ 27.9 dm MOTOR Tower (30-35-1000) (not included) 40 Amp (not included) BATTERY 3S – 4S 1800-3200 mAh (not included) RADIO LENGTH 4-channel minimum, 40.75 in.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS AS A NEW OWNER ......2 Install the Tail Surfaces ..... . 13 AMA .
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Protect Your Model, Yourself & Others… Follow These Important Safety Precautions 1. Your model airplane should not be considered a toy, but REMEMBER: Take your time and follow the instructions rather a sophisticated, working model that functions very to end up with a well-built model that is straight and true.
  • Page 4: Electric Motor Safety Precautions

    ELECTRIC MOTOR SAFETY PRECAUTIONS WARNING: A spinning propeller has the potential to cause serious and permanent injury to yourself and others. WARNING: Once the motor batteries are connected, the propeller can start spinning at any time. Make sure the fail safe is set on your radio to prevent the motor from starting if the transmitter signal is lost.
  • Page 5: Lithium Battery Warning

    LITHIUM BATTERY WARNING This product uses a lithium polymer (LiPo) battery. Improper handling could result in FIRE! A lithium battery fi re has the potential to ignite surrounding areas and may cause property damage or cause personal injury. For safe LiPo handling, follow all of these guidelines: MOST IMPORTANT! Never leave the battery or charger unattended during charging or discharging.
  • Page 6: Required Items

    REPLACEMENT PARTS ORDERING REPLACEMENT PARTS TOWA4120 Wing TOWA4121 Fuselage Replacement parts are available from Tower Hobbies for your Tower Hobbies Mini TOWA4122 Tail Surfaces Uproar model airplane. Our order assistance representatives are ready to answer TOWA4123 Landing Gear your questions or to place your order. Call us at (800) 637-6050.
  • Page 7: Contents

    CONTENTS Elevator Joiner Wire Stabilizer Elevators Rudder Canopy Wing Right Aileron Fuselage Left Aileron 1" Tail Wheel 2-1/2" Main Main Wheels Tail Gear Landing Gear Battery Hatch Receiver Hatch Pushrod x 4 PARTS NOT SHOWN (4) Nylon clevises (4) 3 mm wheel collars (4) 3 x 10 mm machine screws (4) Silicone clevis keepers (1) 2 mm wheel collar...
  • Page 8: Preparation

    PREPARATION Use a covering iron set to low heat with a covering sock to go over the model, slowly and carefully tightening the covering where necessary. Do Not use excessive heat or the covering may cause the parts to twist. WING ASSEMBLY Center the wing in the fuselage.
  • Page 9 Trim the covering from the wing. Do not cut into the wood! 1/16" [ 1.5 mm] 1/16" [ 1.5 mm] Use 30 minute epoxy to glue the wing, centered in the fuselage. Wipe off any access epoxy with a paper towel dampened in denatured alcohol before the epoxy hardens.
  • Page 10 Glue the hinges in the wing and aileron. 6 drops on both sides of each hinge Prepare the aileron servo. 90° 5/64" ( 2 mm ) 5/8" [16 mm] 6"— 9" [152—229 mm] Servo Extension Tape or locking clips are recommended for servo extension connections.
  • Page 11 Install the aileron servo. Screws included with servo. Tie string to the servo extension and pull it through the wing. 1/16" [1.5 mm] Install the aileron clevis. 2-56 x 12" [ 305 mm] Pushrod Silicone Clevis Retainer Nylon Clevis (1) Nylon Clevis (1) Clevis Retainer 25 Turns...
  • Page 12 Install the aileron control horn. 2 x 10 mm Machine Screw 90 degrees 5/64" (2 mm) (1) Control Horn Control Horn Back Plate (1) Control Horn Back Plate (2) M2 x 8 Machine Screw Align Holes with Hinge Line...
  • Page 13: Fuselage Assembly

    Trim (1) Nylon Faslink Pushrod Make a 90 degree bend and trim to 1/4" Nylon Faslink [6mm]. Connect the aileron pushrod to Slide over Clevis the aileron servo arm using a Faslink. Return to step 6 and install the aileron and servo in the right wing. FUSELAGE ASSEMBLY INSTALL THE TAIL SURFACES Test fi t the horizontal stabilizer on the fuselage.
  • Page 14: Main Landing Gear Installation

    View the model from the back. If the horizontal stabilizer is not parallel to the wing, lightly sand the stabilizer seat until it is. Use 30-minute epoxy to glue the horizontal stabilizer and vertical fi n to the fuselage. 90° 90°...
  • Page 15: Tail Surface Installation

    TAIL CONTROL SURFACE INSTALLATION Test fi t the elevators, CA hinges and the elevator joiner wire together. Check that both elevator halves are aligned. If they are not, adjust the bend in the elevator joiner wire until the elevator halves are aligned.
  • Page 16 Install the rudder. 6 drops on both sides of each hinge Install the tail gear. (1) 2 mm Wheel Collar (1) 3 x 3mm Set Screw...
  • Page 17: Install The Elevator And Rudder Servos

    INSTALL THE ELEVATOR AND RUDDER SERVOS Cut a 30mm long piece of adhesive backed hook and loop material. Mount the receiver to the wing underside with the piece of hook and loop material. Assemble the elevator servo. 5/64" ( 2 mm ) 5/8"...
  • Page 18 Install the elevator servo in the fuselage with the screws included with the servo. 1/16" (1.5 mm) Do not trim the covering from this opening. Install the elevator pushrod and control horn following the same procedure used to install the aileron pushrods.
  • Page 19: Final Assembly

    Install the rudder servo and pushrod, the same as the elevator servo and pushrod. 5/64" ( 2 mm ) 5/8" [16 mm] Do not trim the covering from this opening. FINAL ASSEMBLY Glue the canopy top piece to the fuselage. 90º...
  • Page 20 Install the motor on the front of the fuselage. (4) 3 x 10 mm Machine Screws (4) 3 mm Flat Washer Cut a piece of adhesive backed hook and loop material 25mm long. Mount the ESC to the inside of the fuselage with the piece of adhesive backed hook and loop material.
  • Page 21 Install the remaining adhesive backed hook and loop strip. Attach the opposite side of the strip to your motor battery. Hook and Loop Strip Locate the double sided hook and loop battery strap. Install the battery strap. Battery Strap...
  • Page 22: Apply The Decals

    SET UP THE FAILSAFE With the propeller removed from the airplane, confi gure the failsafe for your radio according to manufacturer instructions. The failsafe should be set so that the motor stops if the signal from the transmitter is lost. Once the fail safe has been set, start the motor and switch off the transmitter. The motor must stop.
  • Page 23: Set The Control Throws

    Set the Control Throws Hold a ruler against the widest part of the These are the recommended elevator surface and measure the 3D rate throw control surface throws: fi rst. Adjust the location of the pushrod on the servo LOW RATE HIGH RATE arm or on the control horn fi rst.
  • Page 24: Install The Propeller And Spinner

    Install the Propeller and Spinner Balance the propeller. Install the prop adapter, propeller, washer and then the prop nut. Tighten fi rmly. Balance the Model Laterally With the wing level, have an assistant help you lift the If one wing always drops when you lift the model, it model by the propeller shaft and the bottom of the means that side is heavy.
  • Page 25: Balance The Model C.g

    Balance the Model C.G. CAUTION: DO NOT OVERLOOK THIS IMPORTANT PROCEDURE. A model that is not properly balanced may be unstable and possibly unfl yable. Mark the C.G location on the bottom of the wing 2-1/8" (54mm) to 3" (76 mm) from the leading edge. With the plane ready to fl y, and the motor batteries installed but not plugged in, use a Great Planes C.G.
  • Page 26: Preflight

    AIRPLANES): If, while fl ying, you notice an alarming or unusual sound such as a low-pitched “buzz,” this may indicate control surface fl utter. Flutter occurs when a The Mini Uproar plane control surface (such as an aileron or elevator) or a fl ying was designed to provide...
  • Page 27 FLYING climbs as well. Continue to fl y around, executing various Continued maneuvers and making mental notes of what trim or C.G. changes may be required to fi ne-tune the model so it fl ies the way you like. Mind your fl ight time, but use this fi rst recharging the battery note how much capacity was put fl ight to become familiar with your model before landing.
  • Page 28: Limited Warranty

    877-504-0233 Champaign, IL 61822 USA © 2018 Horizon Hobby, LLC. Tower Hobbies, the Tower Hobbies logo, and Uproar are trademarks or registered trademarks of Horizon Hobby, LLC. All other trademarks, service marks and logos are property of their respective owners.
