INSTRUCTIONS FOR USE - OM 36
4.
INSTRUMENT SETTING

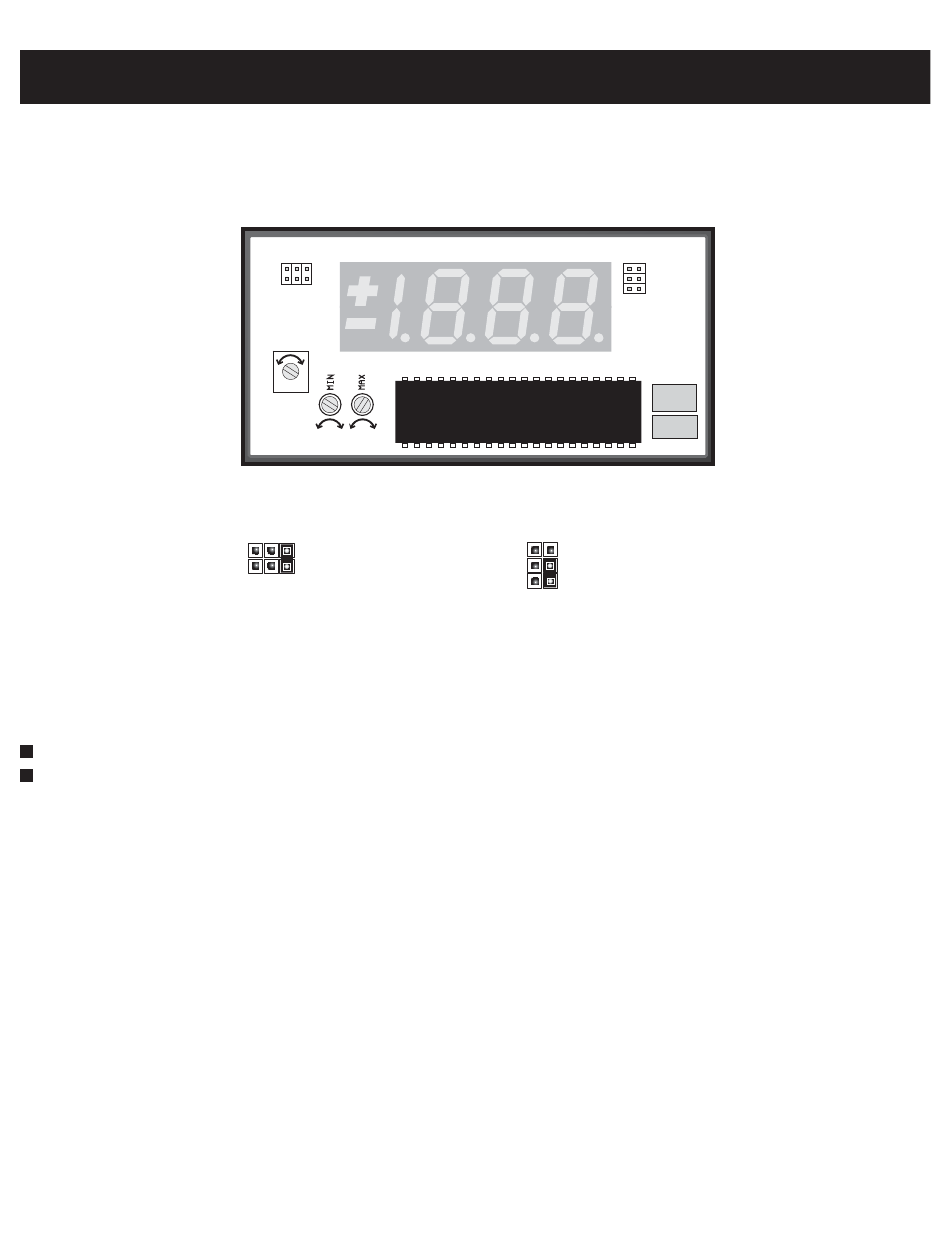

ADJUSTING ELEMENTS
after removing the top cover frame the following settings are accessible
decimal point - may be adjusted by shorting links
P1
setting the display brightness
P2
setting the zero
- in the DC and AC types it does not always have to be fixed
- in the RTD and OHM types this trimmer is used for compensation of conduct resistance
P3
setting the full range
- nastavení zobrazení displeje (cca ±10 %)
X1

setting the decimal point

- by jumper
X2
setting the measuring rate
- by jumper
6
X1
P1
P2 P3
Jumper X1, Decimal point
X.xxx
1 - 1
XX.xx
2 - 2
XXX.x
3
1
3 - 3
X2
Jumper X2, measuring rate
1,2 m/s
1
6
1 - 2
2,5 m/s
5 - 6
3
4
5 m/s
2 - 3
10 m/s
5 - 4
