Summary of Contents for Rose electronics CrystalView USB2

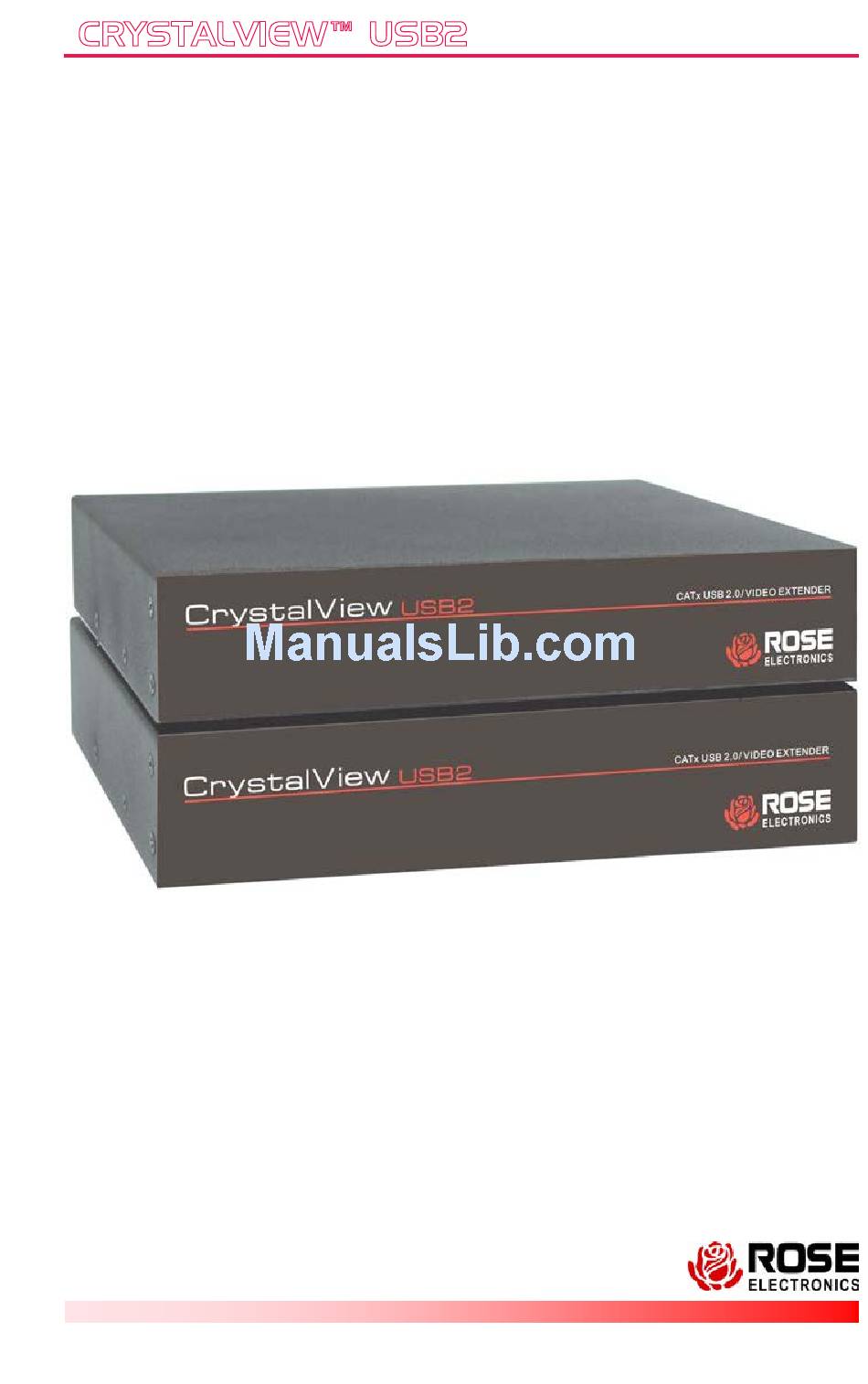

- Page 1 CRYSTALVIEW™ USB2 CATx USB 2.0 / VIDEO EXTENDER INSTALLATION OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 3 LIMITED WARRATY Rose Electronics warrants the CrystalView USB2 to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
-
Page 4: Table Of Contents
System introduction ..................1 Features ....................2 Cable Requirements ................2 Compatibility ..................2 Package Contents ................. 2 Rose Electronics Web Site ..............2 CrystalView USB2 Models ................3 Connectors .................... 3 Installation ....................4 Transmitter installation ................5 Receiver Installation ................5 Transmitter to Receiver installation ............ -
Page 5: Disclaimer
The transmitter and receiver are connected together with up to 150 feet of industry standard CATx cable. When power is applied to the system, the CrystalView USB2 will calculate the video CATx cable length and automatically adjust the equalization and gain. -
Page 6: Features
Installation and Operations manual Rose Electronics Web Site Visit our web site at www.rose.com for additional information on the CrystalView USB2 and other products designed for data center applications, classroom environments, and many other applications. Register your product at www.rose.com/htm/online-registrationform.htm... -
Page 7: Crystalview Usb2 Models
RJ45F LINK x RJ45F LINK USB RJ45F LINK USB RJ45F LINK HOST USB TYPE B USB DEVICES USB TYPE A Audio 3.5mm Audio 3.5mm POWER +5VDC AUX / KB USB TYPE A POWER +5VDC CRYSTALVIEW USB2 INSTALLATION AND OPERATINS MANUAL... -
Page 8: Installation
Installation Please refer to the safety section first before proceeding with any installation or configuration or the CrystalView USB2. It is recommended that the following installation procedure be followed to assure proper cable connections, power up sequencing, and accurate monitor DDC table information is obtained from the connected video monitors. -
Page 9: Transmitter Installation
The first time the system is powered up or a monitor is changed, the below power up sequence should be followed 1. Turn on all video monitors 2. Apply power to the CrystalView USB2 Receiver 3. Apply power to the CrystalView USB2 Transmitter 4. Boot the PCs 5. -
Page 10: Operating Procedure
Power applied to transmitter OK Receiver “Link” LED CAT5 link from transmitter to receiver OK Receiver “Device” LED USB Device connections OK Receiver “Power” LED Power applied to receiver OK Table 2 - LED Indicators CRYSTALVIEW USB2 INSTALLATION AND OPERATINS MANUAL... -
Page 11: Troubleshooting
The Link LED on the transmitter is on, the Host LED is off The transmitter is not connected to the computer The computer does not support USB 2.0 hubs Verify that the Device Manager recognizes the CrystalView USB2 as a generic USB hub •... -
Page 12: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 13: Safety
SAFETY Safety The CrystalView USB2 USB and video extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView USB2 should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 14: Appendix A. General Specifications
USB port Audio Data: Signal level 5V p-p Impedance 47KΩ Connectors 3.5mm stereo jack Transmission 16 bit, 38.4KHz Digitized audio Speakers Powered Environment Operating Temp. 32°F-113°F (0°C-45°C) Humidity 0% - 80% non-condensing CRYSTALVIEW USB2 INSTALLATION AND OPERATINS MANUAL... - Page 16 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
