Summary of Contents for Rose electronics CrystalLink USB-3-2-1 CATx

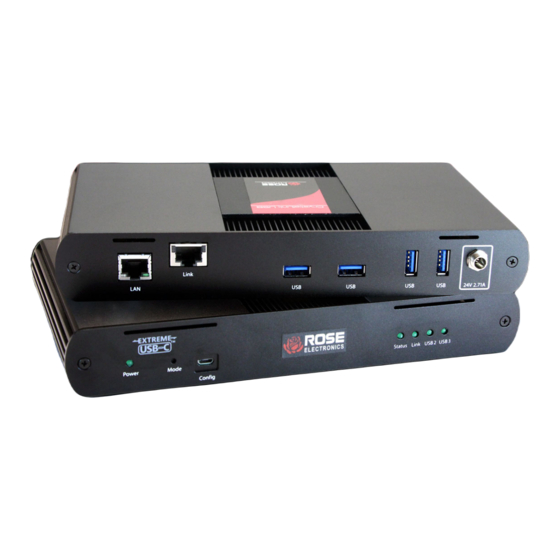

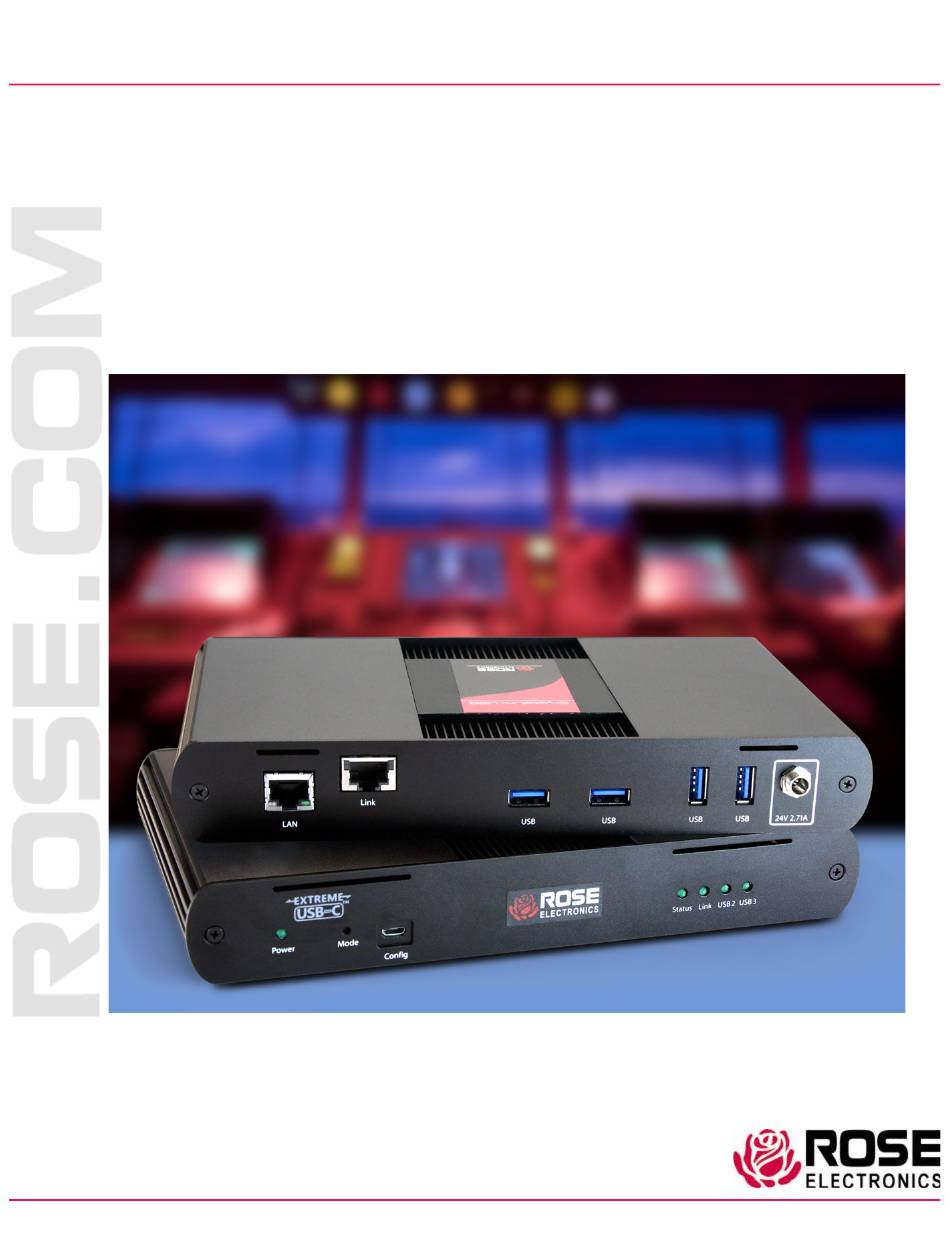

- Page 1 CrystalLink USB-3-2-1 CATx USB3.1/2.0/1.1 CAT6a/7 Extender Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 CrystalLink USB-3-2-1 CATx Extender to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
-
Page 4: Table Of Contents
Checking the Installation Connecting a USB Device Compatibility Ethernet Pass-Through Connection Transmitter and Receiver Mounting Options Option 1: CrystalLink USB-3-2-1 CATx Extender Mounting Bracket Kit Option 2: CrystalLink USB-3-2-1 CATx Extender Mounting Plate Troubleshooting Safety Maintenance and Repair Technical Support Figures Figure 1. -
Page 5: Disclaimer
CATx extender. Additional USB devices can be connected using a powered USB hub. The CrystalLink USB-3-2-1 CATx extension system consists of two units, a transmitter and a receiver. The transmitter connects to your computers’ USB port. The transmitter is linked directly to the receiver using industry standard CAT6a/7 cable and the USB devices connect to the receiver. -
Page 6: Package Contents
Use of UTP/STP/FTP patch-cables may reduce the recommended cable extension distances. Application Examples The CrystalLink USB-3-2-1 CATx is ideal for use with USB3.1 conferencing cameras or in computer room or industrial environments where USB devices need to be connected remotely from a host ■... -
Page 7: Crystallink Usb-3-2-1 Catx Models
MODELS CrystalLink USB-3-2-1 CATx Models The CrystalLink USB-3-2-1 CATx enables users to extend beyond the standard 5m cable limit for USB peripherals by locating high-speed USB device(s) up to 330 feet (100 meters) from the computer. Transmitter Unit The transmitter connects to the host device using the supplied USB3.1 Gen 1 cable. Power for the transmitter is provided by included 24V 1A power adapter. -
Page 8: Receiver Unit
LED is OFF when no USB 2 connection is detected. LED is SOLID ON when an active USB3.1 connection is established through the USB3 LED extender system. LED BLINKS when the USB3.1 connection is suspended/asleep. LED is OFF when no USB3.1 connection is detected. CrystalLink USB-3-2-1 CATx Extender Manual... -
Page 9: Figure 2. Receiver Unit - Led's And Connectors
Accepts RJ45 connector for CAT6a/7 cabling to connect the transmitter to the Link Port (RJ45) receiver Device Ports Accepts all USB devices. (USB3.1 Type A) DC Power Port Locking connector for the included 24VDC 2.71A power adapter Figure 2. Receiver unit – LED’s and connectors CrystalLink USB-3-2-1 CATx Extender Manual... -
Page 10: Installation Procedure
Before beginning an installation, ensure you have all products and components ready for the installation Cabling Requirements The CrystalLink USB-3-2-1 CATx extender requires a minimum grade of Category 6a cabling to be used in order to reach 330ft (100m) of extension distance. For full distance extension, patch cable can be used up to 35ft (10m) only. -
Page 11: Equipment Location
Equipment Location Before installing the CrystalLink USB-3-2-1 CATx extender, you will need to prepare your site and cable distance measurements. ■ Place the computer in the preferred location and set it up. ■ Ensure to locate your USB device(s) within the recommended CAT6a/7 cable-length from the computer. If not, adjust the location of your device(s) and/or computer accordingly. -
Page 12: Installing The Receiver
Check if the USB device is detected by your Operating System. (Note: If your computer does not correctly detect the USB device when it is attached to your computer, then it may not function correctly) CrystalLink USB-3-2-1 CATx Extender Manual... -
Page 13: Connecting A Usb Device
Check that the device is detected and installed properly in the operating system. Compatibility The CrystalLink USB-3-2-1 CATx complies with USB2.0 and USB3.1 Gen 1 specifications governing the design of USB devices. However, there is no guarantee that all USB devices or hosts will be compatible as there are a number of different characteristics that may impact the operation of USB devices over extended distances. -
Page 14: Transmitter And Receiver Mounting Options
USB Extender Mounting Kit (Purchased separately - USB Mounting Kit - Black) USB Extender Direct Surface Mounting (Using your own rack-shelf or tray) Option 1: CrystalLink USB-3-2-1 CATx Extender Mounting Bracket Kit Contents: 2 mounting brackets 4 (M3) locking washers... -
Page 15: Troubleshooting
Cold boot the host computer. computer is defective. Replace the USB3.1 Gen 1 cable with a The host computer’s USB3.1 different cable. controller has malfunctioned. If the problem is not resolved, contact Technical Support. CrystalLink USB-3-2-1 CATx Extender Manual... - Page 16 If the second device does not operate, the extender may be malfunctioning. Contact Technical Support for assistance. If the second device operates as expected, then the first device may not be compatible with this extender. Contact Technical Support. CrystalLink USB-3-2-1 CATx Extender Manual...
-
Page 17: Table 1. Troubleshooting Procedures
Power cycle the unit to return to operation. LEDs are scrolling LEFT to Unit is programming. Wait for the unit to finish programming. RIGHT, starting with STATUS. Table 1. Troubleshooting procedures CrystalLink USB-3-2-1 CATx Extender Manual... -
Page 18: Safety
PRODUCT SAFETY Safety The CrystalLink USB-3-2-1 CATx extender, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. ... -
Page 19: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 20: Appendices
Operating Humidity 20% to 80% relative, non-condensing Storage Humidity 10% to 90% relative, non-condensing FCC Part 15 Class B, CE Class B, ICES-003 Class B, EMC EN55022, EN55024, Approvals EN55032 and EN61000, RoHS2 (CE), WEEE CrystalLink USB-3-2-1 CATx Extender Manual... - Page 21 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
