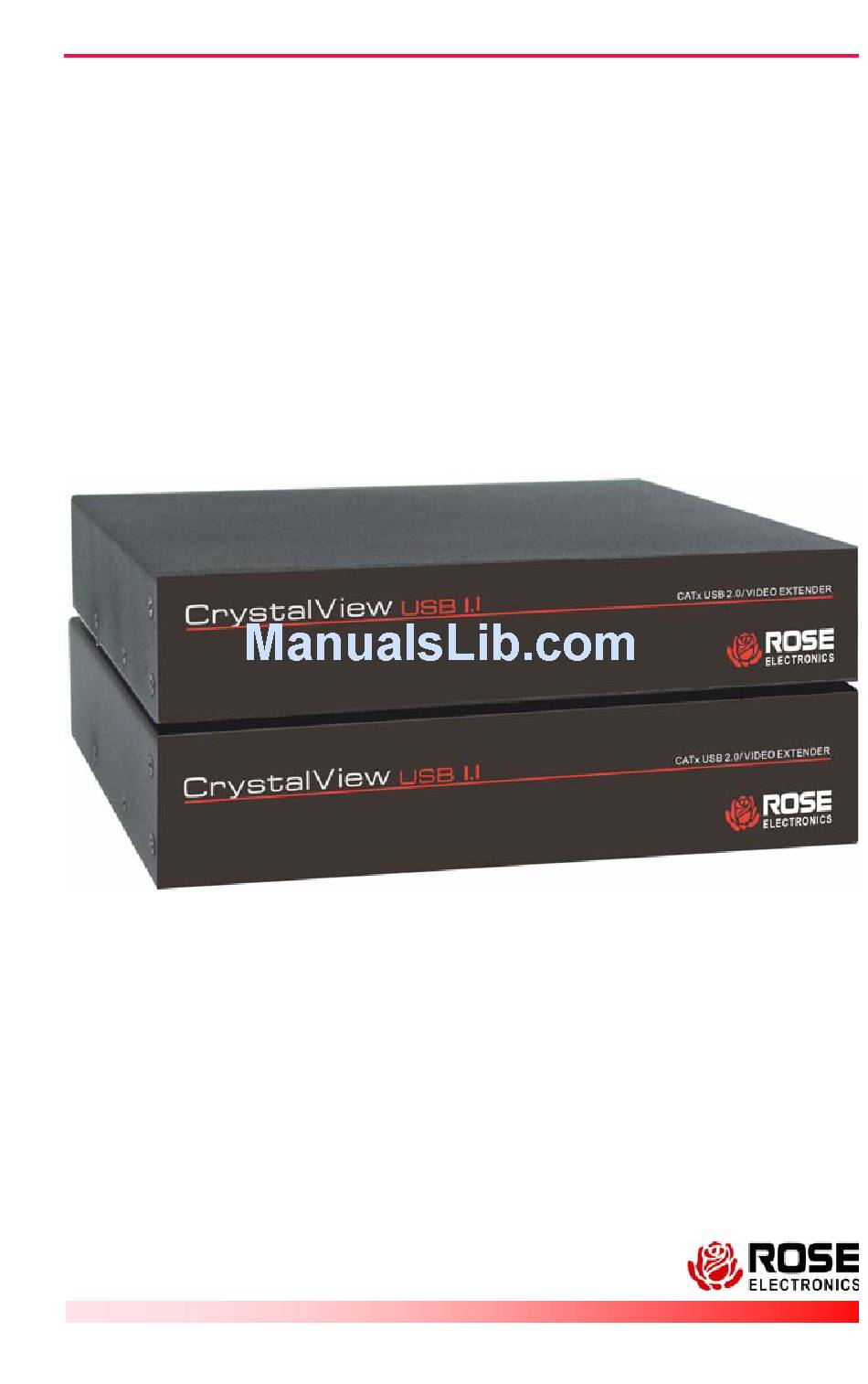

- Page 1 CRYSTALVIEW USB™ 1.1 CATx USB 1.1 / VIDEO EXTENDER INSTALLATION OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 3 LIMITED WARRATY Rose Electronics warrants the CrystalView USB 1.1 to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
-
Page 4: Table Of Contents
Features....................2 Cable Requirements ................2 Compatibility ..................2 Package Contents................. 2 Rose Electronics Web Site ..............2 CrystalView USB 1.1 Models ..............3 Connectors.................... 3 Installation ....................4 Transmitter installation................5 Receiver Installation................5 Transmitter to Receiver installation ............5 Connecting monitor(s) and USB Devices .......... -
Page 5: Disclaimer
Thank you for choosing the Rose Electronics CrystalView USB 1.1. The CrystalView USB 1.1 is a very versatile CATx extender. Single, dual, and quad video and up to four USB devices can be extended up to 330 feet from the controlling computer. A standard USB hub can be connected to increase the number of USB devices. -
Page 6: Features
Installation and Operations manual Rose Electronics Web Site Visit our web site at www.rose.com for additional information on the CrystalView USB 1.1 and other products designed for data center applications, classroom environments, and many other applications. Register your product for future updates at: www.rose.com/htm//pc-online-registration.htm... -
Page 7: Crystalview Usb 1.1 Models
RJ45F LINK x RJ45F LINK USB RJ45F LINK USB RJ45F LINK HOST USB TYPE B USB DEVICES USB TYPE A POWER +5VDC AUX / KB USB TYPE A POWER +5VDC (Video) +12VDC (USB) CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL... -
Page 8: Installation
Installation Please refer to the safety section first before proceeding with any installation or configuration or the CrystalView USB 1.1. It is recommended that the following installation procedure be followed to assure proper cable connections, power up sequencing, and accurate monitor DDC table information is obtained from the connected video monitors. -
Page 9: Transmitter Installation
The first time the system is powered up or a monitor is changed, the below power up sequence should be followed 1. Turn on all video monitors 2. Apply power to the CrystalView USB 1.1 Receiver 3. Apply power to the CrystalView USB 1.1 Transmitter 4. Boot the PCs 5. -
Page 10: Operating Procedure
Power applied to transmitter OK Receiver “Link” LED CAT5 link from transmitter to receiver OK Receiver “Device” LED USB Device connections OK Receiver “Power” LED Power applied to receiver OK Table 2 - LED Indicators CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL... -
Page 11: Troubleshooting
The USB device is not functioning properly The computer does not recognize the USB device The Device application software is not operating Make sure USB device is connected to the USB hub and not the USB aux connection CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL... -
Page 12: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 13: Safety
SAFETY Safety The CrystalView USB 1.1 USB and video extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView USB 1.1 should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 14: Appendix A. General Specifications
100-240 VAC in / +12VDC - 200 ma out Receiver output 500ma per USB output port power at each USB port Environment Operating Temp. 32°F-113°F (0°C-45°C) Humidity 0% - 80% non-condensing Approvals CE Class A CRYSTALVIEW USB 1.1 INSTALLATION AND OPERATINS MANUAL... - Page 16 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
