Rose electronics CrystalLink USB2.0 Dual Port Installation And Operation Manual
Usb2.0 dual port cat5e/6/7 extender
Hide thumbs
Also See for CrystalLink USB2.0 Dual Port:
- Installation and operation manual (18 pages) ,
- Installation and operation manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Rose electronics CrystalLink USB2.0 Dual Port
Summary of Contents for Rose electronics CrystalLink USB2.0 Dual Port
-
Page 1: Operation Manual

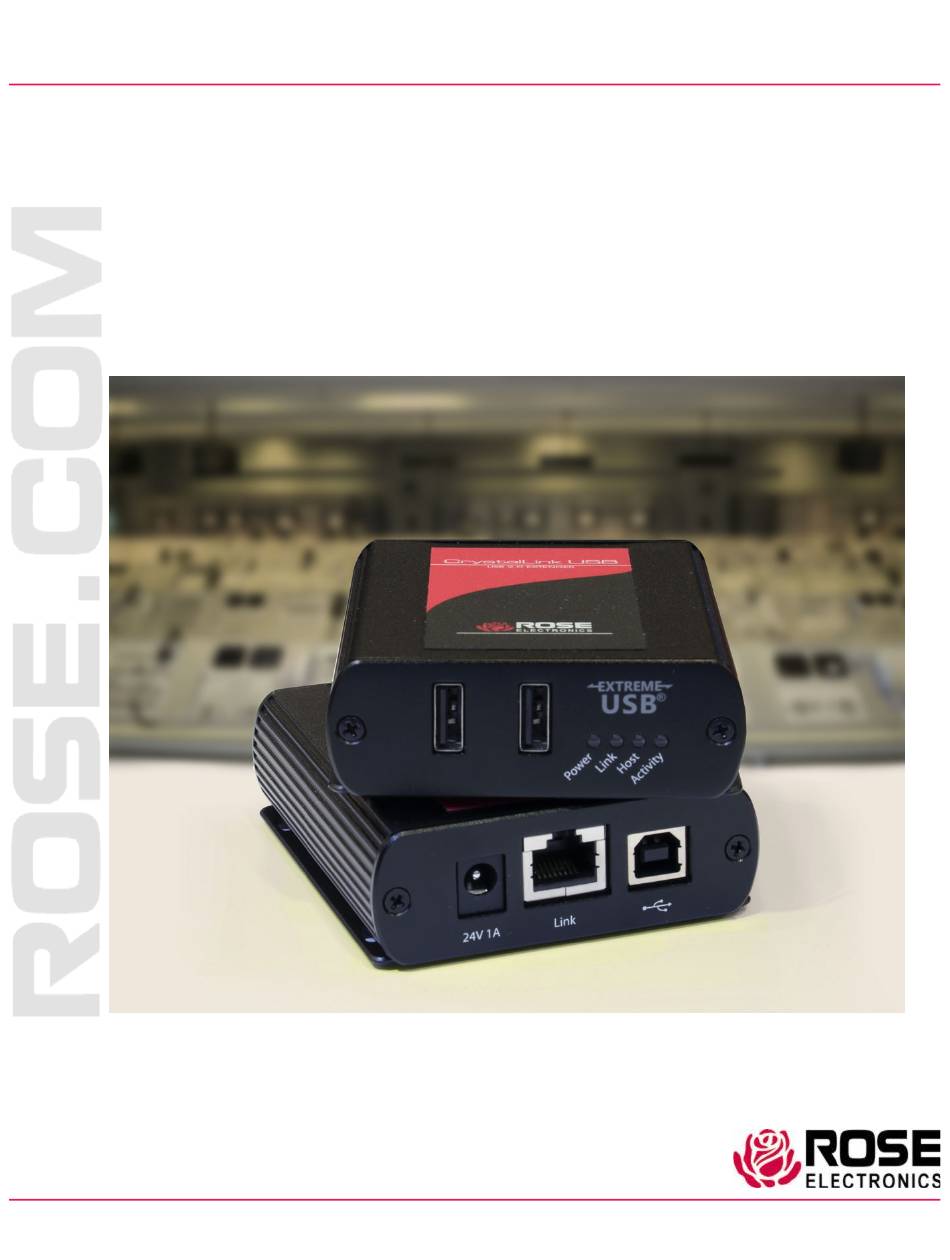

CrystalLink USB2.0 Dual Port USB2.0 Dual Port CAT5e/6/7 Extender Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com... -
Page 2: Limited Warranty
CrystalLink USB2.0 Dual Port Extender to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. -
Page 3: Declarations Of Conformity
DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■... -
Page 4: Table Of Contents
Technical Support Figures Figure 1. Transmitter unit front and rear Figure 2. Receiver unit front and rear Figure 3. CrystalLink USB2.0 Dual Port – standard installation Figure 4. CAT5e/6/7 cable termination pinning Figure 5. Optional CrystalLink mounting bracket Appendices Appendix A — Specifications... -
Page 5: Disclaimer
CAT5e/6/7 cable and the USB devices connect to the receiver. The CrystalLink USB2.0 Dual Port is a unique extender providing the option to apply power at the local or remote unit. The supplied 24V/1A power adapter can be connected to either the transmitter or receiver unit for normal operation. -
Page 6: Package Contents
CAT5e/6/7 specification requirements. Use of CAT5e/6/7 patch-cables will reduce the recommended cable extension distances Application Examples The CrystalLink USB2.0 Dual Port is ideal for use in office or industrial environments, or in computer room environments where USB devices need to be connected at short distances away from a host ■... -
Page 7: Crystallink Usb2.0 Dual Port Models

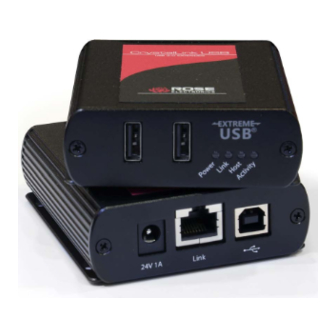

MODELS CrystalLink USB2.0 Dual Port Models The CrystalLink USB2.0 Dual Port enables users to extend beyond the standard 5m cable limit for USB peripherals by locating USB device(s) up to 330 feet (100 meters) from the computer. Transmitter Unit The transmitter connects to the host computer using the supplied standard USB cable. Power for the transmitter is provided by the Host PC. -
Page 8: Receiver Unit
Connects to the AC power supply. Accepts RJ45 connector for CAT 5e/6/7 cabling to connect the local extender to the Link Port (RJ45) remote extender. Mode/Config Reserved for engineering use Figure 2. Receiver unit front and rear CrystalLink USB2.0 Dual Port Manual... -
Page 9: Installation Procedure
100m RX Unit USB2.0 Devices Figure 3. CrystalLink USB2.0 Dual Port – standard installation Determine where the computer is to be located and set up the computer. Determine where you want to locate the remote USB device(s). -
Page 10: Installing Flexible Power
In the left-hand column under Hardware, select “USB” and inspect the right-hand panel. If the CrystalLink Extender has been installed correctly, you should find it listed as a “Hub” under the USB High-Speed Bus/USB Bus. CrystalLink USB2.0 Dual Port Manual... -
Page 11: Compatibility
Open the Start Menu, right click on “Computer”, then select Manage>>Device Manager Compatibility The CrystalLink USB2.0 Dual Port extender complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, Rose Electronics does not guarantee that all USB devices are compatible with the CrystalLink USB2.0, as there are a number of different factors that may impact the operation of USB... -
Page 12: Mounting Option
42.00mm x 62.53mm. Drill four holes into your surface and mount it using proper length M2.5 screws. Note: Do not exceed a screw depth of 3/16” (4.7625mm) into the chassis or damage may occur Figure 5. Optional CrystalLink mounting bracket CrystalLink USB2.0 Dual Port Manual... -
Page 13: Troubleshooting
Extender is malfunctioning. link cable. • Check that the AC adapter is connected to a live source of electrical power. • Contact Technical Support for assistance. CrystalLink USB2.0 Dual Port Manual... -
Page 14: Safety
PRODUCT SAFETY Safety The CrystalLink USB2.0 Dual Port, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. -
Page 15: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 16: Appendices
APPENDICES Appendix A — Specifications Part Numbers Description CLK-2U2TPB-100M/FP CrystalLink USB2.0 Dual Port CAT5e/6/7 Extender RM-UD/CLKU2F Rackmount "L" bracket for mounting TX or RX unit on a shelf, under desk, or flat surface. (Not for 19" rack) CAB-USBAB006 USB-AB cable, 6ft (2.0m) CAB-USBAB010 USB-AB cable, 10ft (3.0m) - Page 17 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
