OWNER'S MANUAL
ELECTRIC COUNTER TILTING ROUND SKILLET
R-1600E
An Employee Owned Company
35 Garvey Street
Everett
MA
02149-4403
Form No. S-6000
03/07
●
●
●
●
Tel: (617) 387-4100
Fax: (617) 387-4456 (MA)
●
Toll Free: (866) 698-3188
Outside MA Fax: (800) 227-2659
●
Customer Service: custserv@mfii.com
Visit Us At: www.mfii.com
●
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Market Forge Industries R-1600E
Summary of Contents for Market Forge Industries R-1600E

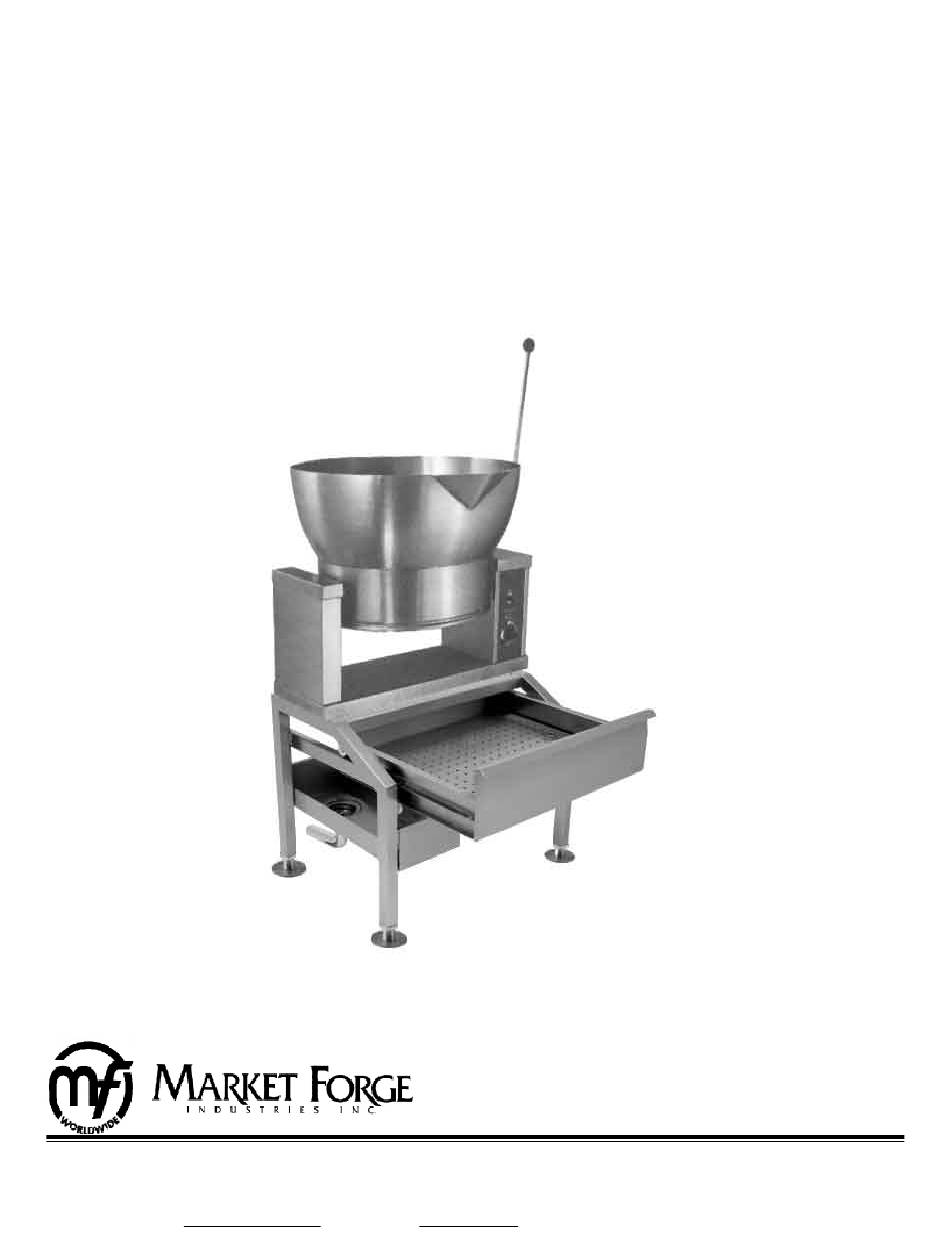

- Page 1 OWNER’S MANUAL ELECTRIC COUNTER TILTING ROUND SKILLET R-1600E An Employee Owned Company 35 Garvey Street Everett 02149-4403 Form No. S-6000 03/07 ● ● ● ● Tel: (617) 387-4100 Fax: (617) 387-4456 (MA) ● Toll Free: (866) 698-3188 Outside MA Fax: (800) 227-2659 ●...
- Page 2 TABLE OF CONTENTS INSTALLATION INSTALLATION ............1 SERVICE CONNECTIONS ........2 DIMENSIONS & SERVICE CONNECTIONS ..2 OPERATION OPERATING INSTRUCTIONS ........3 THERMOSTAT SETTINGS ........3 MAINTENANCE PERIODIC CLEANING ..........3 ADJUSTMENTS ............3 ILLUSTRATED PARTS LIST ELECTRIC SKILLET EXPLODED VIEW ....4 ELECTRIC SKILLET PARTS LIST ......5 INSTALLATION INSTALLATION: nearby.
- Page 3 INSTALLATION SERVICE CONNECTIONS: Electrically Operated: Electrical Characteristics 208V 220V 240V 380V 415V 480V Phase 36.0 34.1 31.3 20.8 19.7 18.1 11.4 10.4 Drain - 1 ” O.D. tubing from tray pan. 29.25" 743mm 3.88" 14.625" 98mm 371mm 6.38" 162mm 6.88" 12.75"...
- Page 4 OPERATION OPERATING INSTRUCTIONS: THERMOSTAT SETTINGS • Insure that the unit has been electrically con- Simmering nected and that circuit breakers are on. Sautéing 225-27 • Place power switch to on position. Searing 300-350 Pan Frying 325-375 • Set the thermostat dial to high (#10). Grilling 9-10 350-425...
- Page 5 ILLUSTRATED PARTS LIST...
- Page 6 ILLUSTRATED PARTS LIST PART ITEM DESCRIPTION QTY. 97-5995 COVER ASSEMBLY 97-5996 PAN ASSEMBLY 97-5337 KNOB, RED 97-5778 HANDLE 97-5116 ACORN NUT 97-5997 BEARING ** 7 97-5998 ELEMENT, 2.5 KW, 208V 97-5999 ELEMENT, 2.5 KW, 220V (380V) 97-6000 ELEMENT, 2.5 KW, 240V (415V) 97-6001 ELEMENT, 2.5 KW, 277V (480V) 97-6002...
