Market Forge Industries ETP-5E Parts And Service Manual

Eco-tech plus electric convection steamer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ETP-5E & ETP-10E
ECO-TECH
PLUS
®
ELECTRIC CONVECTION STEAMER
PARTS AND SERVICE MANUAL
EFFECTIVE NOVEMBER 1, 2016
Superseding All Previous Parts Lists.
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
MARKET FORGE INDUSTRIES
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
www.mfii.com
P/N 14-0283 Rev B (10/16)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETP-5E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Market Forge Industries ETP-5E

Summary of Contents for Market Forge Industries ETP-5E

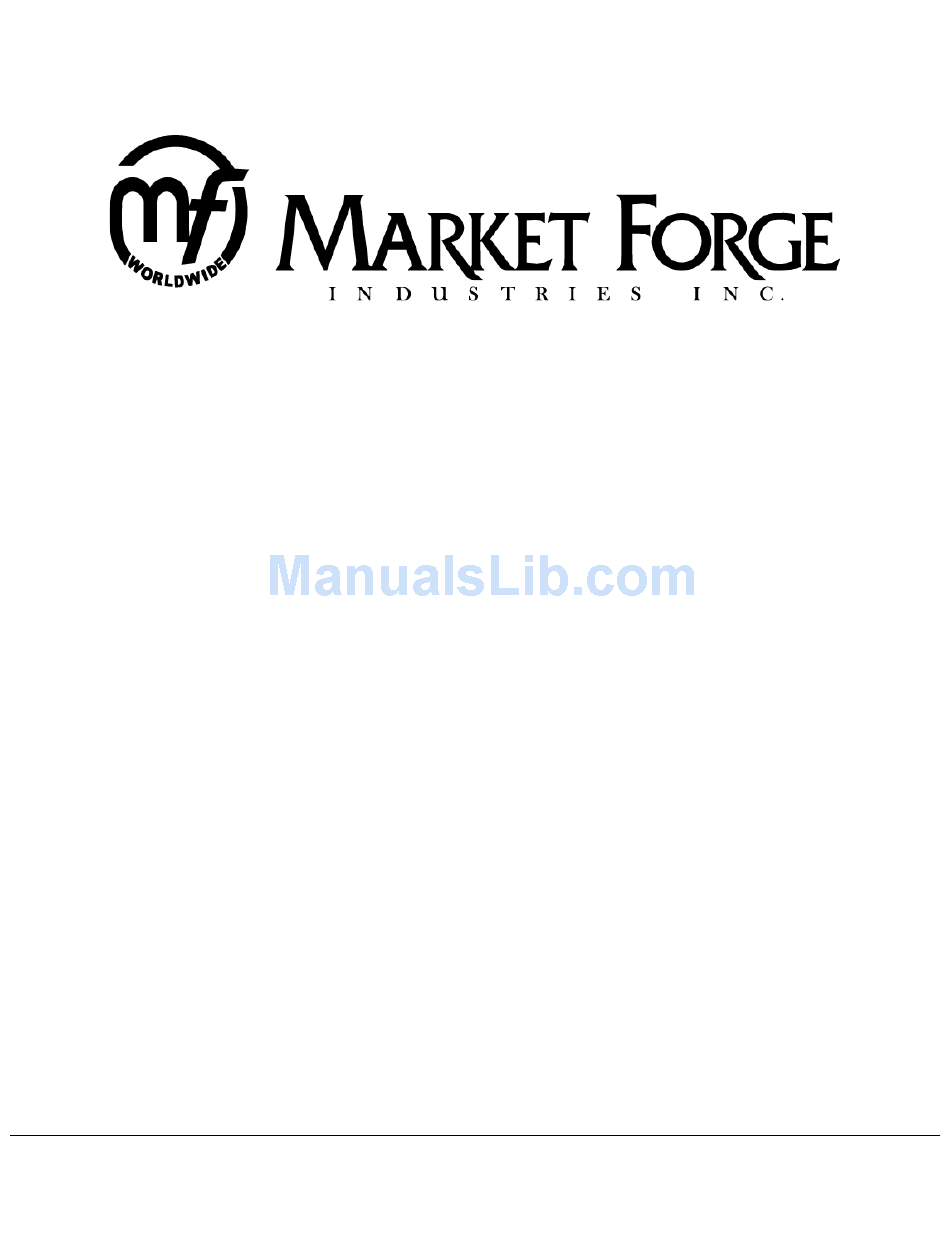

  • Page 1 ETP-5E & ETP-10E ECO-TECH PLUS ® ELECTRIC CONVECTION STEAMER PARTS AND SERVICE MANUAL EFFECTIVE NOVEMBER 1, 2016 Superseding All Previous Parts Lists. The Company reserves the right to make substitution in the event that items specified are not available. ERRORS: Descriptive and/or typographic errors are subject to correction.

  • Page 2: Table Of Contents

    ALTERNATE FILTER SYSTEM ............23 NOVEMBER 1, 2016 ETP-5E & ETP-10E...

  • Page 3: General Troublshooting Guide

    GENERAL TROUBLSHOOTING GUIDE PROBLEM PROBABLE CAUSE REMEDY Cooking indicator light fails to a. Main power circuit breaker tripped. a. Locate external circuit breaker for light with Timer set. incoming power and place in ON b. Door interlock switch contacts not position.
  • Page 4 GENERAL TROUBLSHOOTING GUIDE PROBLEM PROBABLE CAUSE REMEDY Door leaks. a. Damaged door gasket. a. Check gasket for cuts and replace if necessary. b. Clogged compartment drain or plumbing. b. Remove screen and clean drain line or plumbing. Water flows into cooking com- a.

  • Page 5: Electrical Fault Isolation Guide

    ELECTRICAL FAULT ISOLATION GUIDE FAILURE FAULT LOCATION 1. WILL NOT OPERATE IN EITHER HOLD OR 60-MINUTE TIMER POSI- a. Incoming power TIONS. b. Timer c. Door interlock switch d. Wiring 2. OPERATING IN HOLD POSITION BUT NOT IN 60-MINUTE TIMER a.

  • Page 6: Troubleshooting

    TROUBLESHOOTING TIMER MOTOR INDICATOR LIGHTS A defective timer motor will cause continuous operation in If the cooker compartment functions correctly, with the the TIME mode, with the timer dial failing to return to the single exception that the indicator light fails to light during “0 - Minute”...

  • Page 7: Adjustments

    ADJUSTMENTS EXTERIOR PANEL REMOVAL WARNING At least twice a year, have an authorized WARNING service person clean and adjust the unit for To prevent hazard in servicing the cooker, be maximum performance. certain the cold water shut-off valve is closed, and the electrical disconnect circuit breaker ADJUSTMENT FOR HIGH ALTITUDE LOCATIONS for the Cooker unit is OFF before removing...

  • Page 8: Wiring Diagrams

    WIRING DIAGRAMS...
  • Page 9 WIRING DIAGRAMS...
  • Page 10 WIRING DIAGRAMS...
  • Page 11 WIRING DIAGRAMS...
  • Page 12 WIRING DIAGRAMS...
  • Page 13 WIRING DIAGRAMS...

  • Page 14: Steamer Exploded View

    STEAMER EXPLODED VIEW NOVEMBER 1, 2016 ETP-5E & ETP-10E...
  • Page 15 Fuse (208 - 240V) 98-6188 Fuse (380 - 600V) 97-6186 Fuse, (220/380V, 240/465V) 97-5052 Grounding Lug 97-6481 Hose Clamp 97-6434 Upper Tubing, Silicone, 5/8" ID x 13/16" OD x 30 Lg NOT SHOWN SELECT AS REQUIRED NOVEMBER 1, 2016 ETP-5E & ETP-10E...
  • Page 16 10-6962 Terminal Block, White 97-6586 Terminal Block Rail, 3" 10-6962 Terminal Block (380/220V, 415/240) Rail 3.75L 98-6186 Terminal Block End, White 97-6587 Brass Hose Barb, 5/8" x ½" NPT NOT SHOWN SELECT AS REQUIRED NOVEMBER 1, 2016 ETP-5E & ETP-10E...
  • Page 17 Pressure Switch Bracket See Component Panel page 97-6446 Tubing, Silicone, 1/4" ID x 8" Long 97-6596 Brass Hose Barb, 1/4" x 1/8" MPT 97-6447 Brass Hose Barb, 1/4" x 1/8" MPT NOT SHOWN SELECT AS REQUIRED NOVEMBER 1, 2016 ETP-5E & ETP-10E...
  • Page 18 Hold Thermostat, 175°F ** * See Component Panel page See Component Panel page See Component Panel page Truss, HD Screw #10-32 UNF x 1/2 12 Amp Power Relay, DPDT 220V NOT SHOWN SELECT AS REQUIRED NOVEMBER 1, 2016 ETP-5E & ETP-10E...

  • Page 19: Component Panel

    WATER LEVEL BOARD - 240V - 1M Ohm 08-6502 WC PRESSURE SWITCH 92-0189 RELAY 97-6600 TIME DELAY RELAY - 240V - OPERATING 97-5610 CONTACTOR - 240V 97-5048 THERMOSTAT, PREHEAT 97-6581 TIME DELAY RELAY - 240V - COOLING NOVEMBER 1, 2016 ETP-5E & ETP-10E...

  • Page 20: Cabinet Assembly

    CABINET ASSEMBLY NOVEMBER 1, 2016 ETP-5E & ETP-10E...
  • Page 21 97-6540 Manifold Assembly with Check Valve and Tee Fitting 97-6541 Elbow, 3/8" C to 3/8" MPT, Nylon 97-6542 Bushing, 3/4" to 3/8", Nylon 97-6543 Bushing, 3/4" to 1/2", Nylon 97-6544 Nipple, 1/2" NPT, Nylon NOVEMBER 1, 2016 ETP-5E & ETP-10E...
  • Page 22 Connector, 3/8" C to 3/8" Nylon ~NPN~ Tubing, 3/8" O.D. x 8" Long, Copper 08-8020 Filter, Large (* See Item 42). 08-8008 Filter, Small, Scale Inhibitor(* See Item 42) 97-6411 Drain Collector 08-8052 * Kit, Filter Replacement Cartridges NOVEMBER 1, 2016 ETP-5E & ETP-10E...

  • Page 23: Alternate Filter System

    Tee, CUNO SF-18-S, Scale Feeder 08-8059 CUNO Pressure Gauge 97-6542 Reducing Nipple, Nylon, 3/4 x 3/8 NPT 97-6543 Reducing Nipple, Nylon, 3/4 x 1/2 NPT 08-8052 CUNO Filter Cartridge Kit (Includes HF-40 and HF8-S) NOVEMBER 1, 2016 ETP-5E & ETP-10E...
