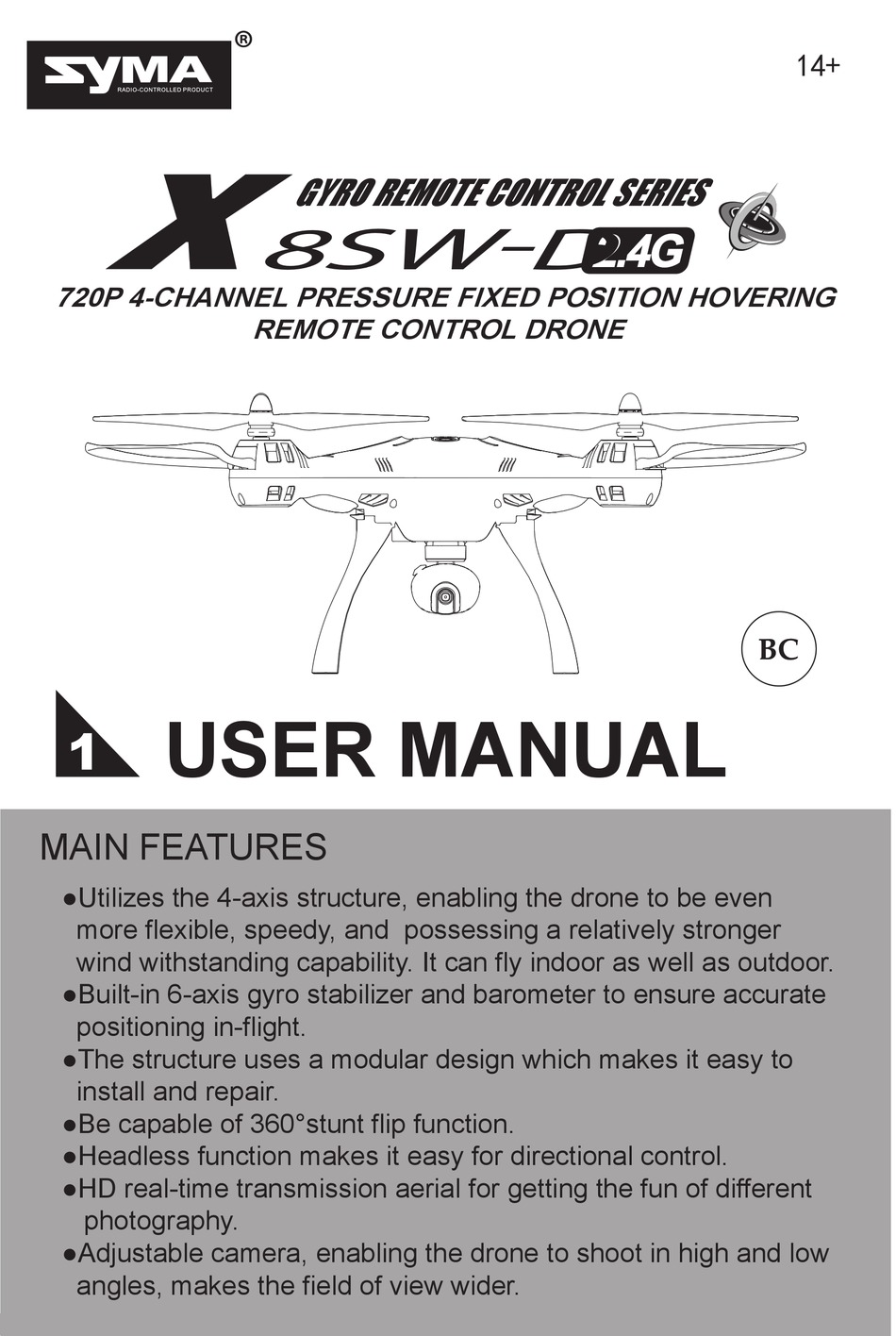

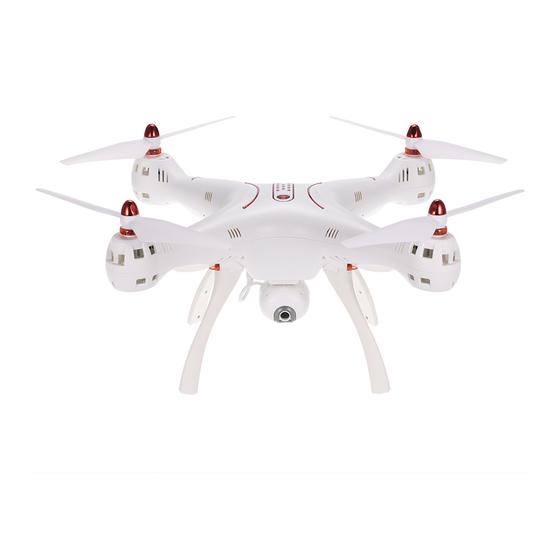

720P 4-CHANNEL PRESSURE FIXED POSITION HOVERING
USER MANUAL
MAIN FEATURES
●Utilizes the 4-axis structure, enabling the drone to be even
more flexible, speedy, and possessing a relatively stronger
wind withstanding capability. It can fly indoor as well as outdoor.
●Built-in 6-axis gyro stabilizer and barometer to ensure accurate
positioning in-flight.
●The structure uses a modular design which makes it easy to
install and repair.
●Be capable of 360°stunt flip function.
●Headless function makes it easy for directional control.
●HD real-time transmission aerial for getting the fun of different
photography.
●Adjustable camera, enabling the drone to shoot in high and low
angles, makes the field of view wider.
GYRO REMOTE CONTROL SERIES
8SW D
REMOTE CONTROL DRONE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GYRO REMOTE CONTROL SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for SYMA GYRO REMOTE CONTROL SERIES

Summary of Contents for SYMA GYRO REMOTE CONTROL SERIES

  • Page 1 GYRO REMOTE CONTROL SERIES 8SW D 720P 4-CHANNEL PRESSURE FIXED POSITION HOVERING REMOTE CONTROL DRONE USER MANUAL MAIN FEATURES ●Utilizes the 4-axis structure, enabling the drone to be even more flexible, speedy, and possessing a relatively stronger wind withstanding capability. It can fly indoor as well as outdoor.

  • Page 2: Safety Guide

    Safety Guide 1.Please store the smaller-sized drone accessories in places that are out of reach of children. 2.This drone is very powerful. For all first-time flights, the left joystick must be slowly pushed up in order to prevent the drone from ascending too fast to avoid unnecessary collision and possible damage and injury.

  • Page 3: Package Description

    Package Description The following items can be found in this product package: ●Drone ●Wrench ●Remote Control ●Charger GYRO REMOTE CONTROL SERIES 8SW D ●User Manual ●4 Blades 4-CHANNEL PRESSURE FIXED POSITION HOVERING REMOTE CONTROL DRONE ●Screwdriver ●Card Reader USER MANUAL ●4 Protective Gears...
  • Page 4 3. Attach blade cover as shown. Dismantling of blade: 1. Remove the blade cover as shown. 2. Use a wrench to fasten the hexagonal nut under the base of the main axis, then press blade A onto the axis. Turn the blade clockwise to loosen it.
  • Page 5 Installation and Dismantling Methods of Mobile Phone Retaining Clip Mobile phone retaining clip’s attachment method: 1.Insert the phone clip holder 2.Press the handles to adjust into the connector at the top the jaws. of the remote control. Phone clip holder dismantle: 1.Push the phone clip holder upwards from behind the remote control.
  • Page 6 4.After charging completed, replace the battery into the drone. The charging time is about 150 minutes, hover flight time is approximately 9 minutes. Precautions as follows during charging of battery: - Avoid placing the active batteries in places with direct exposure, sunlight and high temperatures.

  • Page 7: Battery Installation For Remote Control

    Down adjustment Video 360°Stunt flip camera angle Photo Auto take-off Upper adjustment and landing camera angle Battery installation for remote control: Battery cover 4 x AA Batteries Battery Installation Method: Open up the battery cover at the back of the remote control.

  • Page 8: Overcurrent Protection

    2.Over-Current Protection: When the drone encounters direct impact from a foreign object, or is obstructed, or the blades are not rotating, the drone will go into the over-current protection mode. 3.Level Calibration Function: Place the drone on a level surface and at the same time, push both left and right joysticks to the lower right corners for 2 to 3 seconds;...
  • Page 9 6.Auto Hover Function: After using the left joystick (throttle) to control the ascending/descending flight of the drone, release the left joystick (throttle) and the drone will hover at that height when the joystick is released. Front Left Right Back...
  • Page 10 Visit www.symatoys.com using your Android phone or scan the QR code to download and install the SYMA FPV APP. For iOS Apple/Android phones, download and install the SYMA FPV App by visiting the App Store/Google Play or by scanning the QR code.

  • Page 11: Flight Preparation

    ●Open the SYMA FPV App, click the “START” icon to enter the control interface. The phone's screen will display real-time images. A full bar in the signal strength icon indicates the strongest possible signal. Open the SYMA FPV App. Tap the “START” icon.
  • Page 12 Step 2:Install the battery pack in drone. Step 3:Press the power button of the drone for 1-2 seconds to power on the drone. Step 4:Push the left joystick (throttle) up to the highest point and then pull down to the lowest point. When the indicator lights in the drone change from quick flashing to the continuous lighting, it means that...

  • Page 13: Direction Control

    3. Turning off the drone Method 1:Push the left joystick (throttle) to the lowest level and hold for 2 to 3 seconds, the drone can then be turned off. Method 2:Push the left and right joysticks to the bottom inner corners for 1 second, and the drone can be turned off.

  • Page 14: Trimming Operation

    Left turning and right turning Left side flying and right side control flying control When the left joystick (throttle) is When the right joystick (rudder) is pushed towards the left or right, pushed towards the left or right, the drone will turn left or right the drone will fly sideways on the correspondingly.
  • Page 15 This device must not be collocated or operating in conjunction with any other antenna or transmitter.” Decoration of Conformity lnserts: “Hereby, GuangDong Syma model aircraft lndustrial co.,ltd, declares that this drone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.”...
  • Page 16 Accessories /Parts List (Optional) You can choose your favourite optional accessories as below. In order to make it easier for the customers to choose and purchase, we have specially offered each and every accessory. The accessories can be purchased through the local distributors.

  • Page 17: Product Descriptions

    Receiver Board Mobile Phone Remote Control Retaining Clip Product Descriptions Product Name Qty. Product Name Qty. Top Main Body Blade cover Bottom Main Body Gear Blade(Clockwise Direction) Main Stand Receiver Board Blade(Counterclockwise Direction) Protective Gear Receiver Board Case Battery Light Board (green) Motor(Clockwise Direction) Light Board (red) Motor(Counterclockwise Direction)

  • Page 18: Main Specifications

    Main Specifications Drone’s Length: 50cm Drone’s Width : 50cm Drone’s Height: 19cm Motor’s Model : 132 Battery : 7.4V/2000mAh lithium battery Rectification Procedures Problem Reason Solution 1. The drone has entered into The drone low-voltage protection. 1. Charge up the drone. has no 2.
  • Page 19 Problem Reason Solution 1.Re-define the front In the headless direction. For further state, it is biased 1.Many collisions may cause details, see No. 7 towards the front head drift. Page 8 for details direction (Headless function). 1.Re-adjust the calibration until the drone is level to the ground.
  • Page 20 QR code for android QR code for apple system iOS system Manufacturer Guangdong Syma Model Aircraft Industrial Co., Ltd. The Crossing of No.2 West Xingye Road and North Xingye Road,Laimei. Industrial Park Chenghai District Shantou City Guangdong China. Contact person：SYMA Telephone：+86 0754 86381898 The company has the right of final interpretation of this instruction manual statement.
